Acquiring a Plywood Press Machine goes beyond a simple equipment purchase. You are making a highly critical infrastructure decision for your facility. This choice directly impacts your production cycle times, daily yield rates, and long-term operational overhead. Many manufacturers misalign press specifications like pressure distribution, platen layers, and heating mechanisms with their actual production volume. Such mismatches consistently cause delamination defects, wasted energy, and severe production bottlenecks on the factory floor. You risk losing thousands of dollars daily when your core equipment fails to meet specific output requirements. We designed this article to give you a clear, engineering-aligned evaluation framework. You will compare different machine types, analyze true lifecycle expenses, and streamline your final procurement decision. We will help you navigate this complex market confidently and secure the best return on investment.
Production Speed vs. Capital: Hydraulic hot presses drastically reduce curing time compared to cold presses, but require higher initial CapEx and stable thermal infrastructure.
Application-Specific Scaling: Specialized requirements (e.g., curved furniture components or high-density bamboo) dictate the necessity of high-frequency or custom-tonnage presses.
TCO Realities: The upfront "Plywood press machine price" is only 40% of the lifecycle cost; energy efficiency, platen maintenance, and hydraulic fluid management make up the rest.
New vs. Used: Used equipment offers short-term savings but carries hidden risks in hydraulic cylinder wear and platen warping that must be rigorously inspected.
Operators use these machines primarily for initial veneer consolidation. They press glued veneers together at ambient temperatures. This action removes excess air trapped between layers. It effectively prevents core shifting before the panels enter the hot pressing stage. By locking the veneers temporarily, you ensure better alignment. When operators consolidate panels early, they also prevent glue from drying out unevenly. This step saves adhesive costs over time.
These units boast much lower energy consumption than their heated counterparts. However, they require significantly longer cycle times. You often need 30 minutes or more per batch. Ambient room temperature and your specific adhesive chemistry heavily dictate this duration. Slower curing limits overall daily throughput.
Small shops find them perfect for low-volume custom operations. Large factories utilize them differently. They serve as a necessary pre-treatment stage in high-yield automated lines. Pre-pressing allows automated loaders to handle panels easier later on.
This equipment utilizes simultaneous heat and hydraulic pressure. It forces veneers together while applying intense thermal energy. This combined action cures thermosetting adhesives rapidly. Moisture evaporates quickly from the glue lines. The wood fibers bond on a molecular level under these conditions. Operators rely on advanced PLCs to monitor exact temperatures. The machine senses minor pressure drops and automatically triggers hydraulic pumps to compensate. This keeps the clamp force perfectly stable.
The addition of heat reduces curing cycles to mere minutes. You must conduct a thorough analysis of available heating media. Thermal oil, steam, or electrical elements offer different advantages. Thermal oil provides excellent uniform heat distribution across large surfaces. Steam heats up faster but requires complex boiler maintenance.
You need this technology for high-volume commercial manufacturing. It guarantees the strict moisture control required by international building standards. It produces the structural grade bonding necessary for construction materials. If you manufacture export-grade panels, this machine remains absolutely indispensable.
Below is a rapid reference table comparing the primary operational differences between cold and hot pressing units.
Feature | Cold Press Machines | Hydraulic Hot Press Machines |
|---|---|---|
Primary Function | Air removal, veneer consolidation | Final adhesive curing, moisture control |
Energy Consumption | Low (Hydraulic pumps only) | High (Heating media + hydraulics) |
Cycle Time | 30 - 60+ minutes | 3 - 10 minutes |
Role in High-Volume Lines | Pre-treatment stage | Final production stage |
This equipment utilizes dielectric heating technology. It acts much like a giant commercial microwave. High-frequency waves agitate water molecules inside the wood and glue. This friction cures the glue from the inside out. The outer platens remain relatively cool during the process. Thick wooden blocks take hours to heat conventionally. High-frequency waves penetrate deep instantly. The moisture inside the wood acts as a natural conductor.
It proves essential for manufacturing curved plywood. You can create ergonomic furniture parts easily. Complex structural forms become possible without risking surface scorching. Traditional hot pressing often burns the outer veneers before curing the inner core. High-frequency technology eliminates this exact problem entirely.
Manufacturers engineer these units using massively reinforced frames. They include higher tonnage cylinders to generate extreme clamping force. Specialized designs, like bamboo plywood press engineering, often inform these robust builds. Bamboo density requires immense crushing force to flatten nodes. Standard presses would warp permanently under such stress. Engineers use finite element analysis to design these massive structures. They utilize much thicker steel plates and larger hydraulic reservoirs.
The rigid construction completely prevents frame deflection. You need this extreme rigidity when pressing high-density composites. Large-format architectural panels also demand absolute structural stability. Any bending in the frame causes uneven thickness across the finished panel. These heavy-duty models guarantee perfect dimensional tolerances.
You must calculate the required specific pressure (kg/cm²) accurately. Base this calculation on your specific wood species and panel size. Hardwoods resist compression much more than softwoods. Insufficient pressure creates localized weak spots in the panel. Operators must adjust the hydraulic tonnage based on the total surface area being pressed. Uniform pressure guarantees consistent glue line thickness and prevents panel rejection.

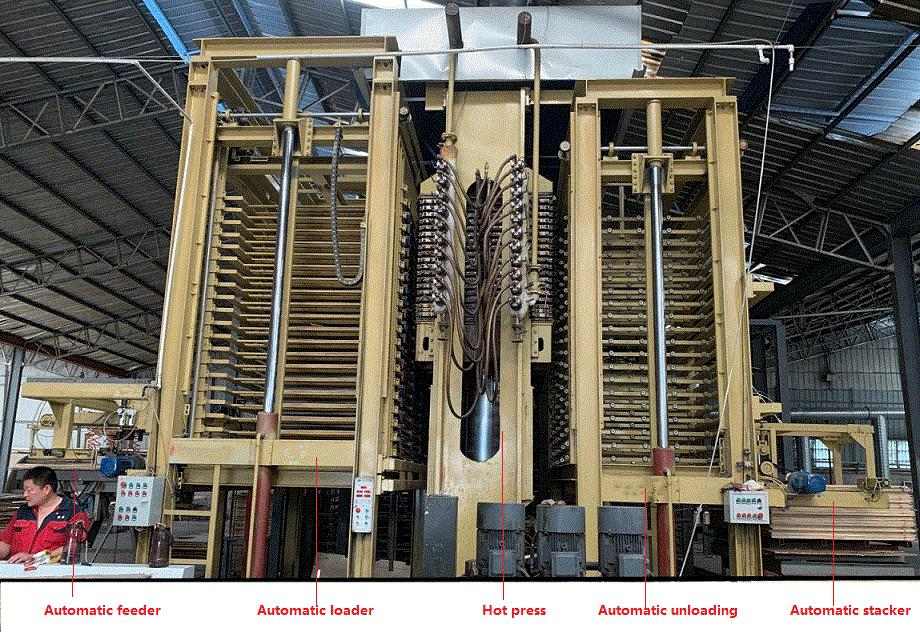

Evaluating throughput capacity requires careful logistical thought. Compare the footprint of a 15-daylight machine versus a massive 50-daylight machine. A larger machine produces more boards per cycle. However, you must factor in your loading and unloading automation requirements. Manual loading fails completely on machines exceeding 15 daylights. The glue will begin pre-curing on lower levels before you finish loading the top layers.
Assess the main hydraulic pump quality first. Valve responsiveness dictates how smoothly the platens close. Look closely at the cylinder sealing technologies utilized. Frame this entire evaluation around downtime prevention. A blown main cylinder seal stops your entire production line immediately. High-quality European or Japanese hydraulic components often justify their higher price tags by preventing unexpected failures.
We must discuss the critical importance of solid steel drilled platens. Manufacturers drill precise labyrinth channels through solid steel blocks. These channels ensure superior heat retention and fluid flow consistency. Avoid cheaper welded alternatives whenever possible. Welded platens often warp under continuous thermal stress. Cheaper platens suffer from hot and cold spots. Cold spots leave the glue uncured. Hot spots over-dry the wood, causing brittle panels. Warped heating plates ruin your panel thickness tolerances permanently.
You must break down the base machine costs clearly. Look beyond the sticker price. Calculate complex shipping logistics for heavy machinery. Ocean freight and inland heavy-haul trucking add massive expenses. Do not forget the heavy crane rental costs. Installing a fifty-ton machine requires specialized rigging crews. These crews charge premium daily rates. You must also include specialized foundation work and installation engineering fees. Deep concrete pits are often required for large hydraulic cylinders.
Build accurate energy consumption models early on. Focus heavily on overall heating efficiency. Map out strict hydraulic fluid replacement schedules. Calculate the automation-driven labor reductions if you purchase automatic loading systems. Cheaper machines often consume substantially more electrical power. This hidden inefficiency drains your profitability month after month.
The secondary market offers immediate equipment availability. This helps bypass long factory lead times. You naturally get a much lower initial price point. However, severe hidden risks exist. Hidden metal fatigue often plagues older welded frames. Internal thermal fluid channels might be compromised by dense carbon buildup. Degraded hydraulic seals will cause inevitable pressure drops during curing cycles.
Follow this mandatory 3-point inspection checklist for buyers considering the secondary market:
Test all hydraulic cylinders for micro-leaks while holding maximum load for thirty minutes.
Measure overall platen parallelism cold and hot using precise magnetic dial indicators.
Inspect internal thermal oil channels using boroscopes to detect severe carbon blockages.
Step 1: Capacity Mapping: Align the machine’s daily output capabilities with your existing bottlenecks. A fast press does nothing if your veneer dryers cannot keep up. Map out your gluing line speeds. Ensure the new press harmonizes with your entire production flow perfectly.
Step 2: Material & Adhesive Compatibility: Ensure maximum temperature and pressure limits exceed your technical requirements. Read the data sheets of your chosen resins carefully. Phenolic resins require higher curing temperatures than Urea-formaldehyde. Your new machine must reach and sustain these peak temperatures effortlessly.
Step 3: Facility Constraints: Audit your existing power grids immediately. High-capacity presses draw massive electrical loads upon startup. Check your boiler capacities if you plan on using steam or thermal oil. Verify your factory floor load-bearing limits before finalizing a heavy-duty model.
Step 4: Vendor Compliance & Support: Evaluate CE and ISO certifications rigorously. Check spare parts availability in your specific geographical region. Review all warranty terms closely for hidden exclusion clauses. A robust local service network prevents catastrophic prolonged downtime.
The best equipment seamlessly balances your upfront cost with long-term reliability. Unwavering yield consistency determines your ultimate profitability. You must view this equipment as the beating heart of your factory. A poorly chosen press drags down every other department.
We strongly recommend prioritizing uniform pressure distribution and premium platen quality. These factors outweigh raw daylight numbers significantly. This proves especially true if you are producing structural or export-grade plywood. Better boards command higher market prices and build brand reputation.
Encourage your engineering team to compile daily volume targets today. Document your exact material specs and physical plant constraints thoroughly. Complete this vital homework before requesting technical consultations or official quotes from manufacturers.
A: Commercial units typically last 15 to 20 years or more. Heavy steel frame longevity far outlasts wearable parts like seals and hoses. You must implement a rigorous preventive maintenance schedule to achieve this lifespan. Regular hydraulic fluid changes, timely seal replacements, and daily platen cleaning prevent catastrophic frame damage. Well-maintained machines hold excellent resale value on the secondary market.
A: Thermal oil maintains much higher temperatures at significantly lower system pressures. This drastically improves both facility safety and heat distribution uniformity across the platens. Steam systems require high-pressure boilers, which carry heavier regulatory compliance and maintenance burdens. Thermal oil provides a smoother, more consistent cure for advanced thermosetting resins, resulting in fewer rejected boards and better moisture control.
A: Yes, provided the press features highly precise, adjustable pressure controls. You need a programmable PLC system to manage and store different production recipes. Structural boards require sustained high tonnage to compress thick cores. Thin decorative veneers need delicate, low pressure to prevent glue bleed-through to the surface. Advanced hydraulic valving makes this operational versatility possible.
A: Buyers often overlook substantial import duties and port taxes. Specialized rigging and heavy-haul transportation from the port add significant expenses. You may also face local compliance modifications, requiring you to upgrade electrical panels to meet regional safety codes. Finally, you must factor in international commissioning fees, translation services, and travel costs for the manufacturer’s installation technicians.
