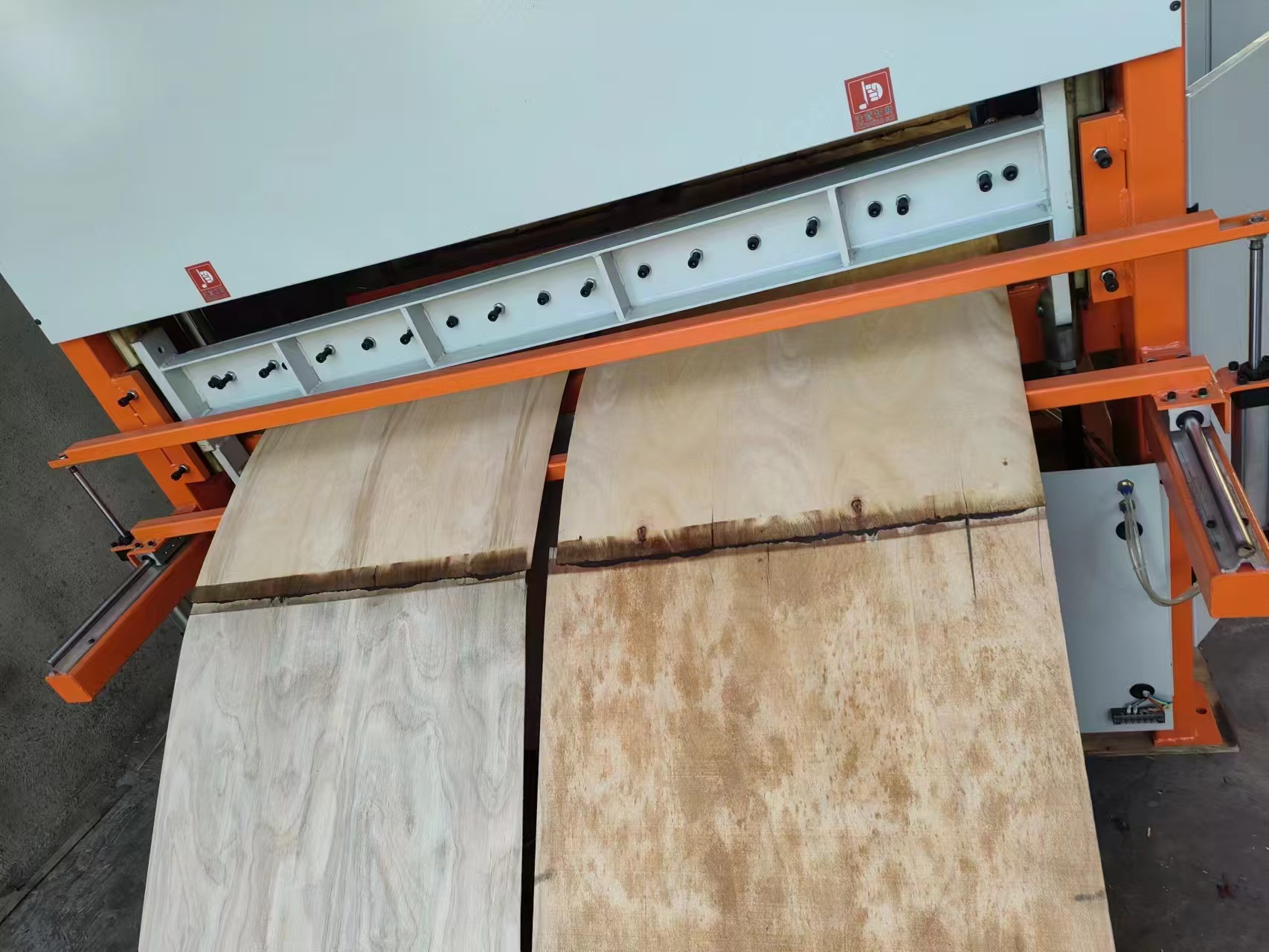

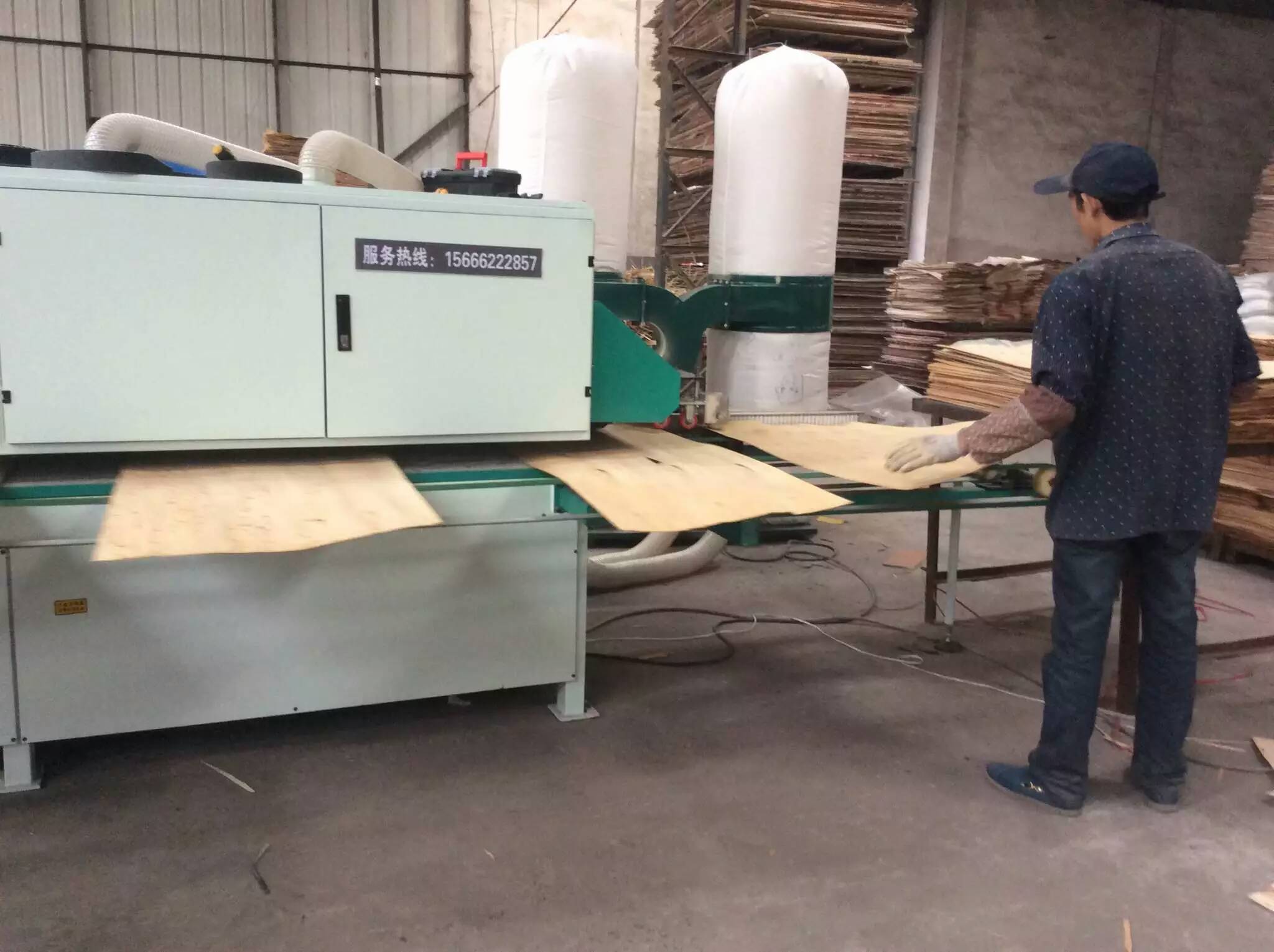

| How is veneer scraf vgrinding machine working ? | |

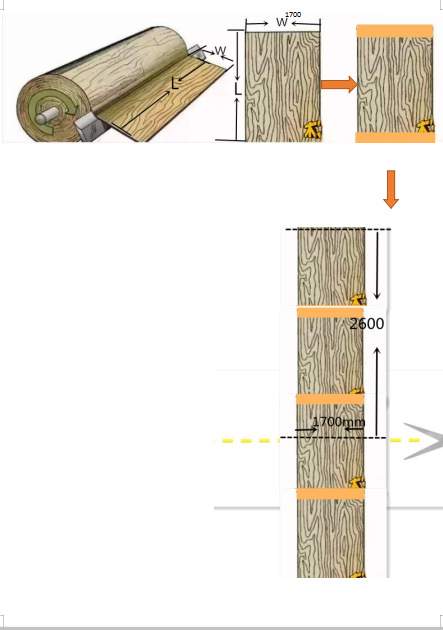

| Step 1 : Grinding the two end size of the veneer width direction | |
|
|

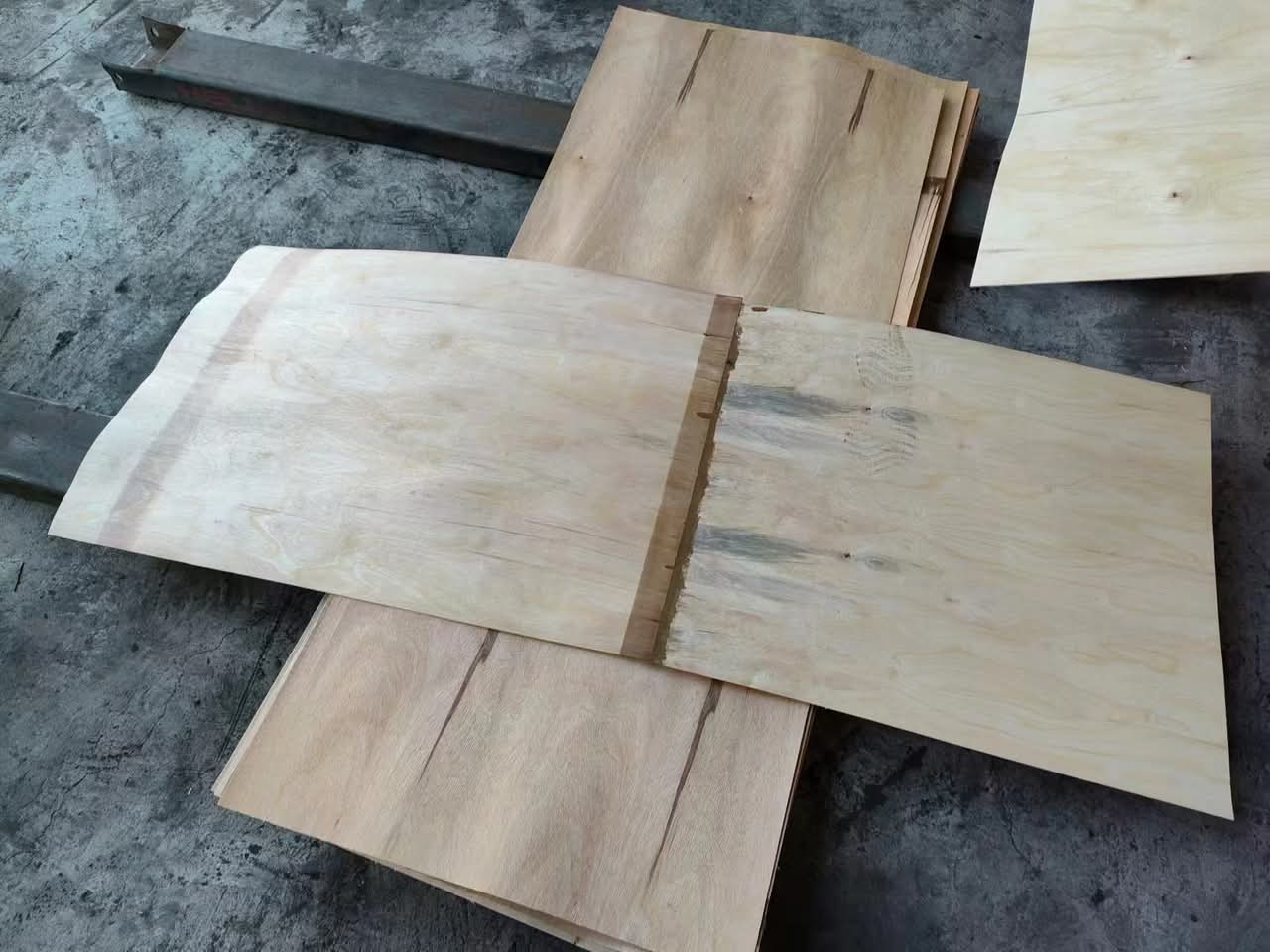

| Step 2: Splicing the veneer / compose the veneer make them jointed with hot press machine | |
|
|
Scarf Edge Grinder pramameters | |
Model | PRSXM30-3 |
Sanding belt | Up 1 +below 1 |
Grinding thickness | 0.8 ~ 5.0 mm |
Grinding Width | 5 ~ 40 mm |
Working Length | 700-1300 mm |
Working Width | 100-1300 mm |
Variable Speed Motor | 4.0 Kw |
Abrasive Belt Motor | 3kw x 4sets |
Moving Beam Motor | 0.37 Kw |
Total power | 16.37Kw |
Speed | 40m/min |
Machine weight | 2000KG |
Machine size | L:3700mm x W:2250mm x H:1730mm |
Bearing | Japan NSK |
Motor | China famous brand |
Electric | Schneider zhengtai |

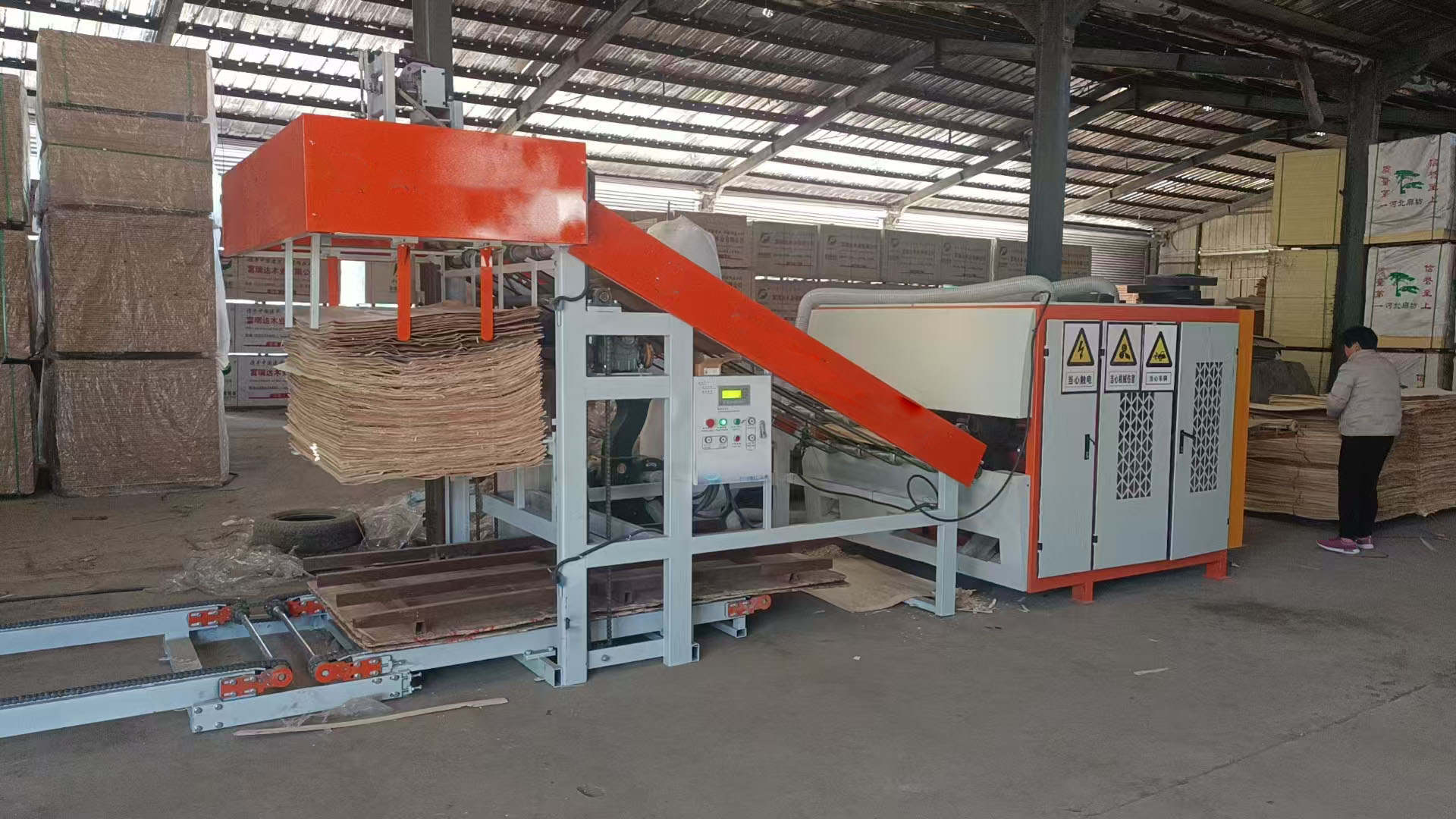

Auto stacking | |
Model | PRSJP1300 |
Working width | 640~840mm |
Working length | 1280mm |
Speed | 50m/min |
Conveyor motor | 0.75kw |
Veneer put motor | 0.55 Kw |
Veneer out motor | 0.75 Kw |
Lifitng motor | 0.75Kw |
Total power | 3KW |
Machine size | L6000mm*W 2000mm*H 2000mm |
whatsapp 0086-15588058177 | |
