Product Advantage

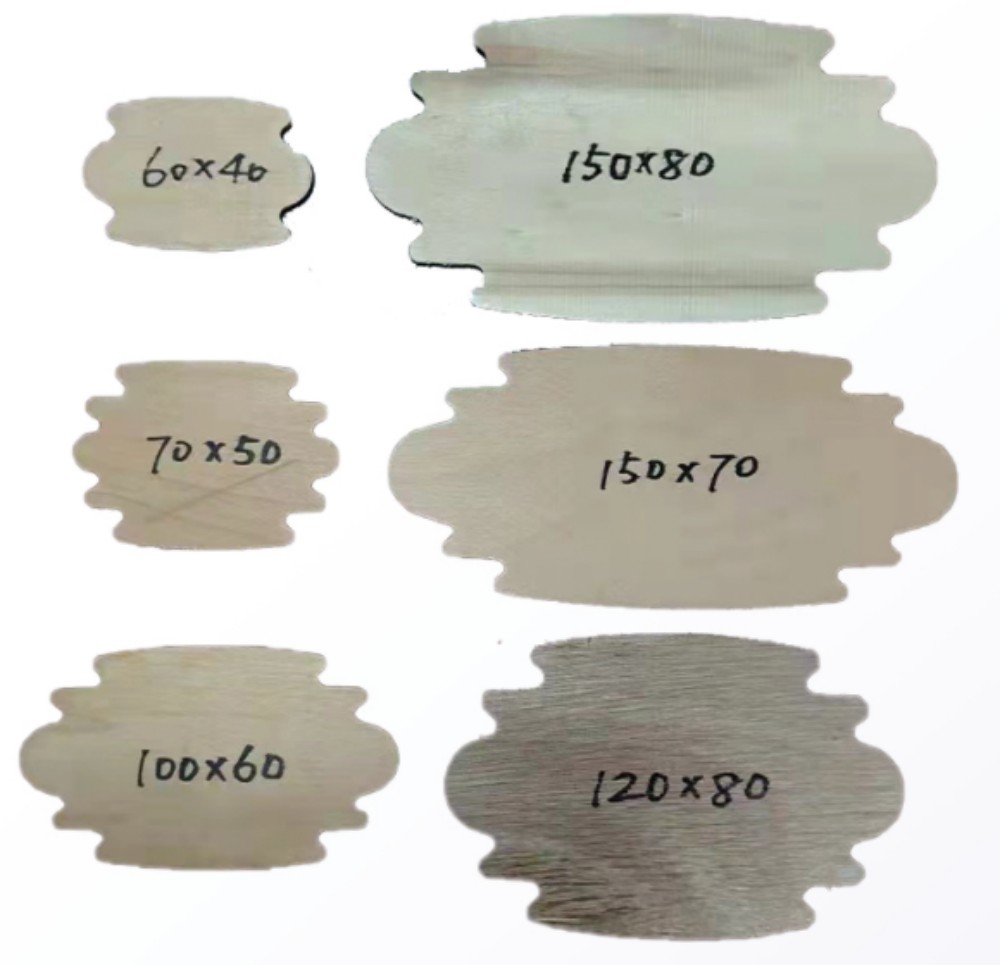

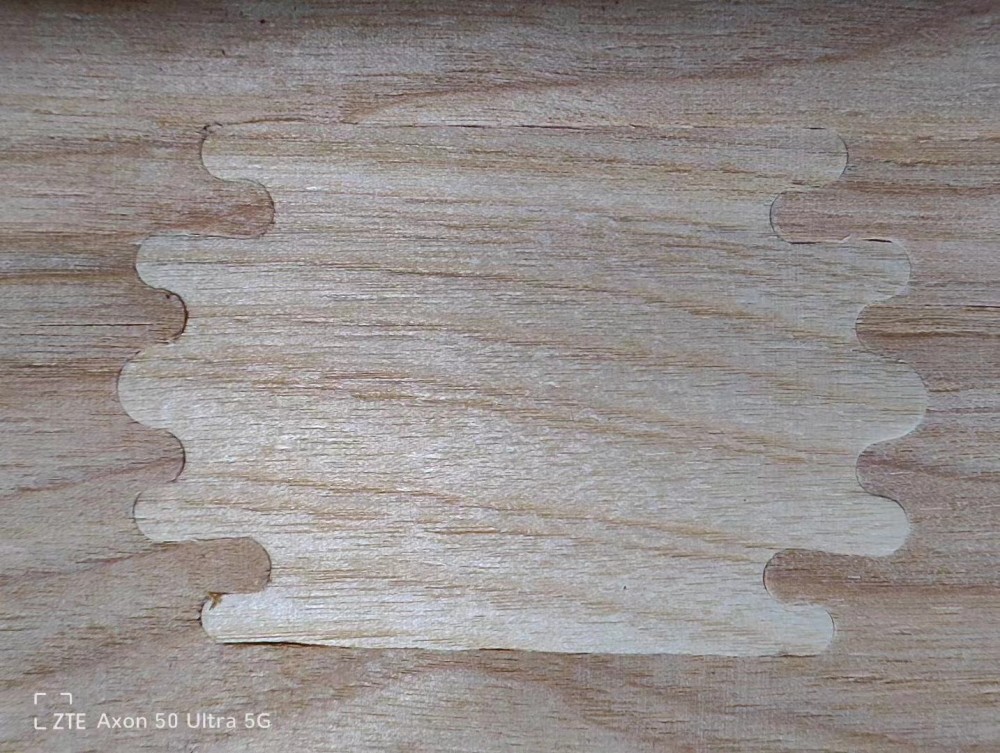

from Our veneer patcher machine, many patcher size are selectable. the largest up 150mm | the veneer after patching machine is strong, it could go though next plywood production process- plywood glue spreader machine |
 |  |
Technical Parameters
 | |
Model | PRSVPST84A |
Veneer thickness | 1.3~3.6mm |
Veneer size | 8x4ft, long grain veneer |
The patch piece size | Customized |
Speed | 1.5~3s/ piece |
Voltage | 220v/380v/480v |
Power | 3kw |
Compressed Air | 0.5Mpa |
Main power control | Hydraulic system |
Auto strip feeder | Auto |
Control | Foot switch control |
Machine size | 3.5m x1.1x2.1m |
Machine weight | 1500kg |
Product Uses

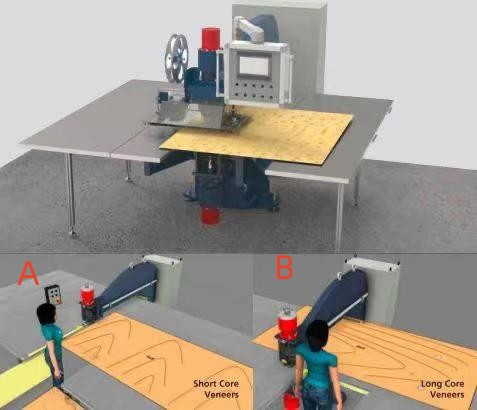

Suit for short grain veneer( cross veneer ) and long gain veneer ,our veneer patcher machine have 2 models .A and B | |

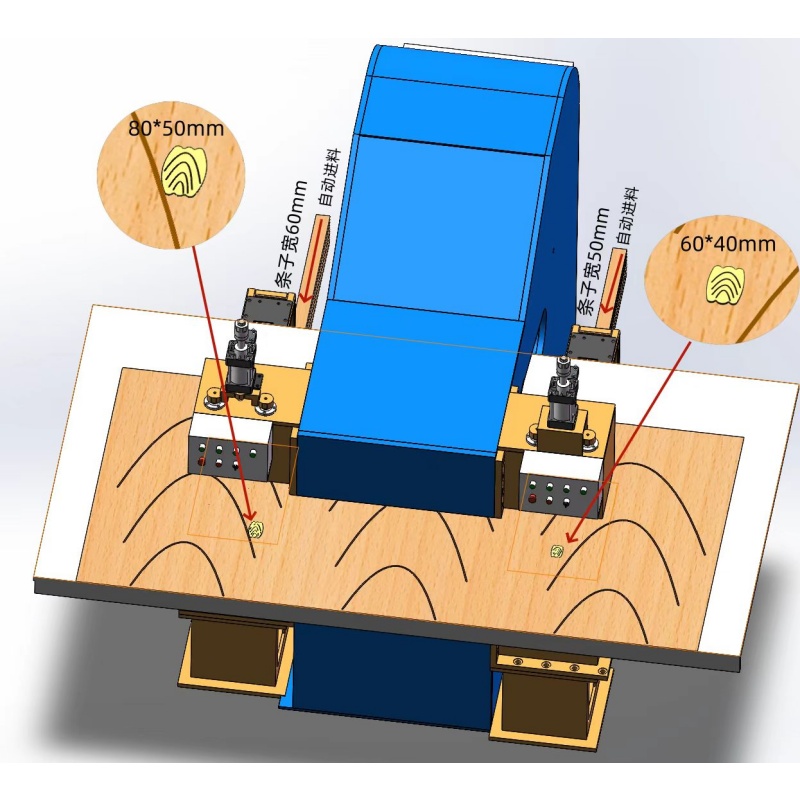

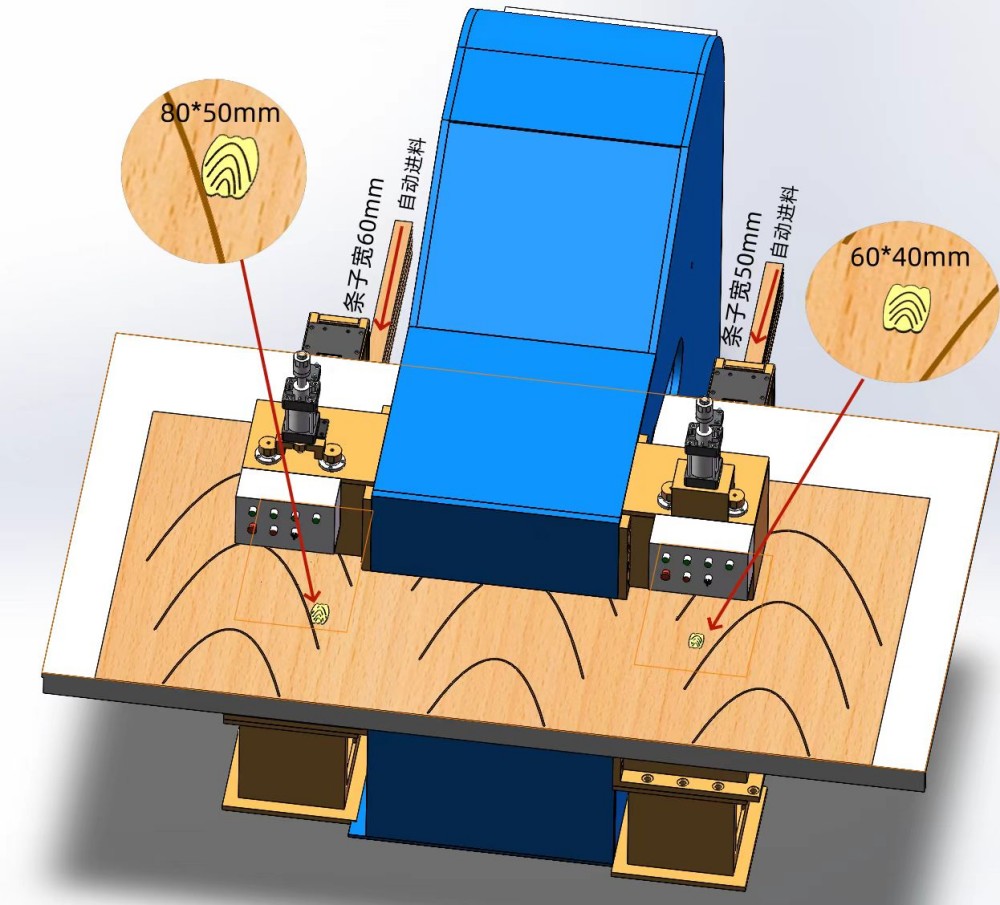

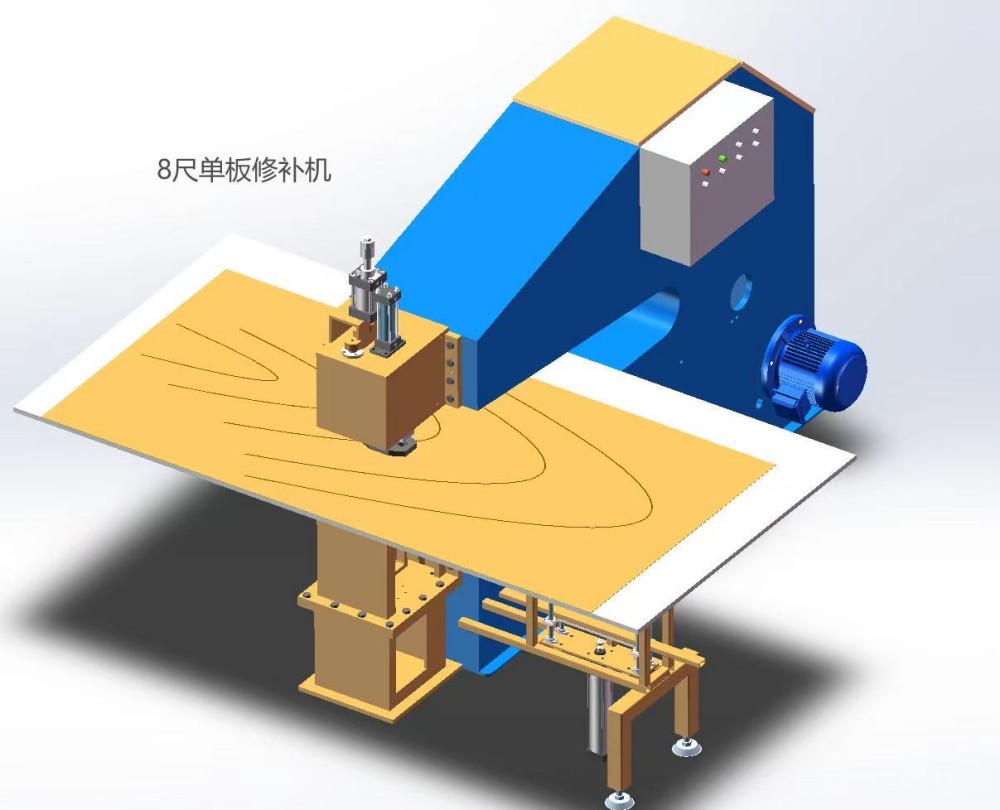

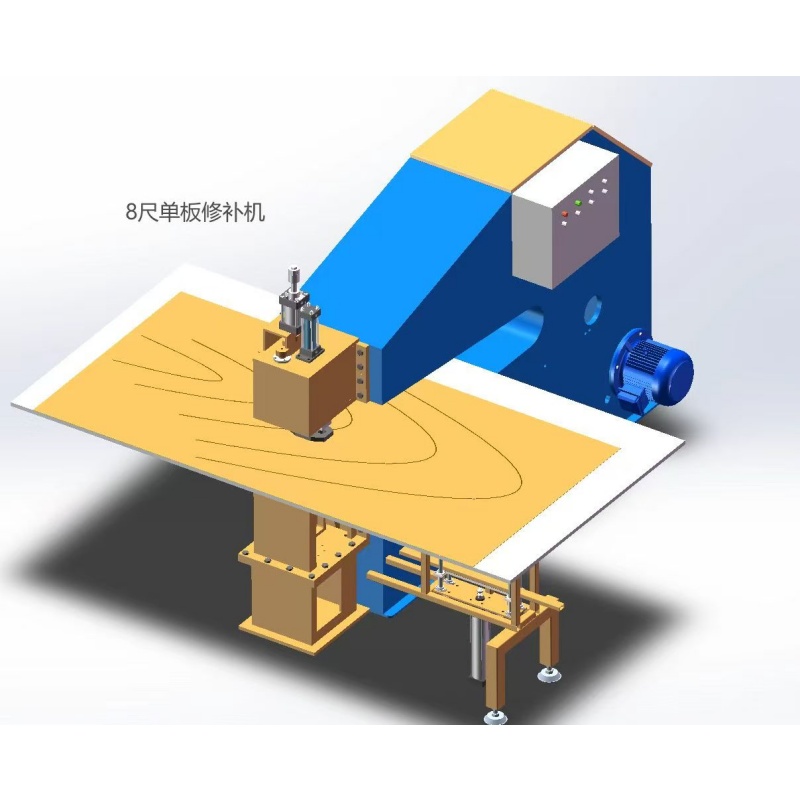

Model A : Suit for short grain veneer /cross veneer 4x8ft  | Model B : Suit for long grain wood veneer 8x4ft  |
Product Operate Guide
1. The plywood bubble detect line is Equipped with a visualized operation console and remote control buttons for easy, fast and safe manual operation,
2. the human-machine interface is clear and straightforward, supporting convenient parameter configuration and reliable remote control.
