Working video
What is a log debarker ? In plywood production, the first process is to peel logs into veneer sheets, which is completed by the rotary peeling production line. The first piece of equipment on the rotary peeling line is the log debarker machine. The function of the log debarker machine is to remove the bark and branch stubs of logs, and process the logs into standard cylinders. Its main functions are as follows:
| ||
1,Special big teeth design ,debark log round fast . 2,Stable hydraulic feeding system .less fault . 3, Large power and strong body | ||
Model | PZY130 | PZY260 |
Log length | ≤1300mm | ≤2600mm |
Max log diameter | 500mm/600mm | 500mm/600mm |
Knife size | 1500x180x16mm | 2700x180x16mm |
Double Roller | 178mm 11kw | 200mm 15kw |
Single Roller | 165mm 11kw | 178mm 15kw |
Feeding system | Hydraulic feeding system 3.5kw | Hydraulic feeding system 5.5kw |
Weight | 3 tons | 5 tons |
Size | 4.2x1.5x1.6m | 5.5x2.1x1.6m |

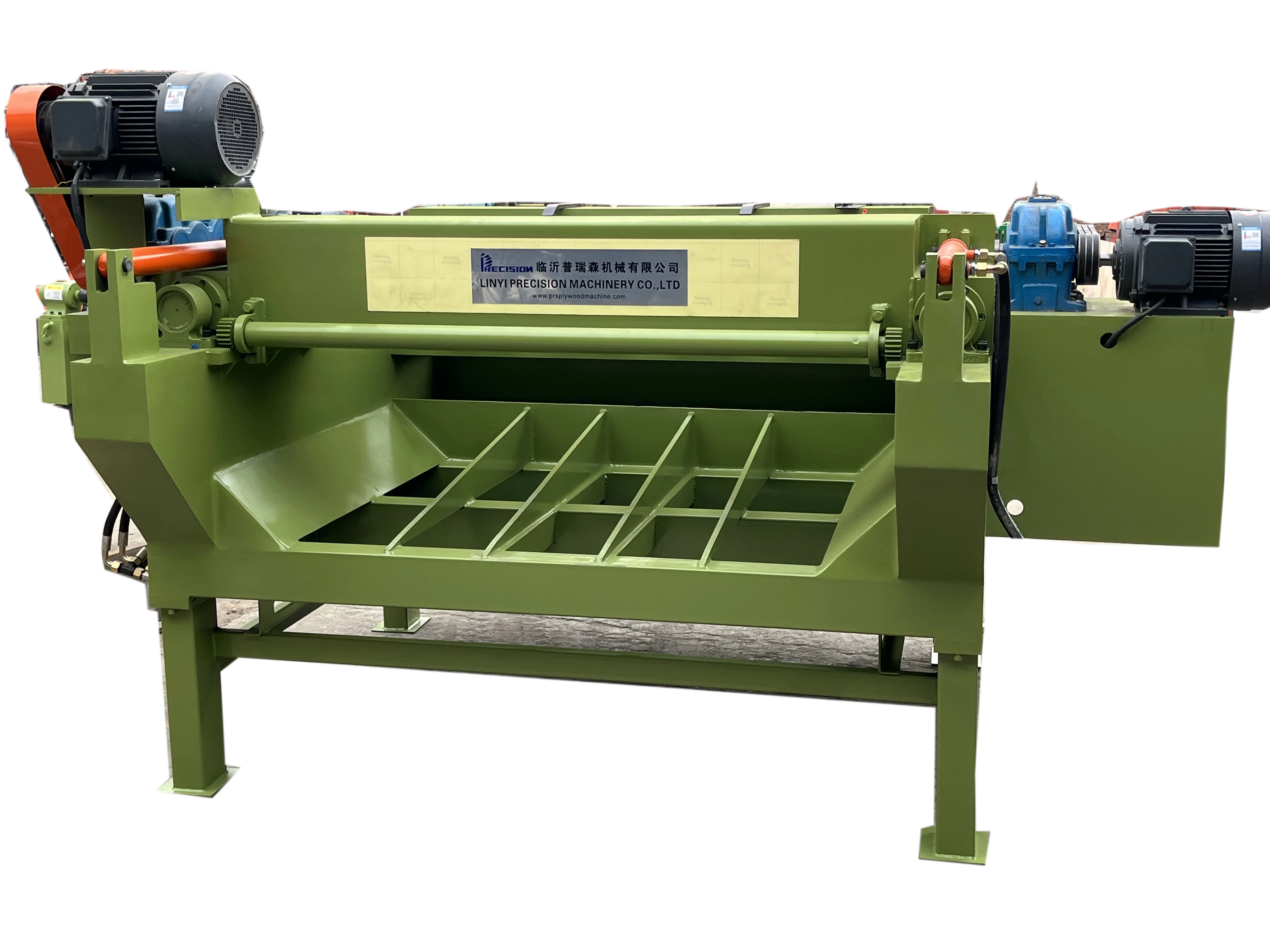

4ft log debarker

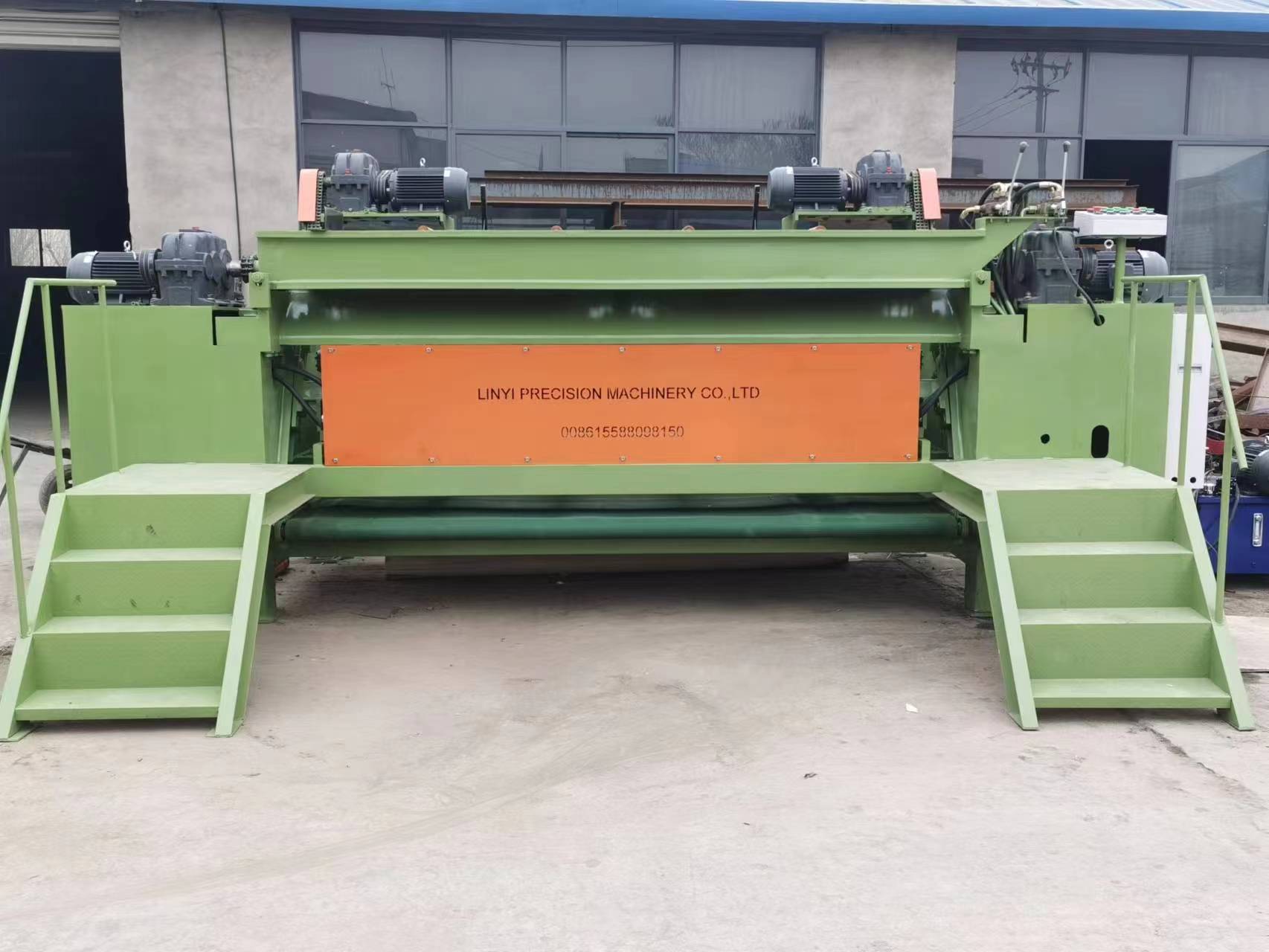

8ft log debarker
