Automatic Plywood bubble detect line

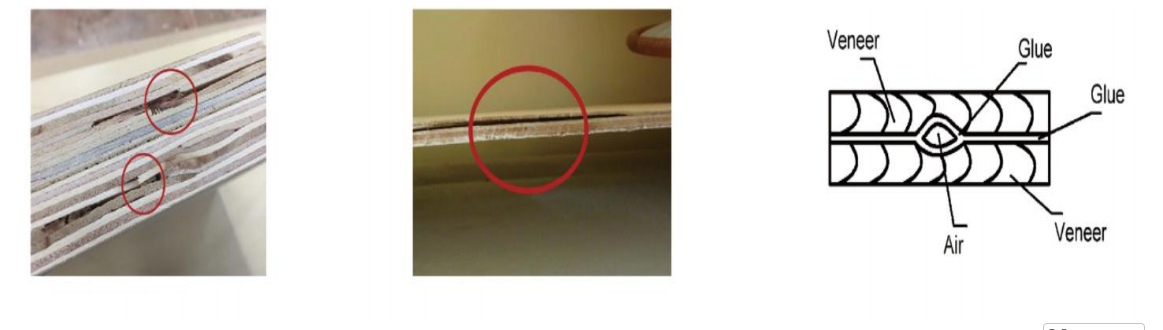

1 :How did the plywood bubble appears ?
In the plywood production process, if the veneer has excessive moisture content and serious
deformation & warping, coupled with uneven gluing and poor-quality adhesive caused by lax control in the
gluing process, as well as process defects such as substandard temperature, insufficient hot-pressing time
and uneven pressure distribution in the hot-pressing link, the final plywood products are extremely prone to
quality defects like bubble and hollow boards.
How is the plywood bubble detect line work ?

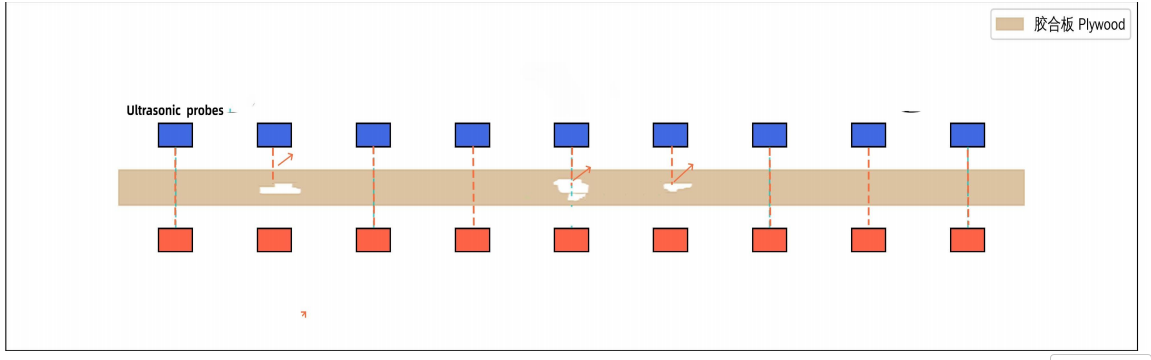

The Automatic plywood bubble detect machine is equipped with 7 to 10 ultrasonic transmitting probes, forming an
up-down opposite detection array with receiving probes. When plywood passes through the detection area at a constant
speed, the probes emit high-frequency ultrasonic waves that penetrate the board. Relying on the strong reflection and
severe attenuation characteristics of ultrasonic waves at the wood-air interface, it can accurately identify defects such as
internal voids, bulges and delamination in plywood, realizing online non-destructive testing of hollow plywood boards.

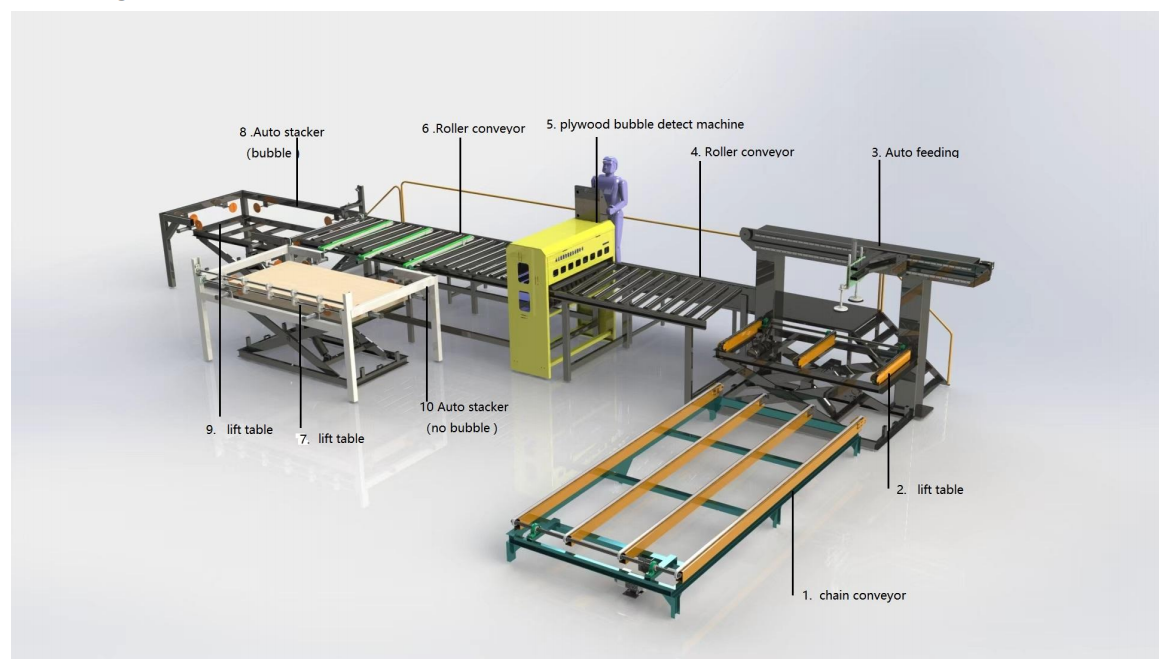

what an aumatic plywood quality bubble line contains ?
The total line contain 7 parts ,and function as following :
Chain conveyor – 1 pc. : ready plywood
Lift table – 3 pcs. : plywood lift and reduce
Auto feeding – 1 pc: Auto feeding plywood to the total line
Roller conveyor (3.5 m.) – 1 pc. : conveyor plywood to defect machine
Plywood defects detect machine – 1 pc. : the main machine working
Roller conveyor (4.5 m.) – 1 pc.: conveyor plywood to stack
Auto stacker – 2 pc. : stack qualified plywood and unqualified plywood
Service platform – 1 pc.: manual work stand platform
