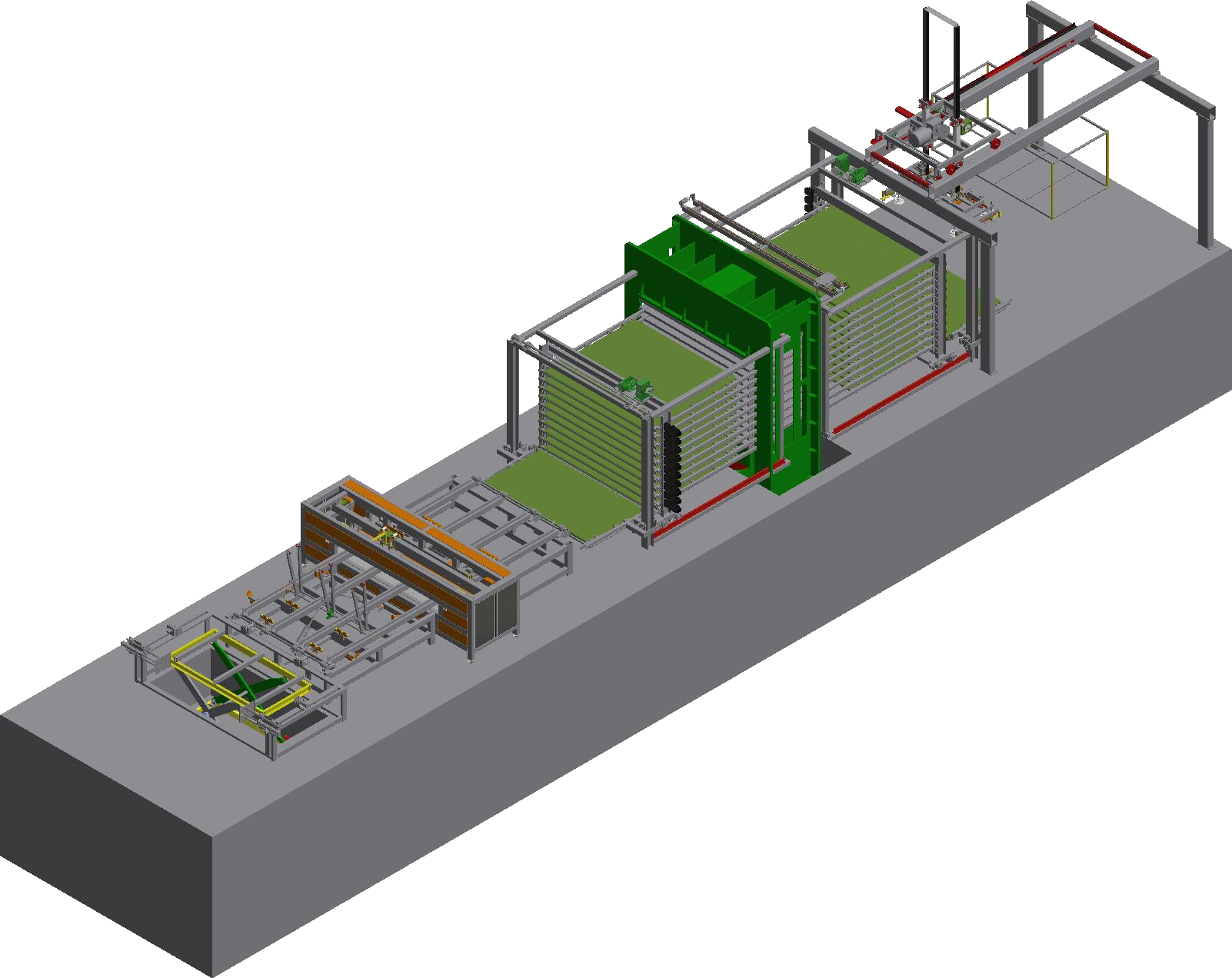

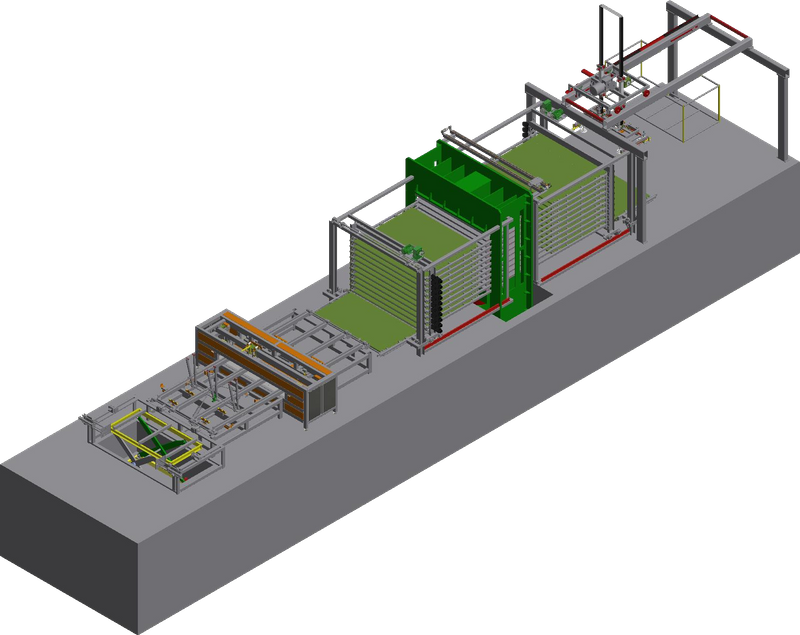

800ton 10 /12/15 openning 4x8ft plywood production line laminated hot press machine for film melamine Autoamtic loading and unloading

                                                                             New  Hot press machine

Linyi Precision Multi-layer veneer press machine are high efficiency,fast speed and simple operation . We improved press frame is morereasonable ,stronger ,and has a loner work life, the new melamine multilayer veneer has a better and more stable hydraulic system ,Ensure that thetop and bottom of the hot plate of the hot press are parallel ,the dailyoutput of this machine can reach 600pcs.Main features:1.Automatic plc program control,Automatic storage of user settings ,safe and reliable action.2.High precision design and production, smooth and beautiful board surface.3.Adpoting multi layer design,the pressure is more uniform, and carbonization is effectively reduced.

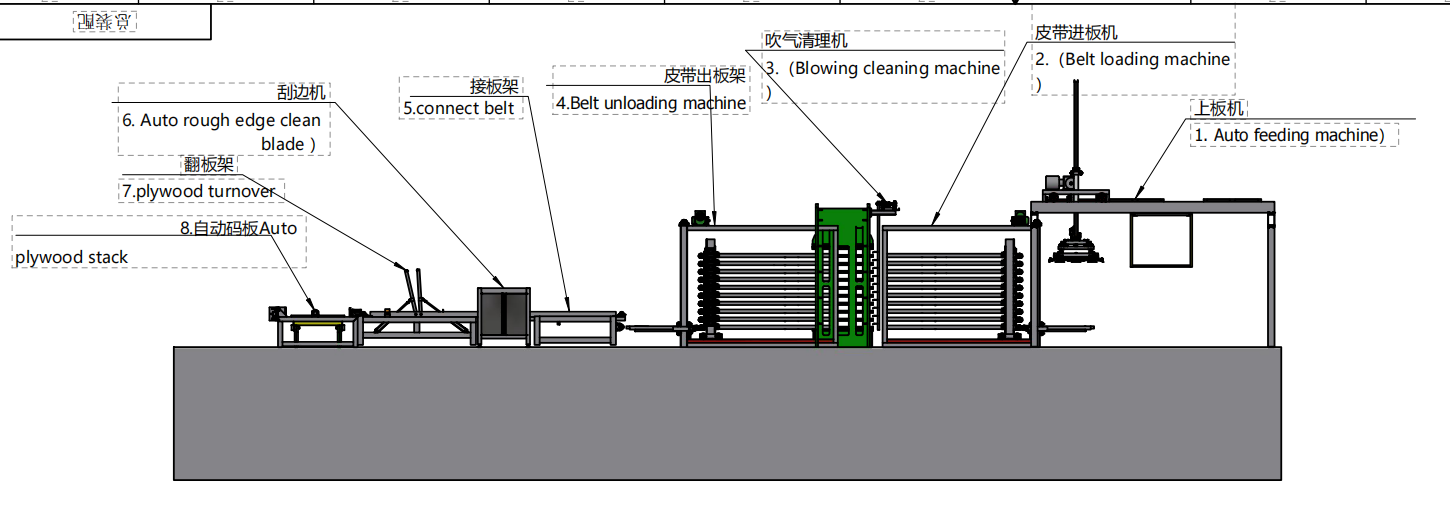

The Simi Auto loading and unloading is work with Auto loading plywood ,but need manual loading and laying melamine and film paper ,it reduce labor work and increase work speed largely .

Parameter of  800t  hot press machine
1, Fast work 2, Stable structure 3, Superior cylinder ,promise stable and strong work
Nominal pressure	800 tons
Direction of boards in	transverse
Layers	18
Opening	100
Quantity of hot platens	19
Size of hot platens	1370×2700×52 Double in double outlet
Quantity of cylinders	6
Diameter of cylinders	Φ260*6pce
Stroke of cylinders	1050
Allowed pressure	≤25
Closing time	10
Quick lift cylinder	Φ120mm*2
Flow of low pressure pump	100
Allowed pressure	≤3
Power of low pressure pump	22kw
Flow of high pressure pump	25
Allowed pressure	≤25
Power of high pressure pump	11 kw
Size of finished boards	1220×2440mm
Dimension of whole machines	3600*1370*5000mm
Controlling methods	Automatic pump station
Electrical appliances	Schneider
PLC Brand	DELTA
Main steel plate	30mm*4
Methods of frames	Assemble
Weight of whole machine	42T
Better machine ,better plywood
