Why a veneer composer machine and finjer joint machine is a must in China ?
China's domestic timber supply mainly comes from commercial fast-growing plantations, contains
eucalyptus ,rubber ,polar ,and some pine .with logs generally only 20-30cm in diameter.
Try to maximize the utilization rate of log and get more veneer , mostly chinese plywood plant produce narrow veneer sheets 4'x2',
which cannot directly produce the large-format panels 4x8ft /1220x2440mm .needed by downstream industries.
The 4'×8' size is the mandatory industry standard for worldwide plywood, furniture and decoration
sectors, a hard requirement that all production must meet.
The only workable solution is to use a veneer splicing machine/veneer joint machine to join multiple 4'×2' narrow veneer
sheets into full 4'×8' standard panel blanks. Without this machine, most domestic woodworking
enterprises cannot achieve large-scale production of standardized large panels.

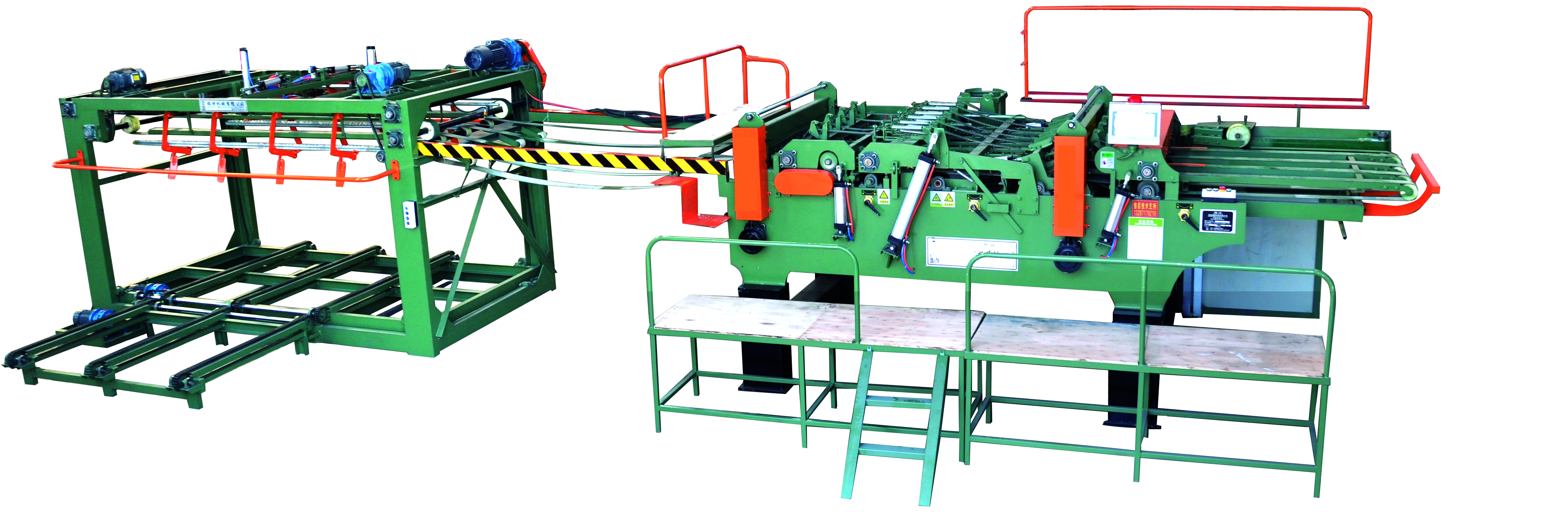

Veneer builder machine advantage

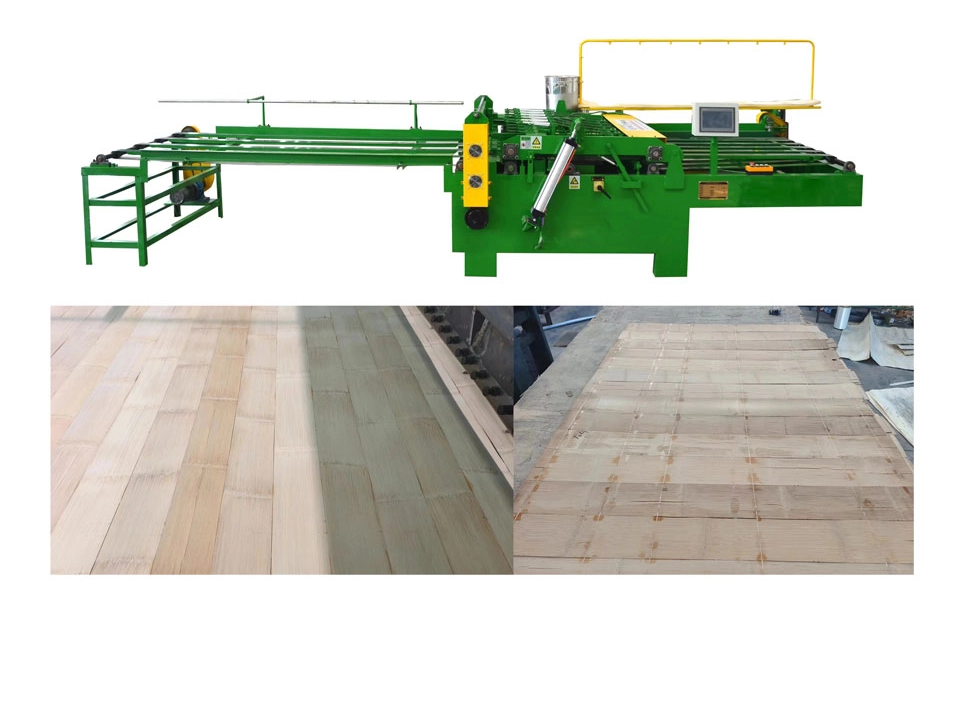

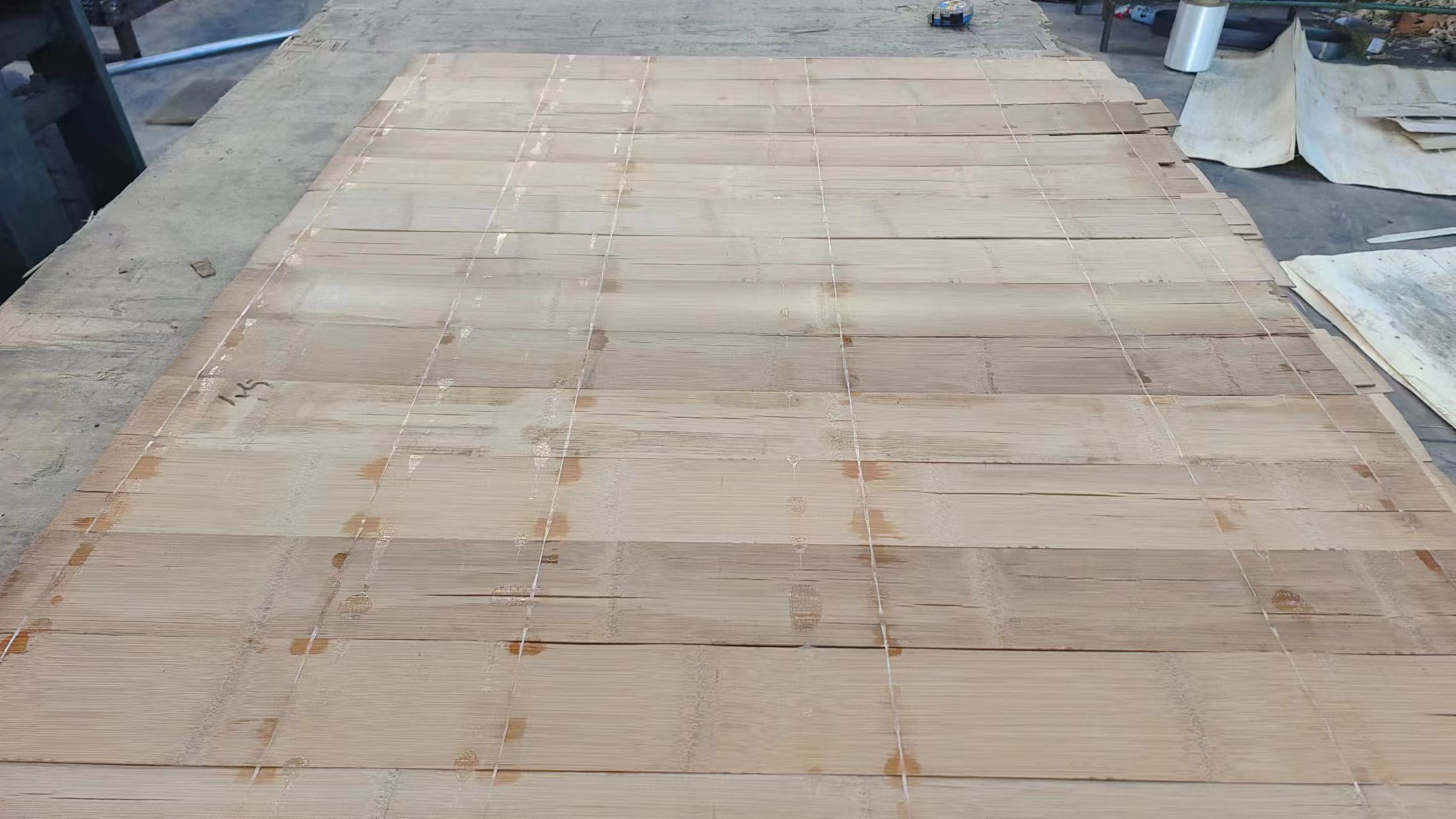

suit for small veneer strips composed /veneer strips joint machine ,
increase the veneer usage rate
2. High productivity output , Our veneer joint machine capacity arrive 300pcs/h

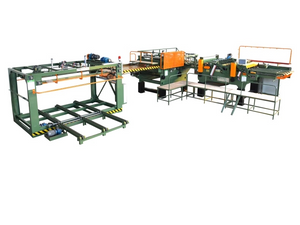

Core veneer composer machine prarameters
1. Fast work 300pcs per hour 2. Better veneer composer performance 3. Smart control + easy operate . | |||||
No | Parts | Function | (kW) | qty(pc) | Brand |
1 | Veneer Joint | Veneer Pre cut | 3 | 1 | Ri-ding |
Veneer After cut | 3 | 1 | Ri-ding | ||
Pre conveyor | 3 | 1 | Ri-ding | ||
After conveor | 3 | 1 | Ri-ding | ||
Synchronize | 1.5 | 1 | Ri-ding | ||
Fan | 0.18 | 2 | |||
A/C | 1.1 | 1 | Gree | ||
Heating | 8 | ||||
2 | Middle conveyor | 1.5 | 1 | Ri-ding | |
3 | Finger joint | Pull veneer | 1.5 | 1 | Ri-ding |
Pre conveyor | 1.5 | 1 | Ri-ding | ||
Teeth cut | 7.5 | 1 | |||
Middle conveyor | 3 | 1 | Ri-ding | ||
After conveyor | 3 | 1 | Ri-ding | ||
Cut | 3 | 1 | Ri-ding | ||

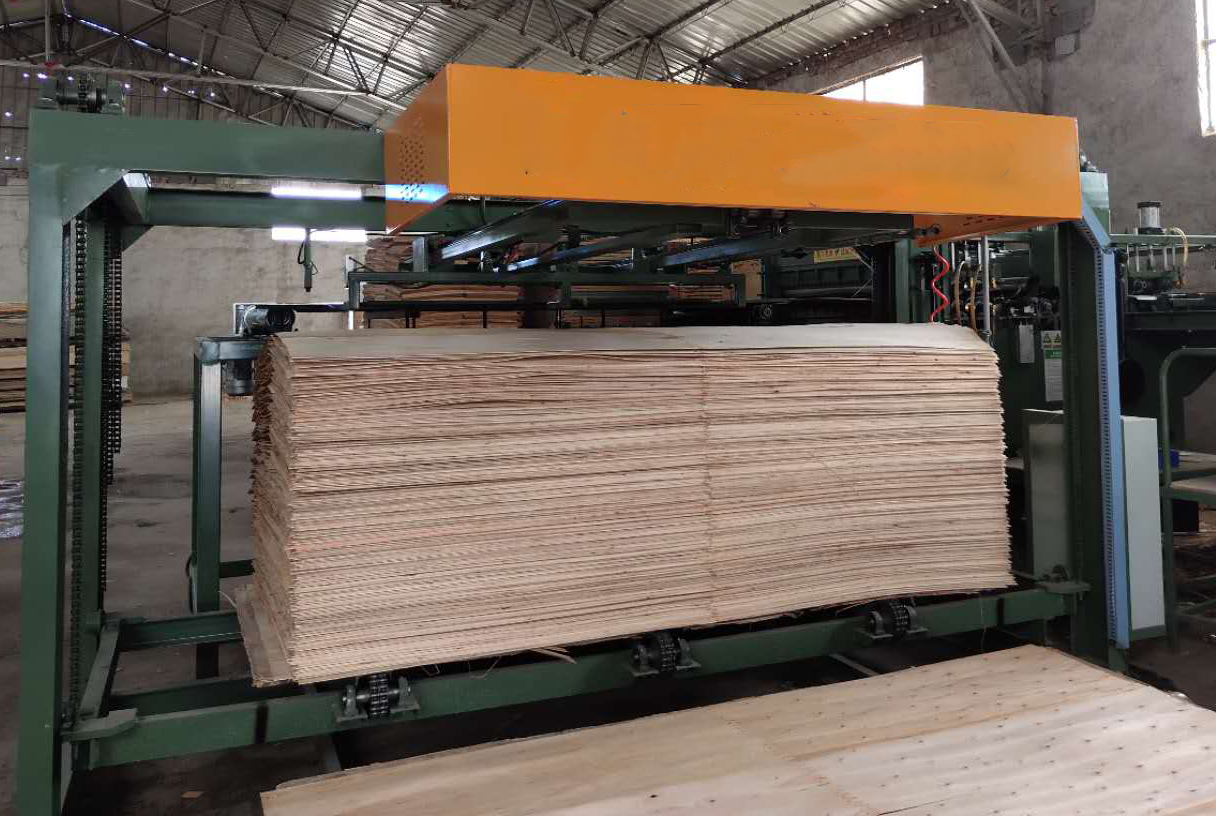

4 | Stack | Pull veneer | 2.3 | 1 | Ri-ding |
lifting | 3 | 1 | |||
After conveyor | 1.5 | 1 | |||
Out conveyor | 0.75 | 1 | |||
5 | Control box | PLC | DELTA | ||
Electric | Schneider | ||||
Optoelectronic switch | Omron | ||||
6 | Air cylinder system | Solenoid valve | Zhengtai | ||
Air cyliner | ASK | ||||
7 | Overall size | 10m×7.5m×2.5m | |||
8 | Total power | 51.33kW | |||
Feel free to reach out to us, and let's discuss more about plywood manufacturing technology together!
