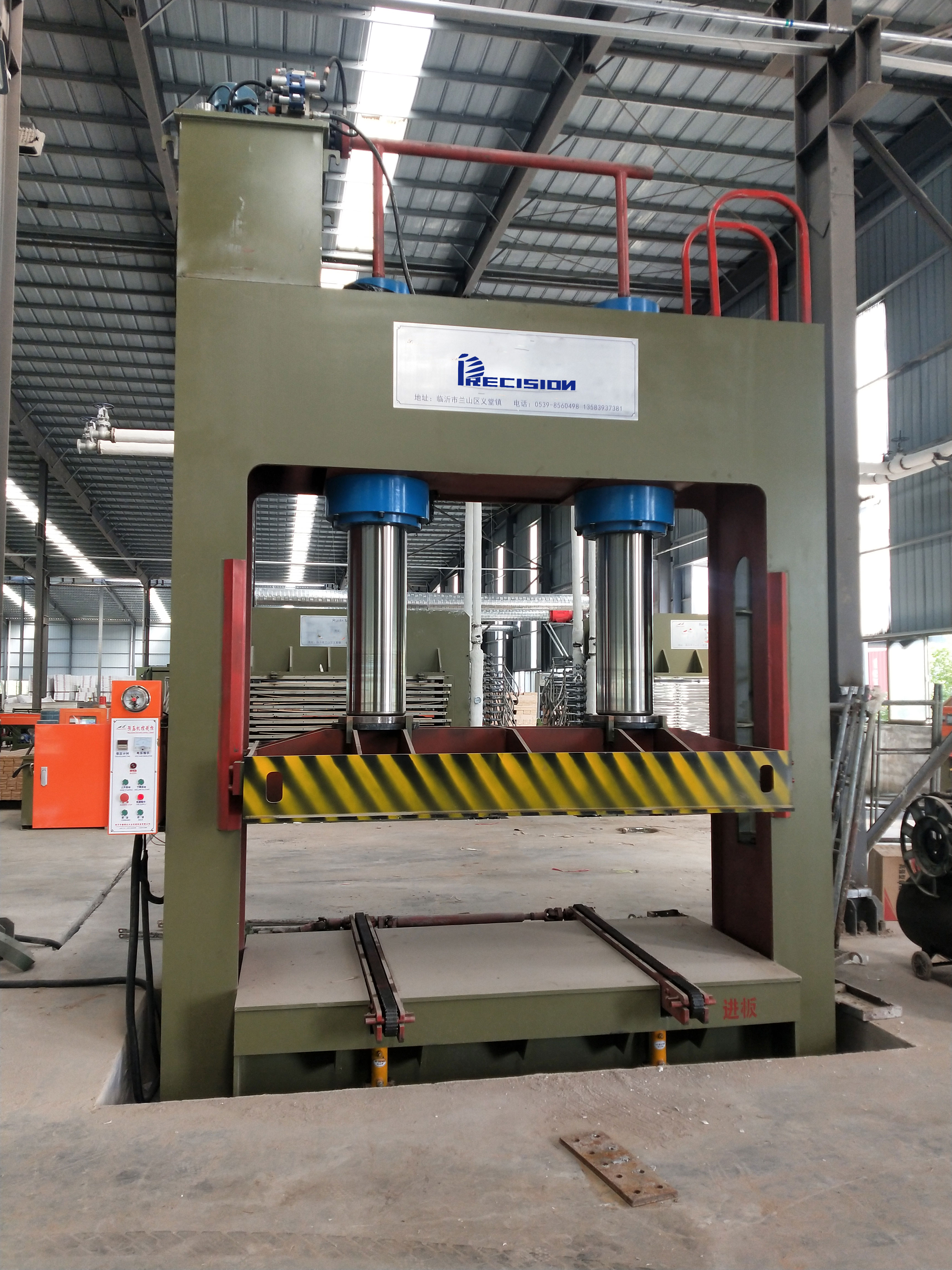

What make a plywood cold press machine better ?
The cold press structure is the most important for a cold press machine . Use thick high-strength steel and reinforced
frames for even pressure, low vibration, high precision and durability ,and increase work life .
Poor welding can lead to cracks or misalignment.
2.Stable cylinder
The pressing force of the cold press directly affects the compaction of plywood layers.
Select a machine with sufficient hydraulic pressure for your panel thickness and size.
High-quality machines feature well-sealed, precise cylinders that keep stable pressure with no leakage or pressure drop.
Always check the tonnage to match your production requirements.
3.Plate Size
Consider the size of the pressing plates and working area, which must fit your plywood dimensions.
For producing various board sizes, a flexible or customizable plate design is recommended.
Plates with stainless steel or anti-corrosive treatment ensure better quality and longer service life.
4.Control system and hydraulic station
1, Easy operation 2, Strong structure 3, Fast work | |
Nominal gross pressure | 500Tons |
Nominal oil pressure | 25Mpa |
Number of cylinder： | 2pc |
Place of cylinder： | Top up |
Size of hot press plate： | 1370*2700 |
Diameter of cylinder： | Ф360mm Wuxi cylinder |
| Stroke of cylinder | 1050 |
Quick lift cylinder | Ф80mm*2pc |
High pressure pump flow： | 25M |
Motor: | 11kw |
Dimension: | 3600*1370*4600mm |
Thickness of steel： | 35mm |
Opening： | 1800mm |
Framework: | Combined frame |
Total weight： | 12T |
Controlling style： | Automatic adding pressure, automatic unload pressure |

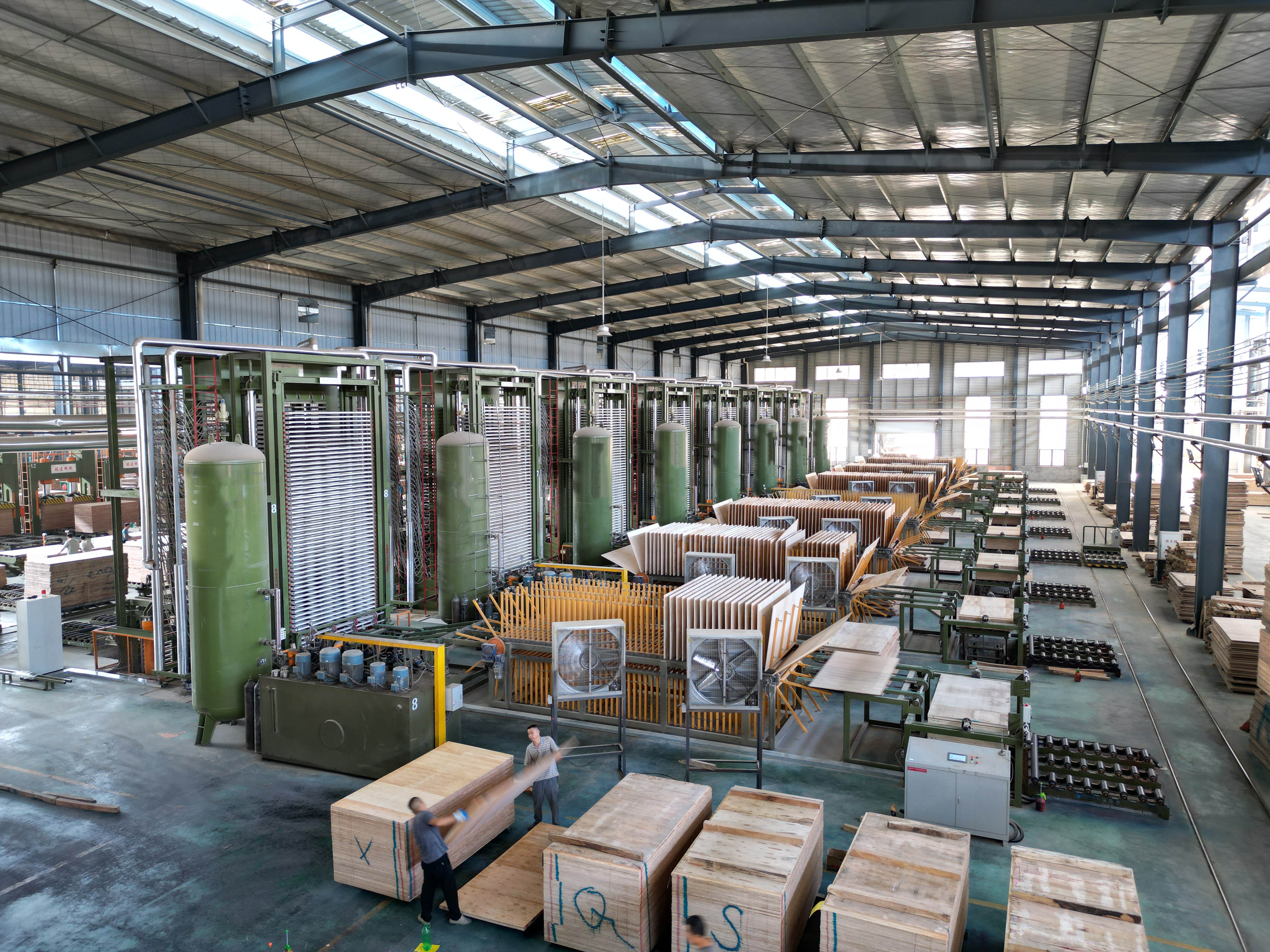

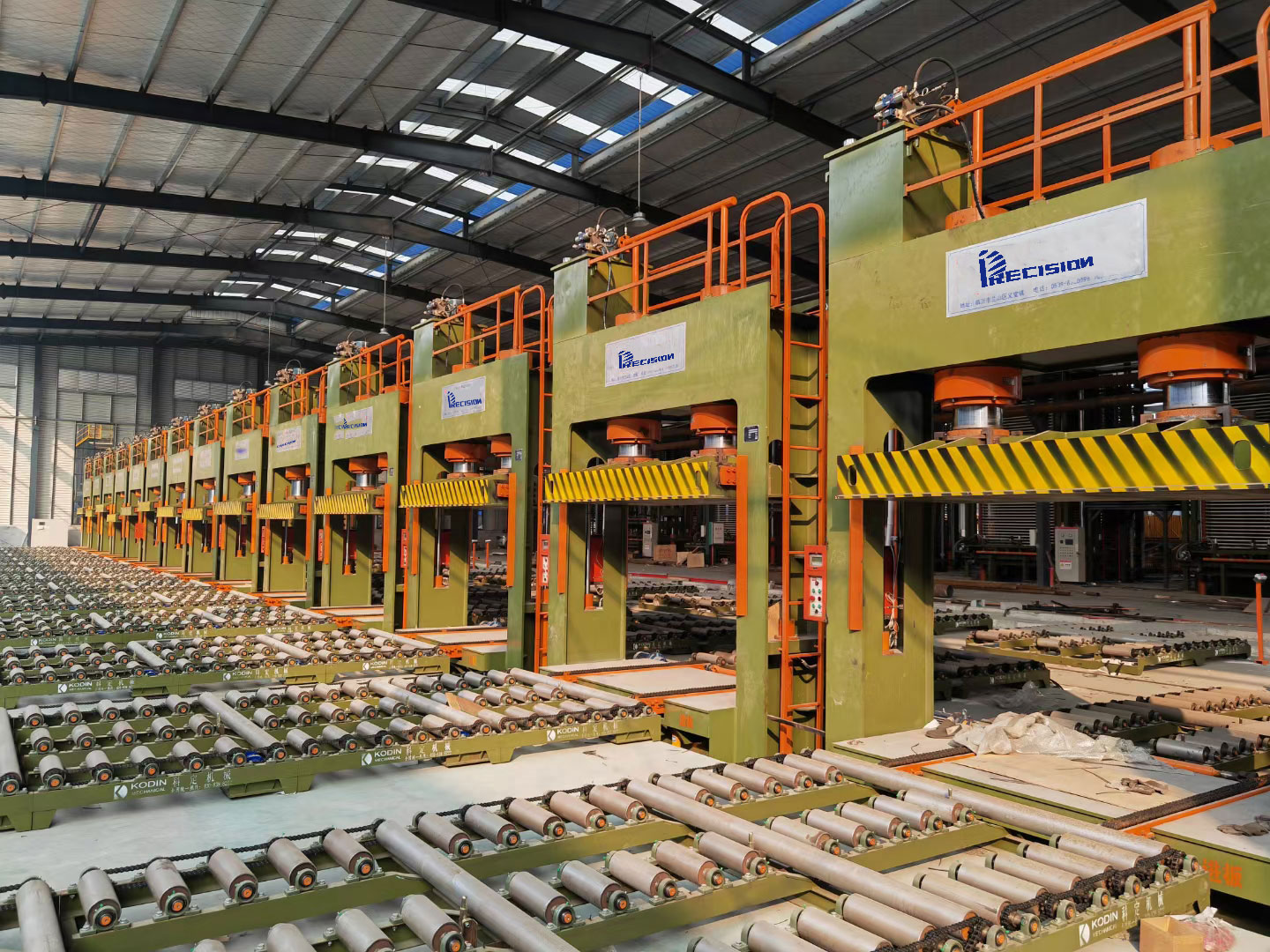

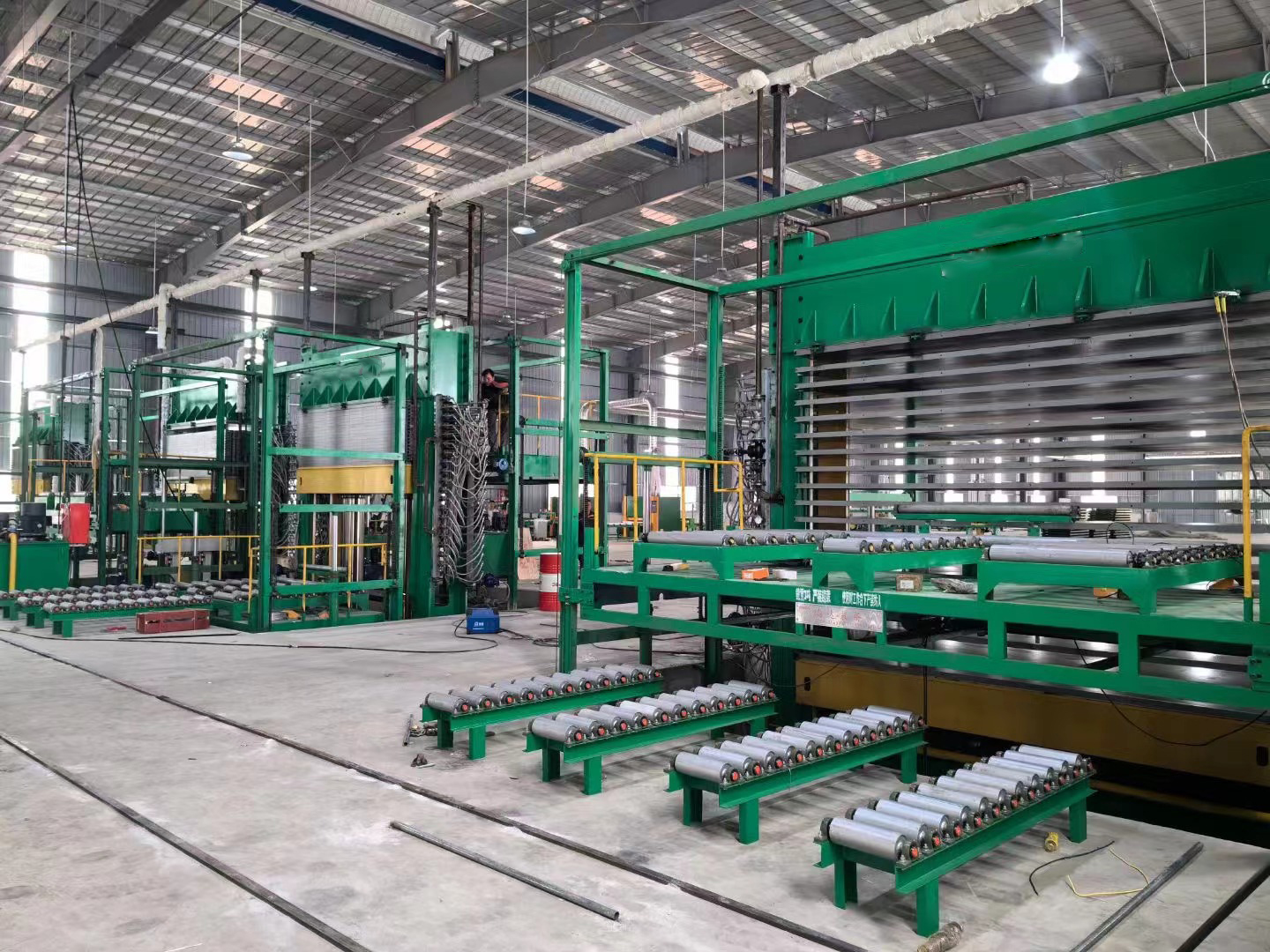

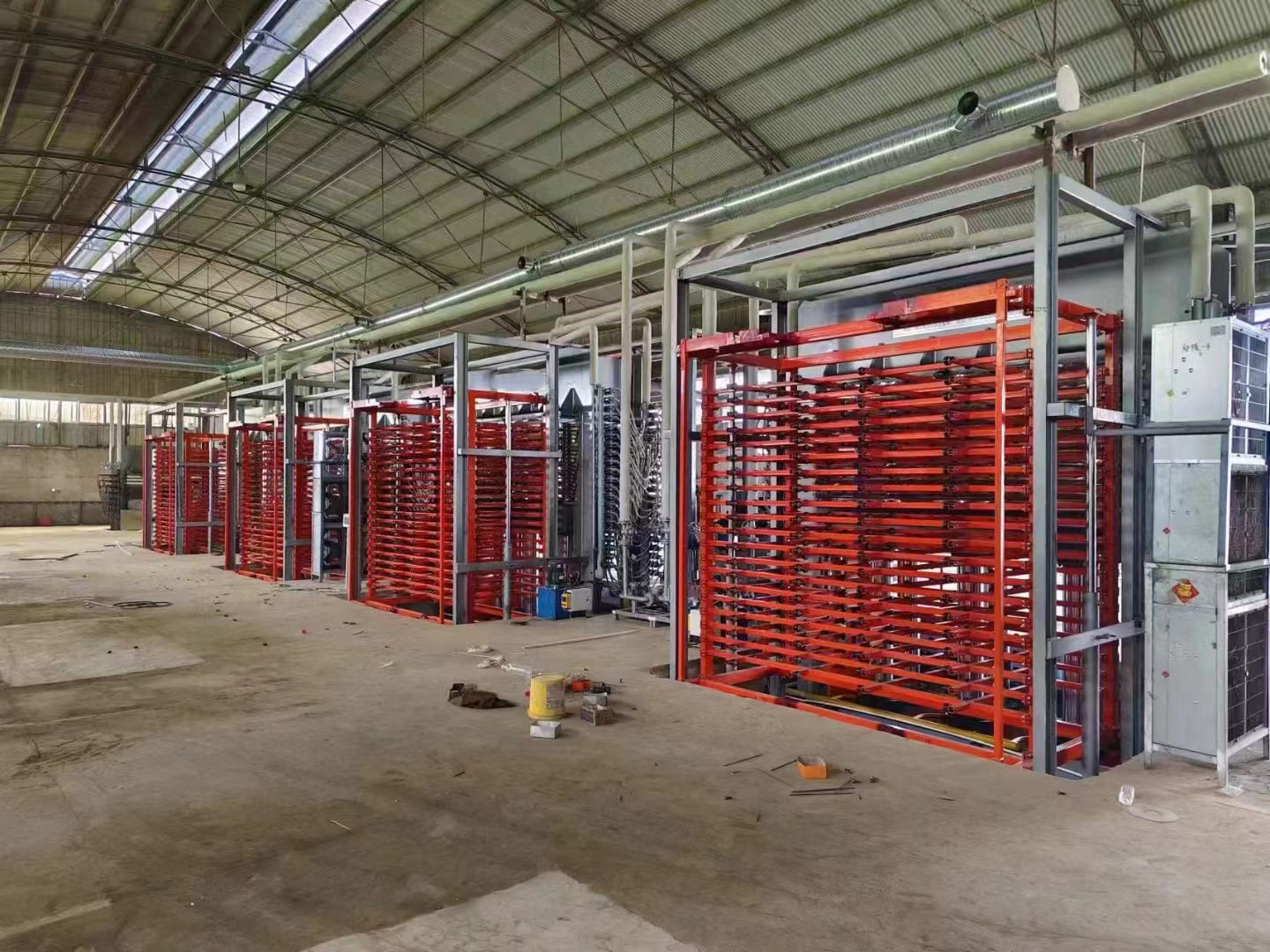

Customer showcase worldwide
 |  |
 |  |
