| Quantity: | |
|---|---|
| ||

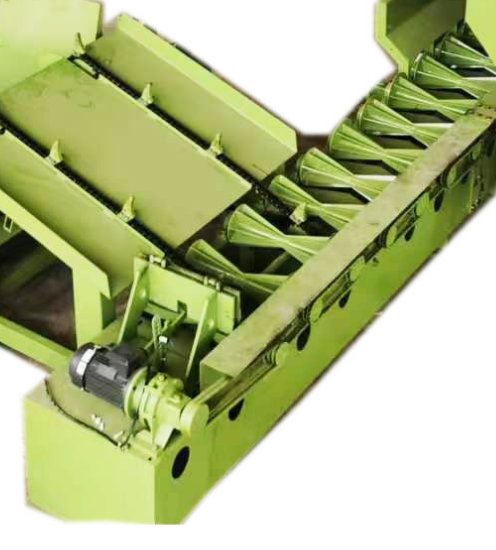

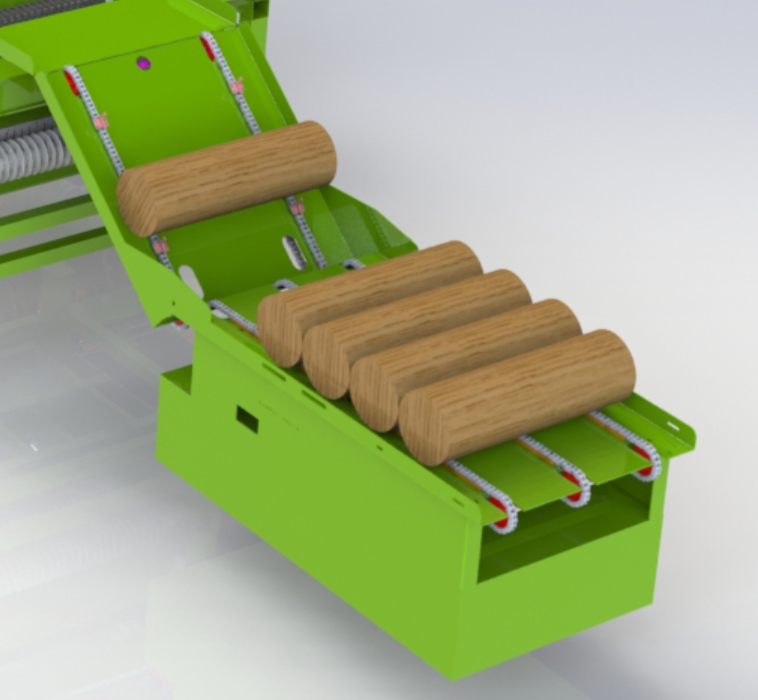

1 Conveyor for debarker log loading |  | Model ：PRSSL1301 Length 3m +3m Power :1.5kw + 1.5kw Chain size : 32A Steel thickness :3mm Weight : 1.5tons |
2. Heavy duty log Debarker
With chipper In build |  | Max working diameter : 600mm Single roller diameter /Motor power : 170mm/15kw Double roller diameter /motor power : 170mm/15kw Roller length 2700mm Hydraulic motor power ： 7.5kw Hydraulic oil Grade & Lt ： Grade 68 /100 Lt Chipper (Debarking Scrap) : 11kw Waste veneer conveyor : 4kw Total power : 52.5kw Over all size : 3600x 2250x1600mm Debarking speed : 30M/Minute Control : Manually operation Machine weight : 5 tons |
| Log transfer conveyor |  | Length :5 .5m x width 0.5m Power : 2.2kw
Weight 1 tons |

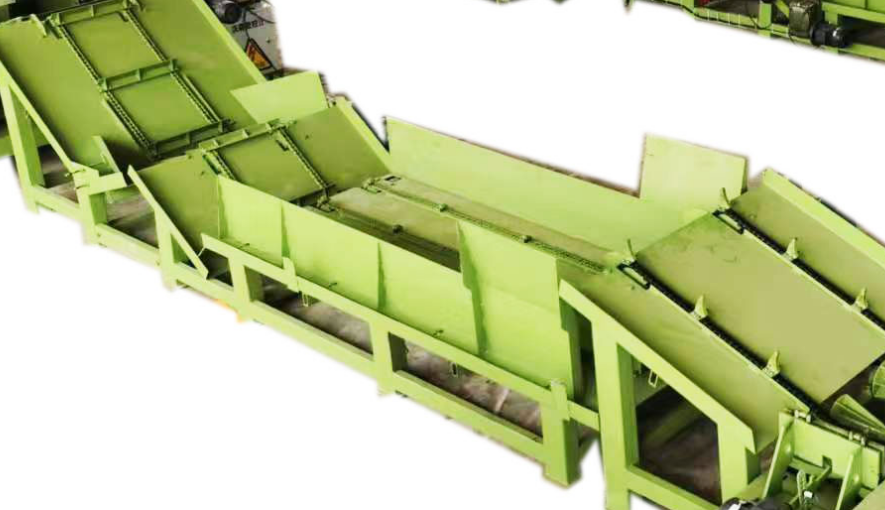

| Loading of round log for peeling machine |  | Length: 7 m Power :1 .5kw +1 .5kw+1 .5kw
Steel thickness :3mm Weight : 2 tons Automatic running ,no need operator |

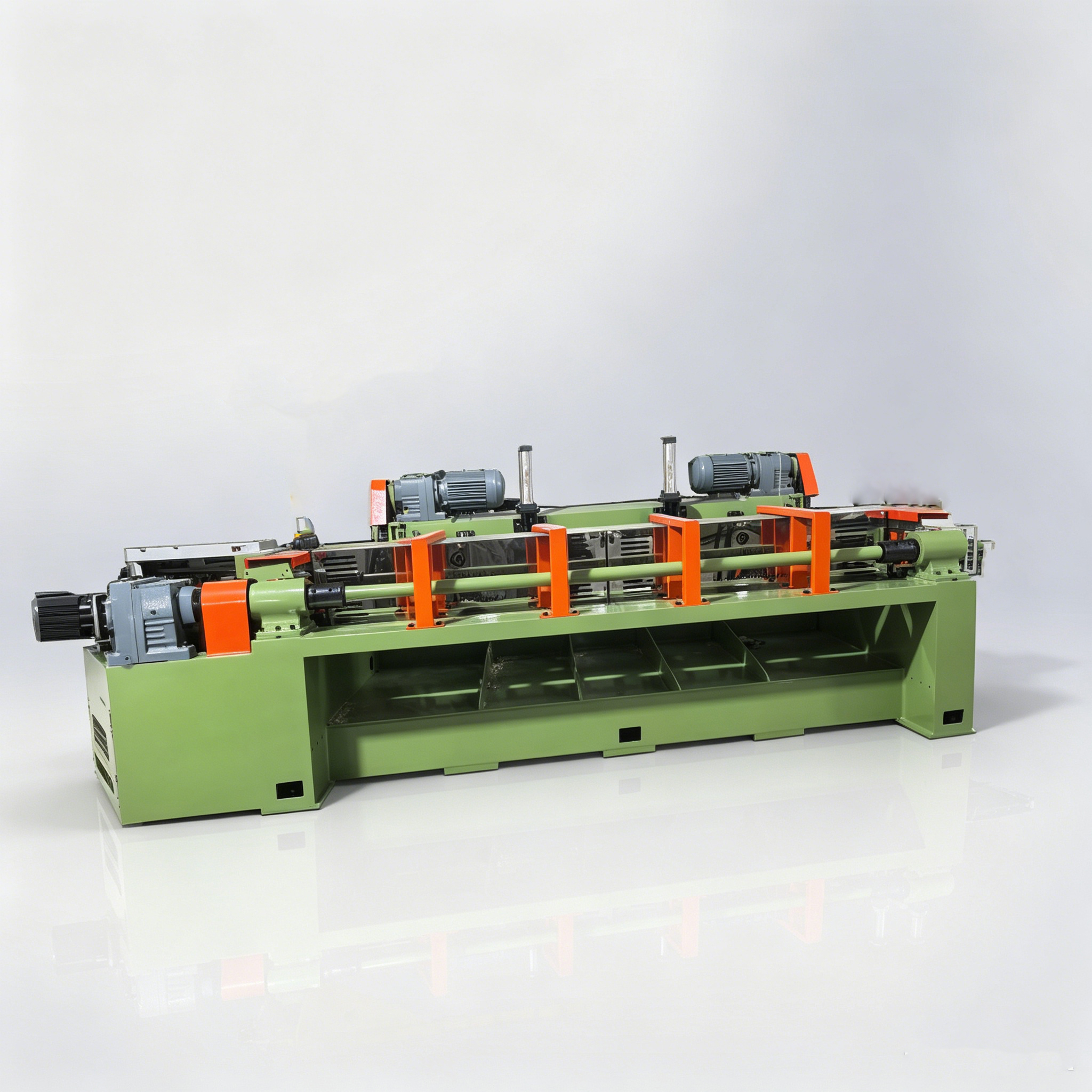

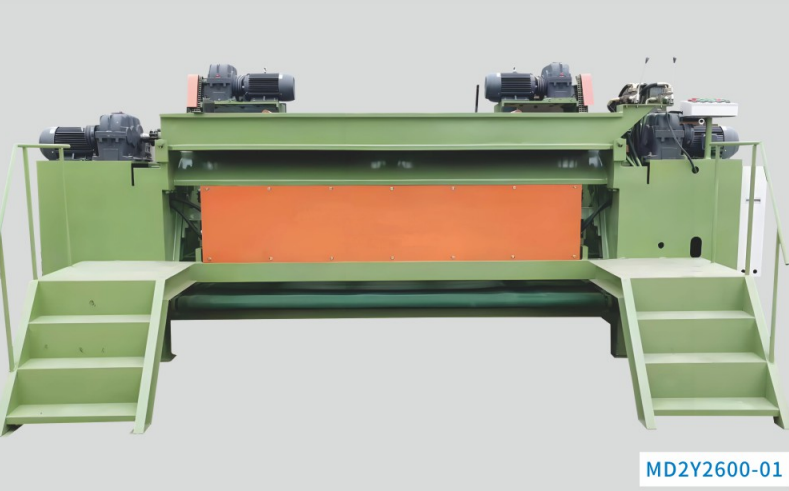

| Peeling machine |  | Max log diameter : 500mm /8ft + Round Girth Mini left overs diameter : 28mm /1 Inch Peeling speed : 30-100Meter /Minute Veneer thickness : 0.8-3.2m Blade size : 1500x180x16mm Single roller Motor power : 11kw x 2= 30kw VFD motor /Reducer: R97 Double roller motor power : 11Kw x 2 =30 Kw VFD motor /Reducer :R97 Feed motor power : 15kw x 1 = 15kw Servo motor Rotary cutter power : 1.5kw x 1 = 1.5kw Servo motor Rubber roller & Conveyor power : 1.5kw x 1 = 1.5kw Total power : 74kw Machine weight : 7.5 tons |

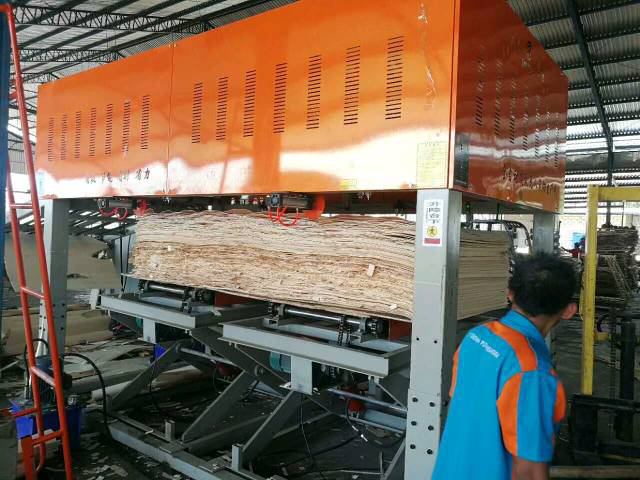

| Veneer stacker |  | Mature technology with smart control Synchronized 2-Station Vacuum
Length of veneer : 2600mm 8ft Width of veneer : 500-2600mm Thickness of veneer : 1.2-4.0mm Stacking speed : 30~ 100m/min (ajustable) Stacking height : 800-1200mm Number of stacker : 2 station stacker Power of Vacuum Fan : 5.5kw x 4 =22kw Total power : 36kw Control : PLC + Touch screen Inverter Drive for the motors Length of veneer conveyor belt : 7.5 Meter Size : length 3.7m x width 2m x height 2.75m Weight : approx 4.5 ton Hydraulic lift tables x 2 pc |
 | ||

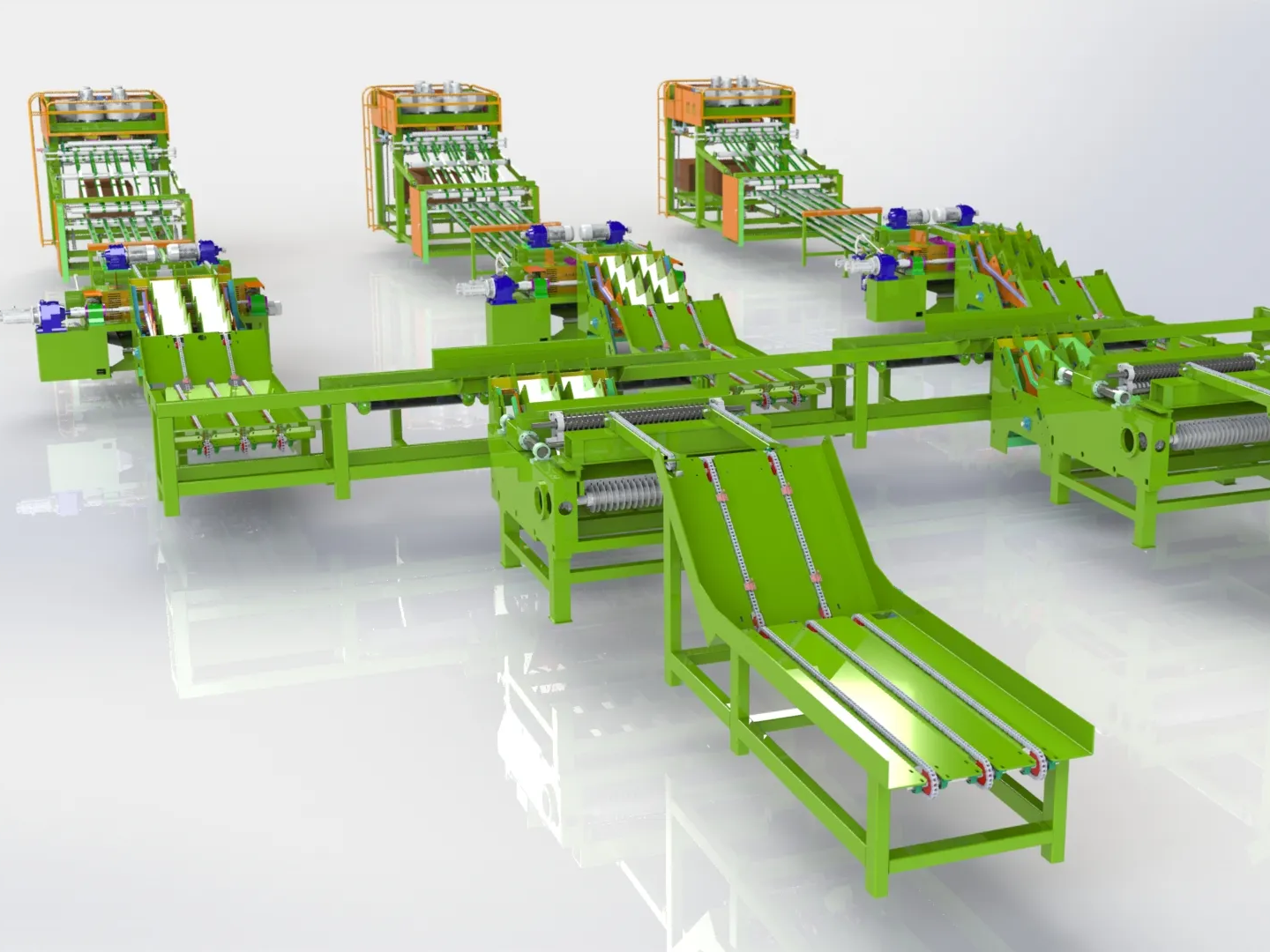

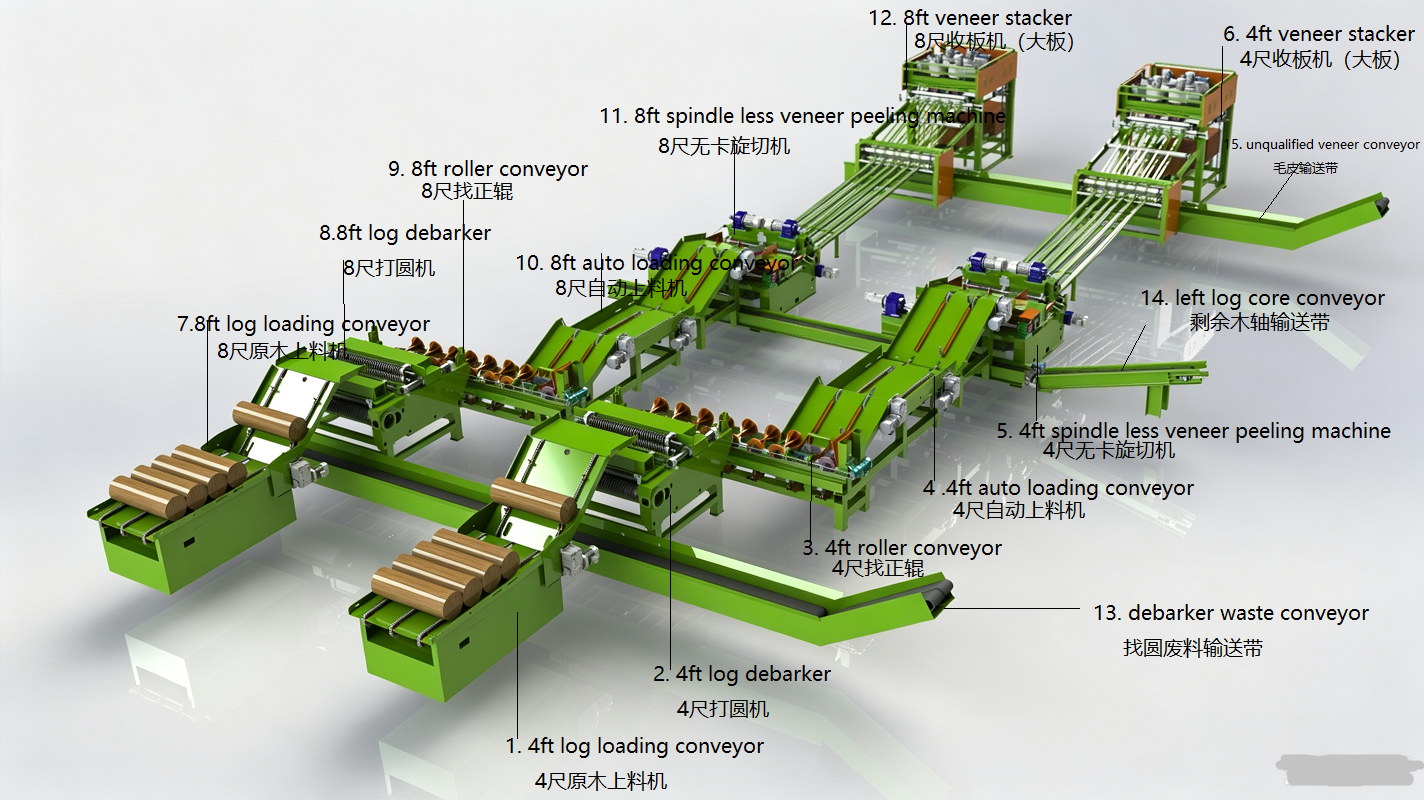

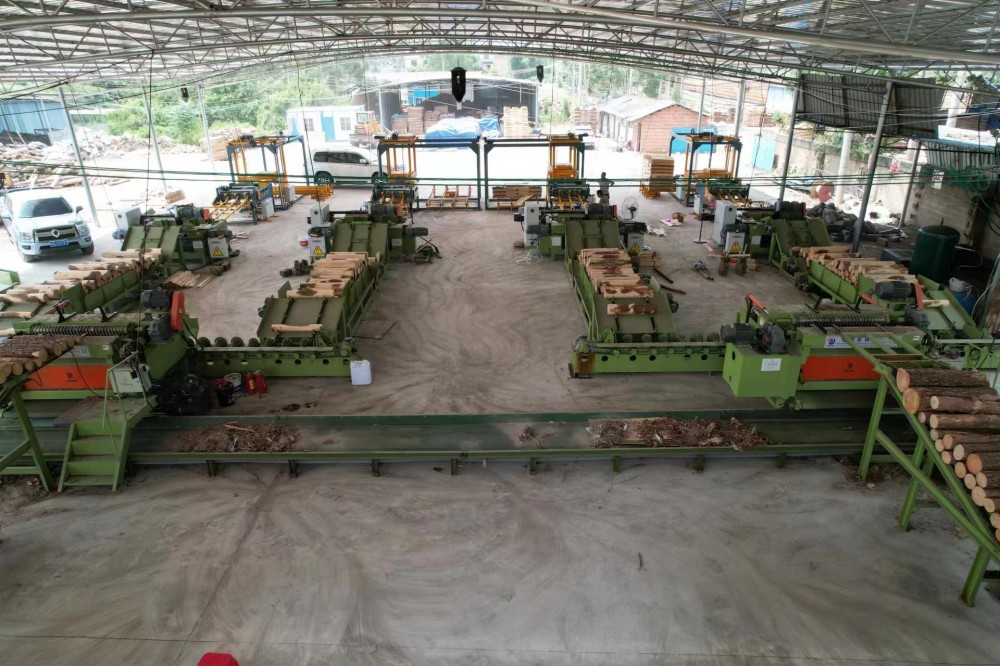

Spindle less veneer rotary cutting line in action /in plywood product | ||
 |  |  |
 |  |  |
