PRSATHT4820
PRECISION
Precision Machine in China
 |
 |
 |
 |
Area | Function | Parts | Specification | Image |
| Auto feeder | feed plywood one by one to the Auto loading loader | Vacuum feeder | Speed : Adjust Weight : 150kg Plywood position corrector | |
conveyor | Roller conveyor Power : 1.5kw |
| ||
Automatic loader | Loading plywood to the Hot press machine | 20-25 layers | 35 layers Roller conveyor Power : 7.5kw Roller wheel | |

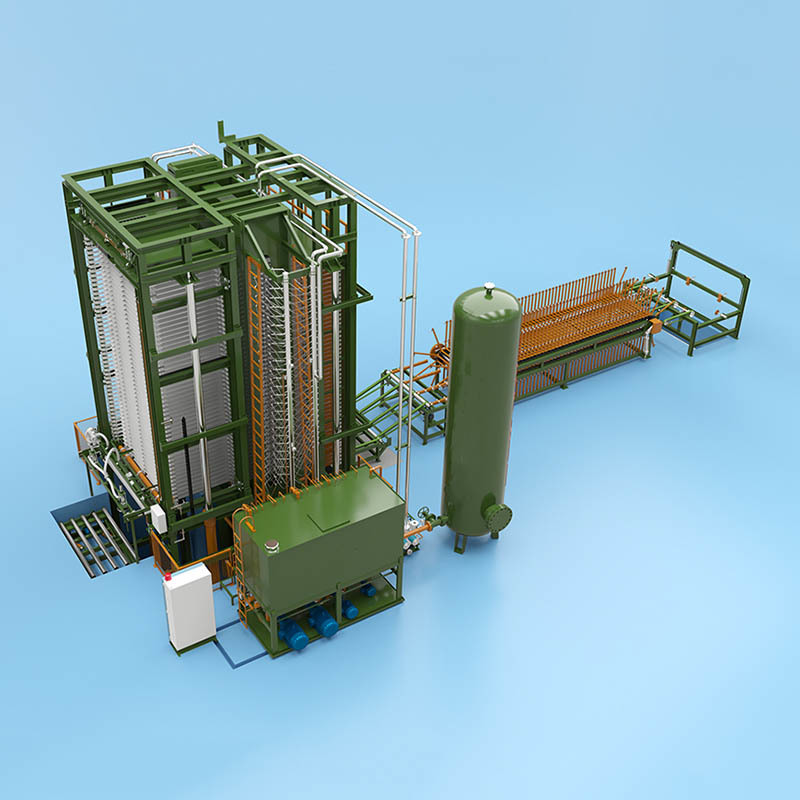

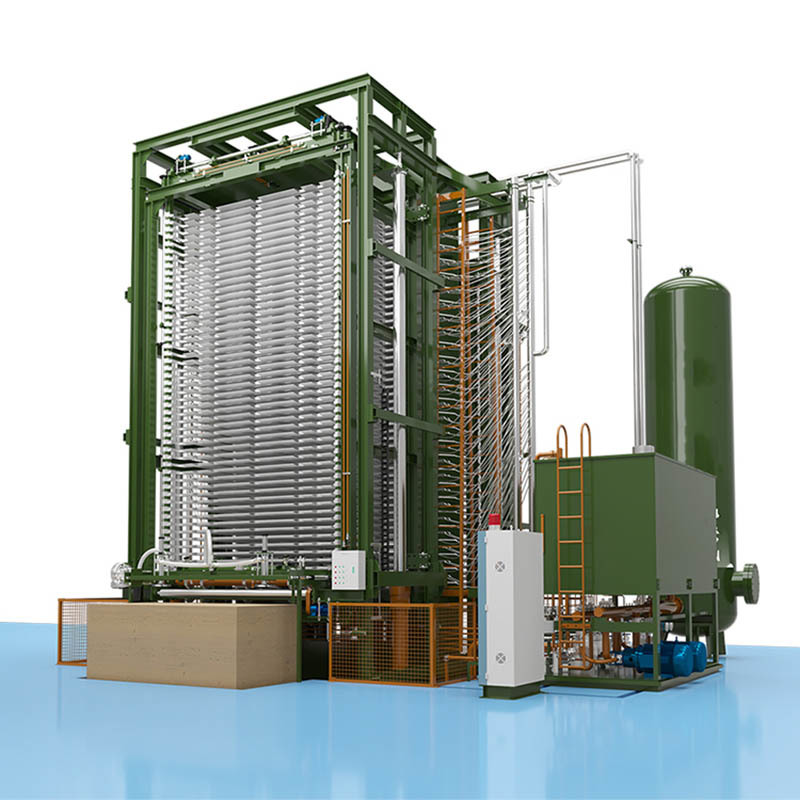

Hot press machine | Press plywood 1. Automatic open & close 2. PLC control | 800t 20-35 layers | Body：Q345 Manganese steel Structure : double steel x 8 pc beam Hot press plate ：1400*2700*52mm Heating oil: Double in double outlet Opening ：100mm Pressure ：800T cylinder ：φ280*3500mm*4 pc Motor ：Siemens PLC：Delta Temperature control : 1 set | |
Automatic unloading | Unloading the plywood When hot press finished | 20-35 layers | Power : 5.5kw Speed : Adjust by inverter Control : PLC |
|
Automatic stack | Stack plywood into one seat | Lifting table -1 pc Conveyor motor : 3kw Lifting power : 3 kw Load weight : 5 tons |
| |
Full Automatic loading & unloading 4 x8 ft , 800t ,20-35 layers . 1, All motor are Siemens 2,All Electric parts : Schneider 3, Control PLC : Delta 4 ,Operator need : 1 5,Capacity : 4 cbm / hour | ||||
Our hot press machine is hot sale in China its famous for its stable quality and faster work welcome contact me for more details price serenda kong whatsapp + 8615588058177 serenda@prsplywoodmachine.com | ||||
| Our workshop | |
 |  |
 |  |
| Everyshipment were strict packaged | |
 |  |
 |  |
