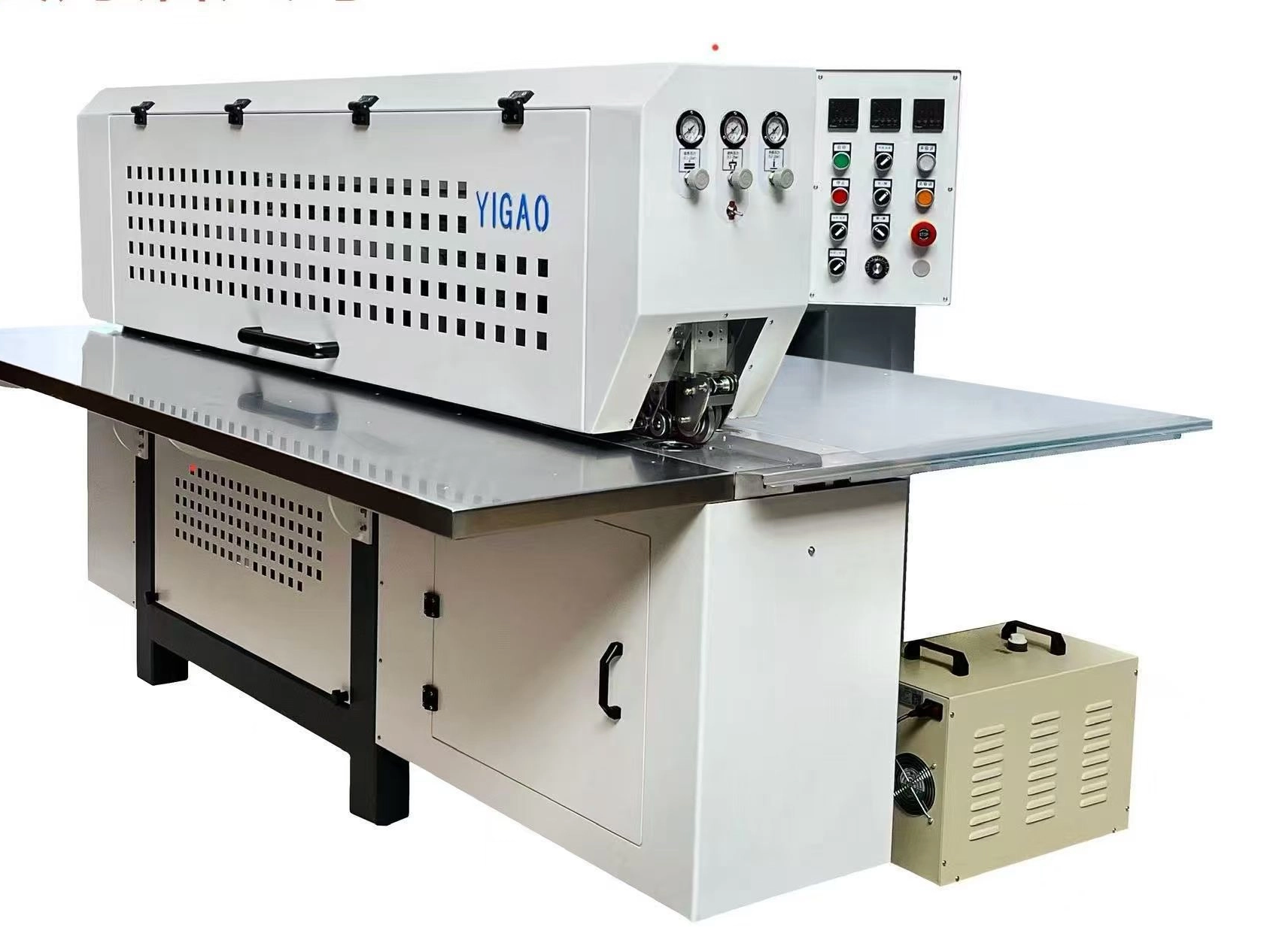

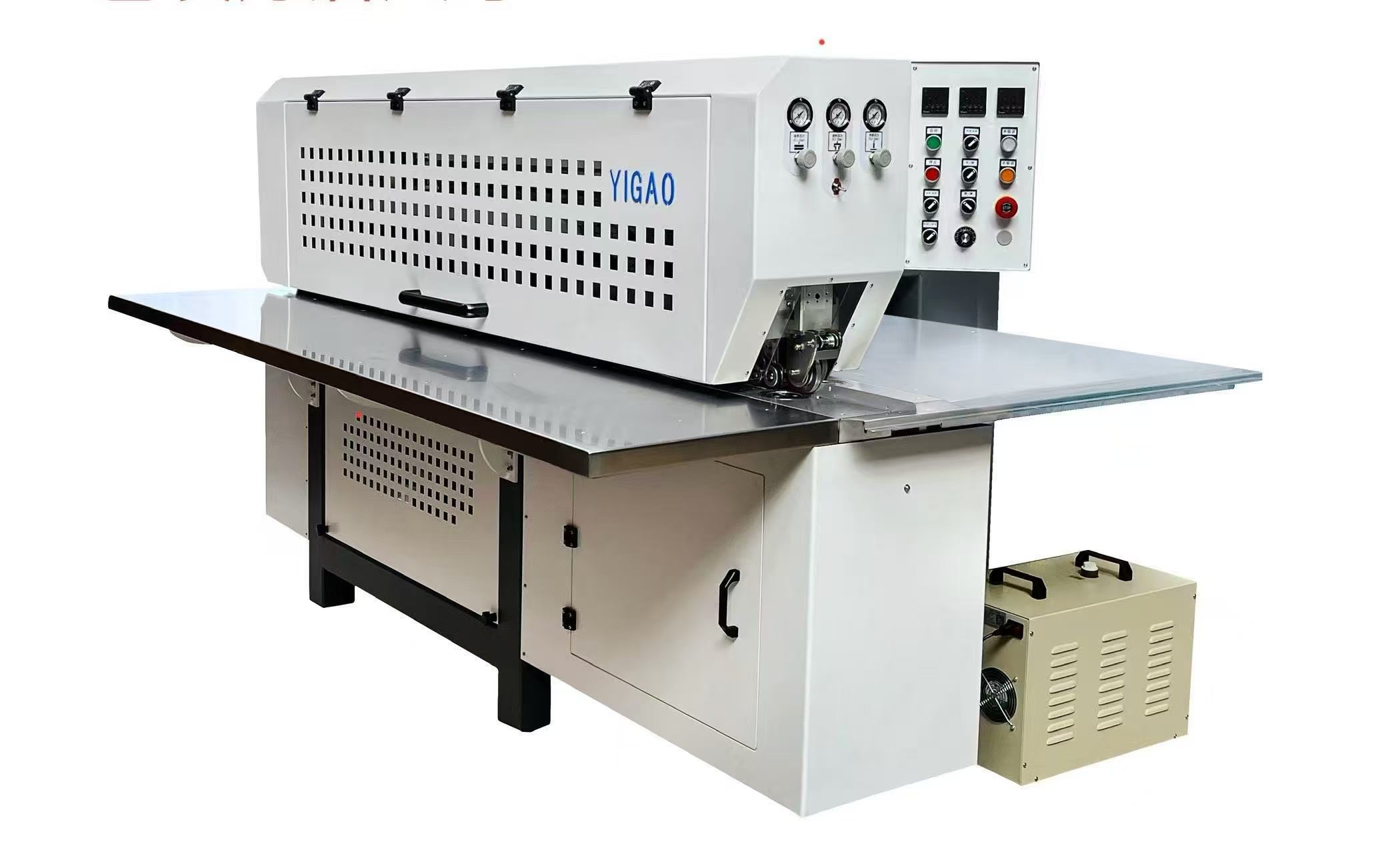

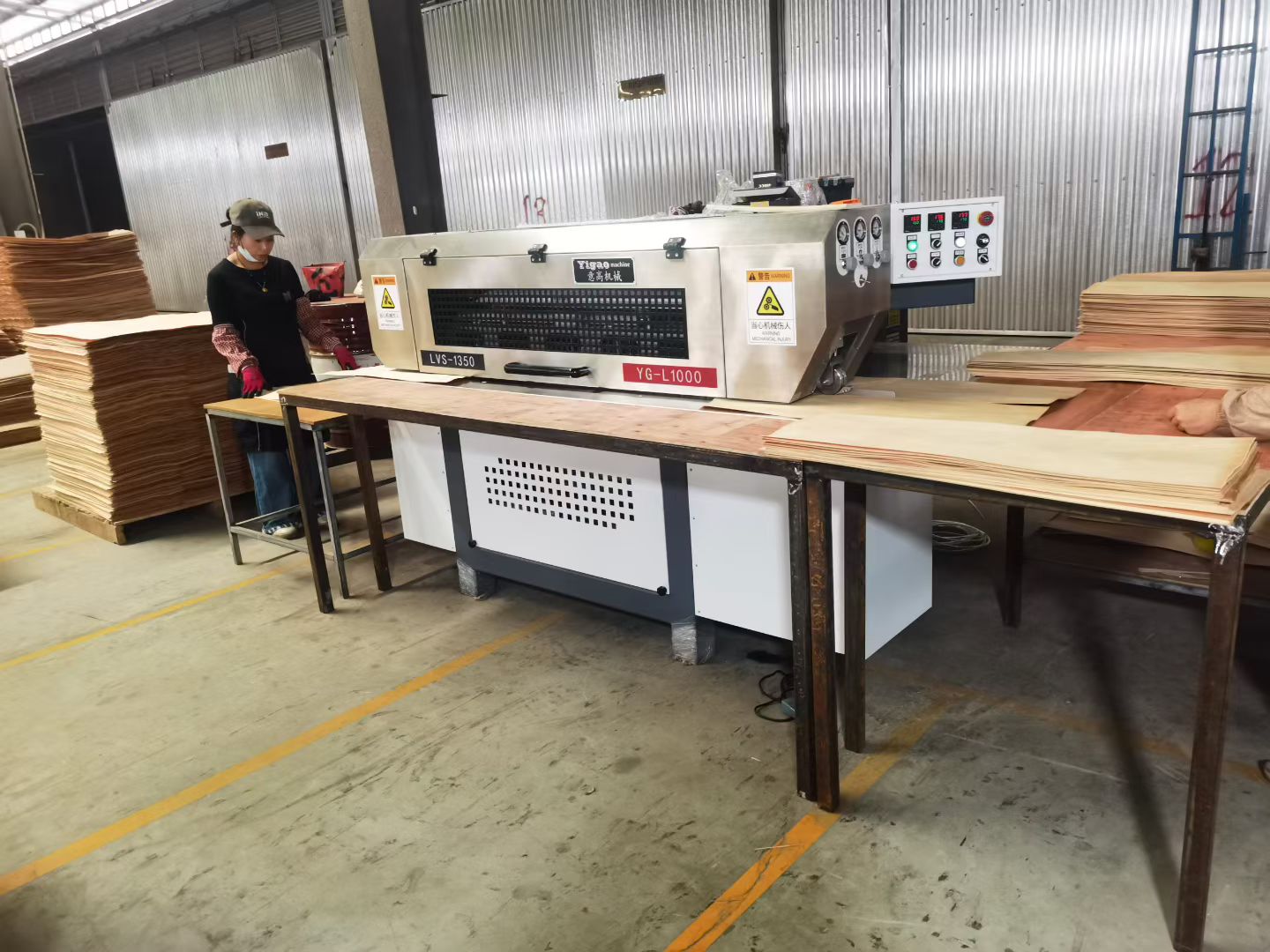

Production of Veneer stitching machine / Veneer splicer machine
A veneer stitching machine (or splicer) is an import woodworking tool used to seamlessly join multiple thin wood veneer sheets together.
By melting a specialized thermo-adhesive glue thread
\in a zigzag pattern along the joint, it creates tight, tear-resistant bonds for furniture, cabinetry, and plywood manufacturing.

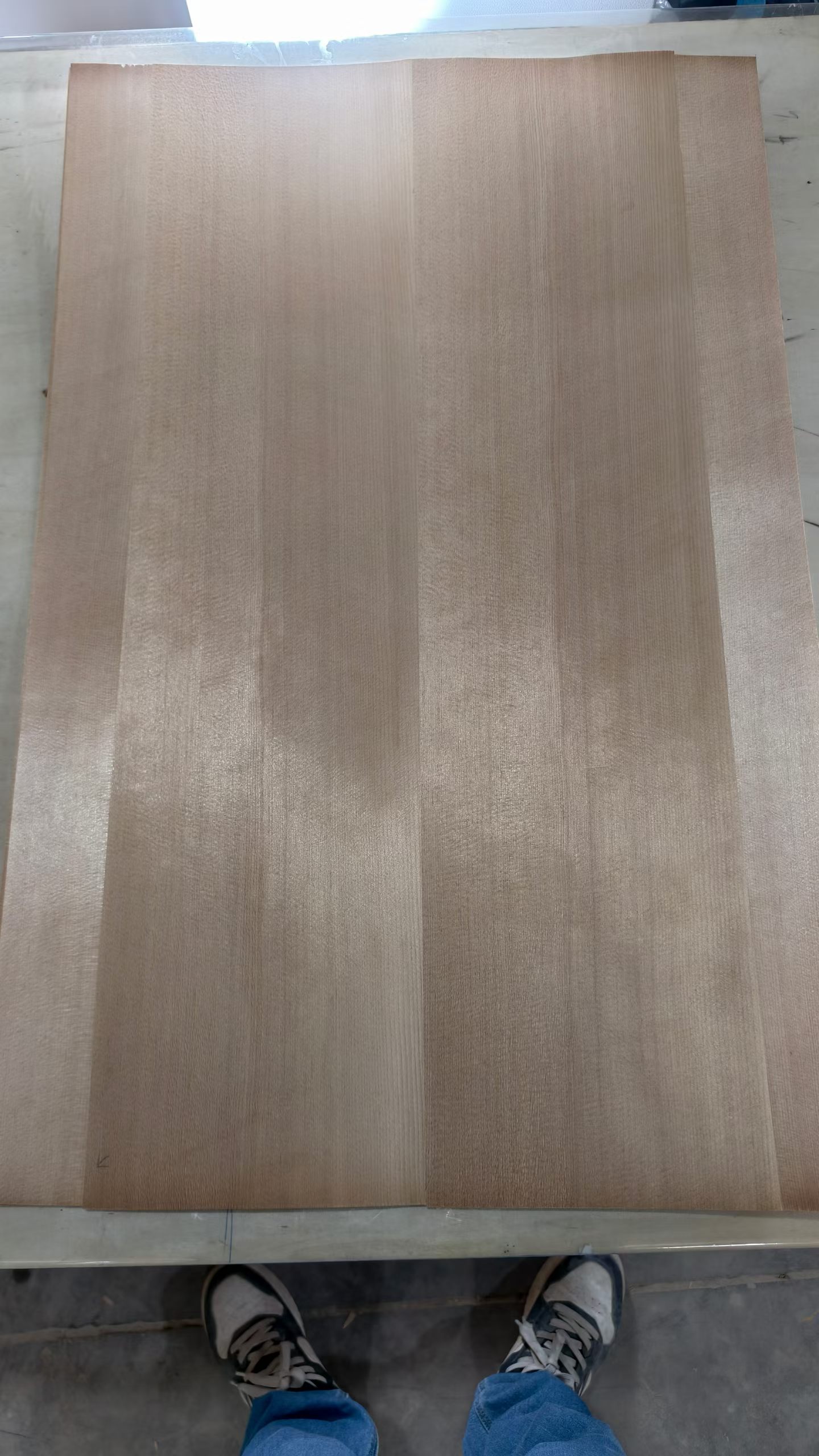

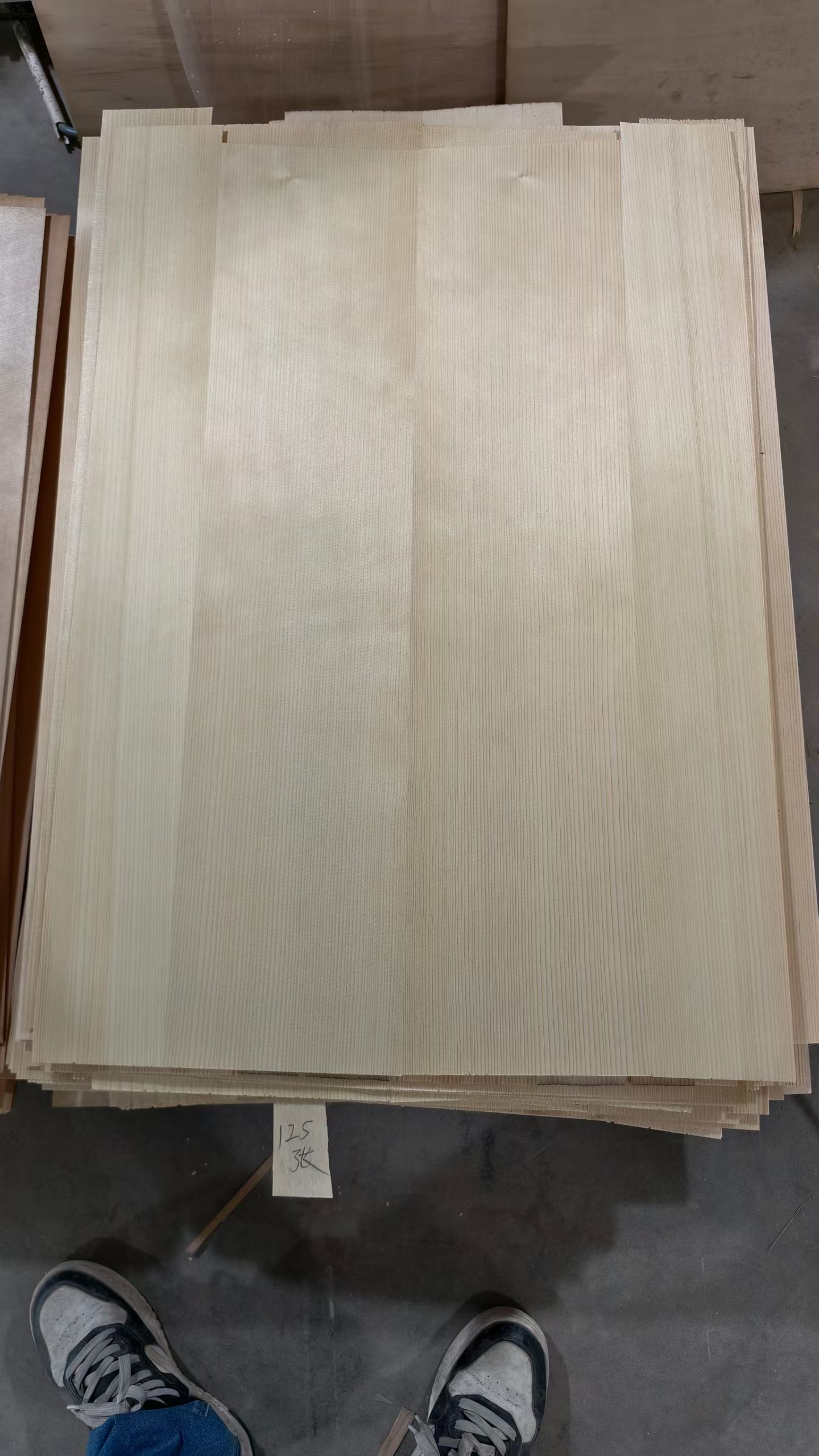

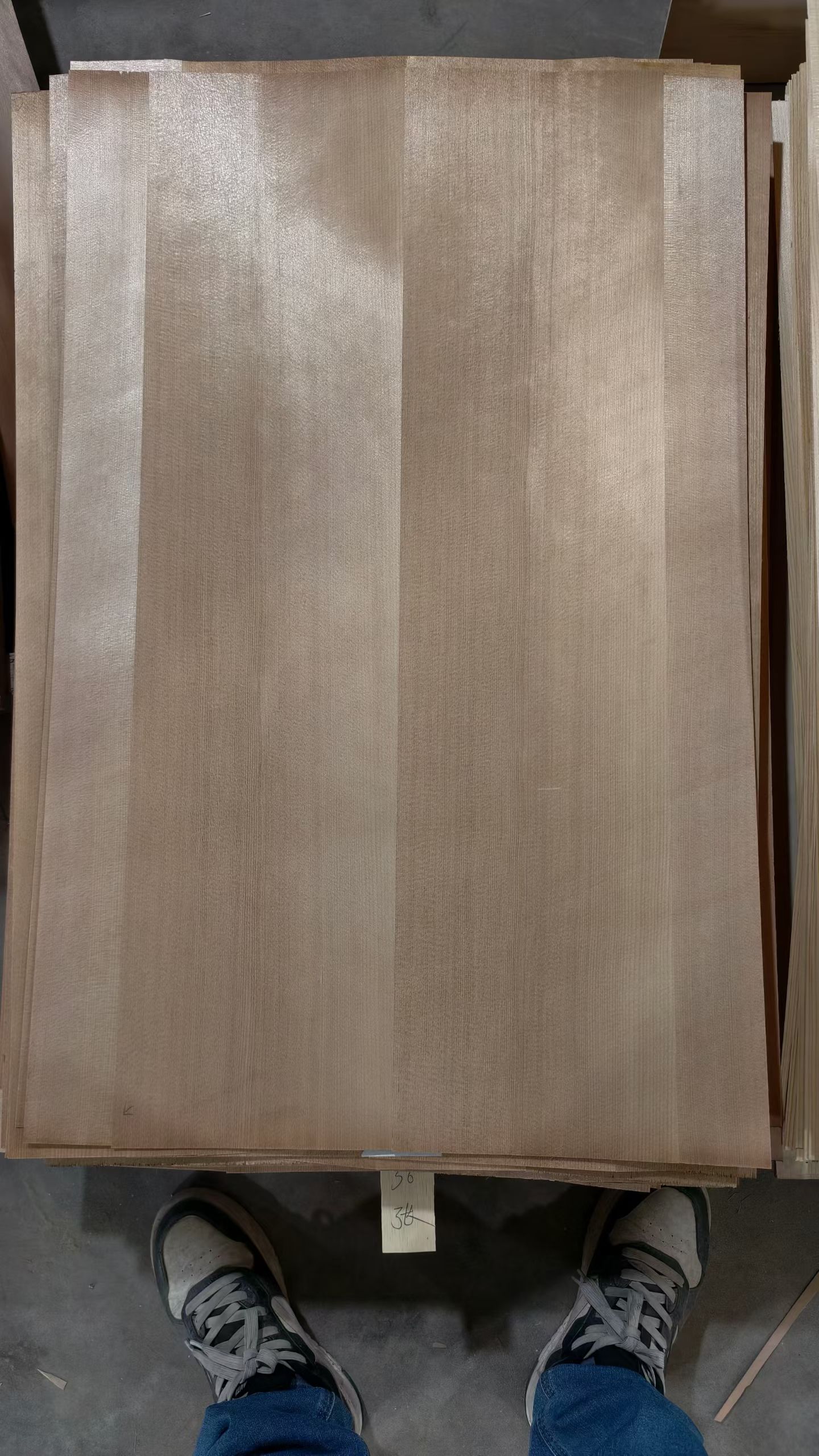

Veneer stitching machine work performance .
 |  |  |
Key Features and Specifications
Process: Unlike traditional sewing, it uses a hot-melt glue thread that weaves back and forth over the veneer edges, securely joining the pieces before pressing.
Speed: Industrial models boast high feeding speeds ranging from 10 to 60 meters per minute depending on the model.
Capacity: They typically accommodate veneers with thicknesses ranging from 0.4 mm to 5 mm and varying throat depths (e.g., 920 mm to 1400 mm).
Glue Thread: The zigzag thread prevents overlapping, ensuring a smooth surface that won't compromise the final pressing process.
| Item | Parameter |
| Model No. | PRS-300 |
| Gluing Method | Patented Flexible Profiling Gluing Technology |
| Veneer Thickness Range | 0.3～2.5mm (Subject to veneer material condition) |
| Applicable Veneer Length | 200mm～Unlimited |
| Applicable Veneer Width | ≥45mm |
| Applicable Veneer Moisture Content | 8～12% |
| Squeeze Belt Material | 304 Stainless Steel |
| Feeding Speed | 0～50m/min |
| Total Installed Power | 6.5kW |
| Air Pressure Requirement | 5 kgf/cm² |
| Bonding Temperature | 90～220℃ |
| Cantilever Span | 1000mm |
| Working Height | 900mm |
| Overall Machine Length | 2400mm |
| Overall Machine Width | 1930mm |
| Overall Machine Height | 1450mm |
| Squeeze Zone Length | 1350mm |
For the best results, veneer edges must be perfectly straight and parallel before feeding into the machine. Standard maintenance involves
regularly checking the heating
tube temperatures (typically adjusted between 150°C to 220°C), cleaning thermal conductive strips, and ensuring the thread tension is properly
calibrated to prevent snapping at high speeds.
Details for Straight veneer sheet sewing machine

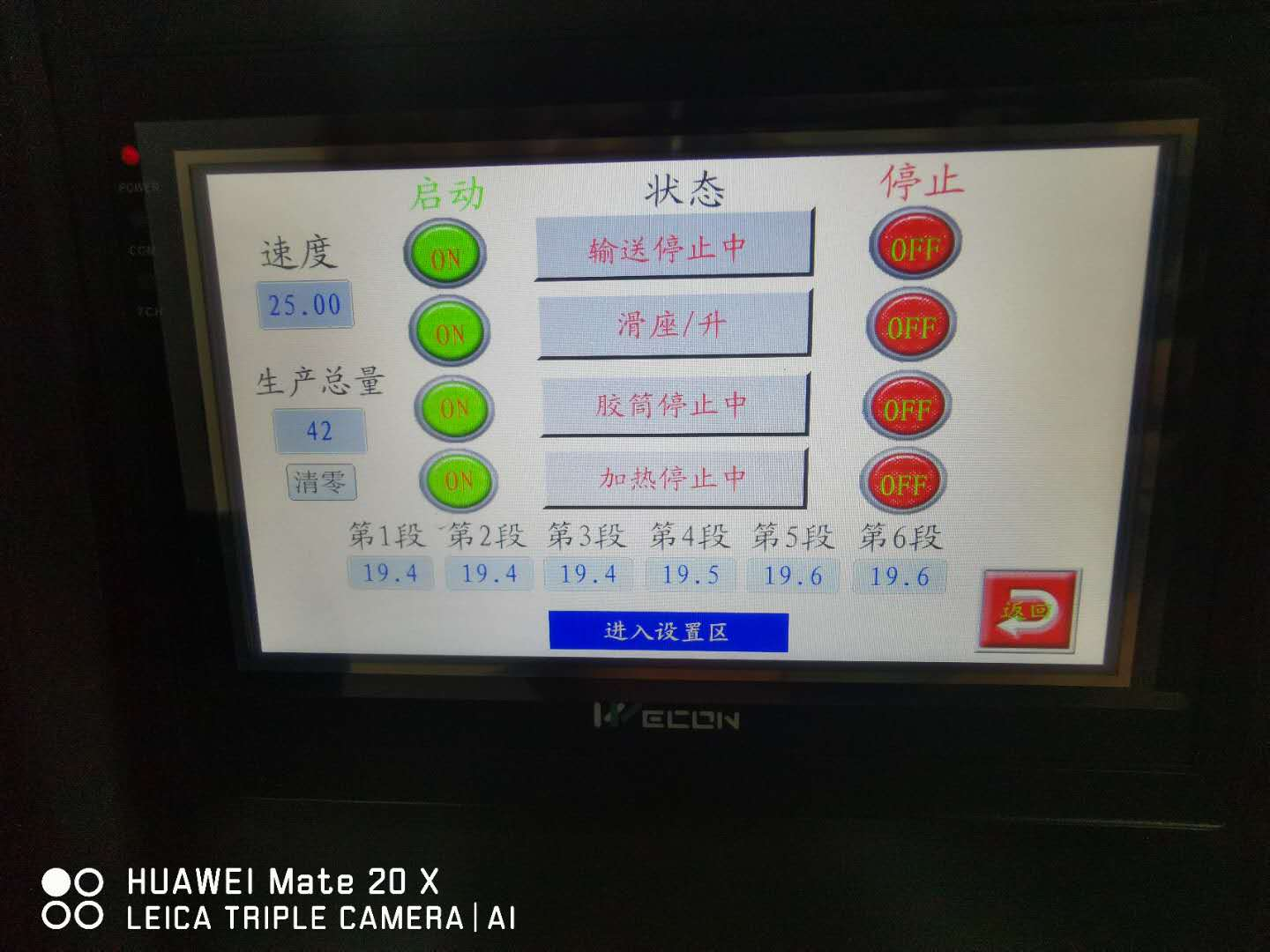

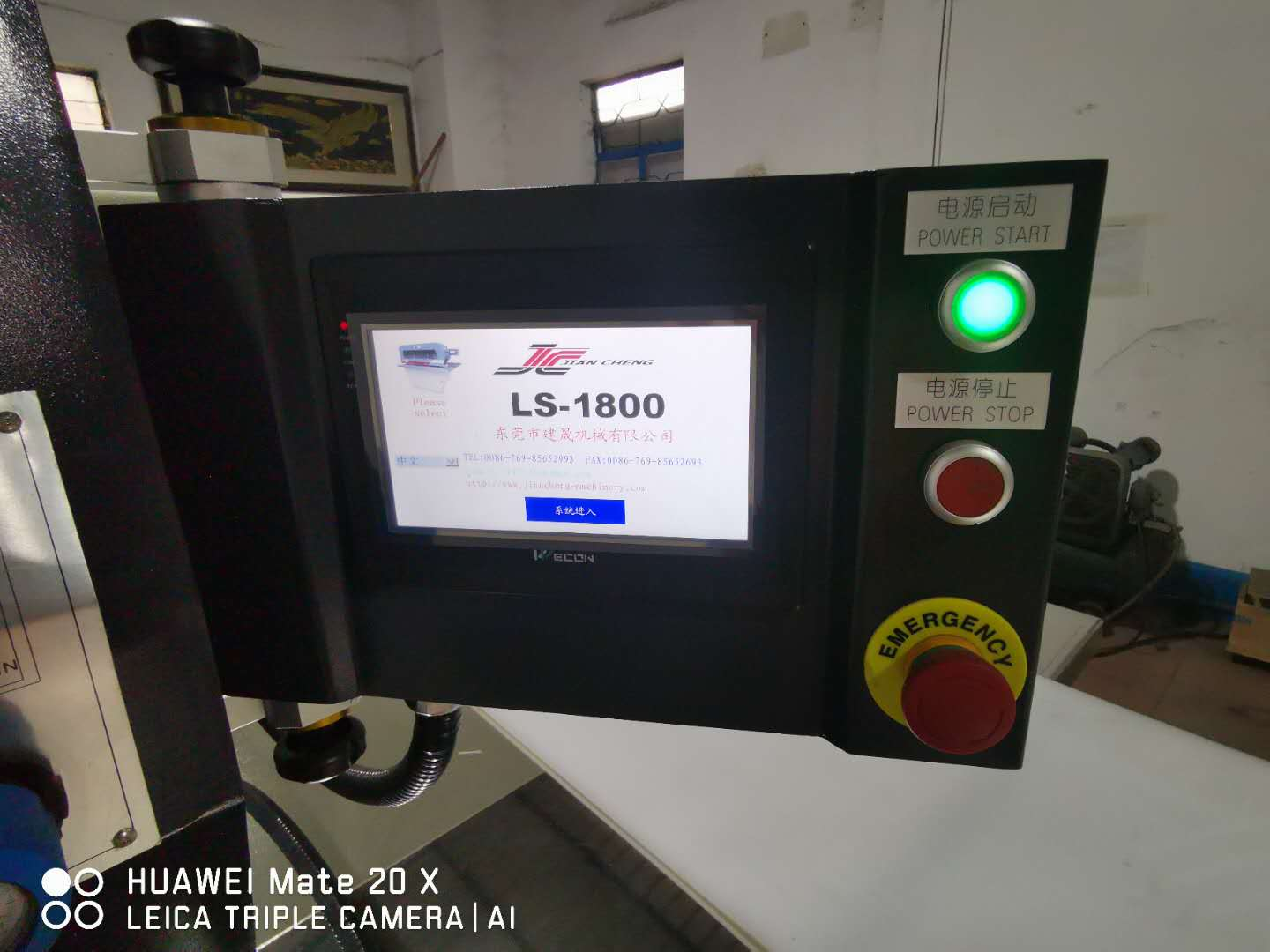

| Human-machine interface: *Centralized start-up system, including feeding speed, splicing start/stop, heating start and temperature setting and other functions. *The heating/fault of the electric heating tube can be displayed on the screen, making it easy for the operator to identify and troubleshoot |

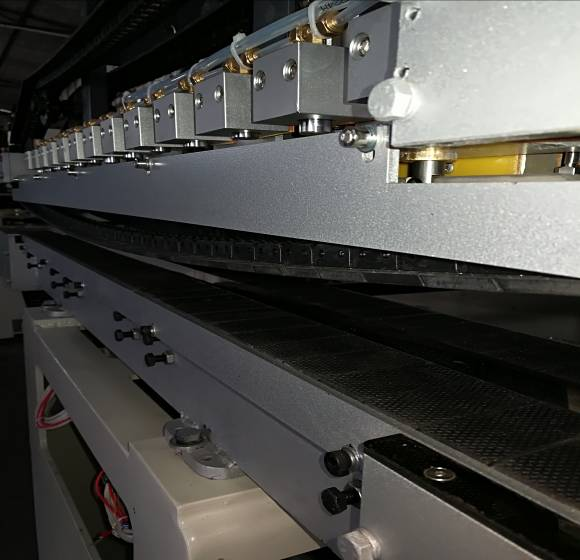

| Feeding table: *Upper and lower crawler type conveying, variable frequency drive feeding speed 5 ~ 50m/min. *Stainless steel work table, constant table height 920mm. *The material of the chain plate is engineering plastic, and the chain is imported from Japan. |
| Splicing temperature: *The splicing temperature control range is 100 ~ 220℃ *The whole machine adopts Japanese electric heating tube and thermal probe, which has stable heating and high temperature control sensitivity. *The upper and lower central heat-conducting plates make the splicing more flat. |

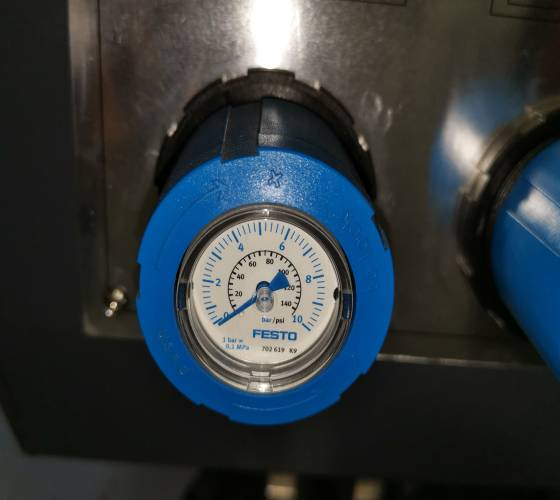

| Pressure control: *Germany FESTO precision pressure regulating valves are independently controlled to ensure uniform pressure on the workpiece, making the splicing smoother and smoother. *Germany FESTO barometer, accurate pressure indication. |
Veneer stitching machine is different with veneer composer ,and veneer sewing machine
please call me ,lets discuss more on these feature
