Whats the special of Nose bar spindle less veneer peeling machine ?

1、Conventional spindleless veneer peeling machine rely on the cooperation of single and double friction rollers to drive logs for veneer peeling. The single roller applies compression force to the wood block, and logs are continuously peeled into veneers by adjusting the knife gap of the peeling blade.

2、This type of machine has prominent drawbacks: the wood block is prone to vertical bouncing and radial displacement during peeling, resulting in large thickness deviations and uneven surfaces of the finished veneers.

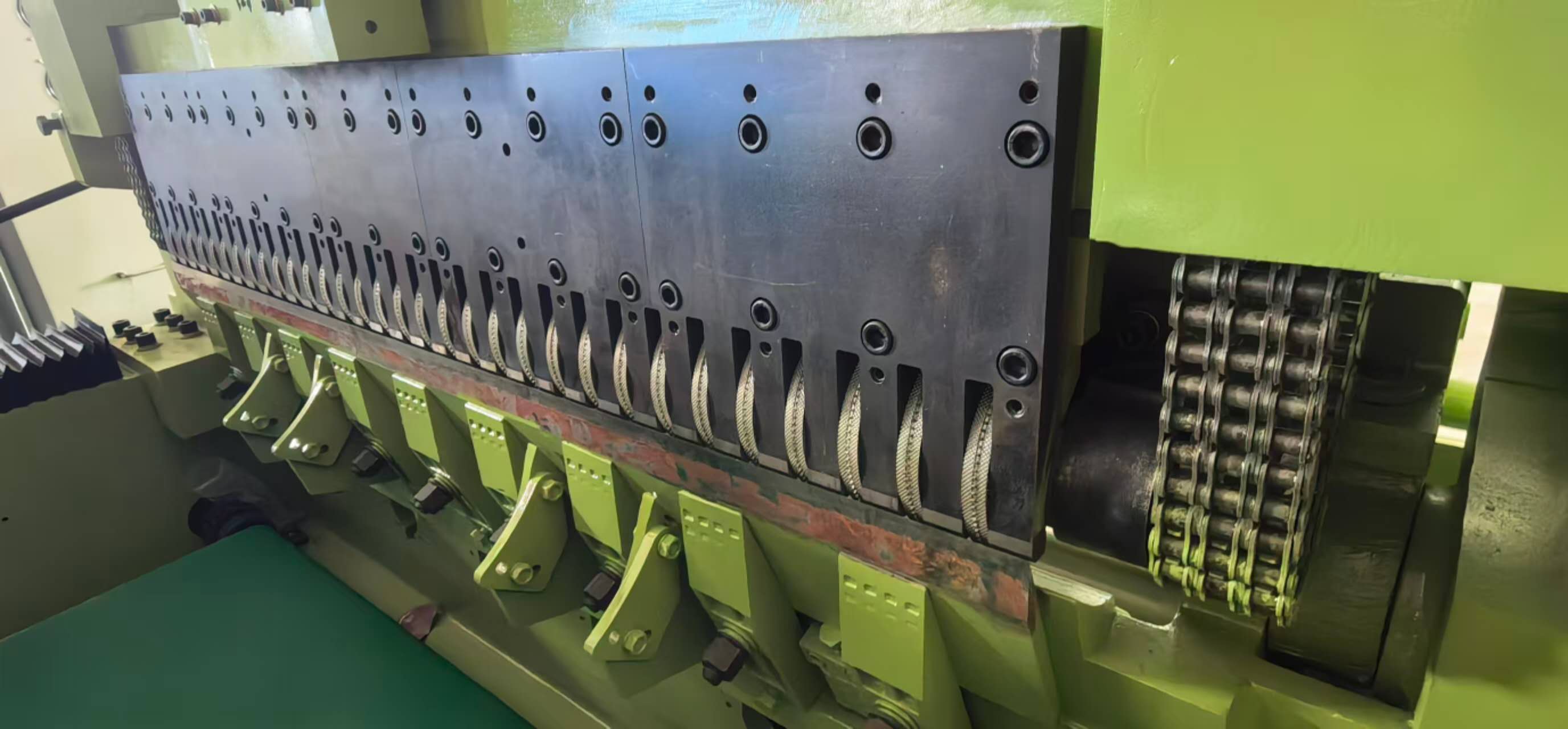

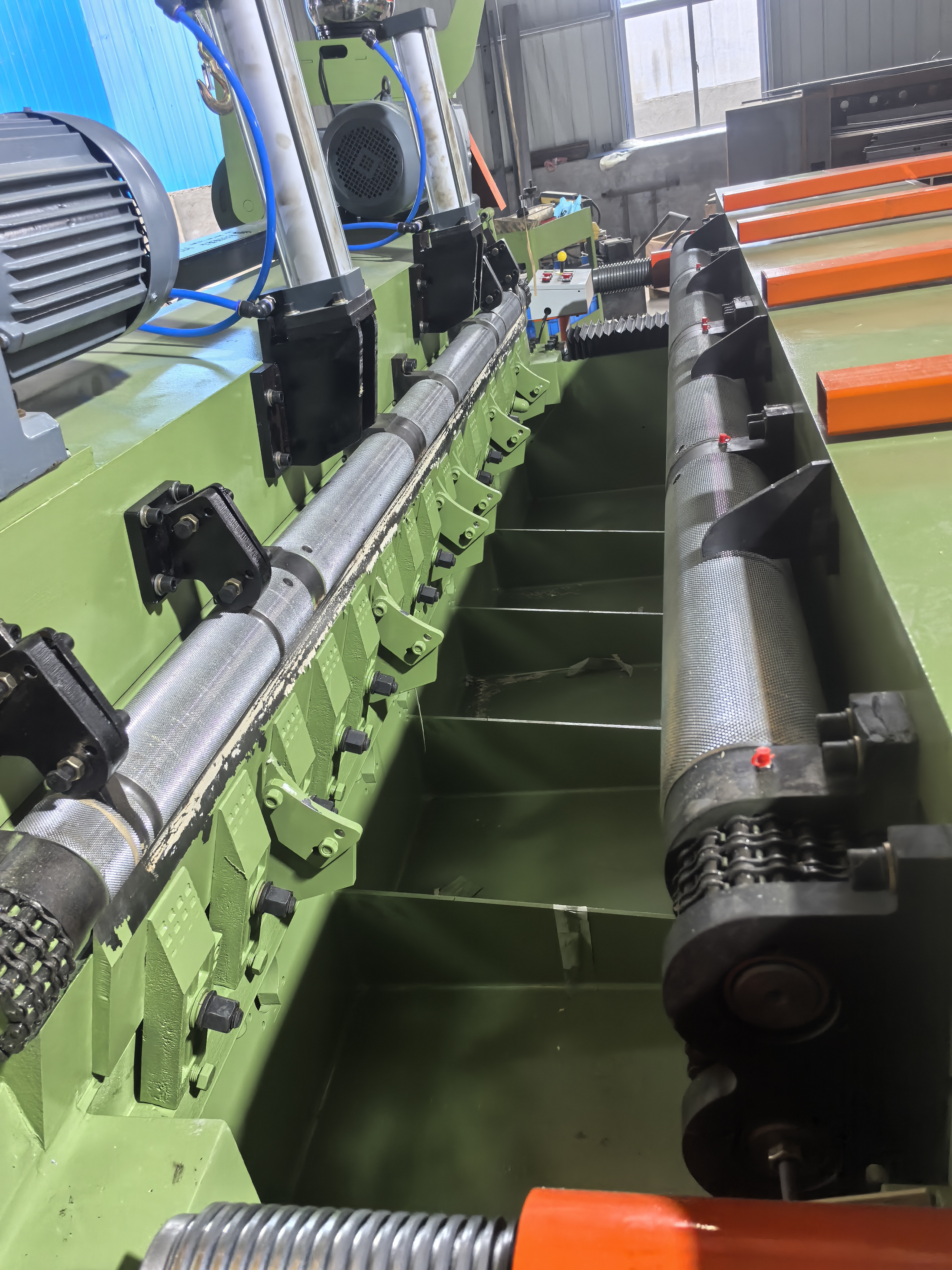

3、To address the above pain points, the toothed pressure Nose bar spindleless veneer peeling machine features an optimized structure. Its core upgrade is a row of continuous toothed gears installed in the middle of the single roller.

4、During operation, the dense tooth surfaces keep tightly pressing against the wood block to restrict radial shaking, allowing the log to rotate stably in sync with the single roller.

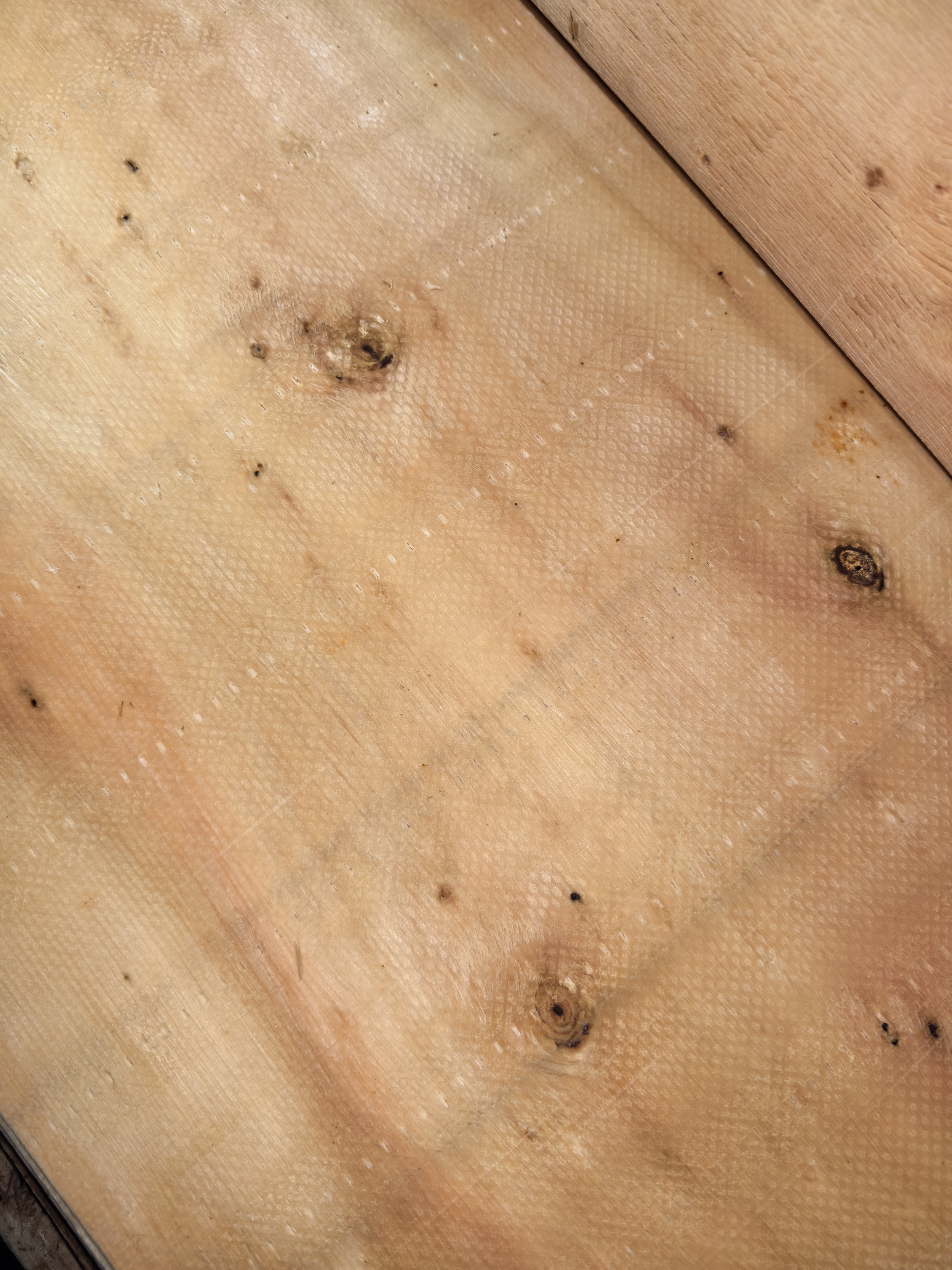

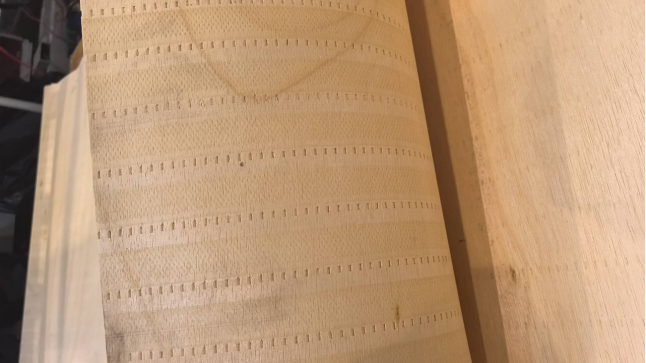

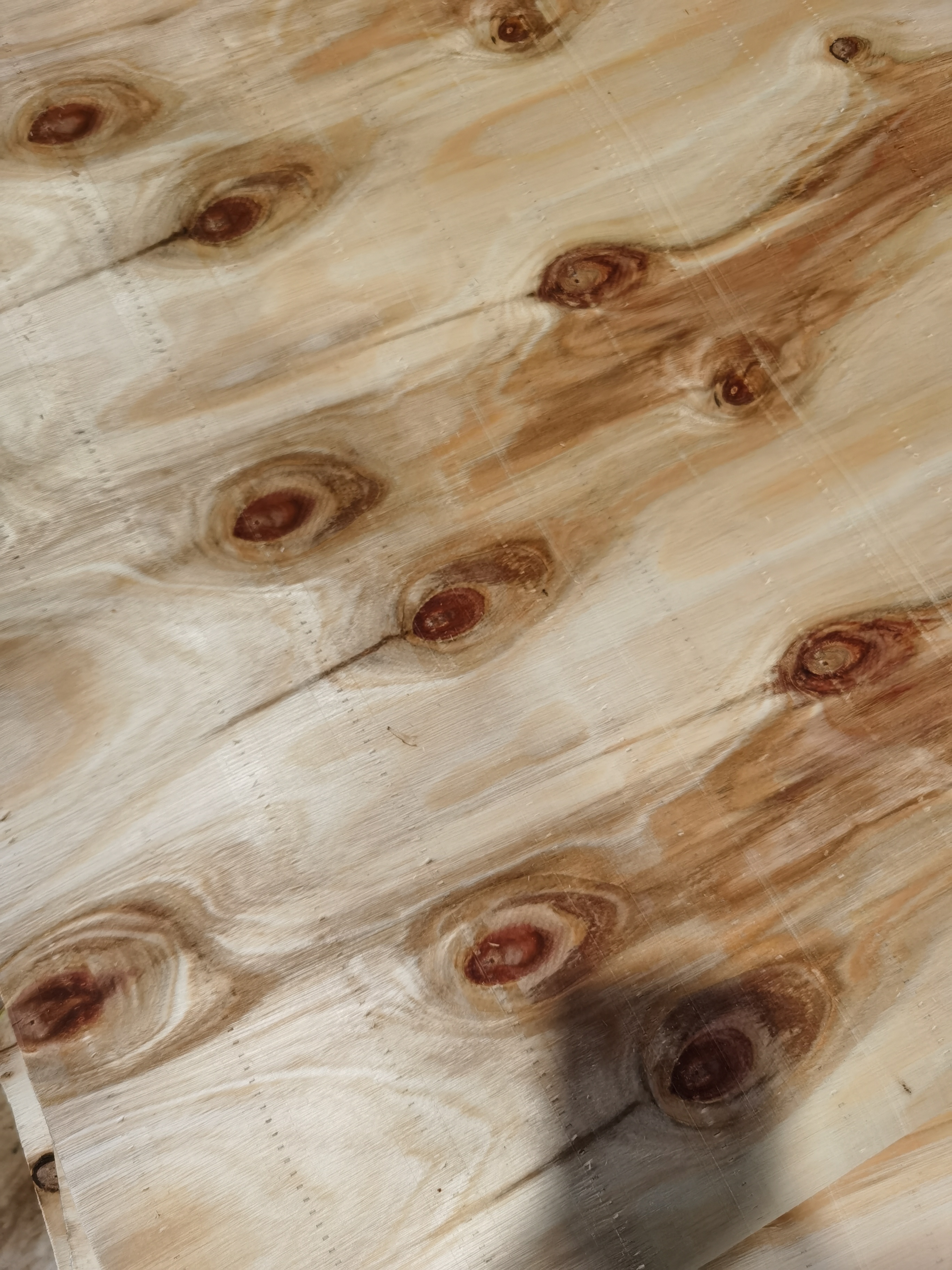

5、On one hand, balanced cutting force is maintained throughout peeling, yielding veneers with consistent thickness and superior surface smoothness. On the other hand, the toothed gears moderately sever surface wood fibers and release internal stress inside veneers, which effectively prevents veneer warping and wrinkling and greatly improves the flatness of finished products.
