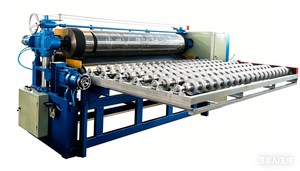

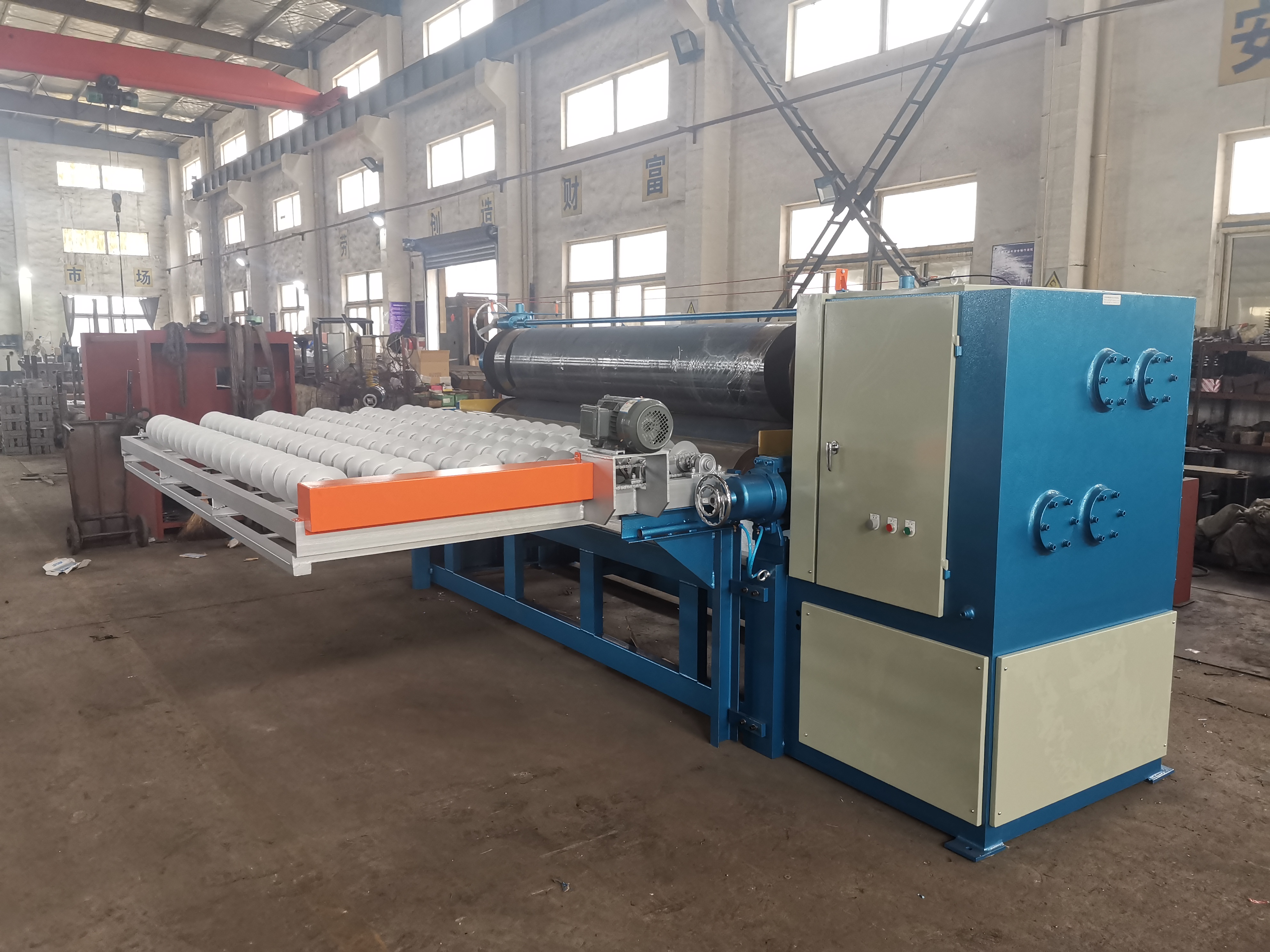

How is a plywood glue coating machine /glue spreader working ?
The glue spreader adopts two upper and lower glue rollers rotating oppositely,
which evenly adhere the glue from the glue tank to the roller surface. When the
veneer passes steadily between the two rollers, the glue is uniformly coated on
both sides of the veneer by roller pressure. The thickness of glue coating and glue
consumption can be controlled by adjusting the roller gap and rotating speed,
realizing automatic gluing of veneers.
Features:
1.Two rubber rollers and two polishing steel rollers,"Z" type layout 2.strong structure,more steady perfromance, gule coating evenly. 3.optionalthe Auto feeding and out conveyor |
Model | PRSTJ140 | PRSTJ270 |
Assemble | Z type or C type | Z type or C type |
Glue side | 2 side | 2 side |
Transfer | Chain transfer | Chain transfer |
Roller length | 1400mm | 2700mm |
Roller diameter | Φ410mm | Φ410mm |
Speed | 30m/min | 30m/min |
Motor | 5.5kw | 7kw |
Weight | 1000kg | 2500kg |
Size | 2.1x1.4x1.45m | 3.5x1.4x1.4m |
Advantages of Pneumatic Glue Spreader
-
Stable power and low failure rateIt adopts compressed air as power source, with simple structure. It is not easy to burn out the motor, durable and suitable for
long-time continuous operation in the factory.
-
Uniform gluing and adjustable glue volumePneumatic pressure adjustment is sensitive with stable glue output. The glue amount can be precisely adjusted according
to veneer thickness and plywood technology, no glue leakage or glue accumulation, ensuring excellent bonding effect.
-
Strong compatibilityIt is suitable for veneers of various specifications and plywood veneers of different thicknesses, widely used in the production
of ordinary plywood and multi-layer boards, and matches all kinds of production lines.
-
Simple operation and convenient adjustmentThe glue thickness and running speed can be adjusted quickly by air pressure. It is easy for workers to operate and
debug without complex electronic control settings.
-
High safety and workshop applicability
