Product brief

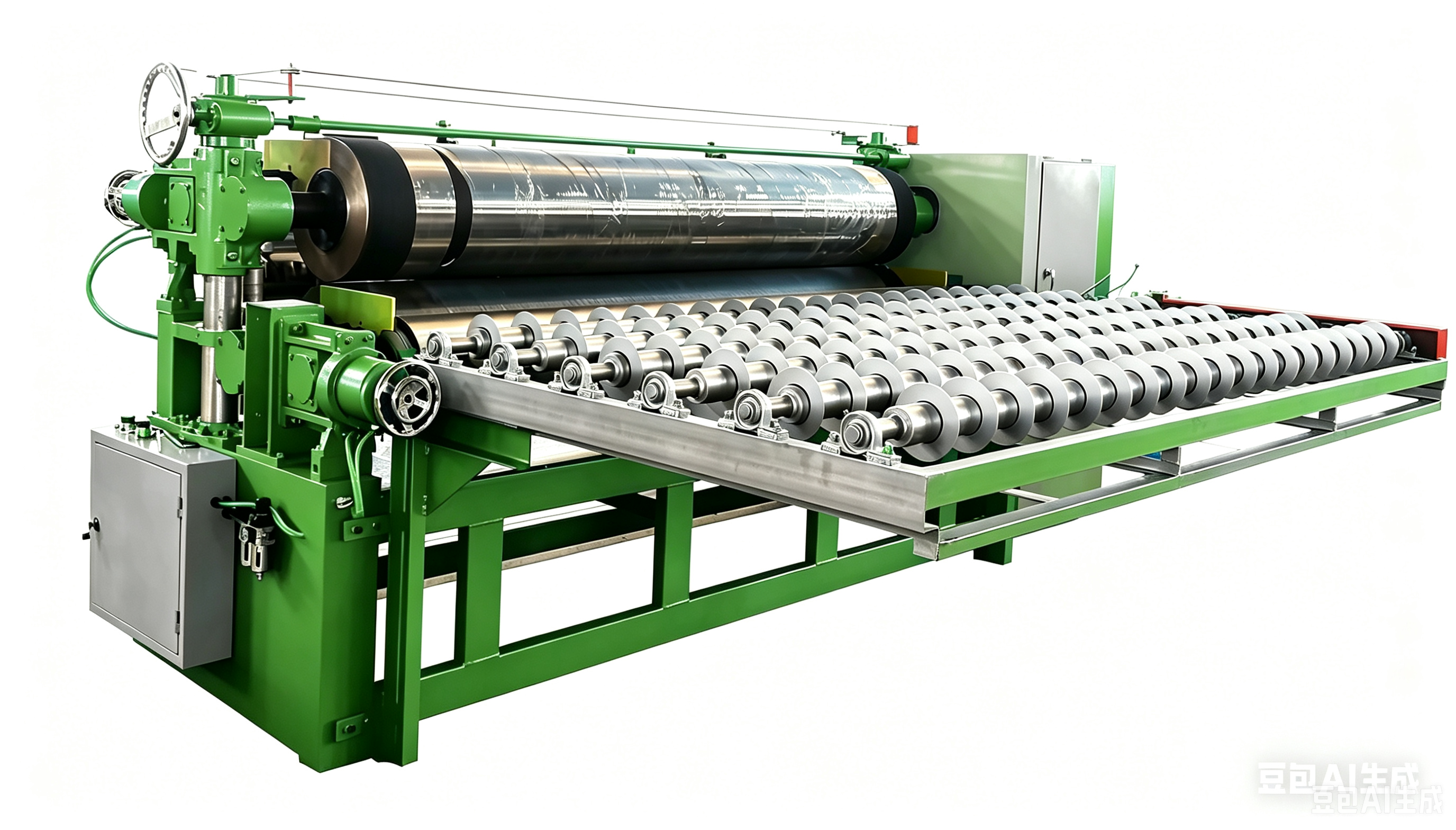

The advantage of pneumatic glue spreader machine
1. Precise and even gluing: Air pressure controls the glue amount, adapts to different adhesives, and ensures even coating.
2. Glue saving: Saves more glue than traditional methods, up to about 10%, reducing costs.
3. Safe operation: Pneumatic adjustment of the rollers allows quick separation when foreign objects appear, preventing damage and accidents.
4. Durable and easy to maintain: The rollers are wear-resistant, and the structure is designed for easy cleaning and glue refilling, reducing downtime.
Technical Parameters
Model | PRSTJQD1404 |
Roller assembly Type | Front and rear Up and down ( Z ) |
glue veneer side | two side |
Transfer method | Gear wheel |
main roller dia. | Φ 420mm |
roller length | 1400mm |
Sub squeeze roller diameter | Φ295mm |
Speed（ | 30~70 m/min |
motor | 5.5KW-4 |
Voltage | 380v or customized |
Weight（KG) | 4800kg |
Size | 4200*1610*1850mm |
The model 4ft is general standard size , we accept customized size
4 glue spreader models
4ft general glue spreader （diameter 270mm ）  | 4ft big roller glue spreader machine for plywood production,Nutril roller ,longer work life  |
8ft general plywood veneer gluing machine  | pneumatic core veneer glue spreader machine |
glue spreader + plywood veneer layup line
Type 1 : 8ft glue spreader + veneer conveyor veneer size : 4x4ft ,4x8ft process : short grain veneer go though glue spreader machine ,then Automatic conveyor glued veneer to 2 designed work stations (https://www.youtube.com/embed/pzocPuKkruk )  | Type 2 : 4ft glue spreader + veneer conveyor veneer size : 4x4ft ,8x4ft process : long grain veneer go though glue spreader machine ,then Automatic conveyor glued veneer to four designed work stations (https://www.youtube.com/embed/6oQatuI5TtI)  |
Type 4 : plywood lamninated line suit for plywood secondary hot press machine after core plywood board finished add 1 face + 1 back veneer to the core board (Auto plywood loading + 4ft glue spreader + Auto plywood unloading ) ( https://www.youtube.com/embed/2tFKurZ5jL0?si=vXeBCxsPoLzk5jcM)  | Type 4 : 4ft glue spreader + veneer conveyor Suit for small size veneer , as 4x4ft or 4x2ft veneer . This veneer paving line ususally work with a veneer conveyor line, 1 staff responsible for 1 layer sheet . the veneers are continuously spliced and laminated together ,and automatically cut into 4x8ft sheets at the end . Generally suit for packing plywood and shuttering commercial plywood .the capapacity arrive 80pc plywood per hour . (https://www.youtube.com/embed/6oQatuI5TtI)  |

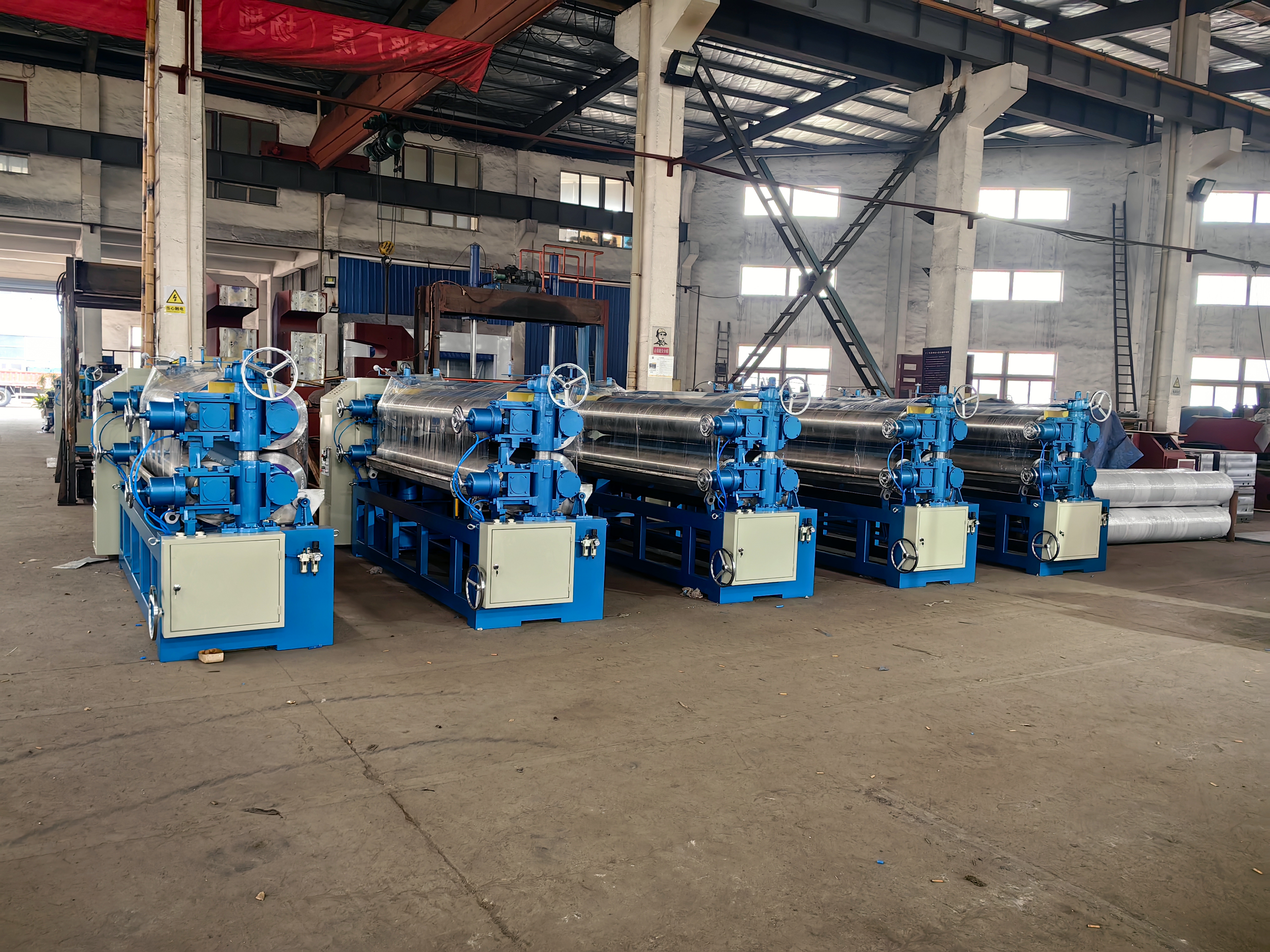

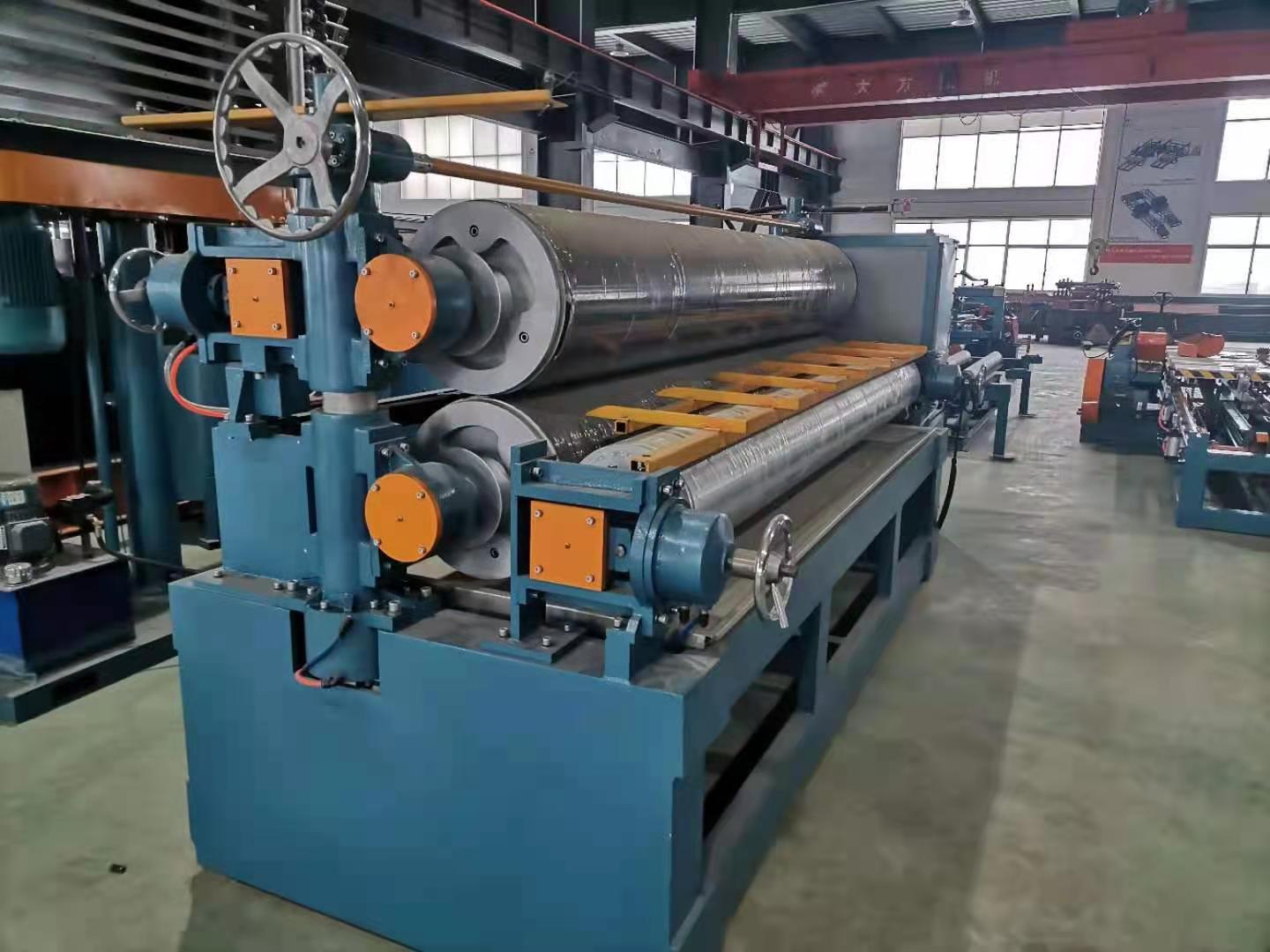

glue spreader machine in action /plywood production line
| | |
 |  |
