Product introduce

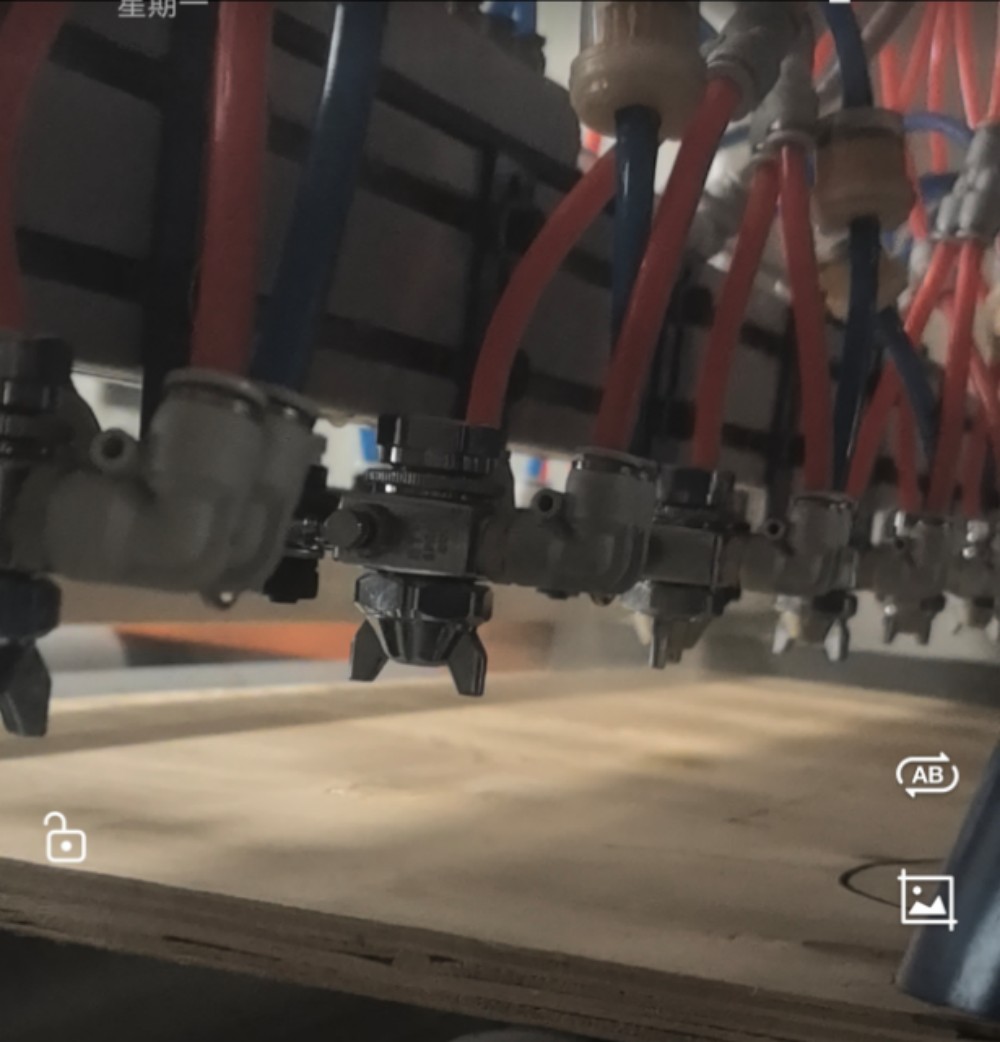

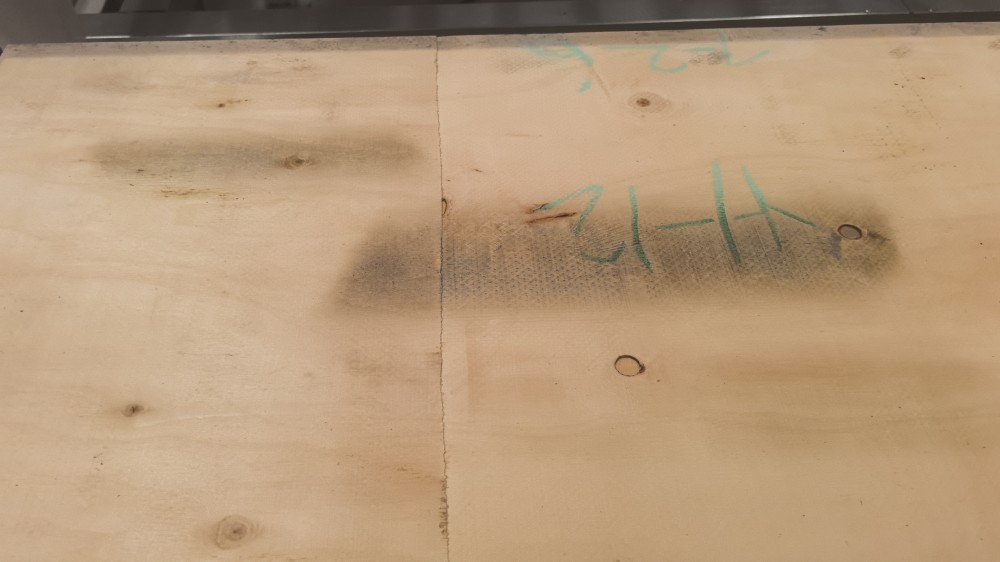

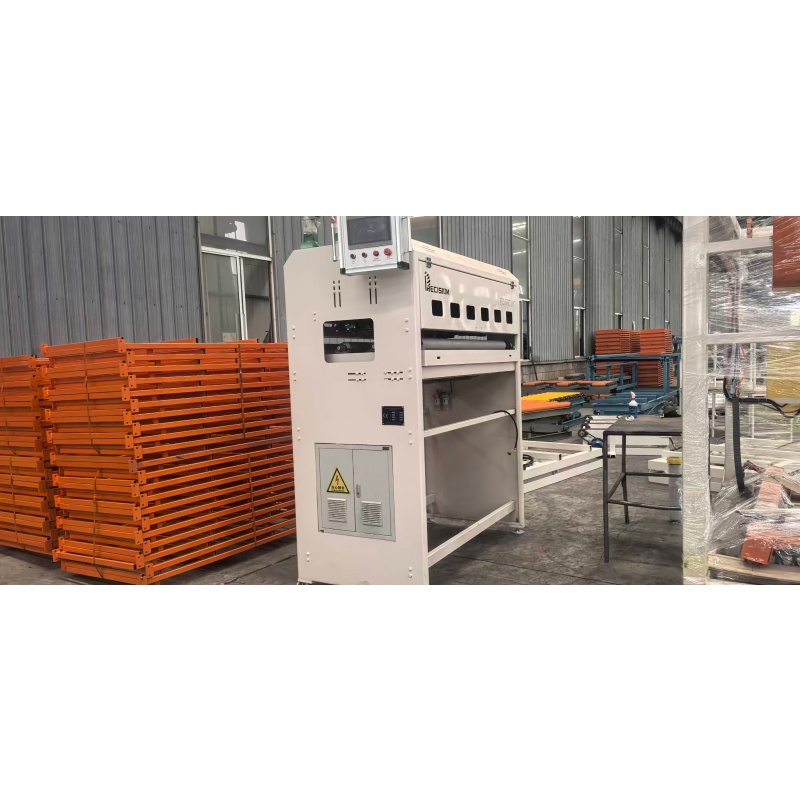

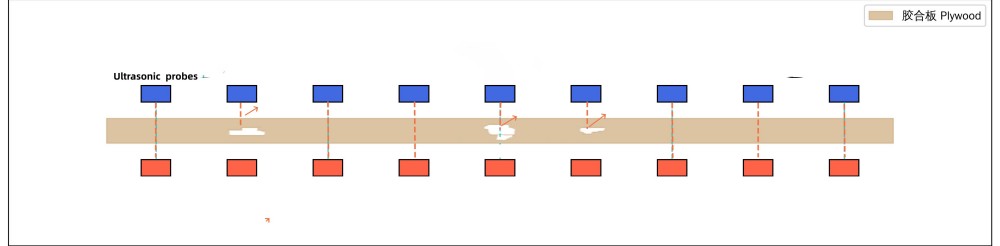

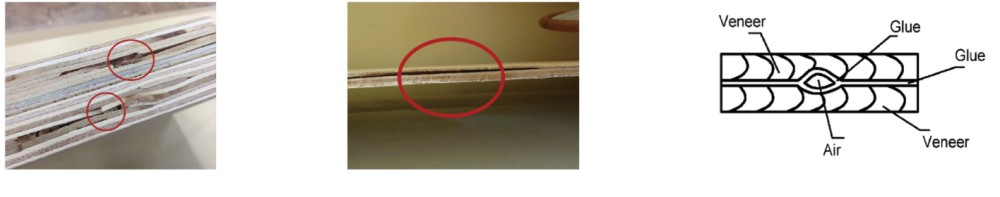

How did the plywood bubble appears ? In the plywood production process, if the veneer has excessive moisture content and serious deformation & warping, coupled with uneven gluing and poor-quality adhesive caused by lax control in the gluing process, as well as process defects such as substandard temperature, insufficient hot-pressing time and uneven pressure distribution in the hot-pressing link, the final plywood products are extremely prone to quality defects like bubble and hollow boards. | How is the plywood bubble detect line work ? The Automatic plywood bubble detect machine is equipped with 7 to 10 ultrasonic transmitting probes, forming an up-down opposite detection array with receiving probes. When plywood passes through the detection area at a constant speed, the probes emit high-frequency ultrasonic waves that penetrate the board. Relying on the strong reflection and severe attenuation characteristics of ultrasonic waves at the wood-air interface, it can accurately identify defects such as internal voids, bulges and delamination in plywood, realizing online non-destructive testing of hollow plywood boards. |
 |  |
Product Advantage
|
| 3. Auto loading and Auto unloading, High Capacity up 30 pcs per minute. |
 |   |  |
Technical Parameters

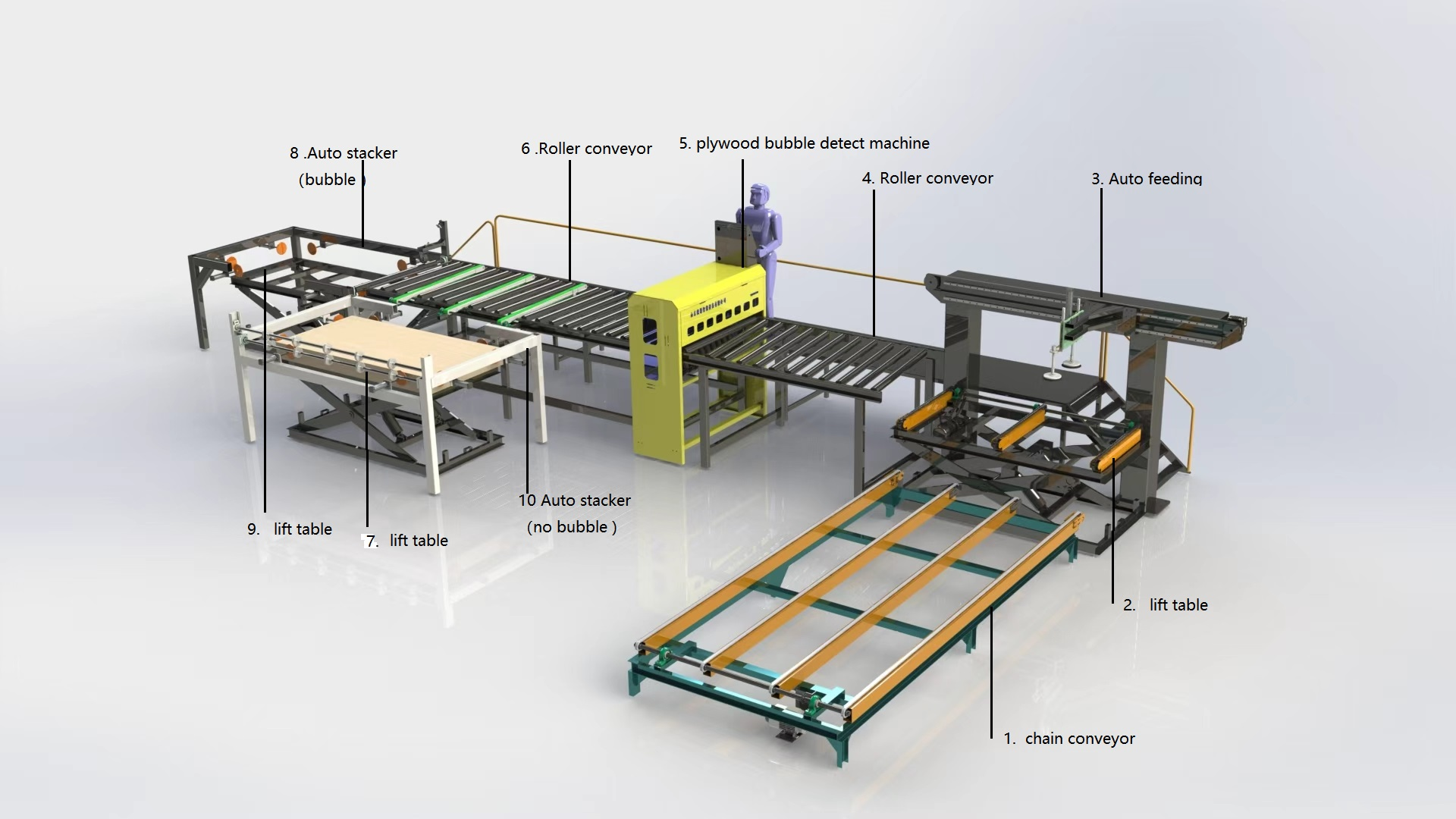

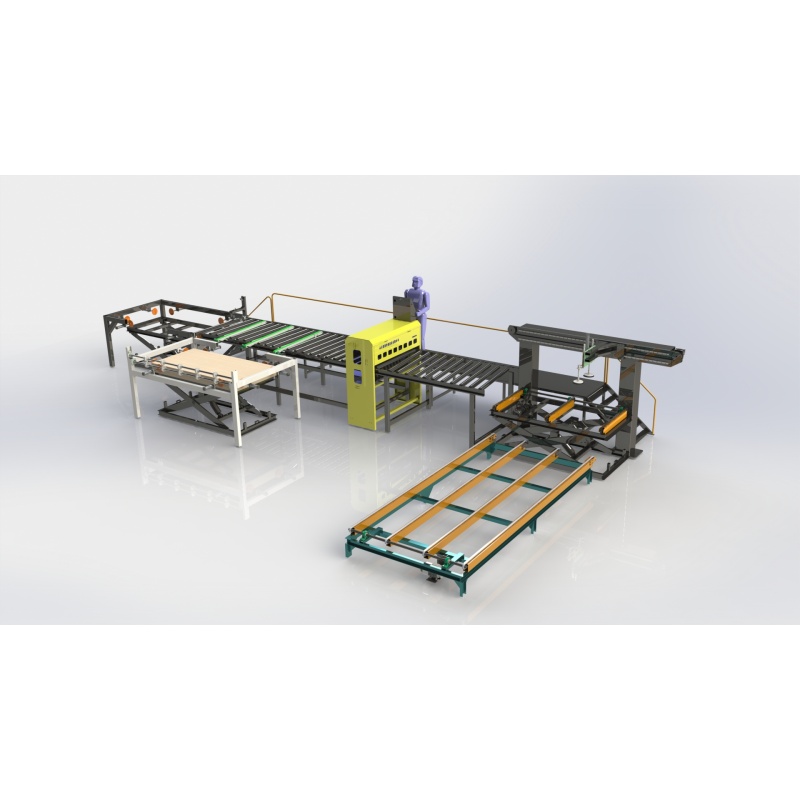

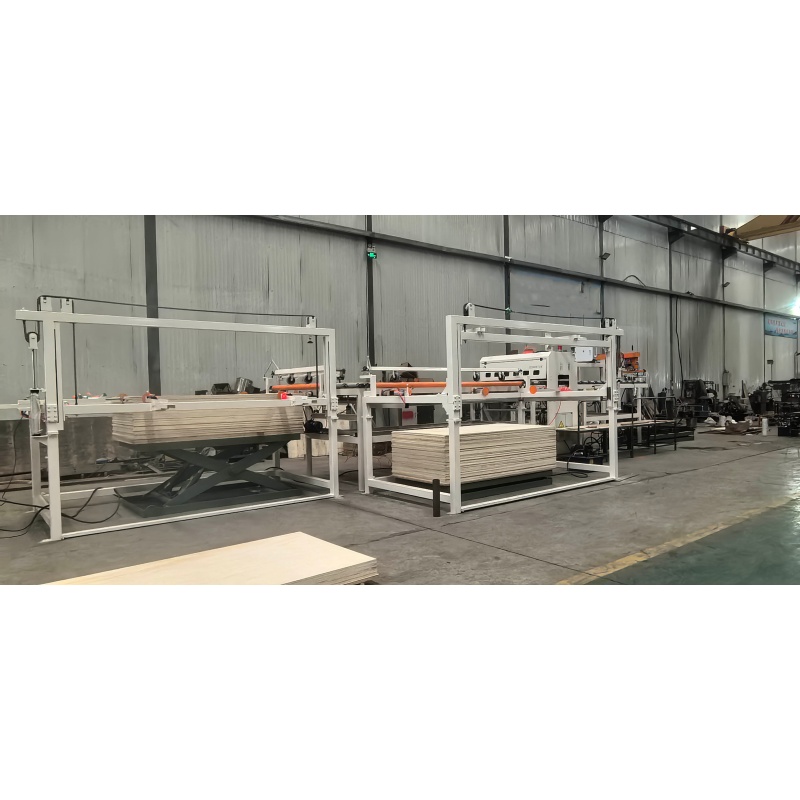

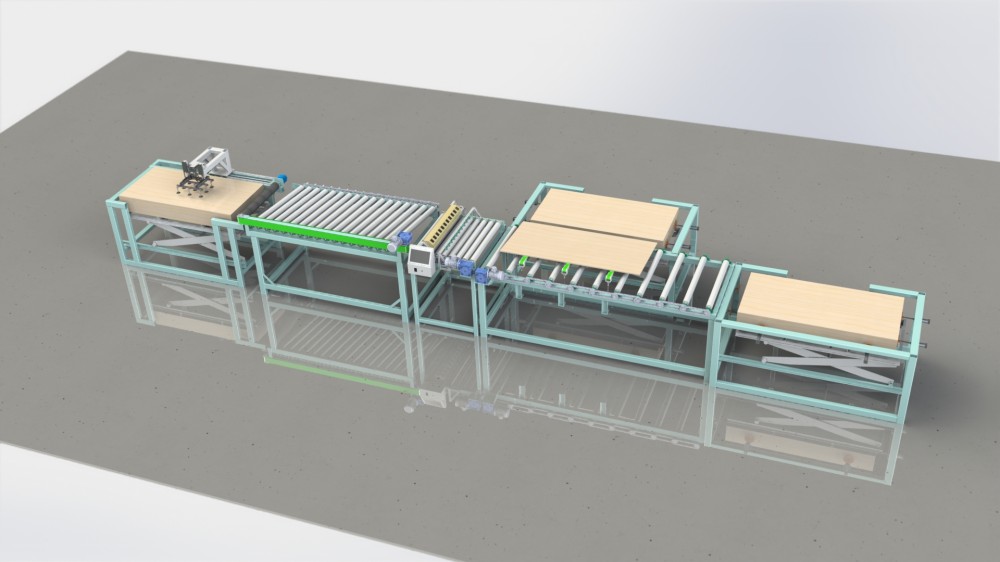

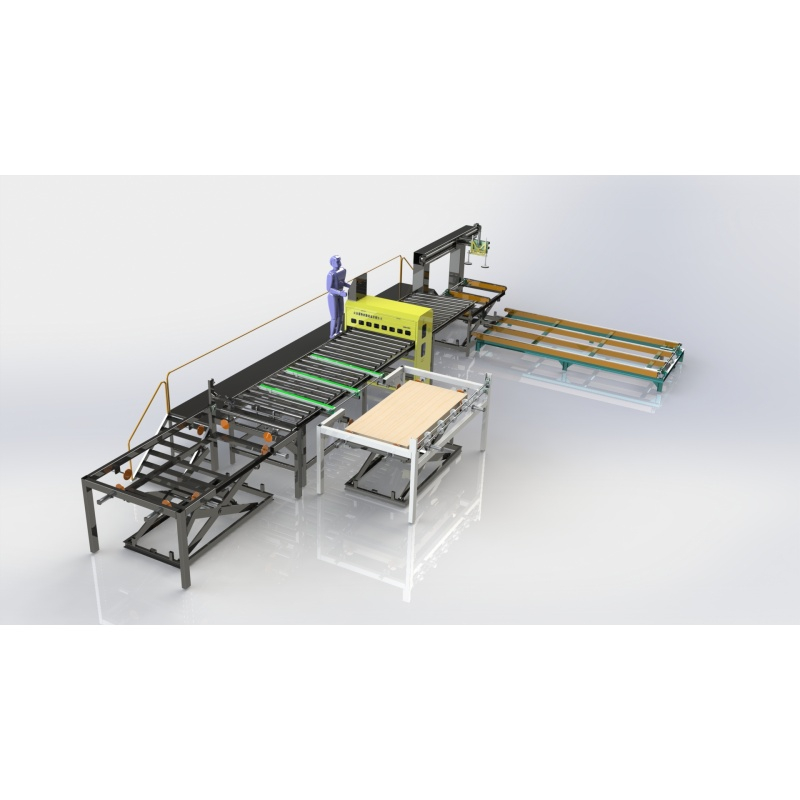

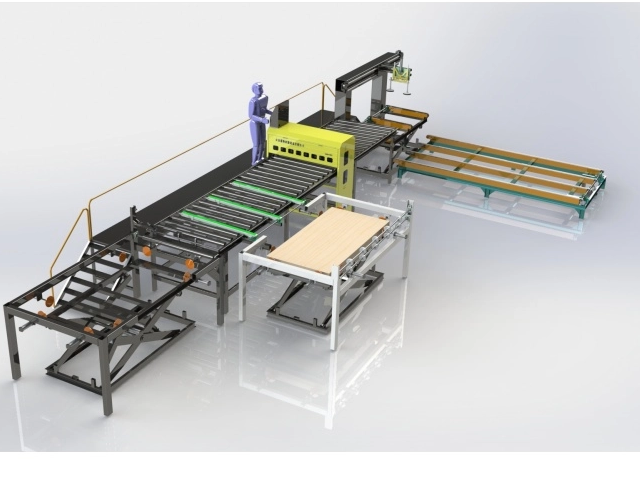

1 : Automatic Plywood bubble detect line | ||||
 | ||||
| 4x8ft /5x10ft | |||
2 ，7, 9 lift table | 4x8ft | |||
3. Auto feeding | length 3.5m | |||
4. Roller conveyor | length 3.5m | |||

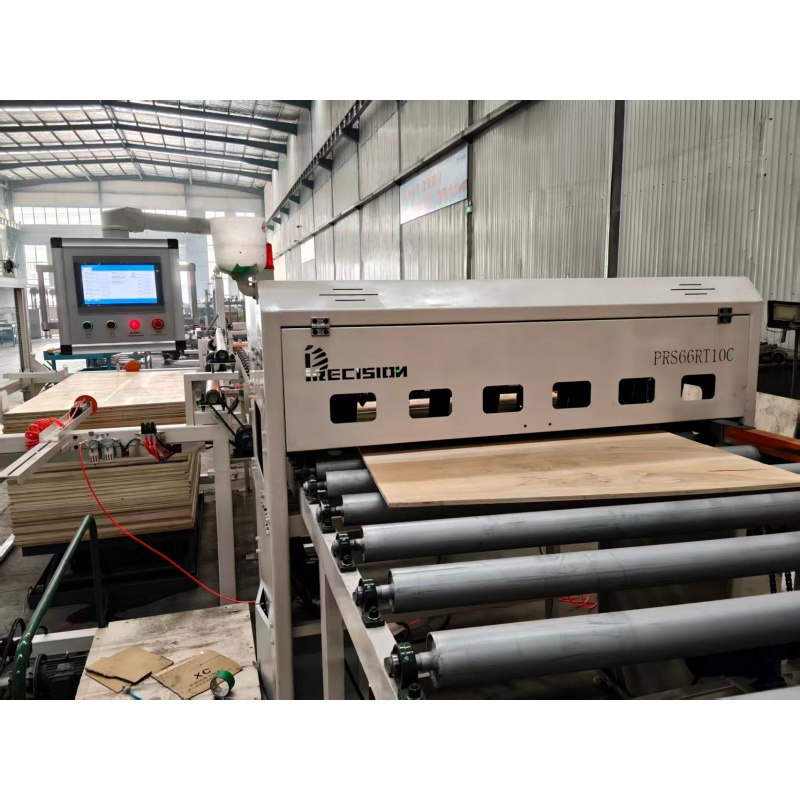

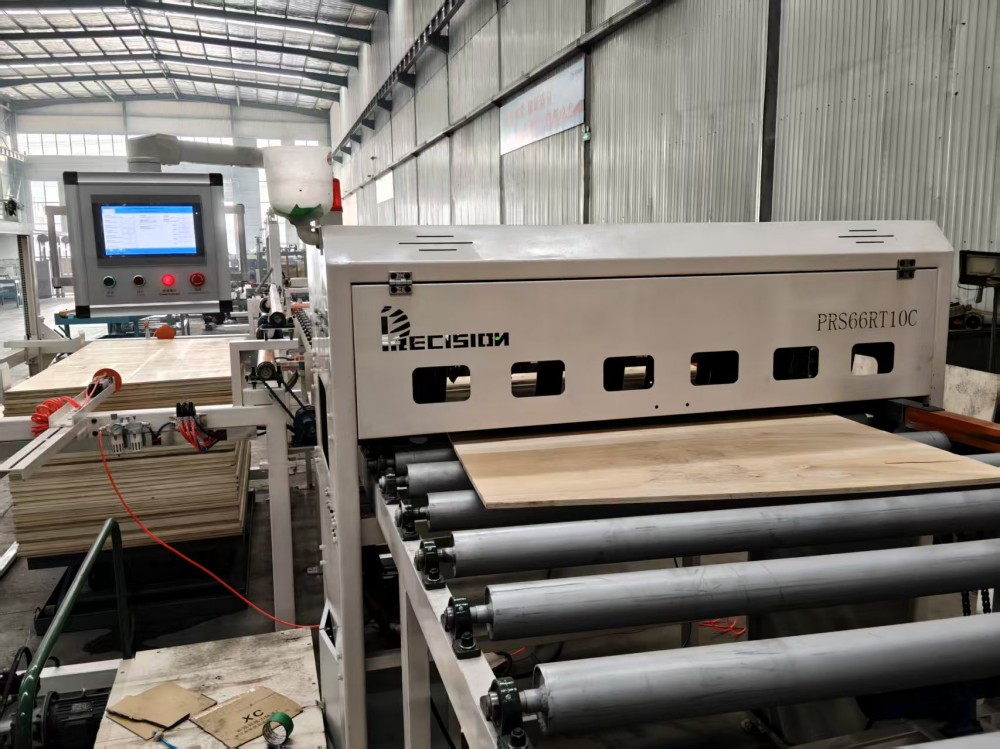

5. plywood bubble detect machine | Panel thickness 5-30mm | |||
6. Roller conveyor | length 4.5m | |||

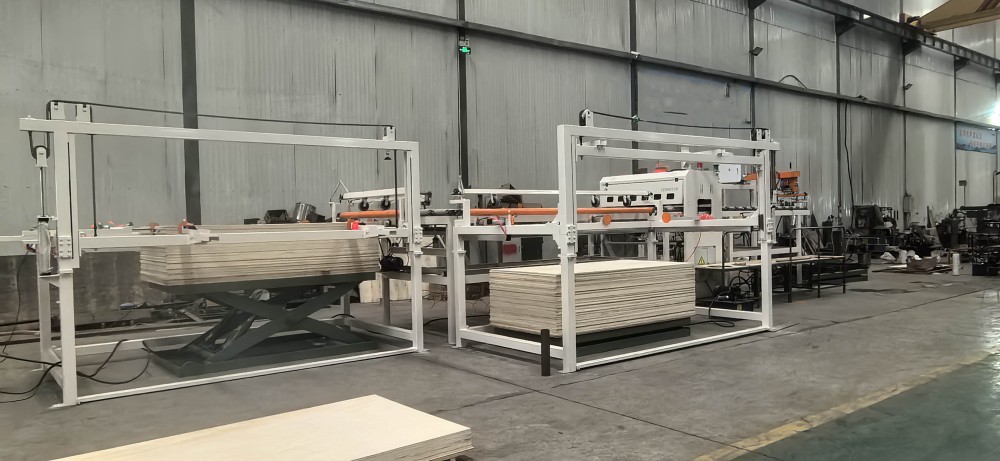

8 , 10 Auto stacker | size 4x8ft/5x10 ft | |||
Total line size : 15m x 5m | ||||
Product Uses
This Automatic bubble detect machine line can be contacted with the sander and installed in front of the sander.
When defective plywood with issues such as bubbles, hollow or delamination is detected, it will be automatically rejected from the production line, preventing further waste of sander machine, advoid energy and labor caused by sanding unqualified panels
Product Operate Guide

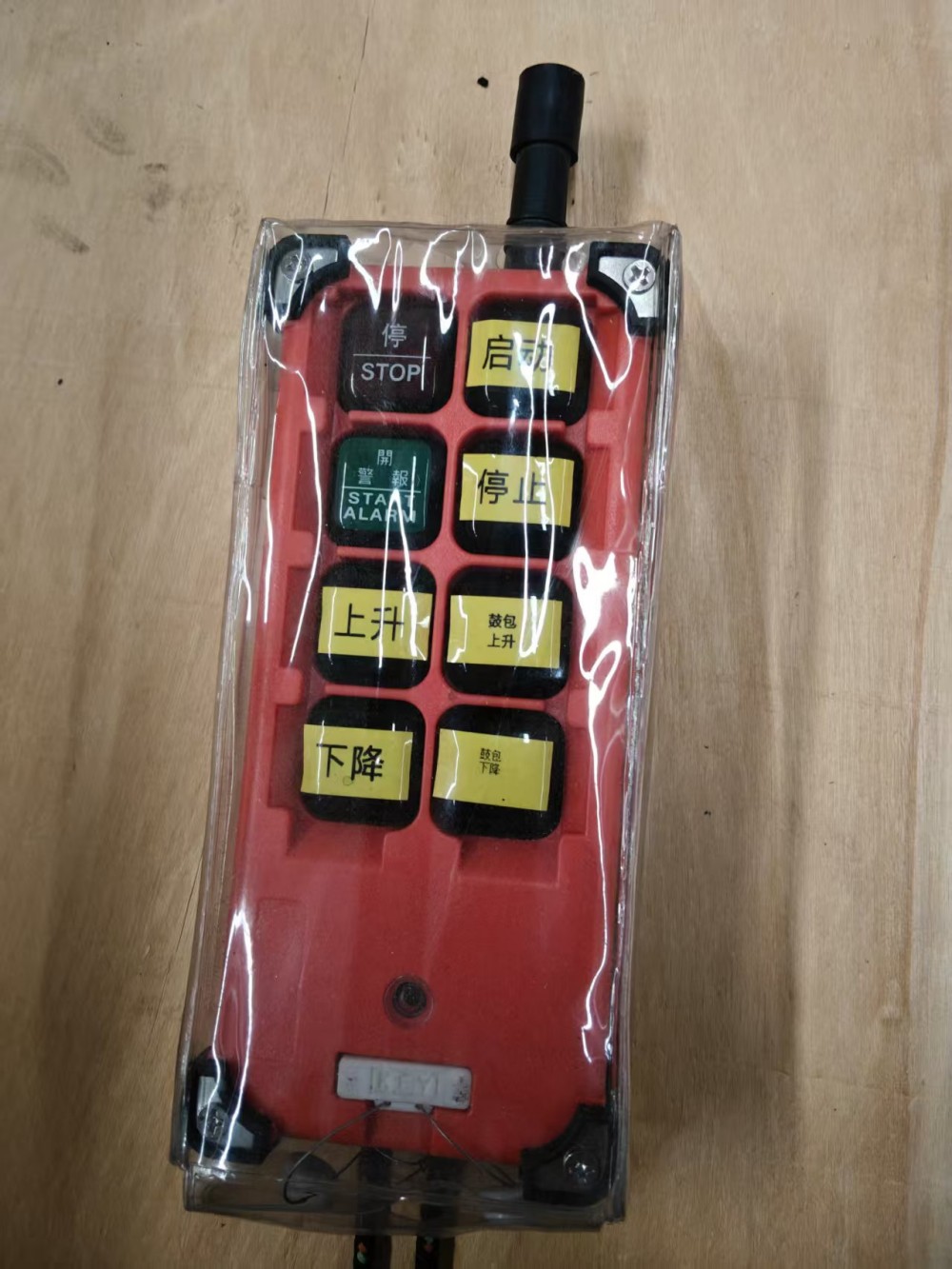

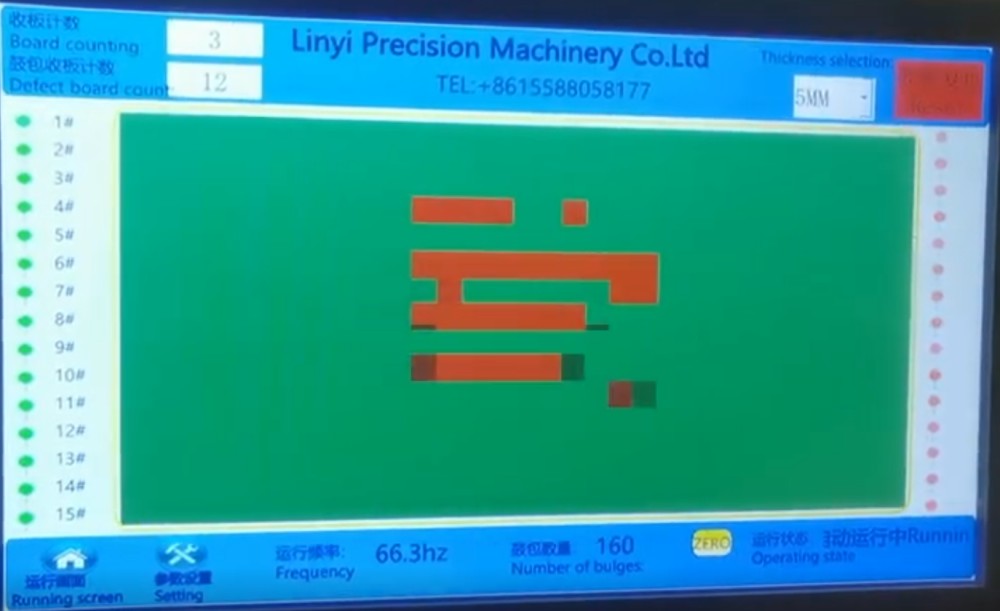

1. The plywood bubble detect line is Equipped with a visualized operation console and remote control buttons for easy, fast and safe manual operation,
2. the human-machine interface is clear and straightforward, supporting convenient parameter configuration and reliable remote control.
