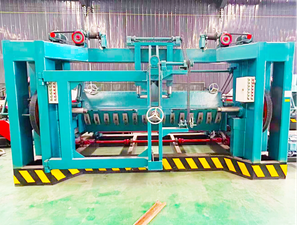

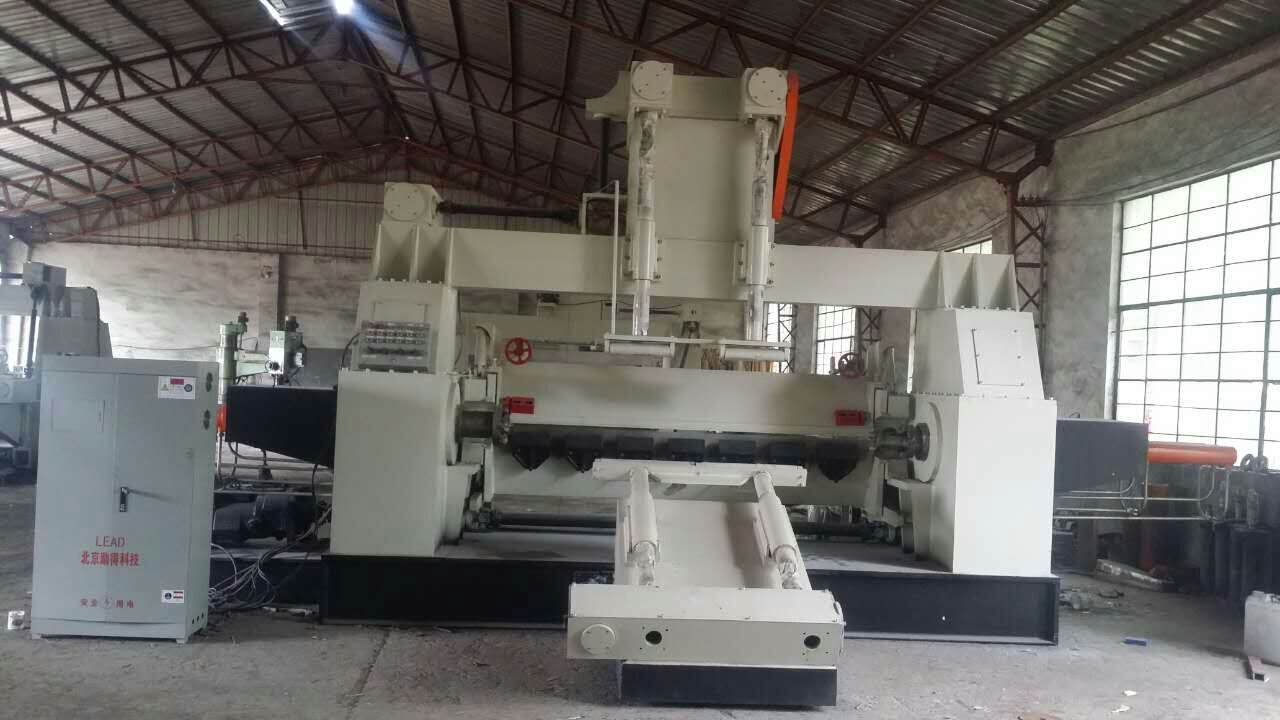

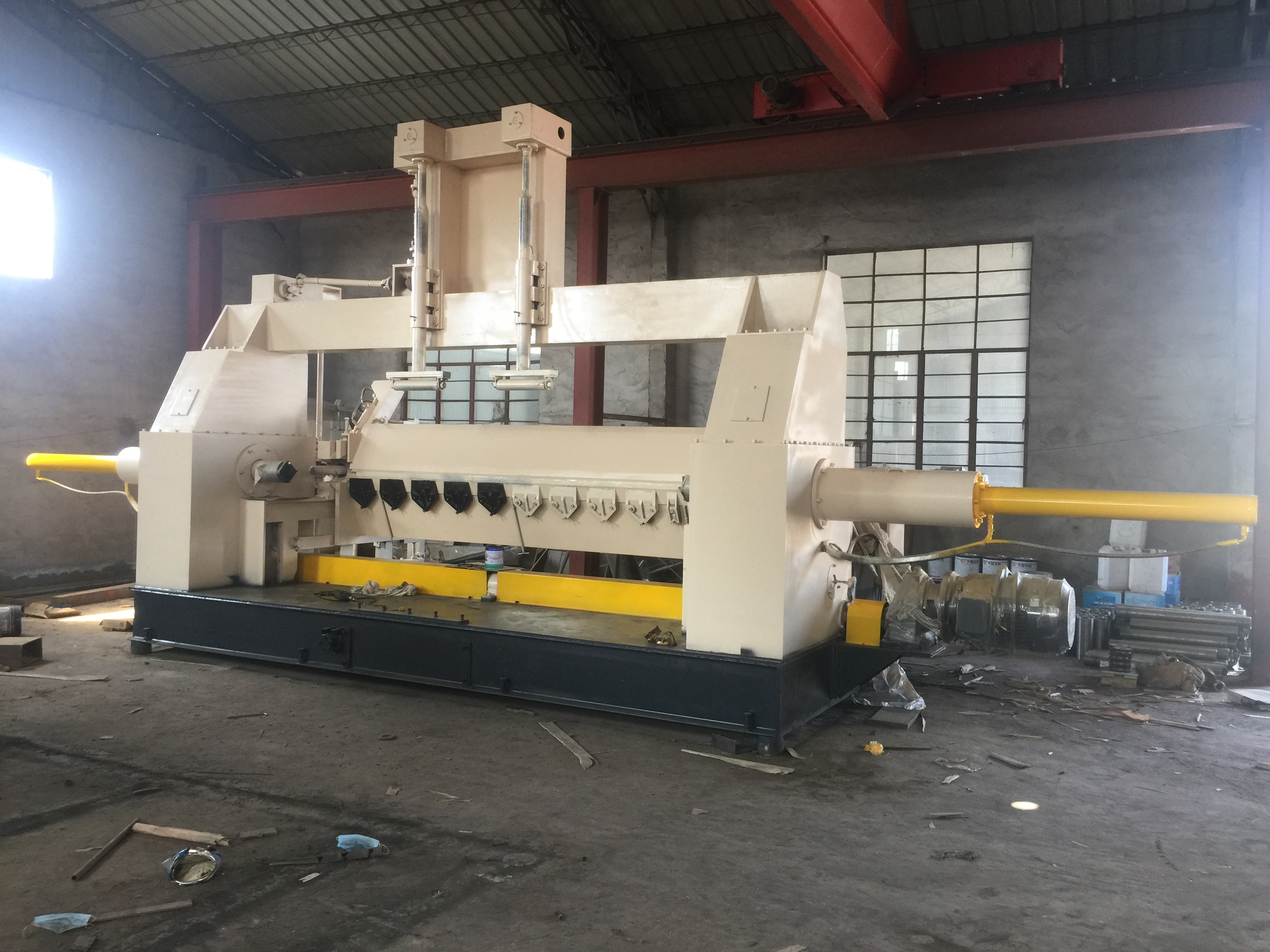

This heavy-duty spindle veneer lathe is engineered for industrial plywood manufacturers processing premium hardwood and softwood logs. It addresses key production bottlenecks with targeted design features that optimize raw material utilization and output consistency.
The machine accommodates logs up to 1800mm in diameter, enabling processing of high-value large-diameter hardwoods such as maple, oak and teak. Its adaptive cutting system handles natural wood grain and knots effectively, preserving the original texture of the wood without surface damage.
It produces 4×8 full-size veneer sheets in a single pass, eliminating the need for splicing operations. This reduces manual labor requirements and streamlines downstream production processes for plywood panel manufacturing.
Standard models support veneer thickness from 0.2mm to 3mm. A specialized heavy-duty configuration is available for producing thick veneer ranging from 3.6mm to 7mm, catering to the needs of special panel production lines.
Parameter | PYK130 Model | PYK260 Model |
|---|---|---|
Log Length Range | 1000-1300mm | ≤2600mm |
Maximum Log Diameter | 1500mm | 1500mm |
Minimum Log Core Diameter | 40mm | 40mm |
Peeling Speed | 52-120m/min | 52-120m/min |
Veneer Thickness Range | 0.2-3mm | 0.2-3mm |
Knife Dimensions | 1500×180×16mm | 2700×180×16mm |
Main Motor Power | 30kW | 45kW |
Feed Motor Power | 7.5kW (inverter) | 7.5kW (inverter) |
Hydraulic Motor Power | 4kW | 4kW |
Machine Weight | 6 tons | 10 tons |
Overall Dimensions | 4.5×1.5×1.6m | 6.6×2.1×1.6m |
Veneer thickness deviation is controlled within ±0.02mm across the entire sheet. This level of precision eliminates the need for secondary edge trimming and reduces glue waste during the hot pressing process. The high-rigidity cast iron frame minimizes vibration during high-speed rotation, ensuring uniform surface flatness across all production batches.
The machine is built to support non-stop production schedules. Its robust construction maintains consistent performance over extended operating hours, with batch quality remaining stable throughout 24-hour production cycles. As noted by one Southeast Asian manufacturer, "We have operated three of these machines for five years without major unplanned downtime."
Backed by 15+ years of plywood machinery manufacturing expertise, we serve industrial clients across 60+ countries. All machines are CE certified in compliance with 2006/42/EC Machinery Directive and 2014/35/EU Low Voltage Directive, tested against EN ISO 12100:2010 and EN 60204-1:2018 standards.
We provide end-to-end support including production line layout design, on-site installation, operator training and 7×24h technical assistance. Heavy-duty seaworthy packaging ensures damage-free delivery to any global port.
Yes, its adaptive cutting system handles natural knots and irregular grain patterns effectively, as demonstrated by successful processing of maple logs that challenge many competing machines.
Standard models are available for delivery within 30-45 days. Custom configurations for 3.6-7mm thick veneer production require 45-60 days.
We maintain a global spare parts inventory and can ship critical components to most locations within 72 hours to minimize production downtime.
Contact our engineering team today to receive a detailed quotation tailored to your specific production requirements. We can also provide video demonstrations of the machine processing your target wood species and a custom production line layout proposal.
