4ft Shaft Less Veneer Peeling Lathe Tenderizing with Gear Roller and Nose Bar 2026 New Design

Ordinary spindle-less veneer lathes produce wavy, uneven veneer that causes severe plywood warpage and downgrades your product grade. For decades, plywood manufacturers worldwide have struggled with this persistent issue—until now.

Introducing the PRS 2026 New Design 4ft Shaft-less Veneer Peeling Lathe with integrated gear roller and nose bar tenderizing system. This revolutionary technology stabilizes the log surface during cutting, completely eliminating knife skipping and delivering perfectly flat, uniform veneer for Grade A plywood production.

CE Certified to EN ISO 12100:2010 & EN 60204-1:2018 15+ Years of plywood machinery manufacturing expertise Installed in 6+ Countries (Thailand, Indonesia, Vietnam, China, Canada, Malaysia) 7×24h Global After-Sales Support

Why PRS 2026 Nose Bar Veneer Peeling Lathe Outperforms All Others

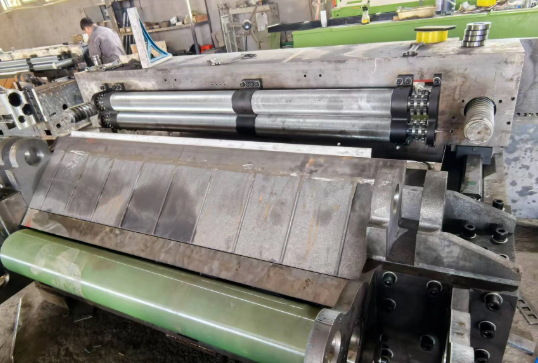

Revolutionary Nose Bar + Gear Roller Tenderizing System

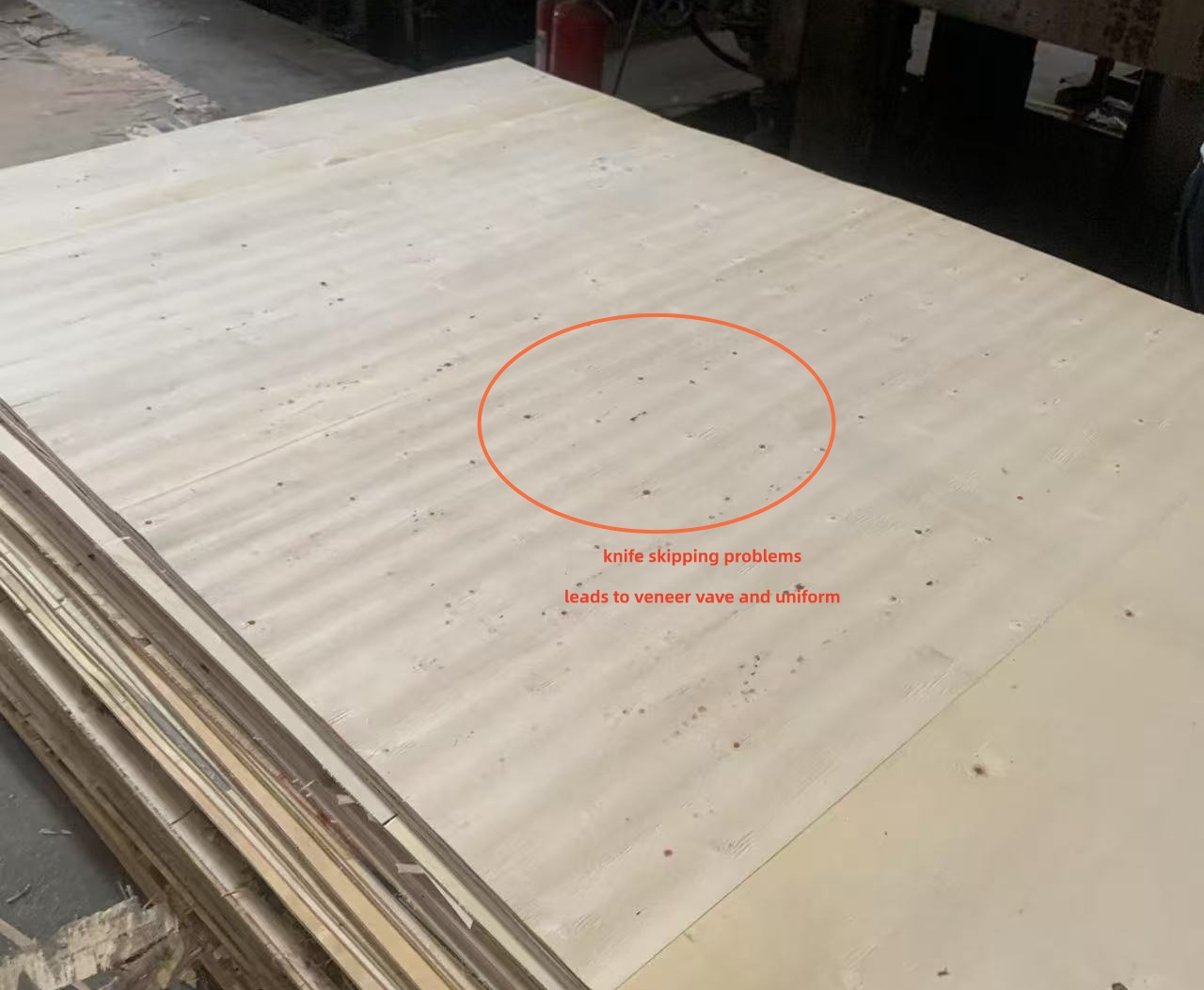

The biggest limitation of traditional spindle-less lathes is log slippage and vibration during high-speed rotation, which causes the cutting blade to jump and create visible waves on the veneer surface. These defects not only reduce plywood flatness but also increase sanding requirements and material waste.

Our patented integrated system solves this problem at its source:

Precision Nose Bar: Applies constant, uniform pressure directly in front of the cutting blade, holding the log surface perfectly stable throughout the entire peeling process

High-Traction Gear Rollers: Grip the log securely without damaging the wood, eliminating slippage even at maximum speed

Synchronized Cutting Mechanism: Ensures consistent cutting depth across the entire 2600mm veneer sheet

Proven Results:

Veneer flatness improved by 35% compared to standard lathes

Scrap rate reduced by 25-30%

100% Grade A veneer production for standard hardwood and softwood logs

Eliminates the need for secondary veneer sanding in most applications

2026 Precision Engineering Upgrades

Cast Steel Blade Holding Seat: One-piece cast construction ensures zero vibration at 80m/min operating speed, extending blade life by 40% and reducing maintenance downtime

Tungsten Steel Bearing Housing: Withstands extreme loads and harsh factory environments, extending maintenance intervals to 12 months

High-Precision Linear Guide Way: Delivers ±0.1mm veneer thickness tolerance, ensuring consistent quality across every sheet

Optimized Small Gear Design: Reduces operational noise by 15dB and improves overall machine stability

Inverter-Driven Feeding System: Allows precise speed adjustment based on wood type and production requirements

Industry-Leading Production Efficiency

Designed for maximum productivity in modern plywood factories:

Variable Speed Range: 30-80m/min (adjustable via touch screen control)

Maximum Log Capacity: 500mm diameter, 2600mm length (compatible with standard 4×8ft plywood sheets)

Veneer Thickness Range: 1-4mm (tool-free adjustment in seconds)

Total Power: 56kW (energy-efficient design reduces power consumption by 15% compared to 2025 models)

Continuous Operation: 24/7 production capability with minimal downtime

Technical Specifications

Note: Custom specifications available for special wood types (maple, oak, teak) and high-capacity production requirements.

Your Trusted Plywood Machinery Partner Since 2011

Our Complete Plywood Production Solutions

We don't just sell machines—we deliver turnkey solutions that maximize your production efficiency and reduce operating costs:

Full Product Line: From log debarking and veneer peeling to drying, glue spreading, hot pressing, edge trimming and final sanding

Custom Workshop Layout: Our engineers design optimized production layouts based on your factory size and target capacity (50-500m³/day)

On-Site Installation & Training: Experienced technicians install your equipment and train your operators until they can run the line independently

Intelligent Equipment: We have developed core AI technologies including log volume measurement, veneer visual inspection and plywood bubble detection systems

CE Certified Quality Assurance

All PRS machines undergo rigorous testing and certification to meet international safety and quality standards:

Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU

Certified by UDEM International and Honton Compliance Laboratories

Strict quality control process from raw material procurement to final machine testing

1-year comprehensive warranty on all non-wear parts

​TAILAND	INDONISIA LAMPUNG
YUNNAN ,CHINA	GUANGXI ,CHINA
SEMRANG ,INDONISIA	GUANGDONG ,CHINA

FAQ

What is the difference between a tenderizing veneer lathe and a regular veneer lathe?

A tenderizing veneer lathe (also called a nose bar lathe) adds a precision pressure bar directly in front of the cutting blade. This bar stabilizes the log surface during rotation, eliminating knife skipping and producing much smoother, more uniform veneer than regular lathes. The gear roller system further enhances grip and prevents log slippage.

What types of wood can this machine process?

The PRS 2026 veneer peeling lathe can process all common softwood and hardwood species, including pine, poplar, birch, oak, maple and teak. We offer custom blade and roller configurations for extra-hard wood types or special production requirements.

What is the warranty period for this machine?

We provide a 1-year comprehensive warranty for the entire machine, covering all manufacturing defects. Wear parts such as blades and bearings are not covered under warranty but are available at factory-direct prices. We also offer lifetime technical support for all our products.

Can you provide a complete plywood production line?

Yes, we specialize in designing and supplying complete plywood production lines with capacities ranging from 50m³/day to 500m³/day. Our engineers will create a detailed layout and quotation based on your specific requirements, including factory size, wood type and target product grade.

How long is the delivery time?

Standard models are delivered within 15-20 days after receiving payment. Custom orders take 30-45 days depending on the specifications. All machines are packed in heavy-duty wooden cases for safe ocean freight transportation.
