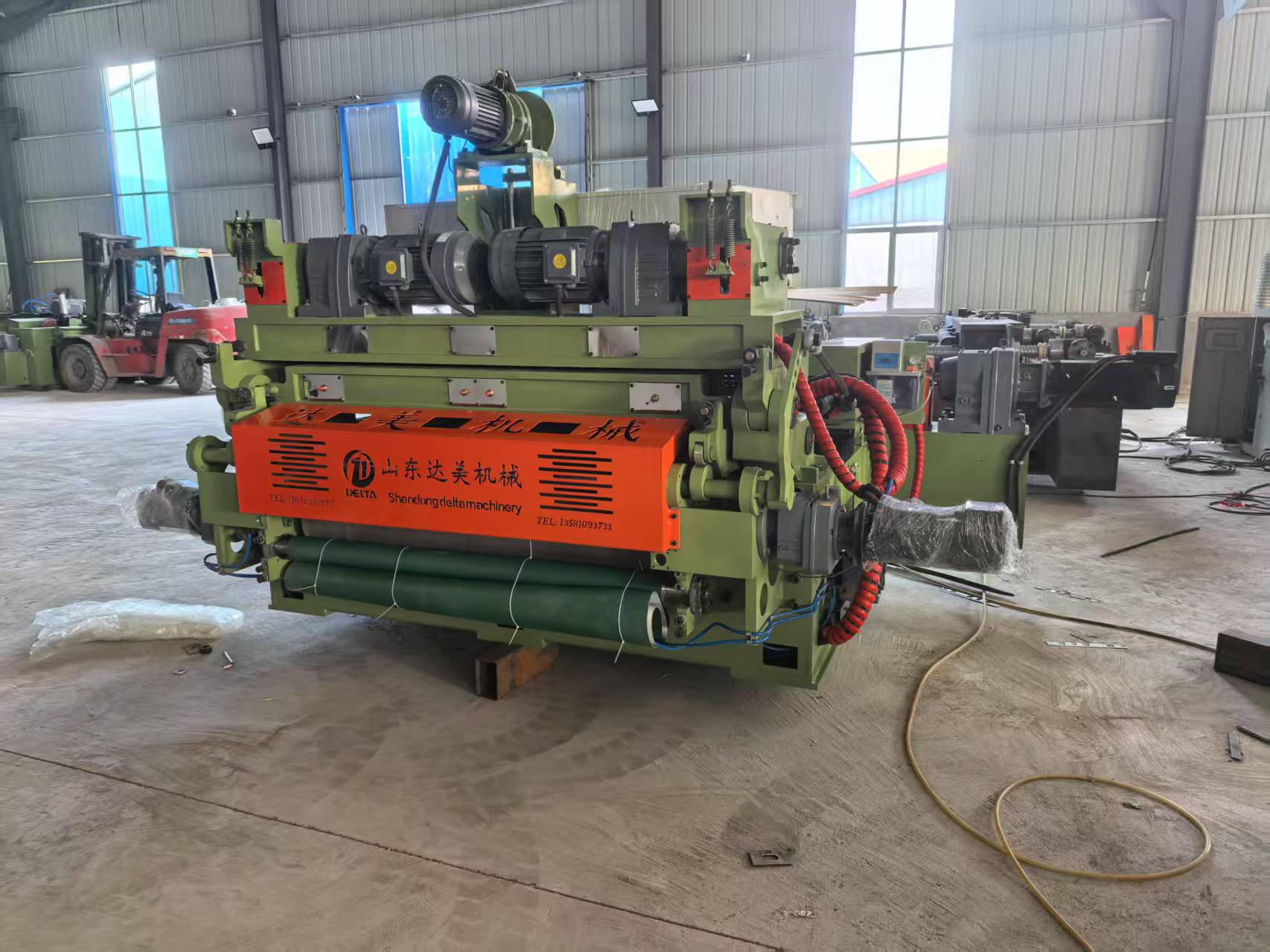

The PRS series spindleless veneer peeling machine is engineered for manufacturing core veneer used in plywood production, with specialized capability for 5mm thick applications. Our 2025 updated design integrates a gear roller and nose bar system to maintain consistent thickness across the entire veneer sheet. Available in 4ft (1300mm) and 8ft (2600mm) working lengths, this machine processes logs up to 500mm diameter (600mm optional) at adjustable speeds.
This equipment forms the core of automated plywood production lines, with field-proven performance processing eucalyptus, rubber wood, and falcata. The 2-in-1 configuration (one debarker serving two peeling machines) achieves production volumes up to 200 cubic meters of veneer per 8-hour shift, supporting scaled manufacturing operations.
 |
 |
 |
 |

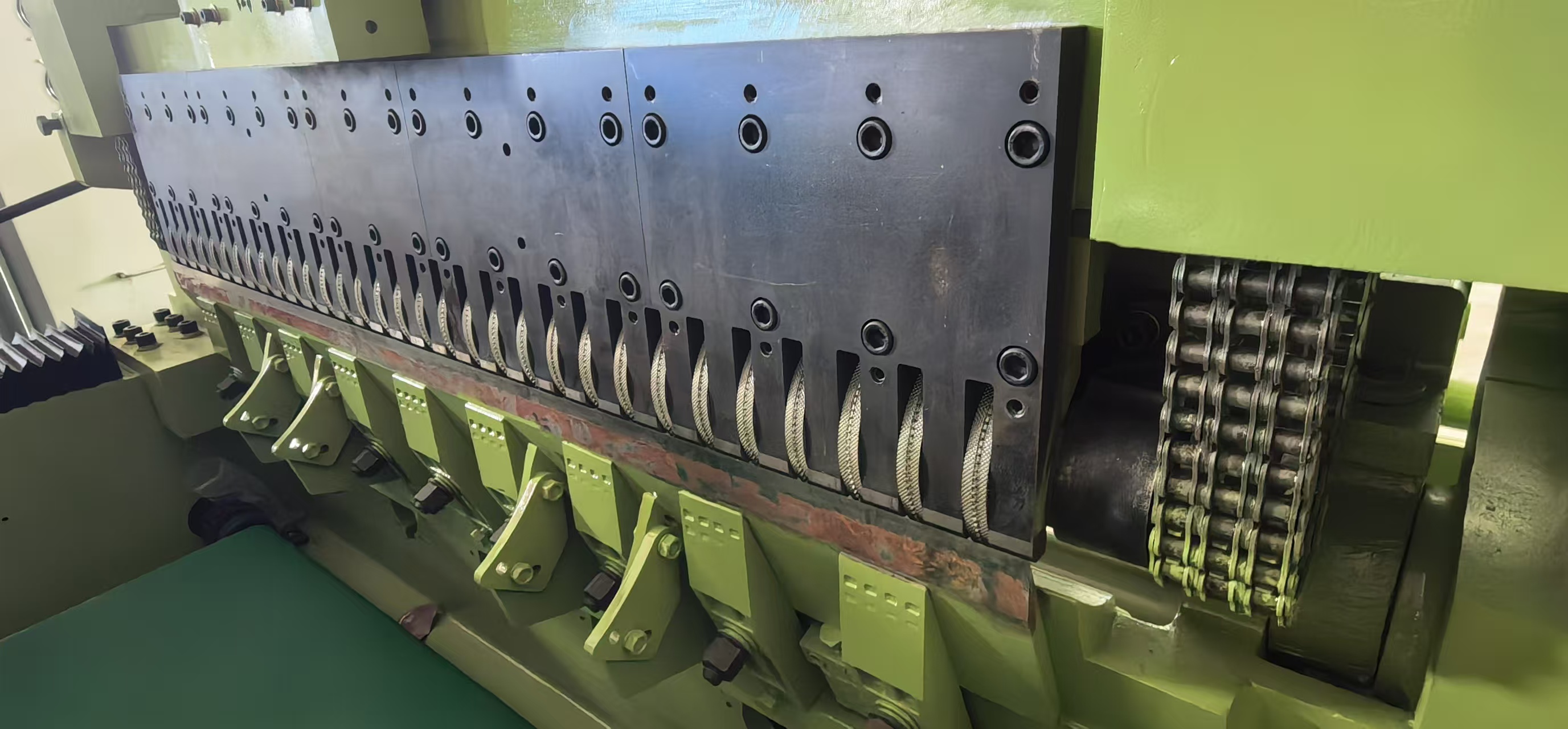

Cast blade holding seat: Stabilizes cutting operations and maintains accuracy over extended production runs, extending component service life
Tungsteel bearing housing: Reduces vibration during high-speed operation, minimizing wear on moving parts
Linear guide way system: Delivers precise feeding control, resulting in uniform veneer thickness and reduced material waste
Optimized gear assembly: Compact design improves power transmission efficiency and simplifies routine maintenance
Processes logs with maximum diameter of 500mm (600mm upgrade available)
Standard veneer thickness range: 1-4mm, with 5mm capability for specialized orders
Adjustable cutting speed: 30-80 meters per minute
Compatible with 4ft and 8ft standard log lengths
Produces veneer suitable for Grade A plywood manufacturing
Parameter | PRSXQ130 (4ft) | PRSXQ260 (8ft) |
|---|---|---|
Maximum log length | ≤1300mm | ≤2600mm |
Maximum log diameter | 500mm/600mm | 500mm/600mm |
Knife size | 1500×180×16mm | 2700×180×16mm |
Double roller motor | 101mm, 7.5kW × 2 | 101mm, 11kW × 2 |
Single roller motor | 101mm, 7.5kW × 2 | 101mm, 7.5kW × 2 |
Feeding system | Inverter motor, 11kW | Inverter motor, 11kW |
Veneer thickness range | 1-4mm | 1-4mm |
Machine dimensions | 4.2×1.5×1.6m | 5.5×2.1×1.6m |
Total power | 56kW | 56kW |
Weight | 12 tons | 12 tons |
 |  |  |
Guangxi, Chin
4 units of 4ft automatic peeling lines in 2-in-1 configuration, processing eucalyptus into 1.7mm veneer at 120 cubic meters per day
Yunnan, Chin
6 units of 4ft automatic peeling lines, processing rubber wood into 1.7mm veneer at 200 cubic meters per day
Semarang, Indonesi
2 units of 4ft automatic peeling lines, processing falcata into 1.7mm veneer at 100 cubic meters per day
 |  |
With over 15 years focused exclusively on plywood production equipment, we deliver solutions covering every stage of manufacturing from log debarking to final sanding. Our designs are refined based on continuous feedback from factory operations worldwide.
Beyond equipment supply, we provide custom production line layout design, on-site installation and commissioning, operator training programs, and ongoing technical support for plywood manufacturing facilities.
Our service team operates around the clock to resolve operational issues and minimize downtime. We maintain a comprehensive spare parts inventory to ensure fast delivery to all client locations.
All spindleless veneer peeling machines comply with EU Machinery Directive (2006/42/EC) and Low Voltage Directive (2014/35/EU), certified by UDEM and Honton Compliance Laboratories.
"I have used three of these machines, and they have never broken down."
"Only those who've worked with maple tree knots know how tough they are. Turning this stuff into veneer with guide rails like this? That's really impressive."
"All our Grade A veneer is produced by Precision machines. They save labor and increase efficiency."
TAILAND | INDONISIA LAMPUNG |
 |  |
YUNNAN ,CHINA | GUANGXI ,CHINA |
 |  |
SEMRANG ,INDONISIA | GUANGDONG ,CHINA |
 |  |
Standard models produce 1-4mm thick veneer. We offer a specialized configuration for 5mm thick core veneer applications.
It has been field-tested with eucalyptus, rubber wood, falcata, pine, and other common species used in plywood production.
A single 4ft unit delivers 30-50 cubic meters of veneer per 8-hour shift. In 2-in-1 configurations, combined output reaches 120 cubic meters daily.
Yes, on-site installation, commissioning, and operator training are included with all equipment purchases.
We offer 12-month warranty against manufacturing defects, plus lifelong technical support and spare parts supply.
Contact our team to discuss your specific manufacturing requirements. We will provide a tailored solution including machine configuration, production line layout, and detailed pricing.
