Fresh rotary-cut wet veneer with 50%-80% moisture content leads to bubbling, delamination and low plywood yield. PRECISION roller veneer dryer precisely reduces moisture to 8%-14%, the industry standard for qualified plywood. With 15+ years of plywood machinery expertise, our dryers are deployed in 6+ countries, helping factories boost production efficiency and cut operating costs. Contact our engineers for a customized drying solution today.
Feature: Constant uniform heating system, inlet-outlet temperature difference ≤20℃ Benefit: Stabilizes veneer moisture at 10±2%, prevents hot pressing delamination and cracking, ensures consistent bonding strength across all panels.
Feature: Roller conveyor design with automatic leveling correction Benefit: Fixes minor curling and wrinkling in raw veneer, avoids air-drying cracks and blue stain, improves wood utilization rate by reducing scrap.
Feature: Smooth, uniformly dried veneer surface Benefit: Fits 4×2 ft small veneer splicing process with tighter joints, enables consistent glue absorption and penetration, enhances overall plywood structural stability.
Dimension | Roller Veneer Dryer | Mesh Belt Veneer Dryer |
|---|---|---|
Applicable Thickness | 1.5-4mm | 0.3-4mm |
Drying Speed | Faster | Moderate |
Veneer Flatness | Superior | Good |
Moisture Uniformity | Excellent | Good |
Service Life | Longer | Standard |
Best For | High-capacity core veneer production | Thin face veneer and small-batch production |
Selection Guide: For factories focusing on core veneer production with high output demand, roller type is the optimal choice. We also offer mesh belt dryers for facilities needing full-range veneer drying capabilities.
 |  |
 |  |
 |  |
Laser precision drilling air outlets and sawtooth thread air ducts prevent veneer jamming. Die-cast aluminum finned tube heat exchanger minimizes heat loss during operation.
High-temperature resistant stainless steel contact parts. Galvanized steel shell filled with aluminum silicate for superior thermal insulation.
2/3/4 working layers available. Roller length customizable from 3000mm to 6200mm. 1-10m/min variable conveying speed via independent frequency inverter.
Thermal oil heating system compatible with biomass, coal and gas burners. 4.8 million Kcal heat consumption for full capacity production.
model | PRS1526204 |
|---|---|
Working width | Roller length 3000~6200mm |
Working Layer | 2 layer ,3 layer ,4 layer |
Heating zone | 15×2000mm＝30000mm |
Cooling zone | 2×2000mm＝4000mm |
Nose entry area | 4000 mm |
Natural cooling of tail skin area | 6500 mm |
Total power | 558kw |
Transfer motor | 11kw×4pc＝44kw Low speed motor + independent frequency inverter |
Transfer motor | 4kw×1pc＝4kw independent frequency inverter |
Heating blower motor | 30kw×15pc＝450kw |
Cooling fan motor | 15kw×2pc＝30kw |
Tidal motor | 15kw×2pc＝30kw |
Fan Model | 14# |
Transmission speed | 1-10m/min |
Radiator | 15pcs 1800mm×700mm×1900mm |
Heating medium | Thermal oil |
Heat consumption | 4.8 Million Kcal |
drying temperature | 120-170℃ |
Drying thickness | 1.5-4mm |
Initial moisture content of veneer | -60% |
Final moisture content of veneer | 10±2 |
Drying capacity | 1-8m3/h |
 |  |
 |  |
Full range of equipment covering log debarking, veneer peeling, drying, hot pressing and sanding. In-house R&D team continuously optimizing machine performance.
Custom workshop layout design. On-site installation and operator training. Lifetime technical support.
Dedicated service team responds within 24 hours. Fast spare parts delivery worldwide.
All products comply with EU Machinery Directive 2006/42/EC. Strict quality control throughout the production process.

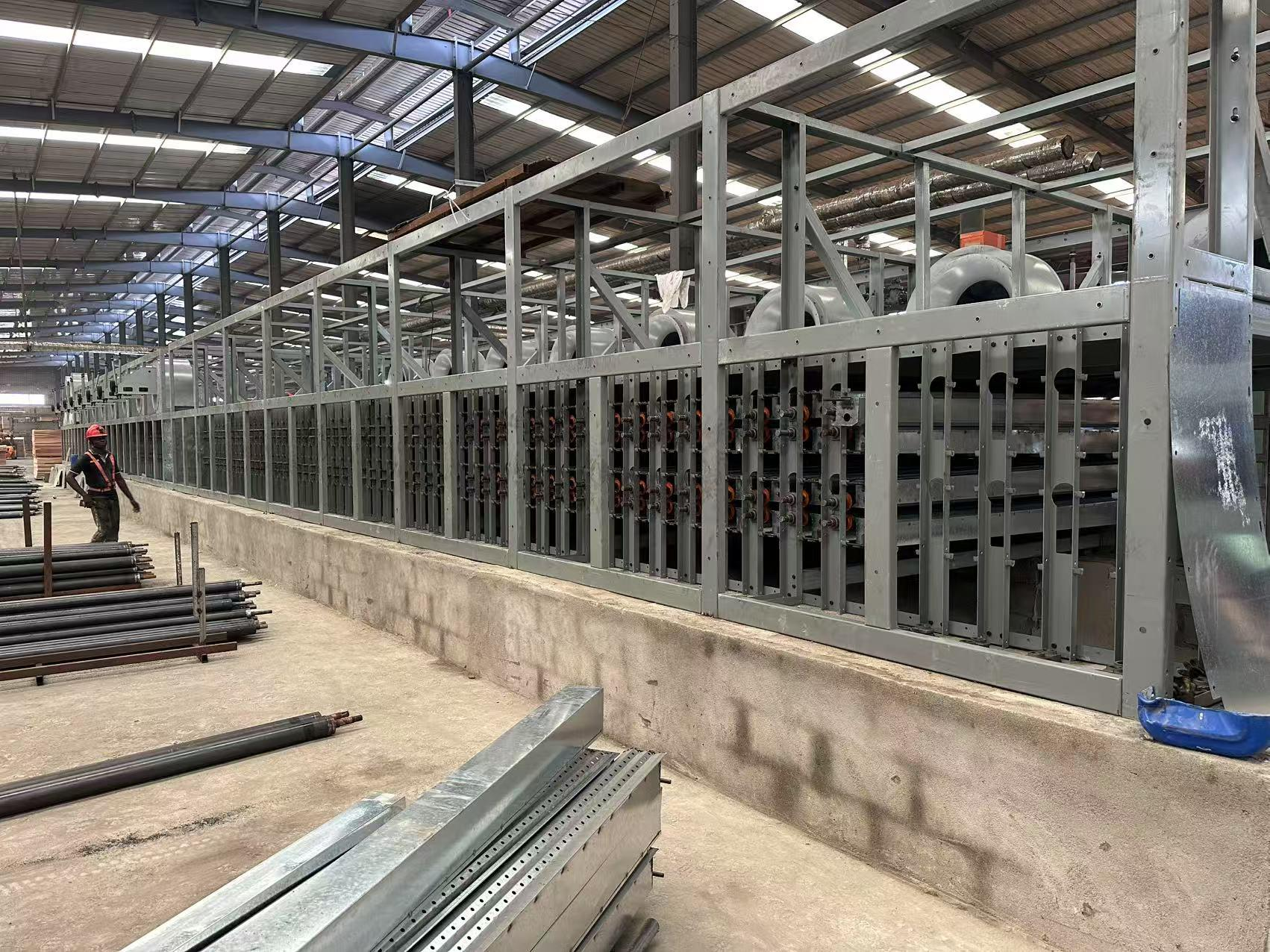

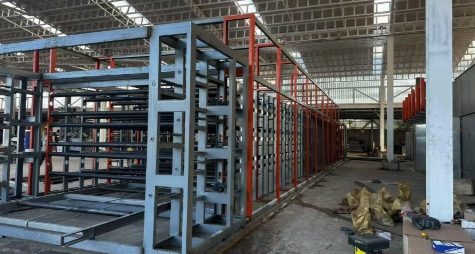

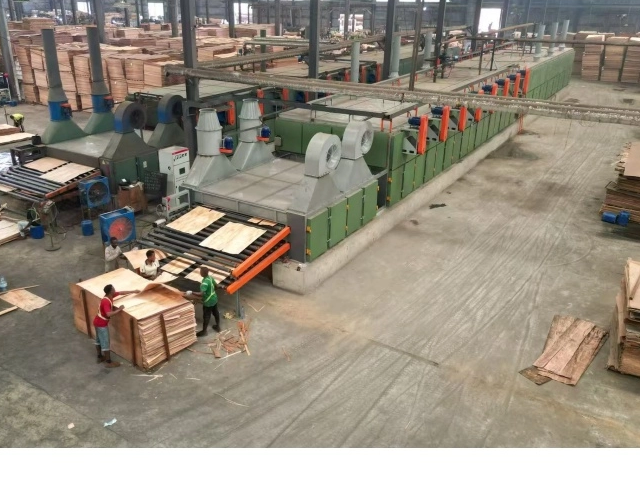

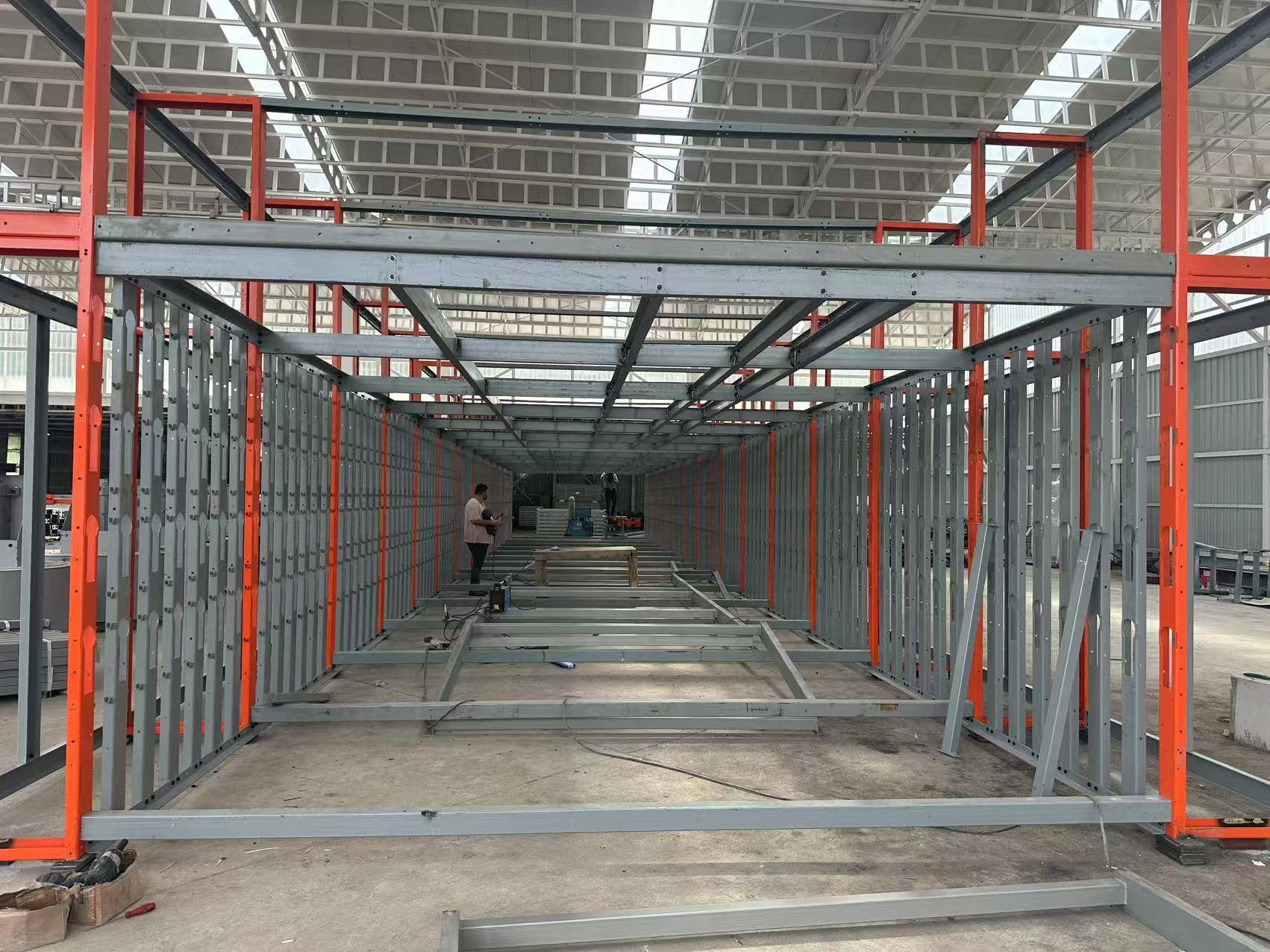

4 deck 30m roller veneer dryer machine in Indonisia  | 2 deck face veneer mesh belt veneer drying line in Africa  |
2 deck 40m Roller plywood core veneer drying machine in Africa  | 3 deck 36m Roller plywood core veneer drying line in Thailand  |
Our standard model has a drying capacity of 1-8m³/h, which can be increased by adding more layers or extending the heating zone. Contact us to get a capacity calculation based on your specific production needs.
Yes, our thermal oil heating system is compatible with biomass burners, coal burners and gas burners, allowing you to choose the most cost-effective fuel option.
Yes, we can send professional engineers to your factory for installation, commissioning and operator training to ensure the machine runs smoothly.
We provide a 12-month warranty for the whole machine and lifetime technical support. Our after-sales team is available 7×24h to solve any problems you may encounter.
Contact our engineers now to get a free quotation tailored to your production requirements. We also offer full plywood production line design and integration services.
