Optimized exclusively for small-scale plywood and solid wood processing plants, the PRS2113RZ single wide belt sanding machine integrates core sanding and polishing functions into a compact, user-friendly design. Built for factories with daily output of 1000–3000 plywood boards, it balances production efficiency and upfront investment, delivering the fastest return on investment for entry-level and mid-sized operations.
From PRECISION (Linyi Precision Plywood Machinery), a manufacturer with 15+ years of expertise in complete plywood production solutions, this machine has been field-proven across 6+ countries. Compared to multi-sanding frame equipment, it cuts initial capital expenditure by 40% and reduces daily maintenance time by 60%, eliminating unnecessary overhead for budget-conscious operations.
Eliminates structural deformation during 24/7 high-frequency operation, maintains consistent sanding precision for 10+ years, and minimizes vibration-related material waste.
Delivers uniform surface finish even on dense hardwoods with knots (e.g., maple), reduces rework rates by 15% and improves your plywood grade yield.
Cuts belt replacement time to 5 minutes, requires no specialized technicians, and keeps production interruptions to a minimum.
Complies with EU CE safety standards, protects operators from mechanical hazards and eliminates workplace accident liabilities.
Novice operators master full operation within 1 hour, cuts staff training costs and shortens production ramp-up time from weeks to days.
Parameter | Specification |
|---|---|
Sanding Board Width | 40–1300mm |
Sanding Board Thickness | 1–80mm |
Minimum Board Length | >780mm |
Abrasive Belt Speed | 25m/s |
Abrasive Belt Size | 1330×2620mm |
Main Motor Power | 55kW |
Feeding Speed Range | 20–40m/min |
Stable Production Rate | 200 pcs/hour |
Dust Extraction Capacity | 7900m³/h |
Total Installed Power | 64kW |
Machine Dimensions | 2100×2900×2440mm |
Net Weight | 5200kg |
 |  |
This machine is ideal for primary sanding and finishing of commercial plywood, solid wood board surface smoothing, MDF and particle board processing, small-scale custom woodworking production lines, and secondary finishing for prefabricated wood components.
Since 2011, we have focused exclusively on plywood production equipment, with deep insights into the unique challenges of small factories. Our R&D team continuously refines designs based on global customer feedback.
This sanding machine holds CE certification issued by Honton Compliance Laboratories (Certificate No. HT23DC-021033R, March 18, 2025), complying with EU MD 2006/42/EC and LVD 2014/35/EU directives. It ensures seamless customs clearance and regulatory compliance for European and global markets.
Beyond supplying the machine, we provide custom production line layout design, on-site operator training, and ongoing technical support. We also offer matching equipment for every stage of plywood manufacturing, from log debarking to final trimming.
Our dedicated service team responds to all inquiries within 2 hours worldwide. We stock all common spare parts in our central warehouse and can ship them within 3 working days to minimize your production downtime.
It handles boards with thickness ranging from 1mm to 80mm, covering all standard plywood and solid wood panel sizes.
Yes, we offer free online or on-site training. Our simplified design means even workers with no prior machinery experience can operate it safely and efficiently.
We provide a 1-year warranty for all core components and lifetime technical support. Extended warranty options are also available upon request.

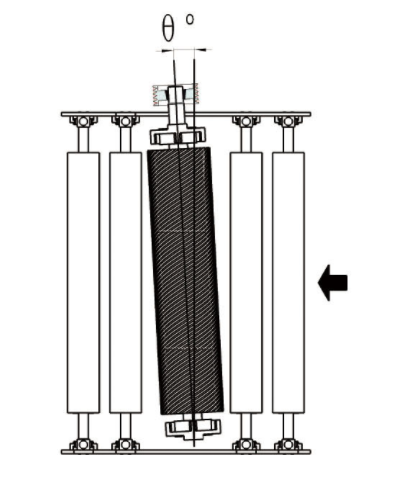

Yes, the large-diameter precision rollers deliver uniform pressure across the entire board surface, making it suitable for processing tough materials like maple and oak with knots.
Ready to upgrade your plywood finishing process with a cost-effective, production-proven sanding machine? Contact our engineering team now to receive a free custom quote tailored to your specific production needs. We also offer free technical consultation to help you select the optimal equipment configuration for your factory.
