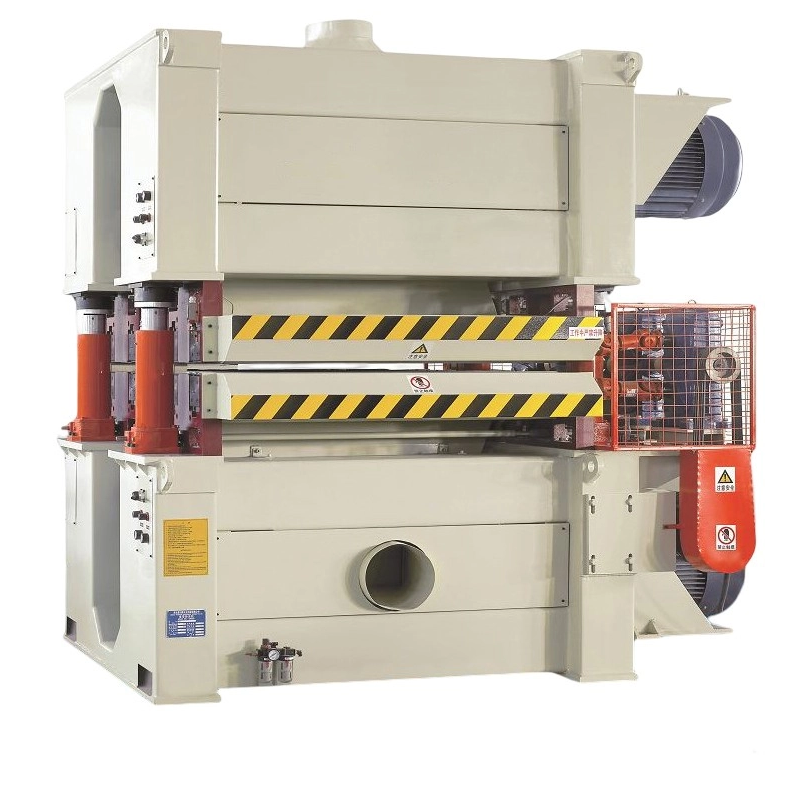

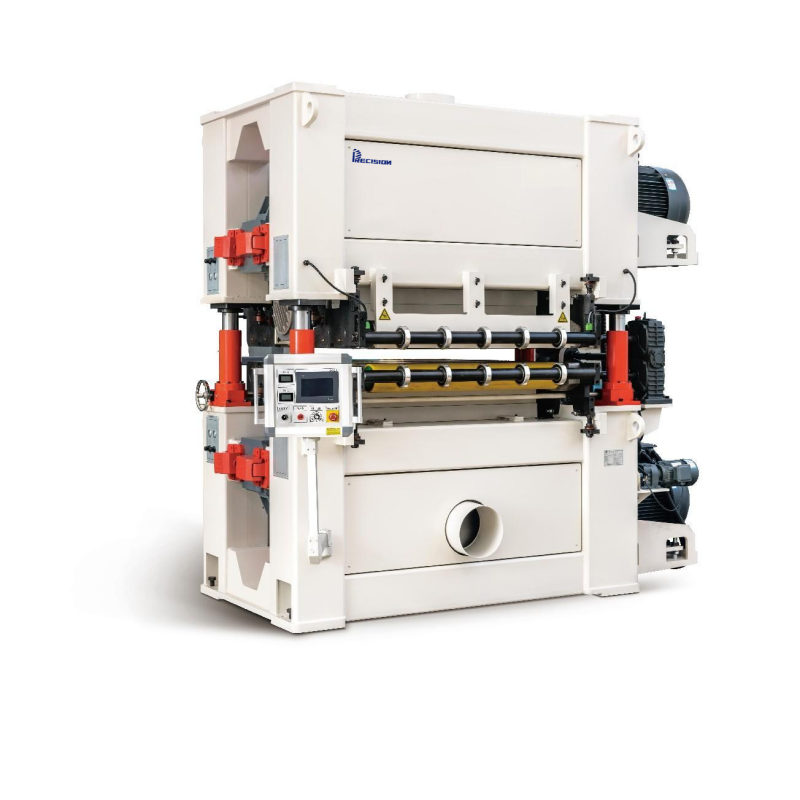

The PRS2613A is a heavy-duty double wide belt sanding machine built exclusively for high-volume plywood production lines. It features an independent upper and lower sanding frame design, with each frame operating separately to apply uniform pressure across the board surface. This dual-frame structure removes the need for manual board flipping and reprocessing, streamlining your production workflow. The machine accommodates panels from 40mm to 1300mm wide and 5mm to 150mm thick, making it suitable for both standard plywood sheets and thicker solid wood boards.
Two independent sanding frames operate simultaneously on opposite sides of the board as it feeds through the machine. This cuts total sanding time by 50% compared to single-side sanders, eliminates the labor cost associated with manual board flipping, and reduces the risk of scratches or dents during material handling.
Equipped with large-diameter precision rollers and digital thickness control, the PRS2613A achieves ±0.1mm thickness tolerance across the entire board surface. This consistent calibration reduces material waste by minimizing over-sanding and ensures all panels meet uniform thickness specifications for downstream assembly processes.
The entire machine uses a welded steel frame with a total weight of 10,000kg, providing exceptional stability during high-speed operation. This rigid construction minimizes vibration, resulting in smoother surface finishes and extended component life even under 24/7 production schedules.
The built-in dust extraction system delivers 24,000m³/h air volume at 25-30m/s suction speed. It removes 99% of wood dust generated during sanding, maintaining a clean working environment and preventing dust buildup from affecting abrasive belt performance.
Category | Specification |
|---|---|
Model | PRS2613A |
Sanding Width | 40-1300mm |
Sanding Thickness | 5-150mm |
Minimum Board Length | >500mm |
Abrasive Belt Speed | 25m/s |
Abrasive Belt Size | 1350×2800mm |
Max Production Capacity | 200 pcs/hour |
Main Motor Power | 75KW × 2 |
Transport Reducer | 11KW |
Feeding Speed | 20-40m/min |
Operating Pressure | 0.6-0.8MPa |
Dust Extraction Air Volume | 24,000m³/h |
Overall Dimensions | 2100×3400×3050mm |
Net Weight | 10,000kg |

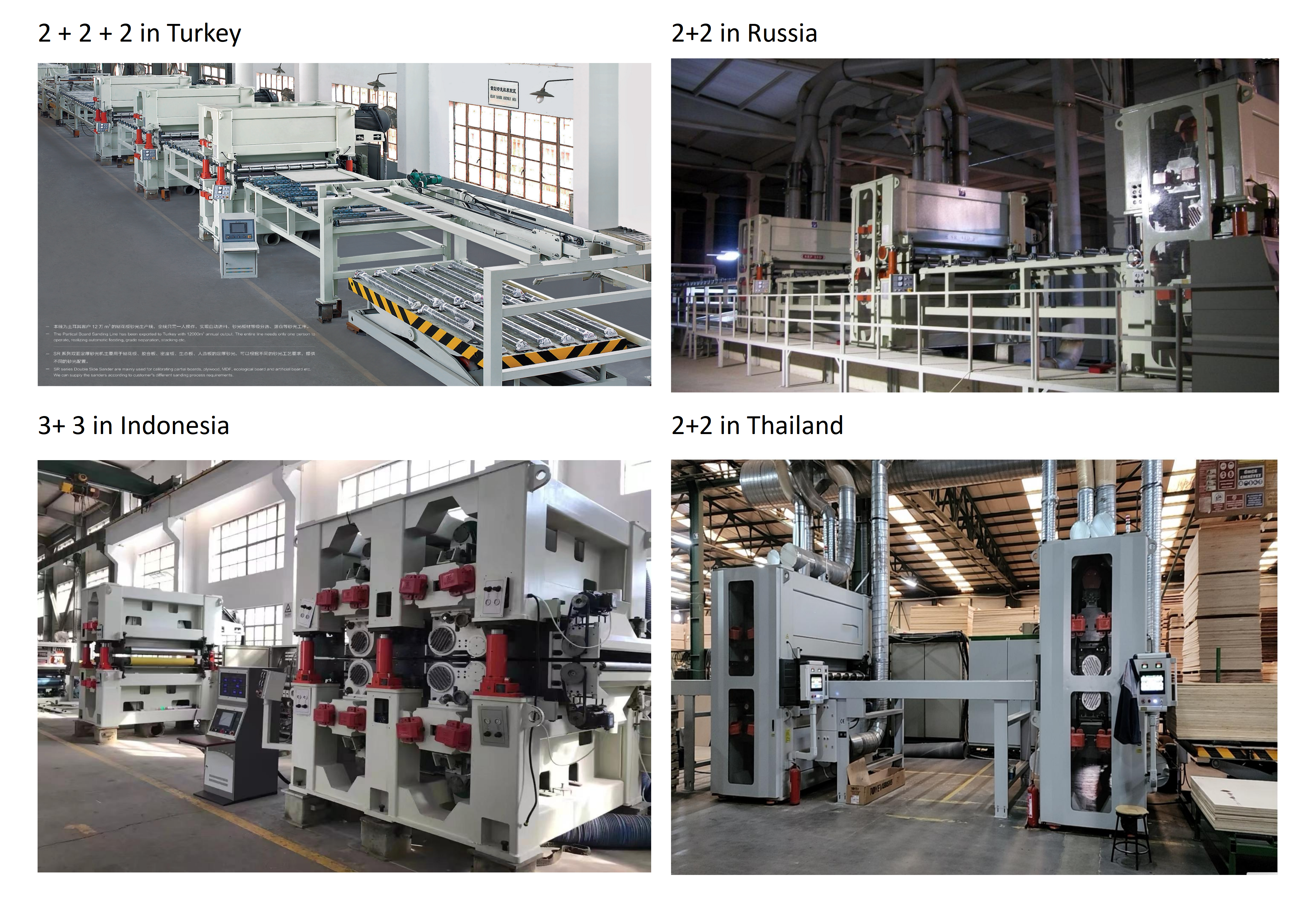

Our double side sanding machines have been deployed in production facilities across 6+ countries, with configurations tailored to local production needs:
Turkey: 2+2+2 complete sanding line
Russia: 2+2 double side sanding system
Indonesia: 3+3 high-capacity sanding line
Thailand: 2+2 plywood finishing line
"We have used three of these machines in our factory and they have never experienced unplanned downtime. The performance meets our requirements for 24-hour production." — Russian Plywood Manufacturer
With 15+ years of experience designing and manufacturing plywood production equipment, we provide end-to-end solutions from factory layout design to ongoing technical support. Our team offers on-site installation and operator training for all machines, and our 7×24 global service team responds to technical issues within 24 hours. All our sanding machines carry CE certification, complying with EU MD 2006/42/EC and LVD 2014/35/EU safety standards.
It sands plywood, solid wood boards, MDF, particle board and other wood-based panels within the specified thickness and width ranges.
Yes, we can adjust sanding width, thickness range and feeding speed to match your specific production requirements.
We offer 1-year warranty for the whole machine, lifetime technical support, and fast spare parts shipping to minimize production downtime.
Ready to streamline your plywood finishing process and increase production output? Contact our engineering team to discuss your requirements and receive a free, no-obligation quotation tailored to your facility.
