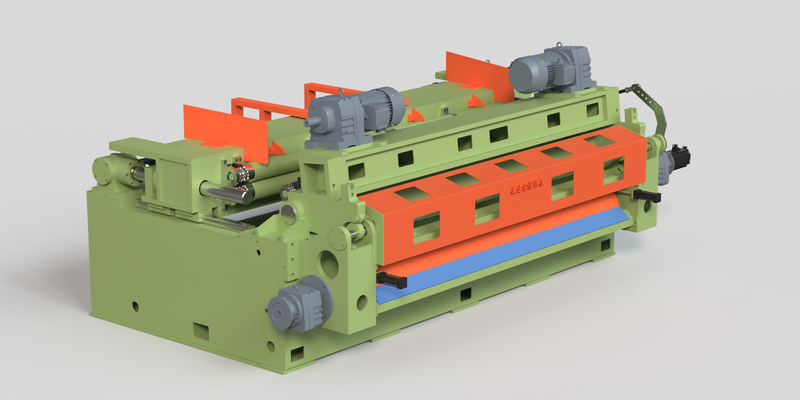

The PRS 2600mm spindleless veneer peeling machine converts logs up to 2600mm in length and 500mm in diameter into uniform 1-4mm thick veneer sheets with exceptional consistency. Designed specifically for medium to large-scale plywood manufacturing operations, this machine delivers stable performance for processing pine, birch, poplar, and maple logs, reducing material waste and lowering labor requirements per production shift. Manufactured by Linyi Precision Plywood Machinery, a company with 15+ years of experience delivering complete plywood production solutions worldwide, the PRSXQ260 model combines precision engineering with heavy-duty construction to meet the demands of 24/7 industrial operation.
 |
 |
 |

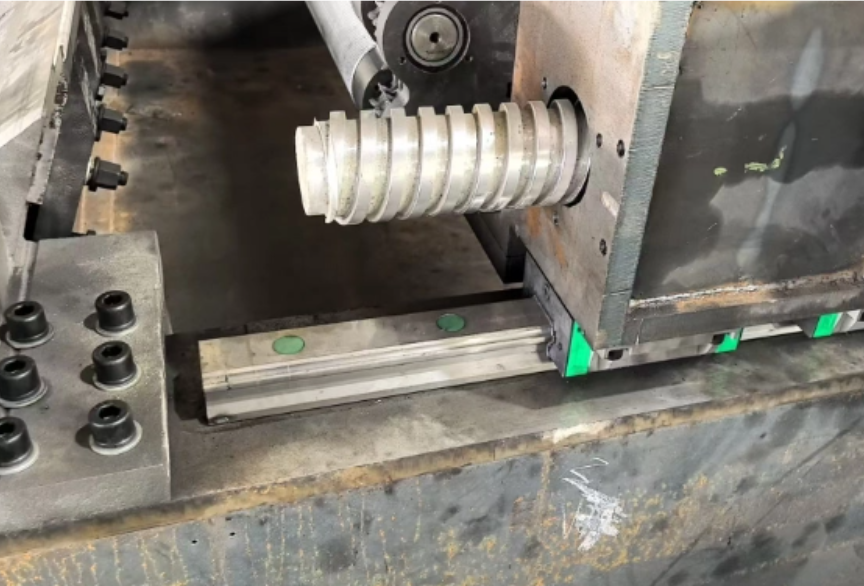

The machine features an integrated linear guide rail design that eliminates lateral movement during the cutting process. This precision engineering ensures consistent veneer thickness across the entire 2600mm width, producing Grade A veneer suitable for high-end furniture, construction, and decorative plywood applications. The linear guide system also reduces wear on critical components, maintaining cutting accuracy over extended periods of use.

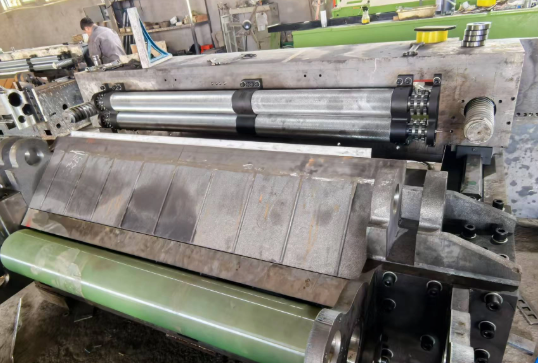

Constructed from a single piece of cast steel, the blade holding seat provides exceptional rigidity and stability during high-speed operation. This design eliminates vibration that can cause uneven cutting and premature blade wear, extending blade service life and reducing replacement costs. The robust construction also allows the machine to handle dense hardwoods and logs with knots without compromising performance.

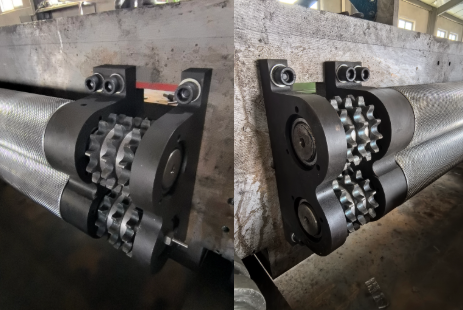

All critical bearing components are housed in tungsten steel reinforced casings that withstand the extreme stresses of industrial plywood production. This construction minimizes maintenance requirements and extends the machine's operational lifespan, reducing long-term operating costs and production downtime. The bearing system is designed to operate continuously for multiple shifts without overheating or performance degradation.
Equipped with an 11kW inverter motor feeding system, the machine offers adjustable cutting speeds between 30 and 80 meters per minute. This flexibility allows operators to optimize cutting parameters based on wood type, moisture content, and desired veneer thickness, maximizing production efficiency while maintaining consistent quality. The inverter system also reduces energy consumption compared to fixed-speed alternatives.
Specification | PRSXQ130 | PRSXQ260 (9ft/2.6m) |
|---|---|---|
Maximum log length | ≤1300mm | ≤2600mm |
Maximum log diameter | 500mm/600mm | 500mm/600mm |
Knife size | 1500x180x16mm | 2700x180x16mm |
Double roller power | 101mm, 7.5kW x 2 | 101mm, 11kW x 2 |
Single roller power | 101mm, 7.5kW x 2 | 101mm, 7.5kW x 2 |
Feeding system power | 11kW inverter motor | 11kW inverter motor |
Veneer thickness range | 1-4mm | 1-4mm |
Cutting speed | 30-80m/min | 30-80m/min |
Machine dimensions | 4.2x1.5x1.6m | 5.5x2.1x1.6m |
Machine weight | 8 tons | 12 tons |
Total installed power | 41kW | 56kW |
 |  |  |
The PRS 2600mm veneer rotary cutting machine is engineered to process a wide range of wood species commonly used in plywood manufacturing, including:
Softwoods: Pine, spruce, fir
Hardwoods: Birch, poplar, maple, oak, eucalyptus
The machine produces veneer suitable for various end products:
Construction plywood for building and infrastructure projects
Furniture plywood for cabinetry, tables, and chairs
Packaging plywood for shipping crates and pallets
Decorative veneer for interior design and woodworking applications
This versatility makes the PRSXQ260 ideal for plywood factories serving multiple market segments and looking to expand their product offerings.
 |  |  |
Linyi Precision Plywood Machinery is a fully integrated production and sales enterprise specializing in complete plywood production solutions. Our product range covers every critical stage of the manufacturing process, from log debarking and veneer peeling to drying, glue spreading, hot pressing, edge trimming, and final sanding. This comprehensive expertise allows us to design and deliver integrated production lines that operate seamlessly together.
Our machines are currently operating in over 6 countries across Asia and beyond, including:
Thailand
Indonesia (Lampung, Semarang)
Vietnam
Multiple regions in China (Yunnan, Guangxi, Guangdong)
This global presence has given us valuable insights into local production requirements and challenges, enabling us to tailor our solutions to meet specific regional needs.
All PRS spindleless veneer peeling machines comply with the European Union Machinery Directive (2006/42/EC) and Low Voltage Directive (2014/35/EU). They have been tested against international standards including EN ISO 12100:2010 (Safety of machinery), EN 60204-1:2018 (Electrical equipment of machines), and EN ISO 19085 series (Woodworking machines safety).
Certificate number: HT23DC-021033R (valid through 2028) Report number: HT23DR-0210323/HT23DR-0210324
We offer custom workshop layout design services tailored to your factory space and production capacity requirements. Our engineering team will work with you to create an optimized production flow that maximizes efficiency and minimizes material handling time. We can also integrate our veneer peeling machine with other PRS plywood machinery for seamless operation.
Our experienced technicians provide on-site machine installation and commissioning services worldwide. We also offer comprehensive operator training covering machine operation, routine maintenance, and basic troubleshooting. This ensures your team can operate the machine safely and efficiently from day one.
Our dedicated service team is available around the clock to resolve issues and minimize production downtime. We provide fast delivery of genuine spare parts worldwide and offer remote technical support via video call and email. For complex issues, we can dispatch technicians to your facility within 72 hours in most regions.
TAILAND | INDONISIA LAMPUNG |
 |  |
YUNNAN ,CHINA | GUANGXI ,CHINA |
 |  |
SEMRANG ,INDONISIA | GUANGDONG ,CHINA |
 |  |
"We have used three PRS veneer peeling machines for over five years. They have never experienced a major breakdown, which has kept our production line running consistently and allowed us to meet our delivery commitments to customers."
"Processing maple with tough knots used to be a major challenge for our factory. The PRS machine handles it effortlessly, producing smooth, uniform veneer every time. This has significantly improved our product quality and reduced waste."
"The performance of the PRS debarker and veneer peeling machines is excellent. We now keep a stock of genuine spare parts to ensure minimal downtime during routine maintenance. The after-sales support team is always responsive and helpful."
At maximum speed (80m/min), the machine can process approximately 80-100 cubic meters of logs per day, depending on wood type, log diameter, and operator efficiency. For pine logs with an average diameter of 300mm, typical production is around 90 cubic meters per 8-hour shift.
Yes, the veneer thickness can be easily adjusted between 1mm and 4mm using the machine's digital control panel. The adjustment process takes less than 5 minutes, allowing for quick changeovers between different product specifications.
Yes, we send experienced technicians to install and commission machines worldwide. We also provide operator training as part of our standard service package. Travel and accommodation costs for technicians are included in our installation fee.
Standard lead time is 30-45 days from receipt of payment. We use heavy-duty export packing with steel frames and wooden crates to ensure the machine arrives at your facility in perfect condition. We can also arrange ocean freight and customs clearance services upon request.
Absolutely. This machine is specially optimized for pine log peeling, delivering smooth, even veneer with minimal breakage. It is widely used by pine plywood manufacturers across Southeast Asia for high-volume, stable production.
Contact our technical sales team to receive a customized quotation based on your specific production requirements. We can also provide a complete production line solution including all necessary equipment from log debarking to final sanding.
