Traditional glue spreaders often create uneven coating that leads to plywood delamination, while excessive glue waste increases material costs by 10-20%. Inflexible machine designs also fail to fit existing factory layouts, causing production bottlenecks and unnecessary downtime.

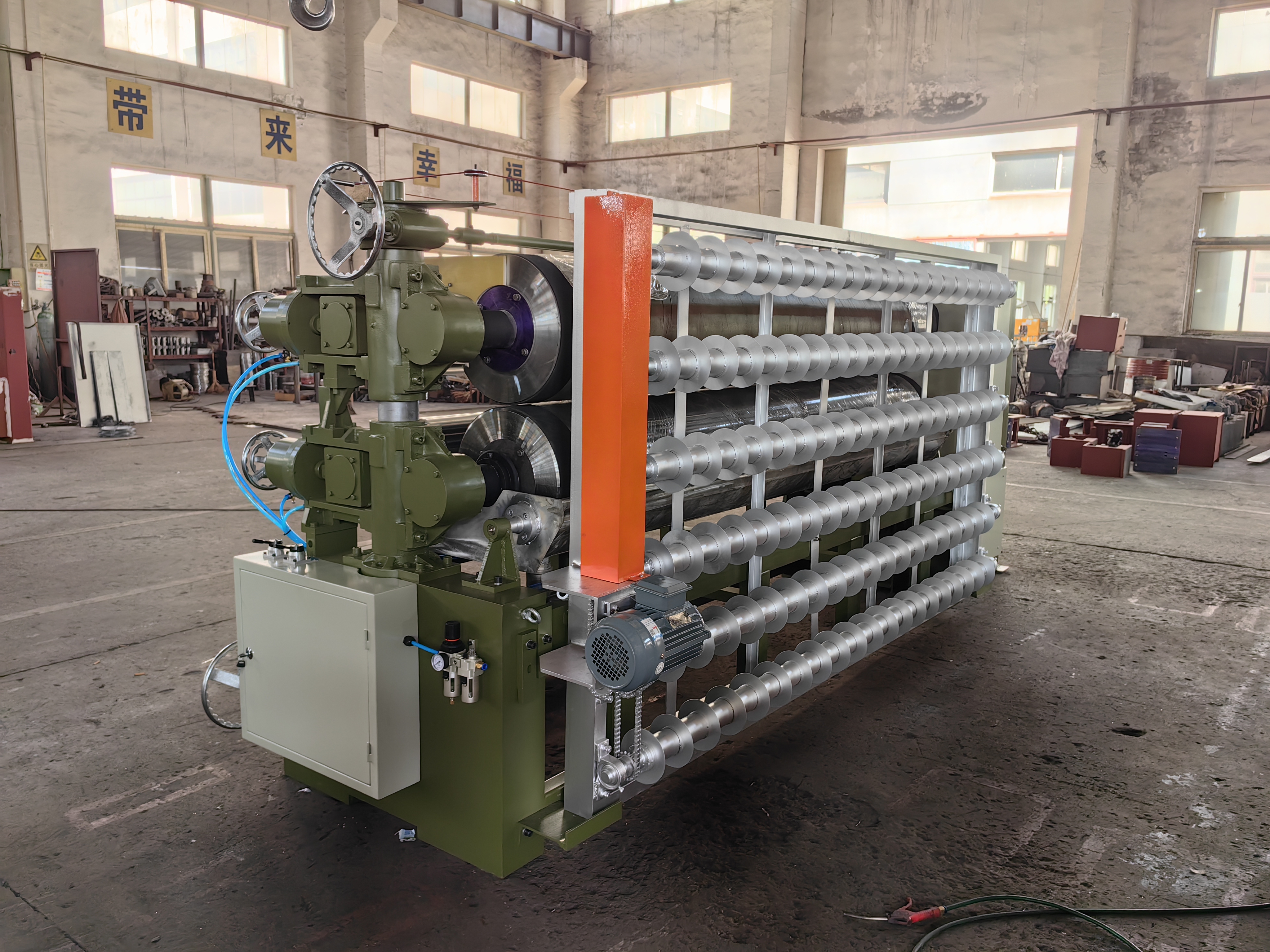

Our 4ft 1300mm glue spreader is engineered for small to medium plywood factories, delivering consistent double-side gluing for veneers up to 1400mm wide. The 4-roller system ensures precise glue distribution across the entire veneer surface, while chain drive transmission maintains steady operation during continuous 24-hour production runs. Available in Z-type and C-type configurations, this machine adapts to your existing line layout without major modifications. Developed from on-site production experience across 6+ countries, it integrates seamlessly with our complete range of plywood processing equipment.
Parameter | PRSTJ140 (4ft Model) | PRSTJ270 (8ft Model) |
|---|---|---|
Assembly Type | Z-type / C-type | Z-type / C-type |
Gluing Sides | Double side | Double side |
Transmission | Chain drive | Chain drive |
Roller Length | 1400mm | 2700mm |
Roller Diameter | Φ217mm | Φ303mm |
Production Speed | 30m/min (stable) | 30m/min (stable) |
Motor Power | 3kW | 5.5kW |
Net Weight | 800kg | 2300kg |
Overall Dimensions | 2.1×1.2×1.45m | 3.5×1.2×1.4m |
Optional Feature | Pneumatic pressure adjustment | Pneumatic pressure adjustment |
Custom roller lengths and speed ranges are available upon request to match specific production requirements.

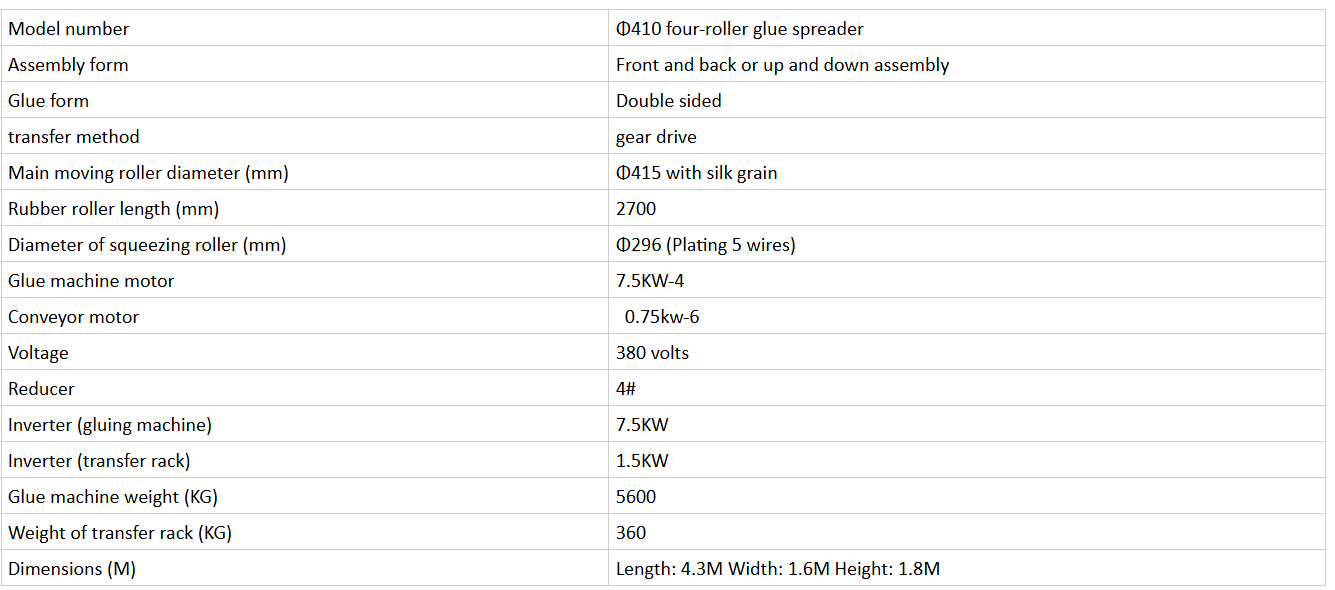

Model number | Φ410 four-roller glue spreader |
|---|---|
Assembly form | Front and back or up and down assembly |
Glue form | Double sided |
transfer method | gear drive |
Main moving roller diameter (mm) | Φ415 with silk grain |
Rubber roller length (mm) | 2700 |
Diameter of squeezing roller (mm) | Φ296 (Plating 5 wires) |
Glue machine motor | 7.5KW-4 |
Conveyor motor | 0.75kw-6 |
Voltage | 380 volts |
Reducer | 4# |
Inverter (gluing machine) | 7.5KW |
Inverter (transfer rack) | 1.5KW |
Glue machine weight (KG) | 5600 |
Weight of transfer rack (KG) | 360 |
Dimensions (M) | Length:4.3M Width:1.6M Height:1.8M |
This machine maintains consistent speed when processing veneers of varying thicknesses, matching the cycle time of most standard hot press machines to eliminate production bottlenecks. The chain drive system requires less frequent maintenance compared to belt drive alternatives, reducing scheduled downtime.
Four precision-machined rollers apply glue evenly across the entire veneer surface, reducing adhesive consumption by up to 15% compared to 2-roller designs. This consistent coating minimizes delamination defects, improving the grade rate of finished plywood panels.
Energy-efficient 3kW and 5.5kW motors lower electricity usage during daily operation. The modular design allows for quick replacement of individual components, and spare parts are stocked globally for fast delivery.
Z-type configuration saves floor space for compact factory layouts, while C-type design simplifies material handling for higher-volume production. Both versions integrate with most standard plywood processing lines, including veneer dryers and edge trimmers from other manufacturers.
With 15+ years of manufacturing experience, we produce equipment for every stage of plywood production: log debarking, veneer peeling, drying, gluing, hot pressing, edge trimming and sanding. Our 604㎡ production facility houses dedicated R&D teams that develop core intelligent systems including AI log volume measurement and veneer visual inspection lines.
All our machines hold CE certification to EU Machinery, EMC and LVD directives, tested to EN ISO 12100:2010 and EN 60204-1:2018 safety standards. We provide one-stop support including custom production line layout design, on-site installation, operator training and 7×24h global technical assistance.
The PRSTJ140 model handles veneers up to 1400mm wide, suitable for standard 4ft plywood production.
Yes, both PRSTJ140 and PRSTJ270 models are designed for simultaneous double-side gluing.
Yes, our certified engineers travel to your factory for installation and hands-on training for your production team.
