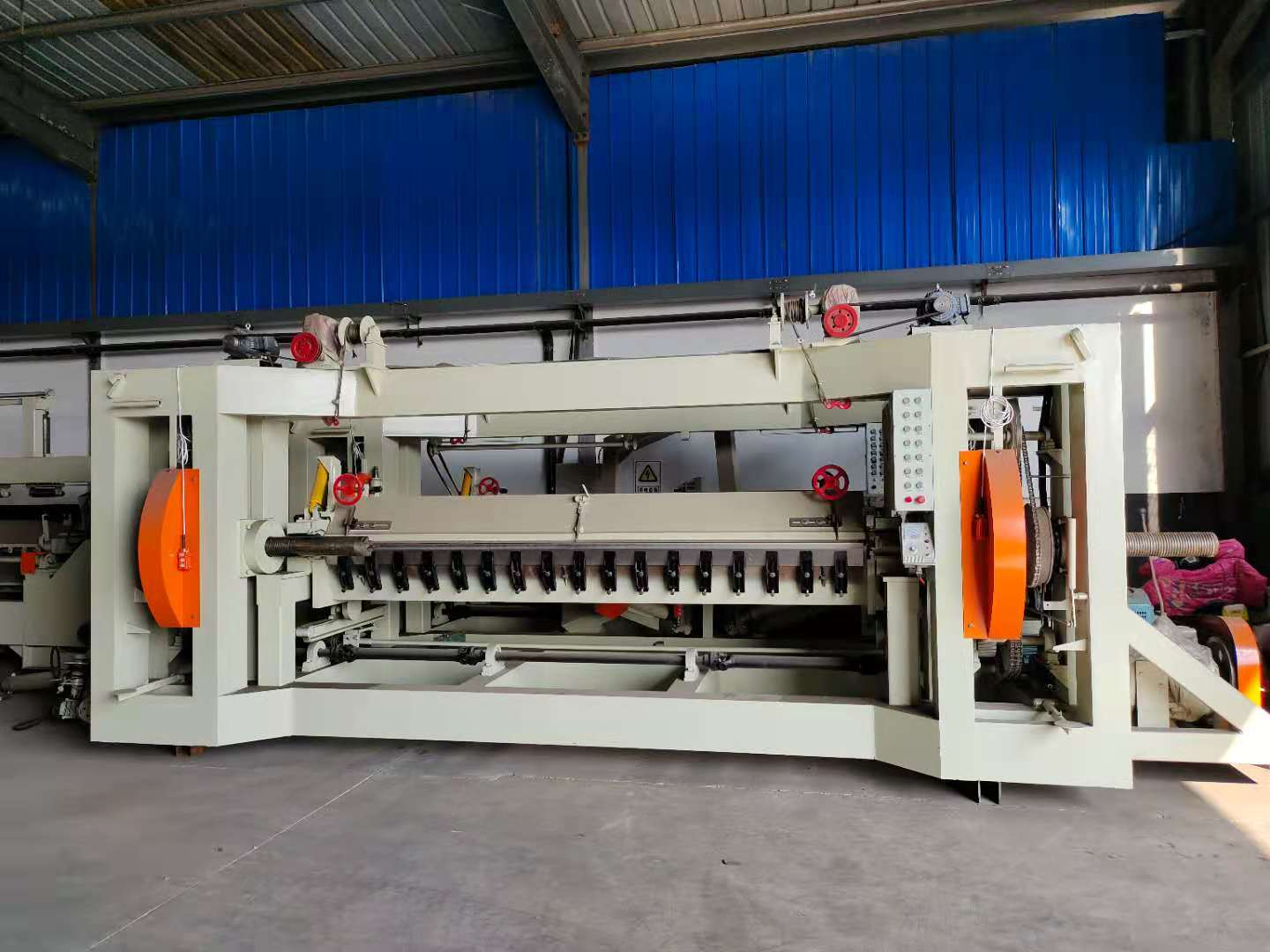

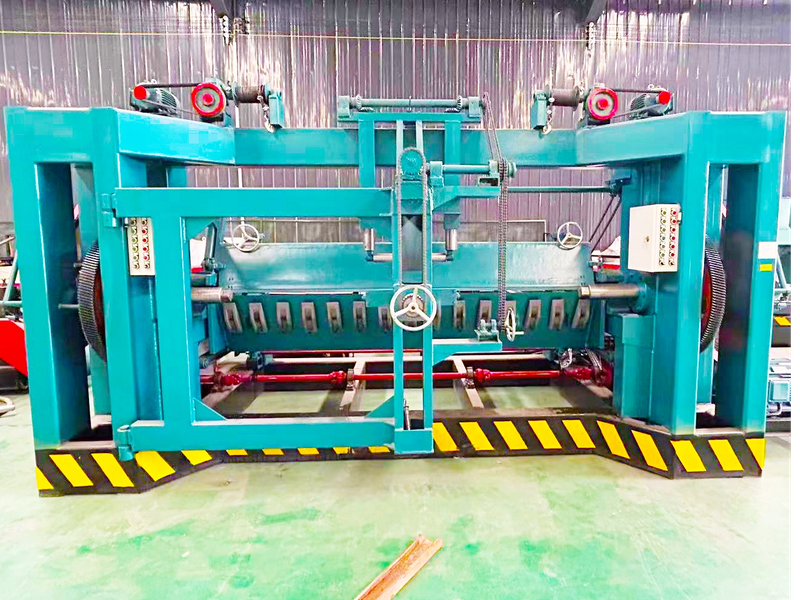

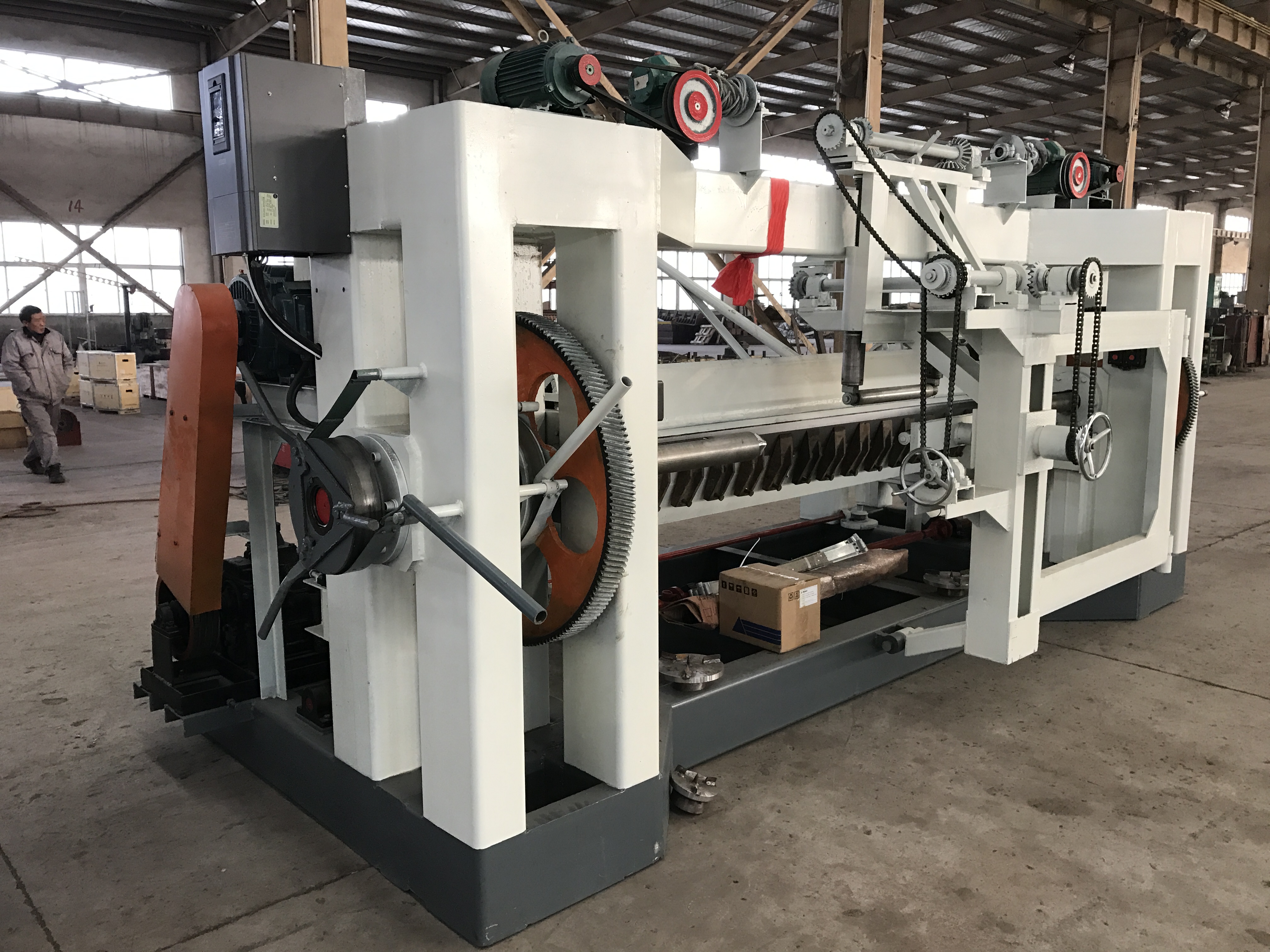

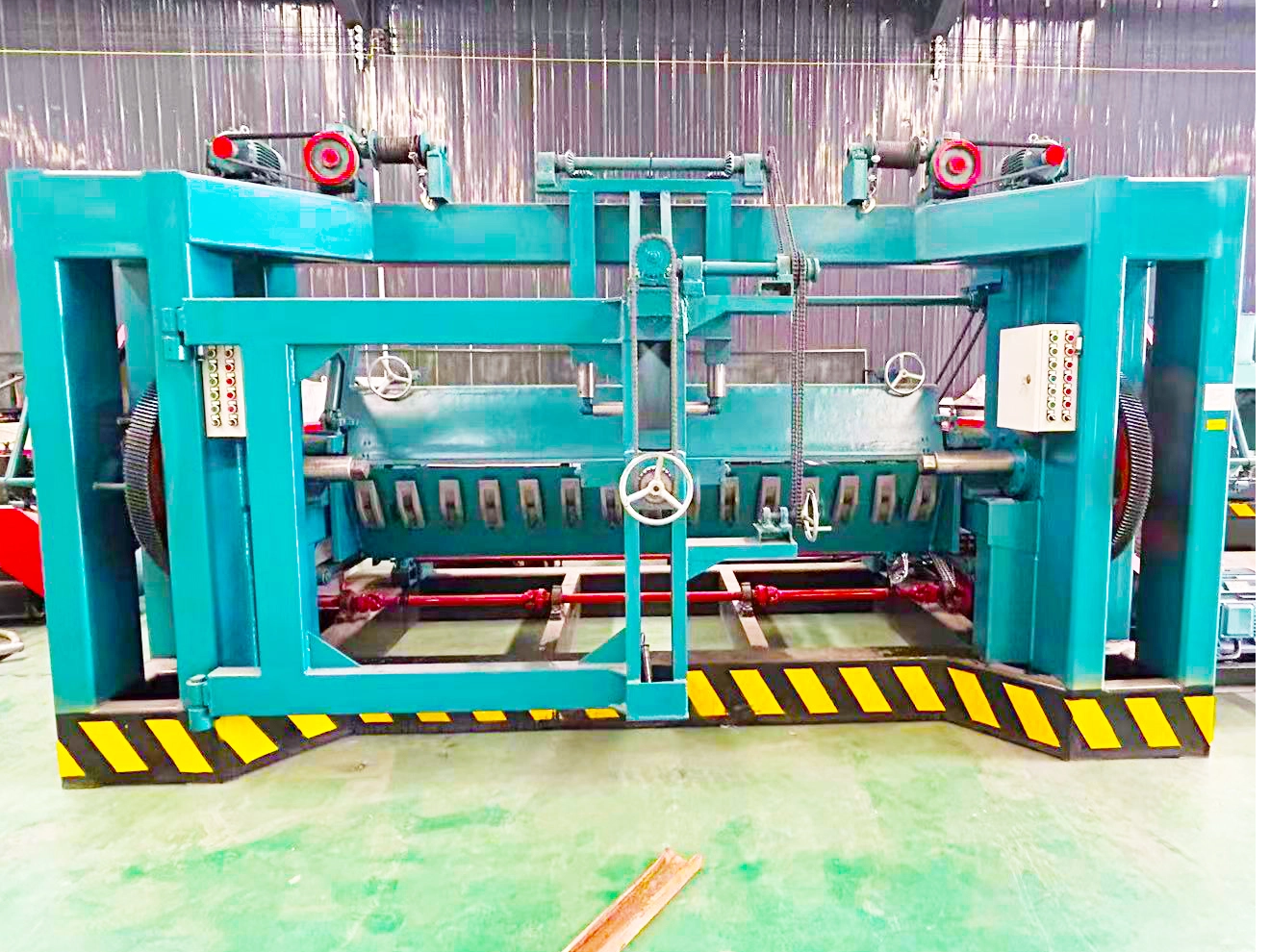

For plywood production managers and equipment directors struggling to process large-diameter precious hardwoods and achieve consistent thin veneer accuracy, the PYK260 8ft spindle veneer peeling lathe delivers targeted solutions. Designed specifically for logs with diameters exceeding 1 meter, this machine supports a 0.2-3mm veneer thickness range, addressing gaps left by standard shaftless models. Manufactured by Linyi Precision, a company with 15+ years of plywood machinery development experience, it integrates fixed-axis rotary cutting technology for stable operation across continuous production shifts.
Fixed-axis clamping eliminates radial log runout during rotation, resulting in thickness deviation ≤±0.02mm. This level of accuracy improves veneer edge neatness by 30% and reduces post-processing sanding waste. For 0.5mm and thinner face veneer production, it increases Grade A panel yield by 25% compared to conventional equipment.
Unlike shaftless models limited to 500mm diameter logs, the PYK260 handles logs up to 1500mm in diameter. With a remaining log core diameter of only 40mm, it boosts raw material utilization by 15%, cutting waste costs for high-value woods such as oak, teak, and mahogany.
The machine supports 0.2-3mm veneer thickness adjustment, covering both ultra-thin face veneer and thick core veneer requirements. Peeling speed ranges from 52-120m/min, delivering 2m³/h output for thin veneer and 5m³/h for thick veneer. Operators can switch thickness parameters in minutes without replacing core components.
Comparison | Spindle Veneer Lathe | Spindleless Veneer Lathe |
|---|---|---|
Work Principle | Fixed-axis rotary cutting: Log is clamped at both ends by spindles for fixed-axis rotation, rotary knife feeds to cut veneer | Shaftless floating rotary cutting: Log is circumferentially clamped by pressure rollers for floating rotation, rotary knife feeds synchronously to cut veneer. |
Logs | log diameter from 300-1200mm left log core is 150mm | small & medium-diameter logs (50-500mm) left log core is 30mm |
Veneer Precision | High rotary cutting stability thickness deviation ≤±0.02mm, superb veneer flatness and edge neatness | Conventional models: thickness deviation ≤±0.05mm high-end CNC models: up to ±0.02mm flatness close to spindle models |
Production Efficiency | face veneer: 2m3/per hour thick veneer: 5m3/per hour | 4ft /1300mm: 4m3/per hour 8ft/2600mm: 8m3/per hour |
veneer thickness | Top-tier rotary cutting accuracy & veneer quality stability, suitable for: high-end special veneer large-diameter log face veneer thickness ≤1mm thick veneer ≥3.5mm | plywood veneer thickness : 1-3.6mm |
Core Limitations | Poor adaptability to small-diameter logs, low utilization rate, high cost, difficult operation, not suitable for large-scale mass production | Conventional models have slightly weaker accuracy & flatness, poor adaptability to ultra-large-diameter logs, cannot cut ultra-thin veneer below 0.3mm |
Parameter | PYK130 (4ft Model) | PYK260 (8ft Model) | Production Implication |
|---|---|---|---|
Log Length | 1000-1300mm | ≤2600mm | PYK260 supports standard 8ft plywood panel production |
Max Log Diameter | 1500mm | 1500mm | Both handle large-diameter logs up to 1.5 meters |
Remaining Log Core | 40mm | 40mm | Minimizes wood waste and maximizes raw material use |
Peeling Speed | 52-120m/min | 52-120m/min | Adjustable for different wood hardness and veneer thickness |
Knife Size | 1500×180×16mm | 2700×180×16mm | Standard size for easy replacement |
Main Motor Power | 30kw | 45kw | Sufficient power for hardwood processing |
Overall Dimensions | 4.5×1.5×1.6m | 6.6×2.1×1.6m | Compact design saves workshop space |
Net Weight | 6 tons | 10 tons | Heavy frame ensures stable operation at high speed |
High-end decorative face veneer production
Structural plywood thick core veneer manufacturing
Engineered and special veneer processing
Large-diameter precious wood utilization projects
15+ years of plywood machinery manufacturing expertise, covering all production stages from log debarking to sanding
One-stop solutions including workshop layout design, on-site installation, and operator training
7×24h global technical support to minimize production downtime
CE certified equipment compliant with EN ISO 12100:2010 and EN 60204-1:2018 standards
AI-enhanced equipment R&D, including log volume measurement and veneer visual inspection systems
"Shandong Precision machines deliver consistent results. They save labor and streamline our production flow. All our Grade A veneer comes from these machines." — Plywood Factory Owner, Vietnam "Anyone who has worked with maple knots knows how challenging they are. This machine handles them smoothly, which is impressive." — Wood Processing Supervisor, Indonesia "I have operated three of their machines over five years. None have experienced major breakdowns. Price aligns with performance." — Long-Term Equipment User, Turkey
The PYK260 supports logs up to 2600mm (8ft) in length, matching standard plywood panel dimensions.
Yes, its heavy-duty frame and 45kw main motor handle high-density woods including maple, teak, and oak, even with knots.
We offer on-site installation, comprehensive operator training, and lifetime technical support.
Request a Free Custom Quotation for the PYK260 8ft Spindle Veneer Peeling Lathe. Download the full technical datasheet or contact our engineering team for production-specific consultation.
