Product Advantage

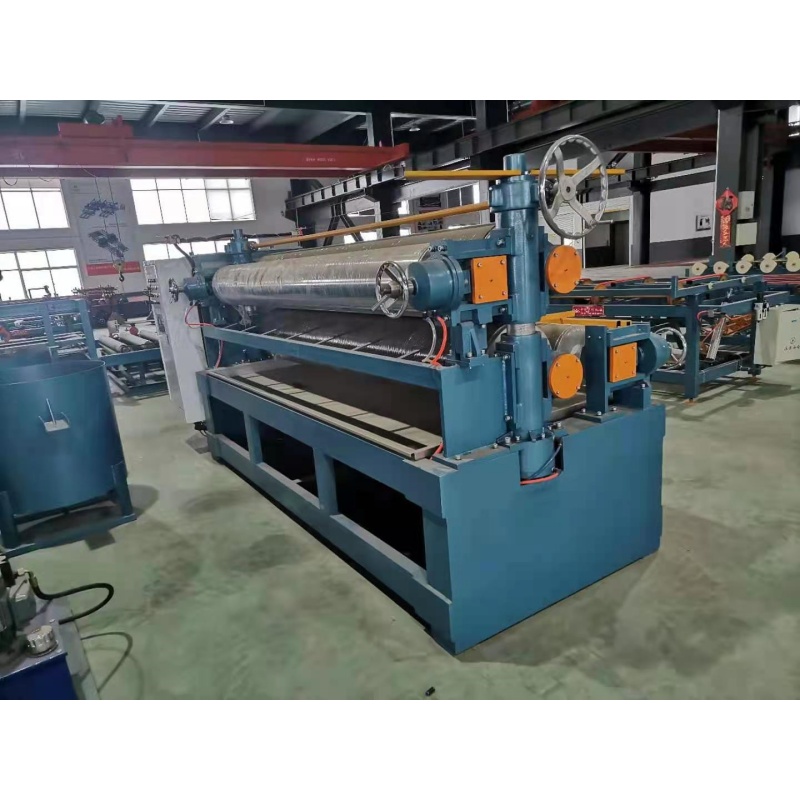

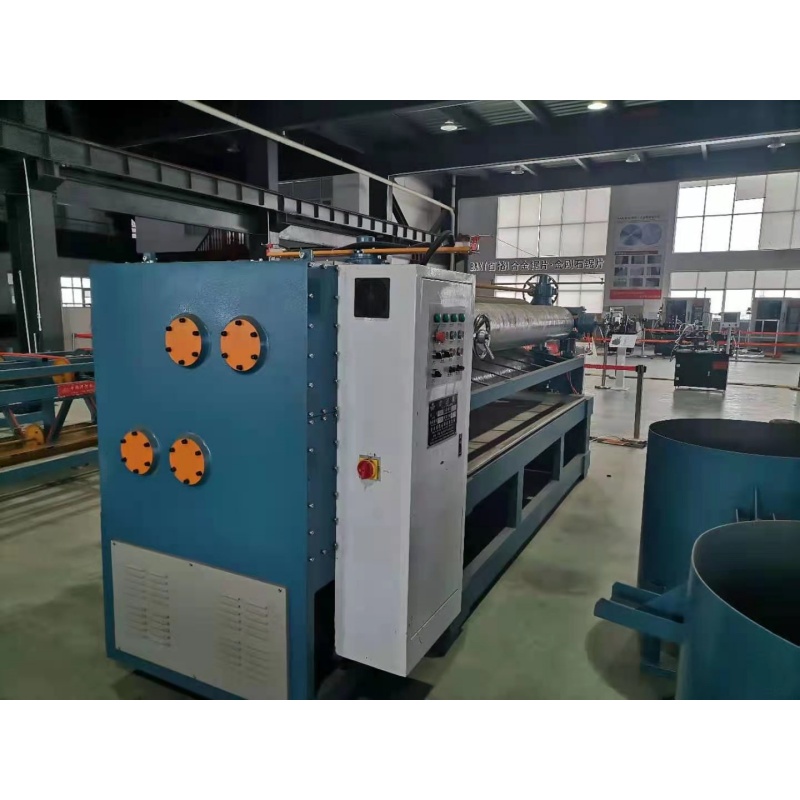

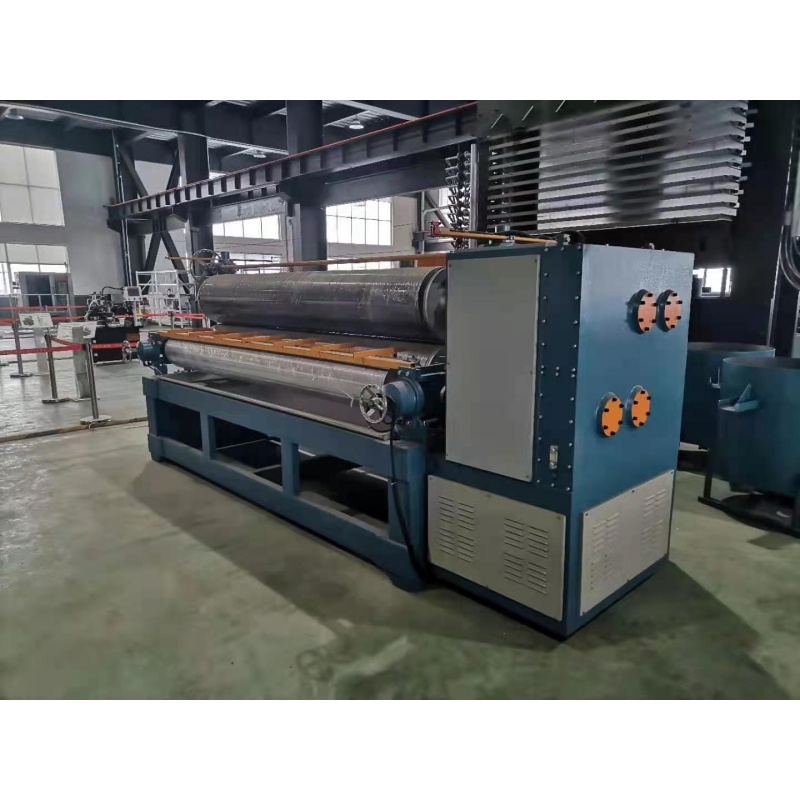

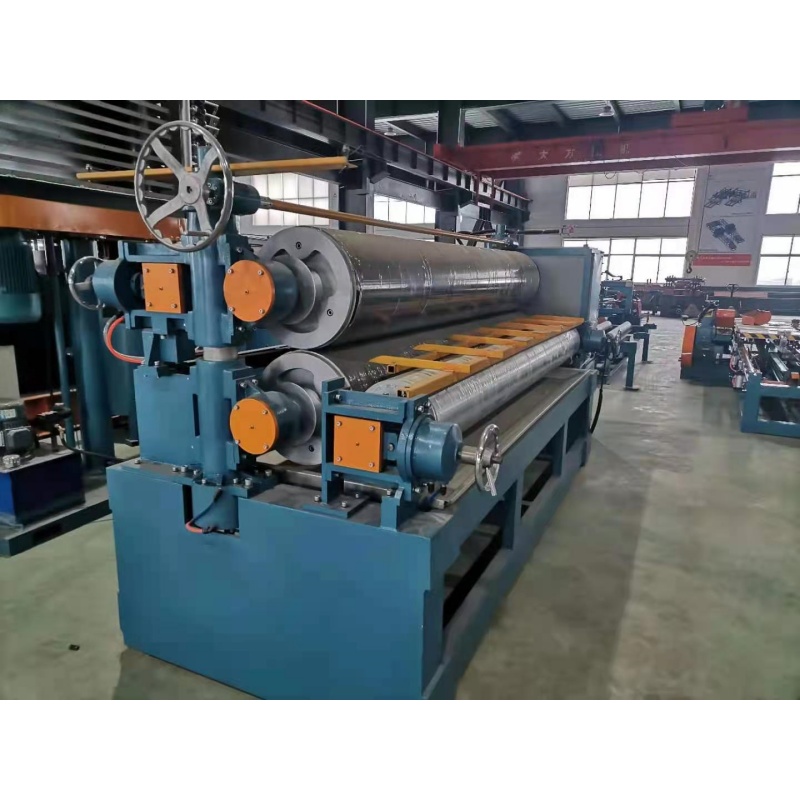

The advantage of pneumatic glue spreader machine
1. Glue-saving Design: on our pneumatic plywood glue spreader machine ,All rollers undergo professional precision machining and dynamic balancing correction, ensuring efficient glue utilization.
2. Uniform Glue Application: Delivers consistent, even glue distribution across the entire veneer surface.
3. High-precision Rollers: Equipped with large-diameter rollers, offering high precision and stable operation.
4. Flexible Glue Adjustment: The glue application amount of the squeezing rollers can be adjusted separately left and right, and can be fine-tuned as needed to achieve uniform glue coverage along the full length.
5. Leak-proof & Easy Maintenance: The upper and lower sections of the baffle plate adopt a plug-in design, which effectively prevents glue leakage and allows for easy assembly, disassembly, and cleaning. Additionally, the baffle plates are fitted with spring compression devices to further eliminate side glue leakage, greatly enhancing the service life and utilization rate of the baffle plates.
Technical Parameters
Model | PRSTJQD2704 |
Roller assembly Type | Front and rear Up and down ( Z ) |
glue veneer side | two side |
Transfer method | Gear wheel |
main roller dia. | Φ 415mm |
roller length | 2700mm |
Sub squeeze roller diameter | Φ299mm |
Speed（ | 30~70 m/min |
motor | 7.5KW-4 |
Voltage | 380v or 440v |
Weight（KG) | 4800kg |
Size | 4200*1610*1850mm |
The model 8ft is general standard size , we accept customized size
4 glue spreader models

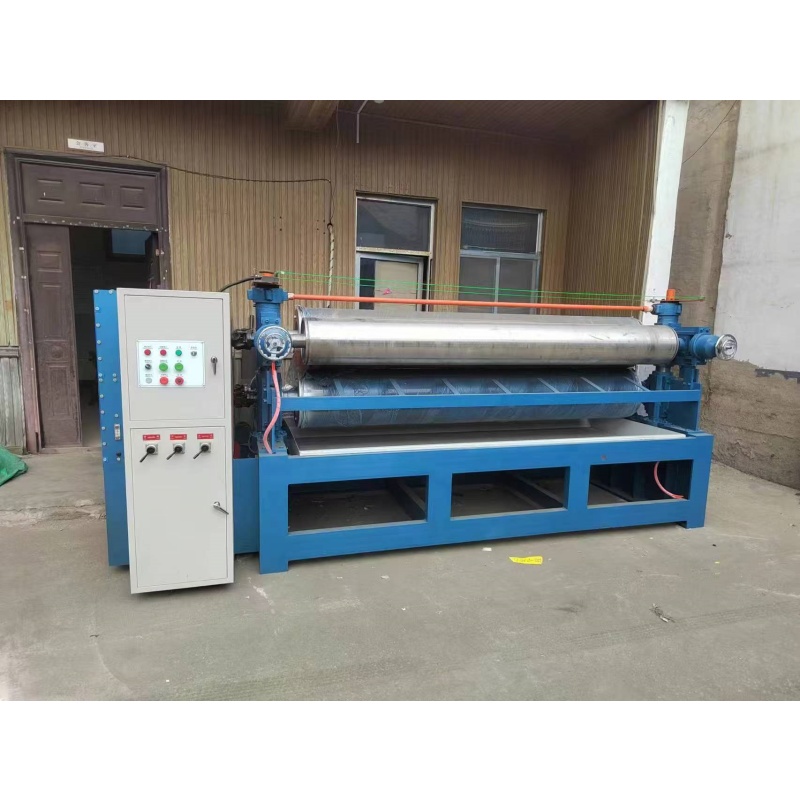

4ft standard glue spreader （diameter 270mm ）  | 4ft big roller glue spreader machine for plywood production  |
8ft standard plywood veneer gluing machine  | 8ft pneumatic pywood core veneer glue spreader machine  |

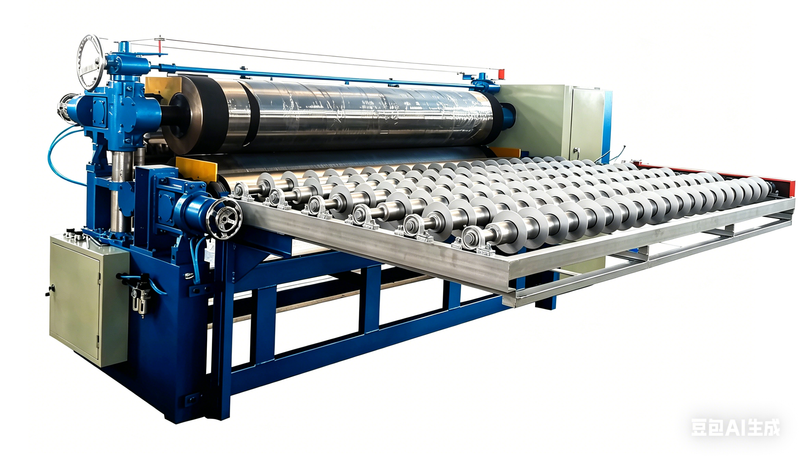

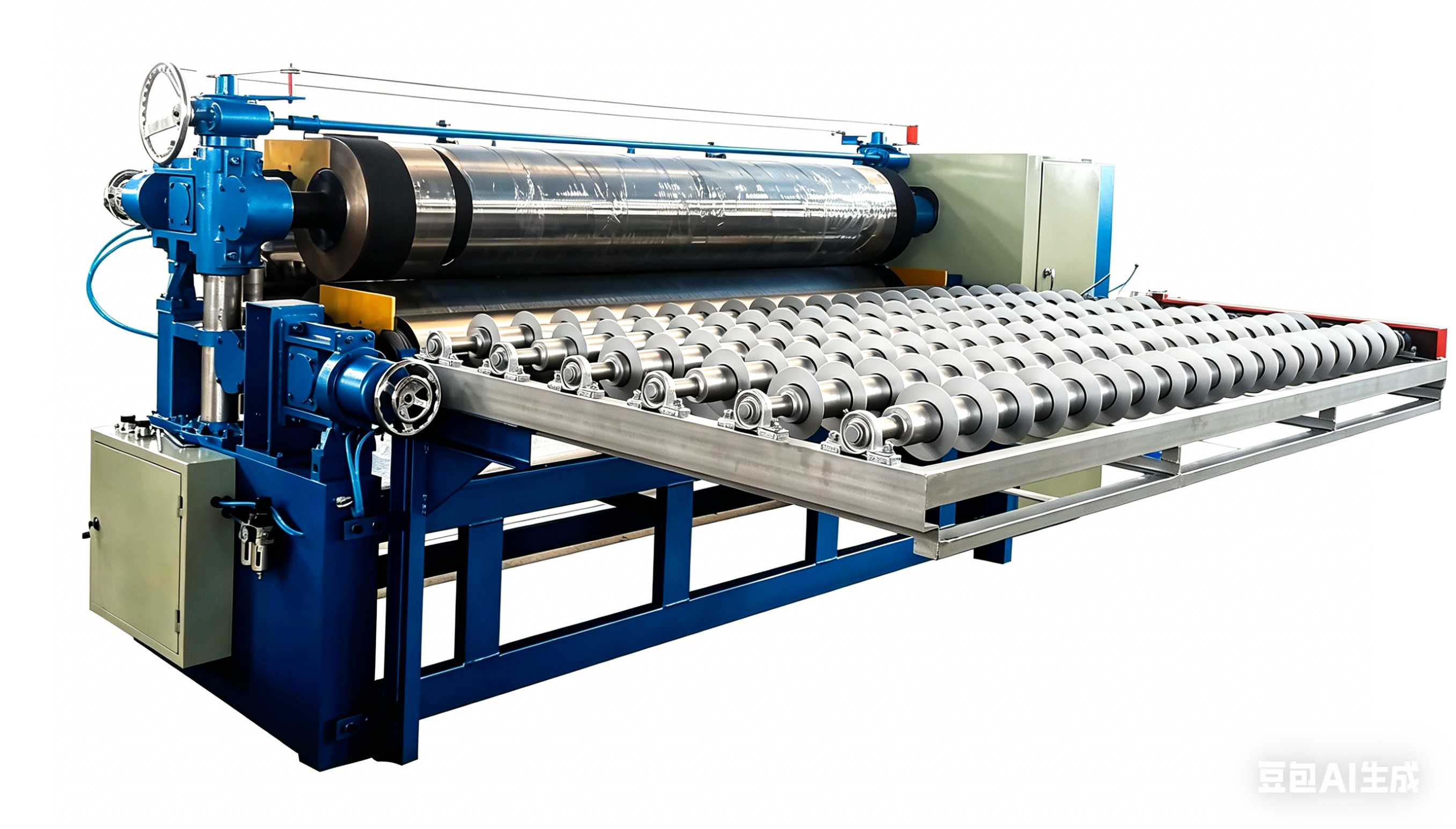

glue spreader + veneer layup line
Type 1 : 8ft glue spreader + veneer conveyor (https://www.youtube.com/embed/pzocPuKkruk )  | Type 2 : 4ft glue spreader + veneer conveyor (https://www.youtube.com/embed/6oQatuI5TtI)  |
Type 2 : 4ft glue spreader + veneer conveyor Suit for small size veneer , as 4x4ft or 4x2ft veneer . this veneer paving line ususally work with a veneer conveyor line (https://www.youtube.com/embed/6oQatuI5TtI)  | Type 4 : plywood lamninated line (Auto plywood loading + 4ft glue spreader + Auto plywood unloading ) ( https://www.youtube.com/embed/2tFKurZ5jL0?si=vXeBCxsPoLzk5jcM)  |
