Product Introduction
Lift pneumatic brakes effectively protect the sanding belt | Polyurethane feeding roller, which has high wear resistance, impact resistance and high temperature resistance. It has higher wear resistance, impact resistance and high temperature resistance than the ordinary roll under normal use. It has a longer life of 2-3 years others |
 |  |

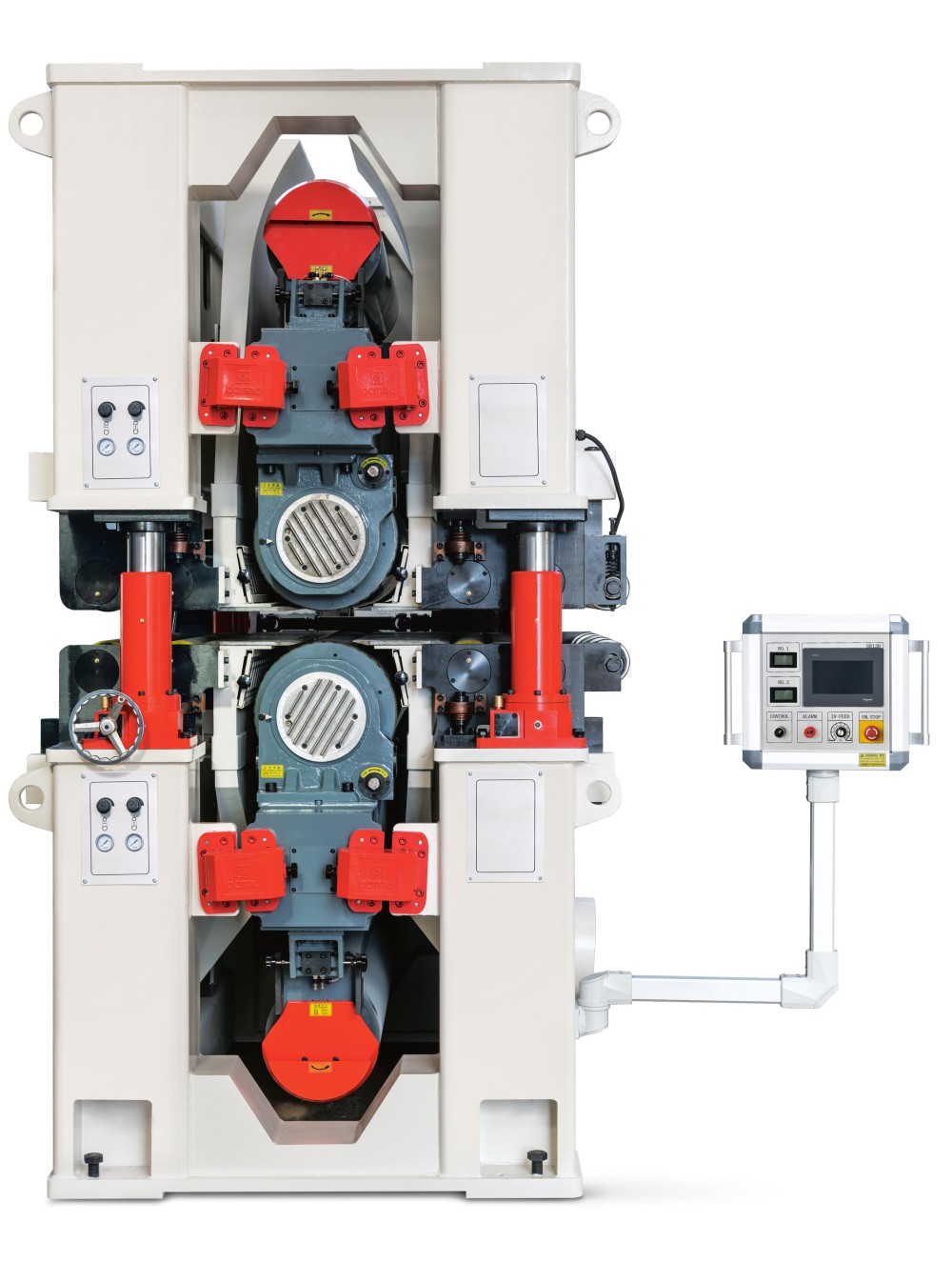

Features of the wide belt sanding machine
Feed roller upper and lower independent drive, good synchronization, prevent plate slip, uniform sanding. Prevent the speed of the ultra- thick plate from slipping, and the efficiency can be increased by 10% | T-thread lifting mechanism, thickness adjustment is convenient and accurate, high wear resistance, long life. Lifting adopts spherical contact, positioning is good, lifting without resistance. |
 |   |
Advantage of the segmented pad wide belt sanding machine
Using high-strength frame, precision machining to ensure the accuracy and stability of the machine.
The diameter of sanding roller is 320mm, strong rigidity, high speed, and it can achieve the best sanding result.
The feeding system is equipped with a variable-frequency drive and a hard-toothed helical gear reducer, which makes it more reliable and durable.The spare parts are precision-machined and selected from high-quality components to ensure the excellence of the machine.
The feeding table lifting is equipped with a ball screw to ensure high precision lifting.
The feed inlet adopts a reverse check device to prevent the panel from bouncing and hurting people during processing.
Technical Parameters
Configuration |  |
Head 1 ,Head 2 , | Steel Roller |
Model | PRSR13D |
working width | 200-1300mm |
working thickness | 3-70mm |
Working length | ≥700mm |
No.1Abrasive belt speed | 25m/s |
No.2 Abrasive belt speed | 25m/s |
Feeding speed | 6-30m/min |
Size of abrasive belt | 1330 x 2800mm |
power | 75Kw x 2 |
Working air pressure | 0.55mpa |
Volume of sucked air | 24000m³/h |
Speed of sucked air | 25-30m/s |
Overall size | 2200 x 3360 x 2900mm |
Net weight | 5800kg |
PLC | Siemens |
Inverter | China famous brand |
Screen | MCGS |
Feeding Reducer | Qingzhu(China Famous Brand) |
Bearing of contact roller | NSK |
Motor of contact roller | HUALI(China Famous Brand) |
Sensor | ELCO |
Solenoid valve | AIRTAC |

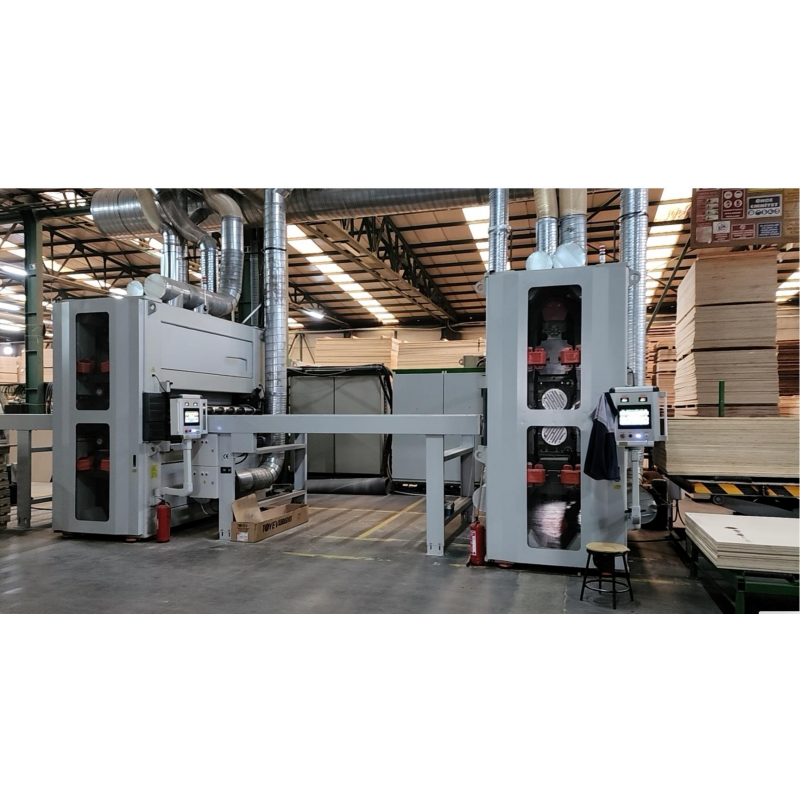

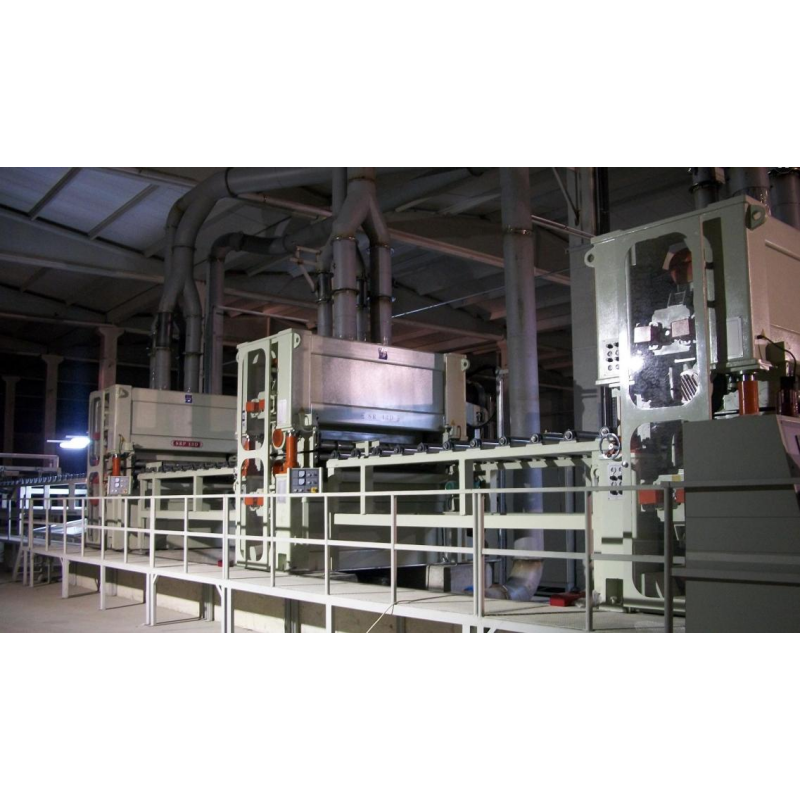

Product Uses
2+2+2 | 4+2 |
  |   |
