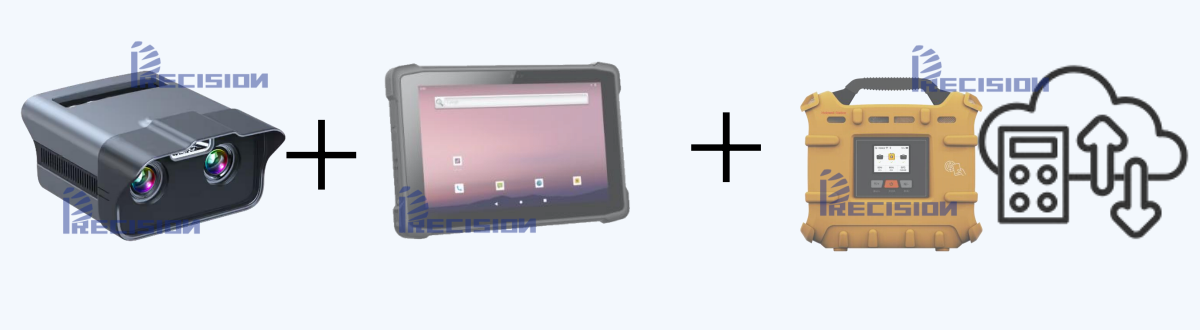

Camera + pad + AI Cloud computing
Advantages
1. Measures logs in seconds with Millimeter accuracy 99.5%
2. improves effiency by 300% ,replace 10 workers
3. Data record and analyze
Operation guide

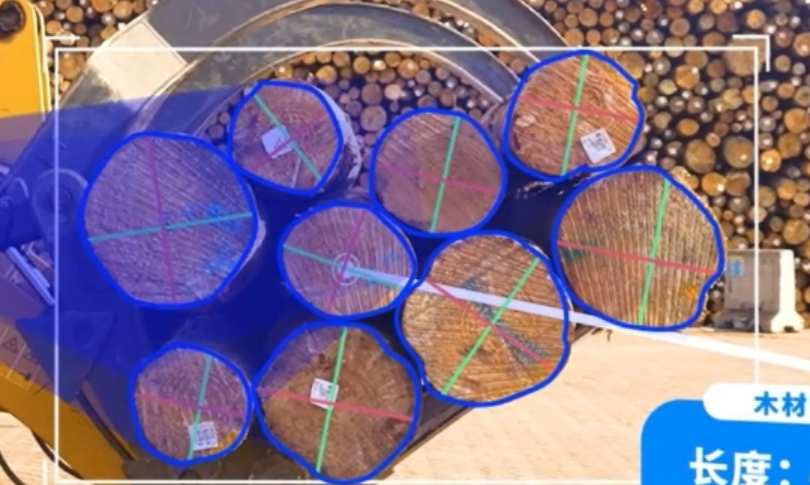

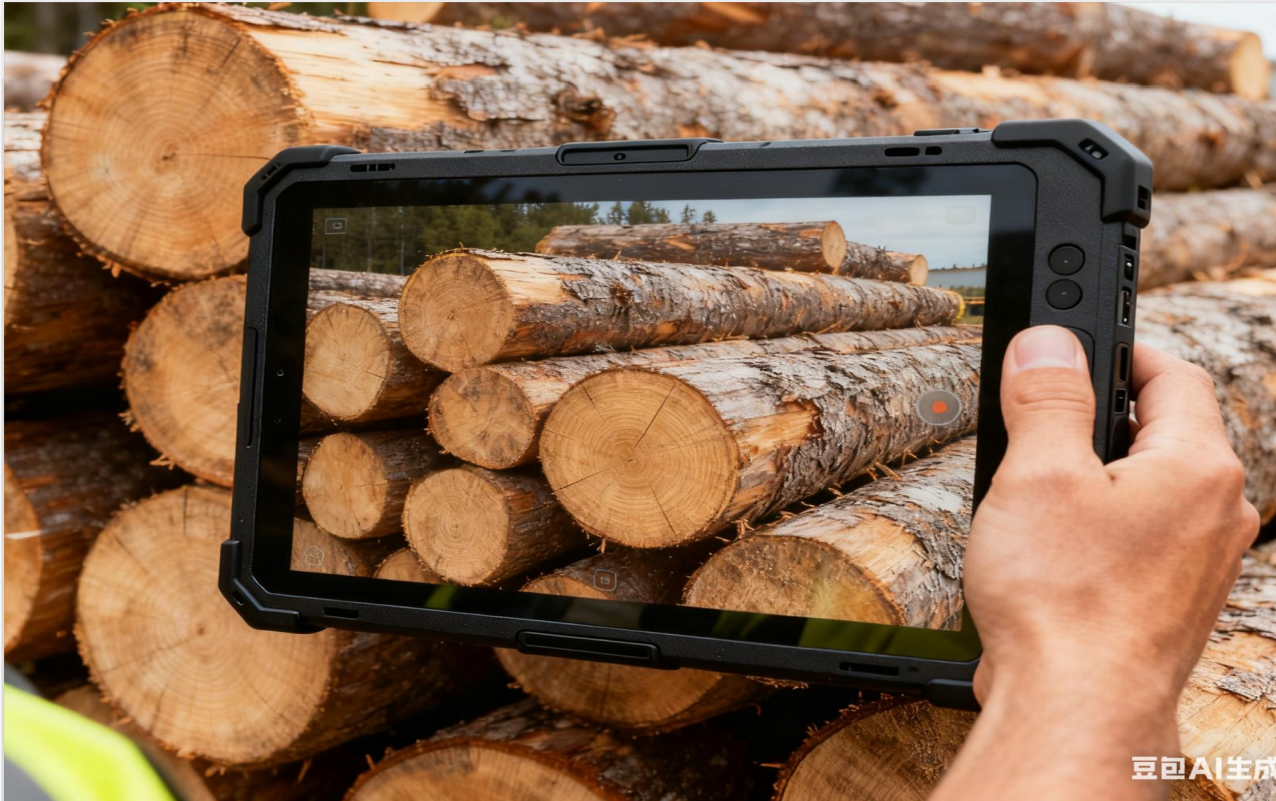

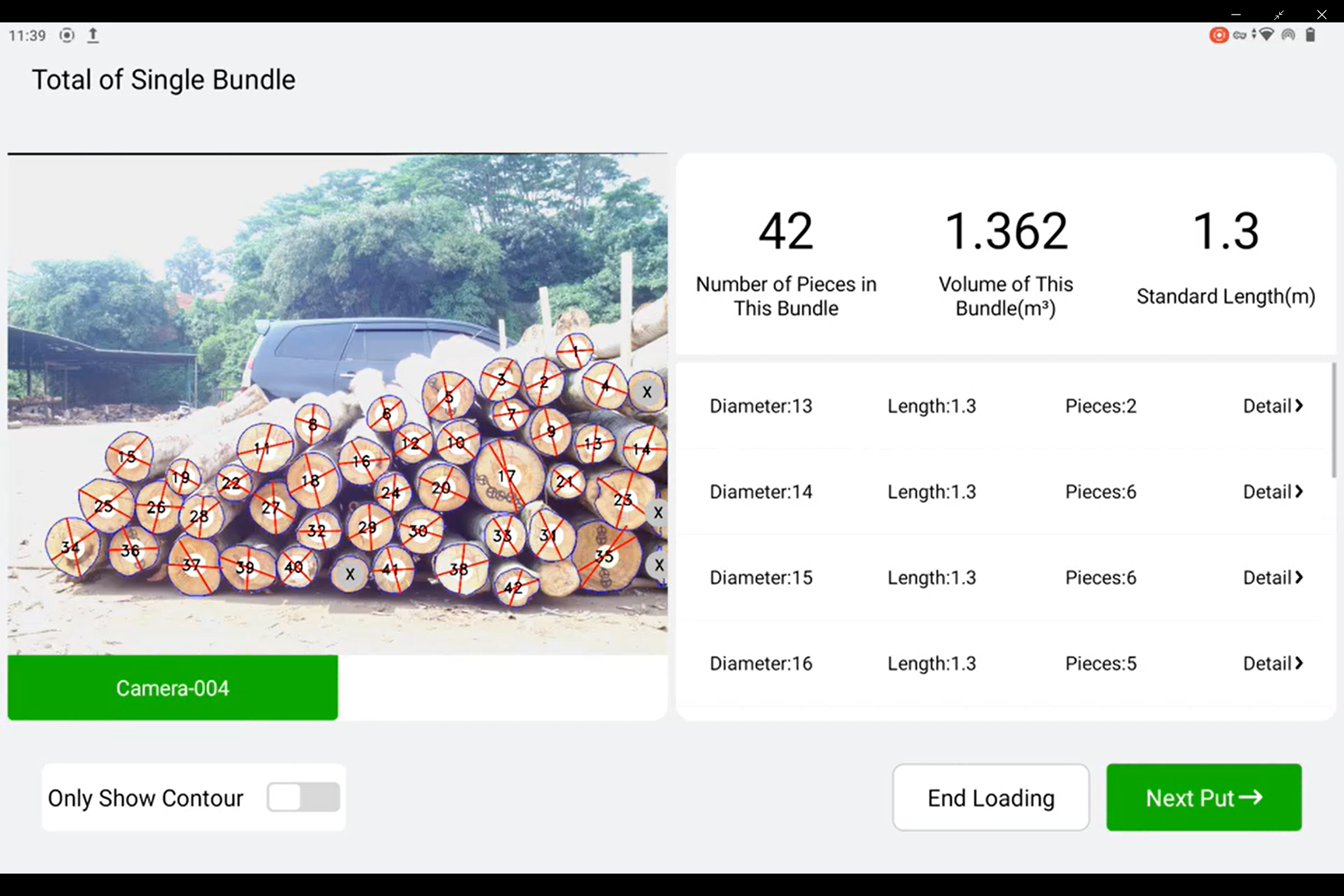

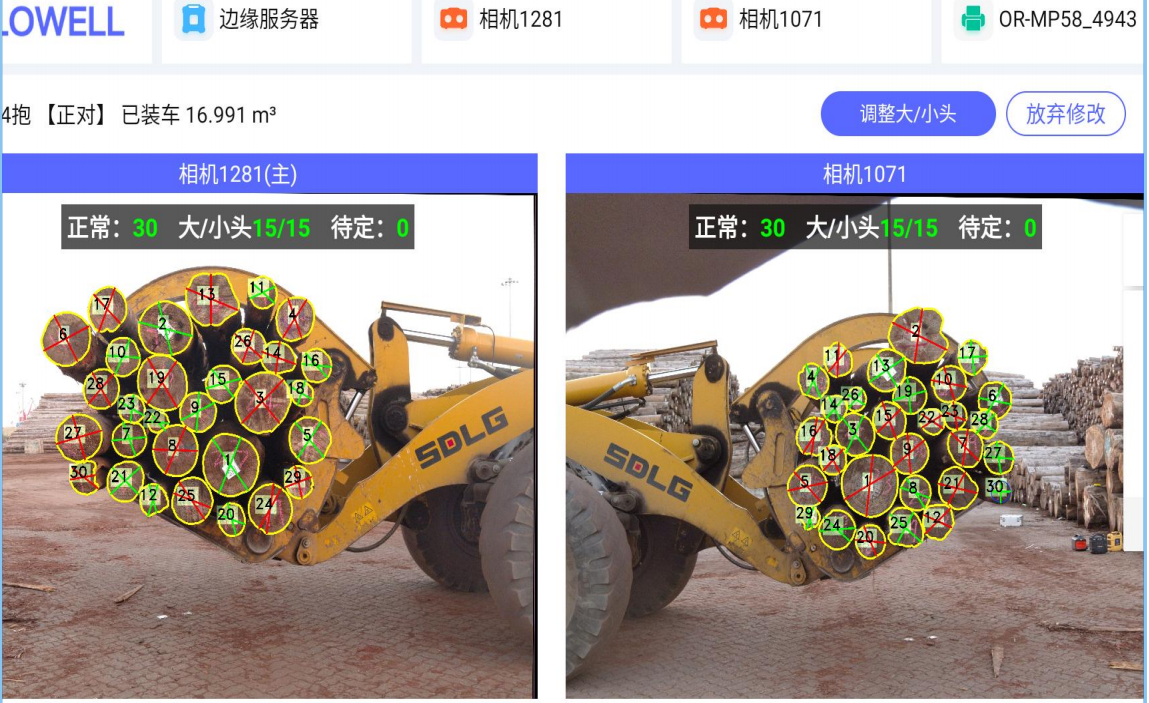

1.Take a photo of the end of the logs | 2. The AI instantly regonizes the log cross outline. | 3.After topspeed backgroud computing, the AI will instantly find the center point of logs/timer, then find the key date, such as largest diameter, shortest diameter, and get volume real time. |
|---|---|---|
 |  |  |
Work Mode

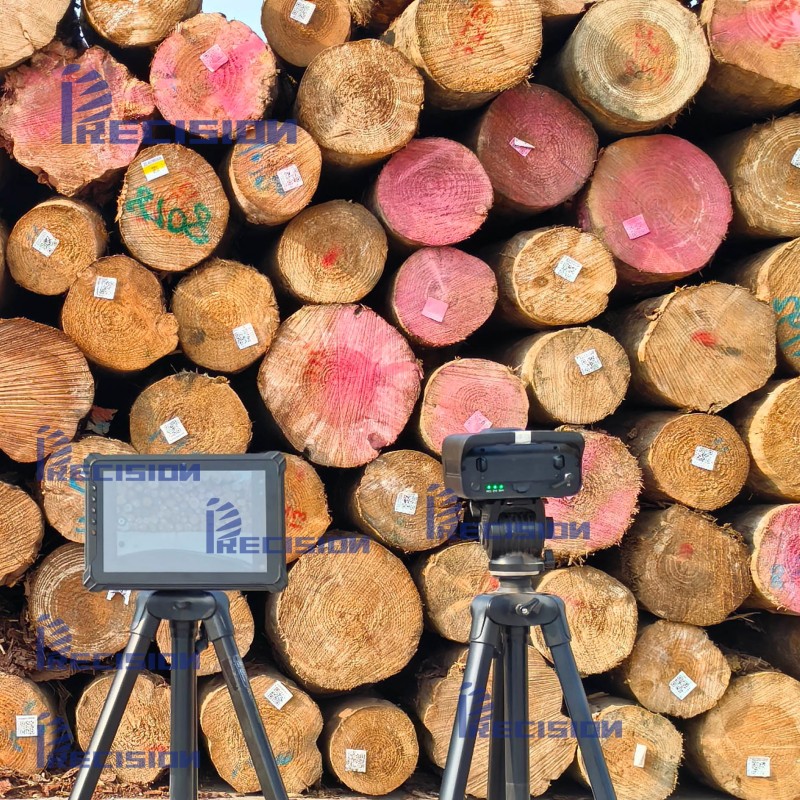

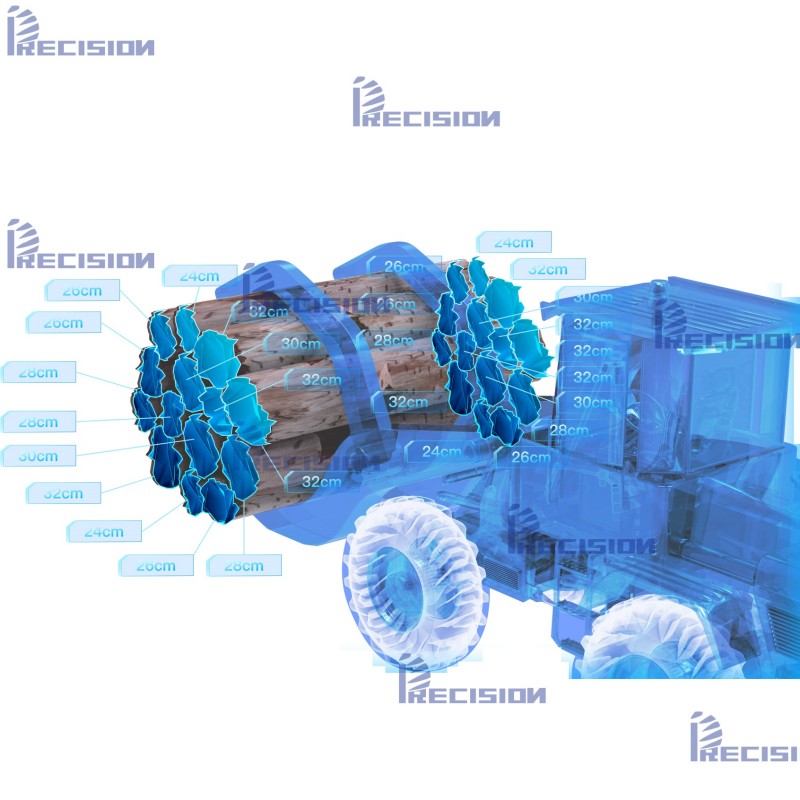

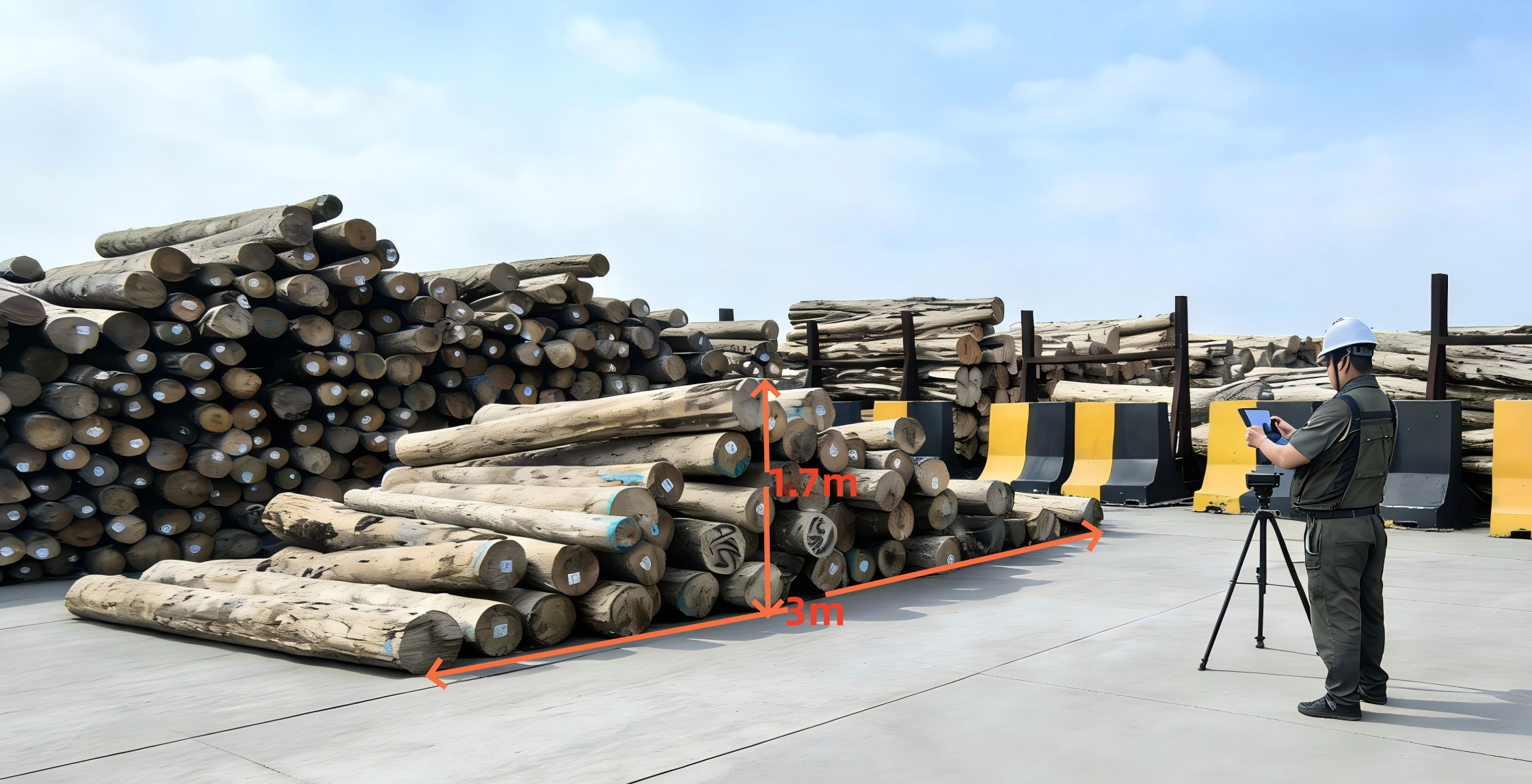

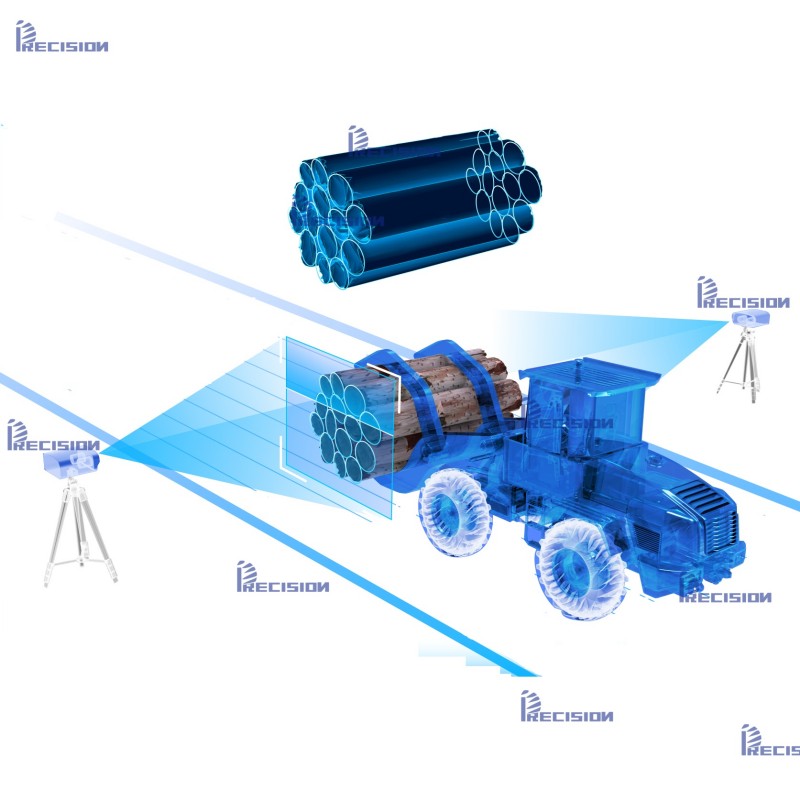

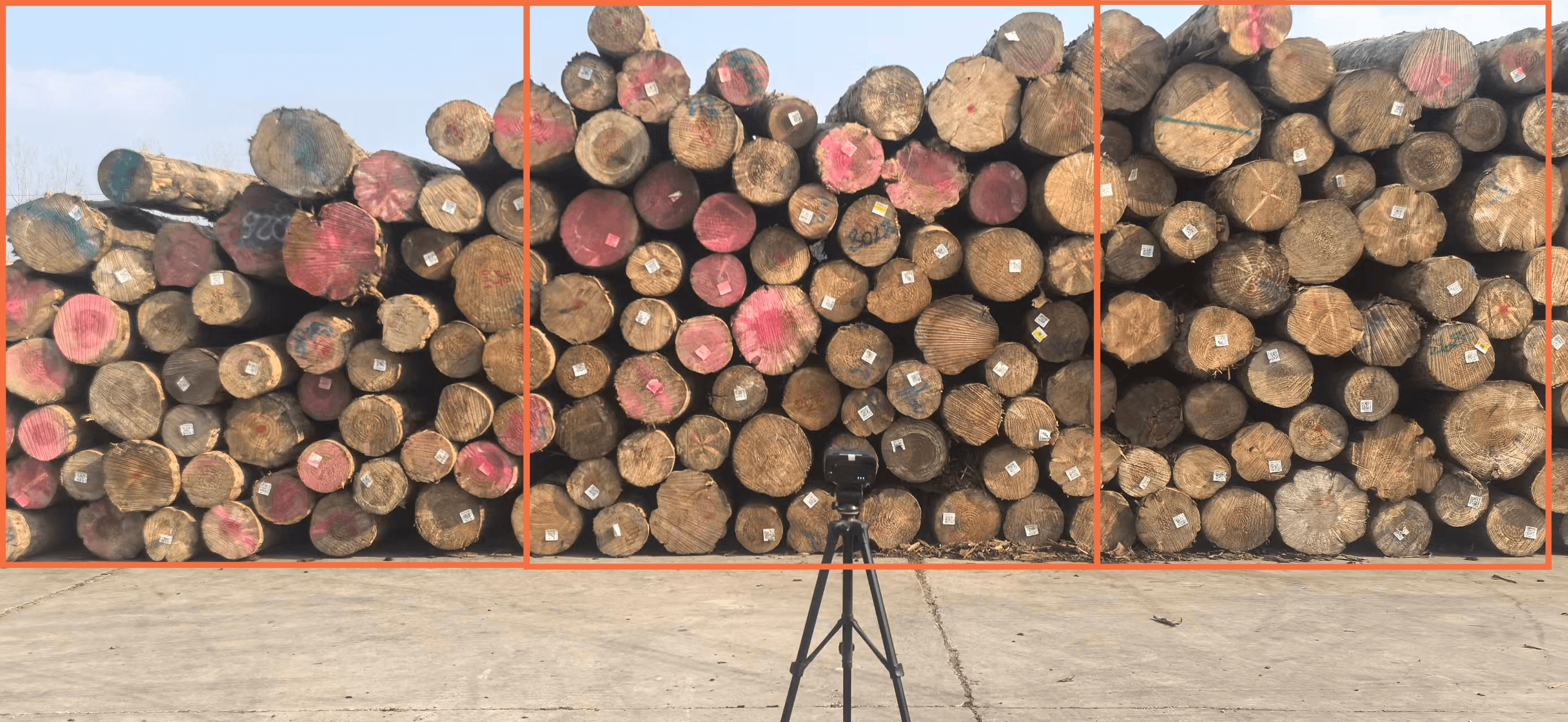

A: 2 End matching mode ( 2 camare take 2 photos, the AI will identify the larg log end and small log end it self, then calcaulte log measurement volume according small log end. * need 2 camera +1 pad * Accuracy 99.5% * when logs on Grabber | B : 1 photo mode * the logs already been arranged according the large end /small end * the log stack max 3x1.7m * need 1 camera. * Accuracy 99.5% | C : Multi photos mode * Suit for large log stacke *need take several photos * need operator identify the duplicate logs from two photos then remove it |
|---|---|---|
 |  |  |

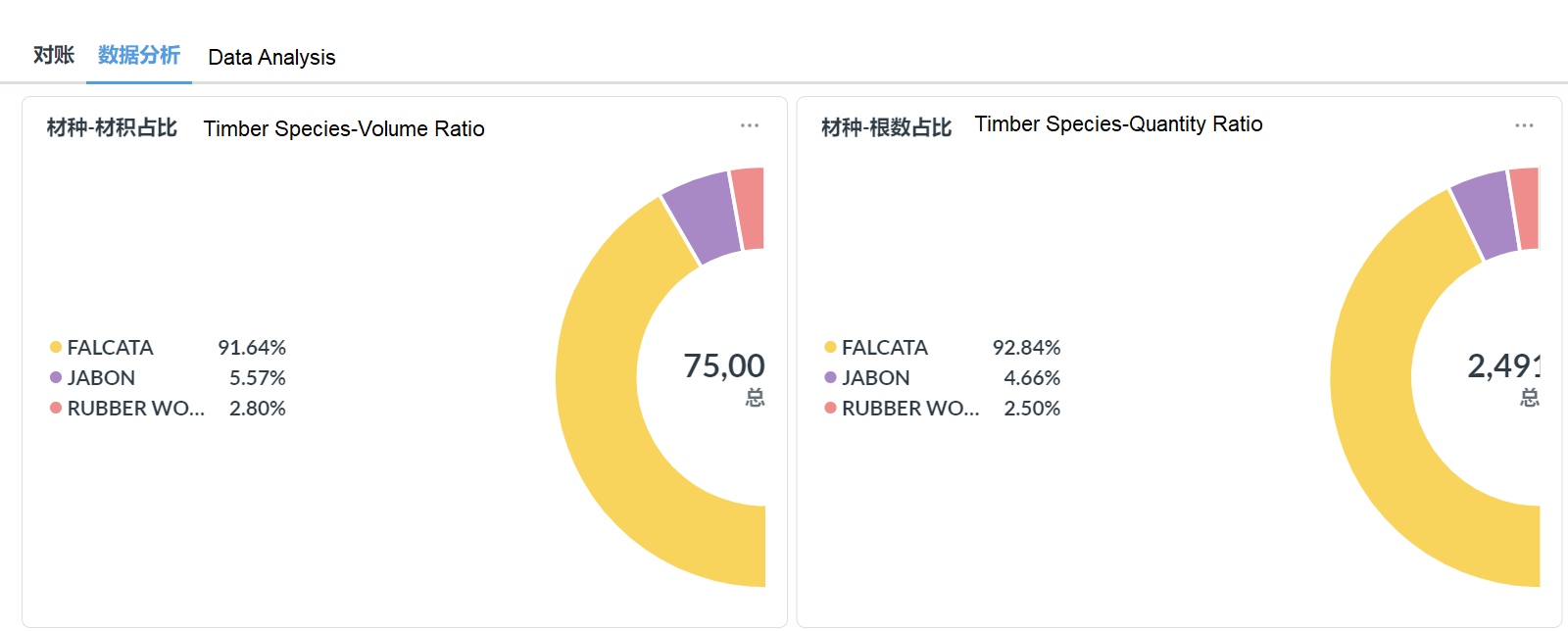

Data record and analyze

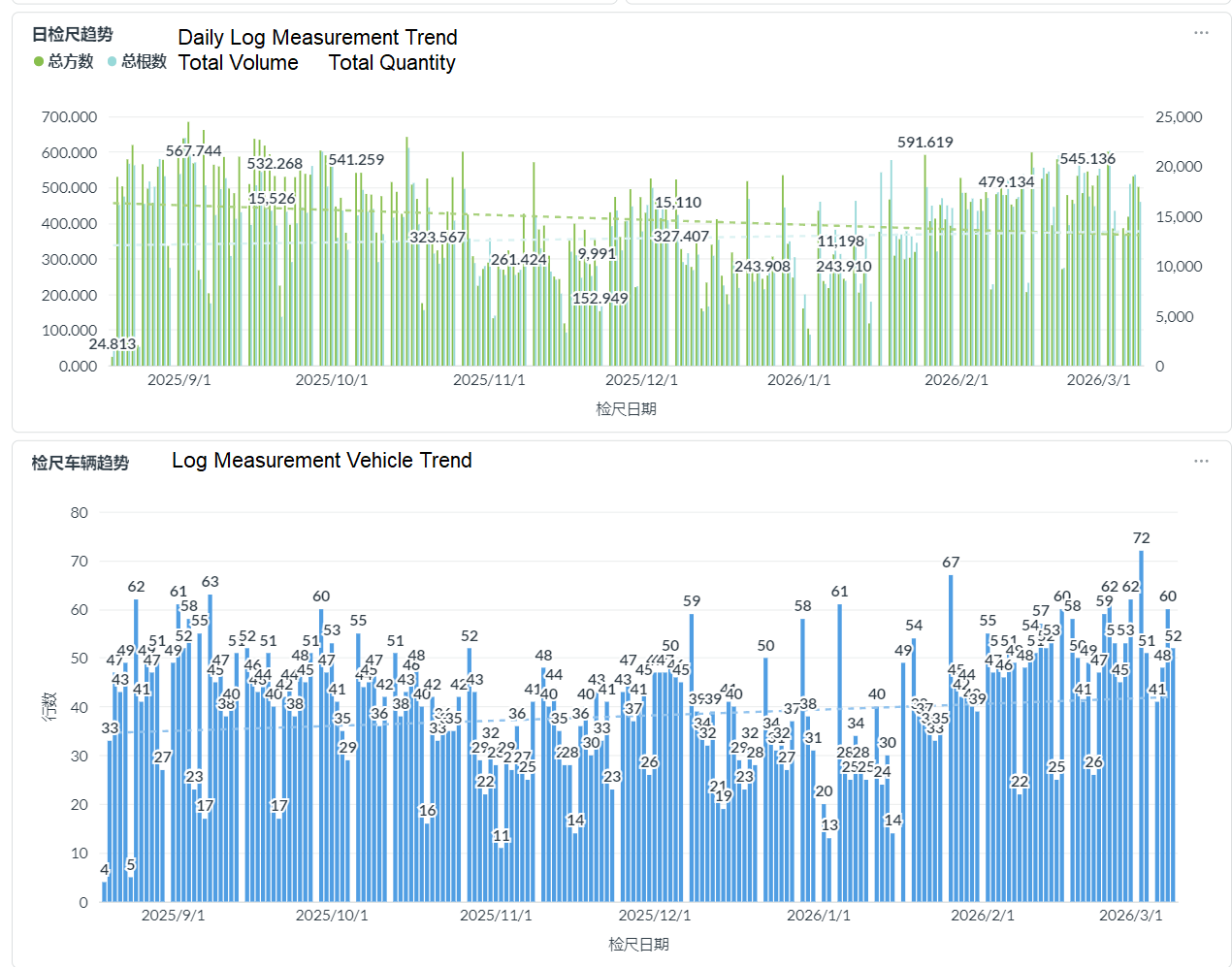

1. Log/timber reports daily ,weekly ,monthly .
2. Log timber condition are analyzed and statics , provides digital support for refind produciton
