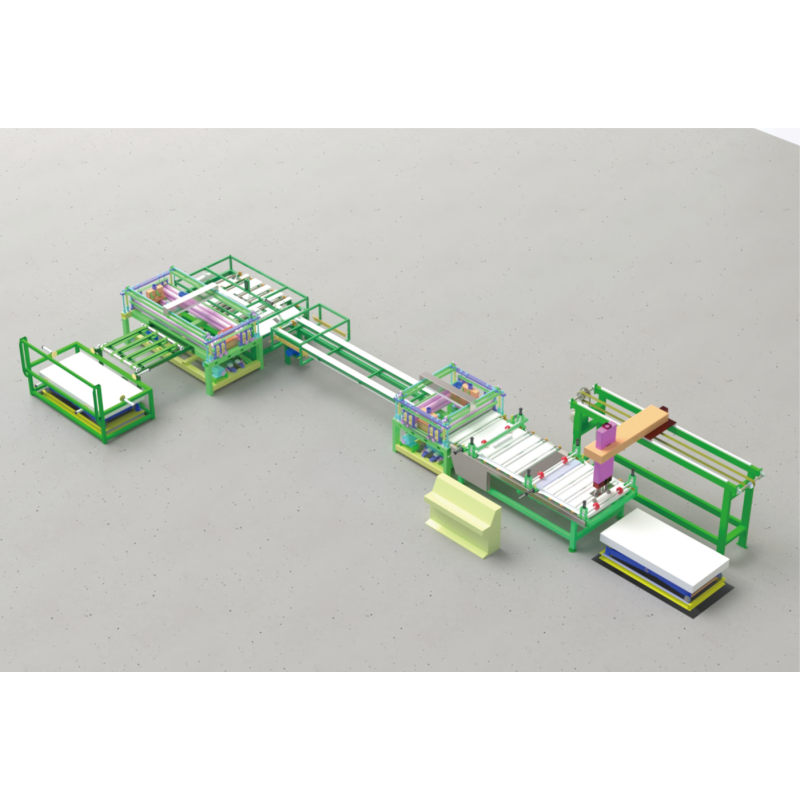

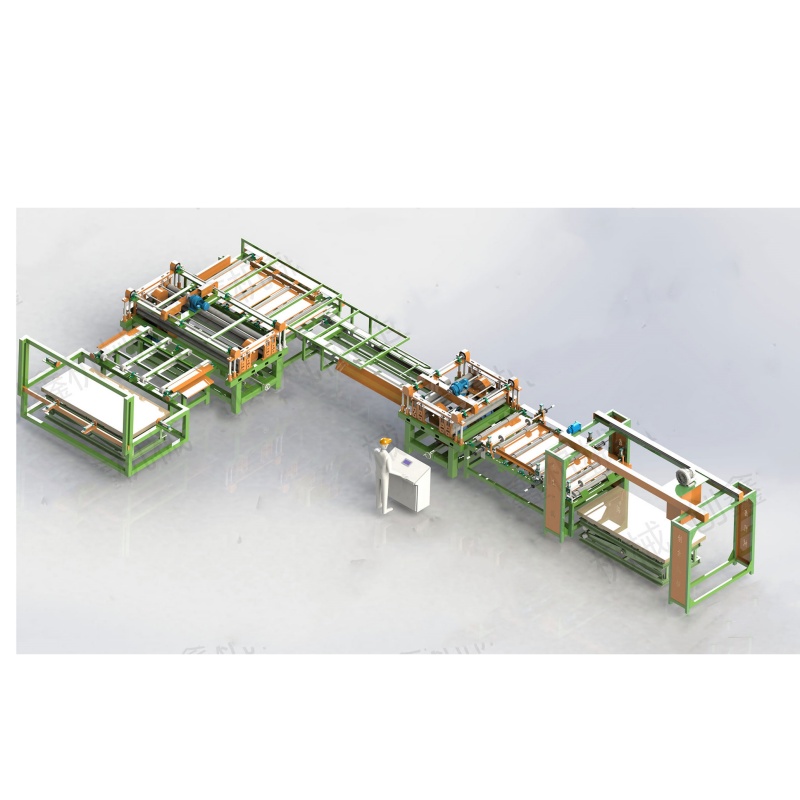

Product Introduction
Trim your panels into the final panel size with superior accuracy.
In the plywood produciton process , After the panels are unloaded from the hot press machine ,The plywood board panels reach their final dimensions when they are trimmed and cut to size., they are stacked and fed onto the trimming line. If the panels are overlaid (coated), they typically go over the trimming again before grading and packing.
Product Advantage
1. Equipped with 8 precision rolls (φ150mm) for longitudinal and cross cutting, enabling powerful, high-speed and accurate plywood feeding.
2. Air cylinder installed on the upper-feed roller to apply uniform, stable pressure on plywood for improved feeding accuracy.
3. Saw shafts run at up to 7,000 RPM for high-speed feeding; precision bearings and high-speed belts are adopted for reliable, precise operation.
4. Left and right saw shaft cases are motor-driven synchronously to adjust cutting width
Technical Parameters

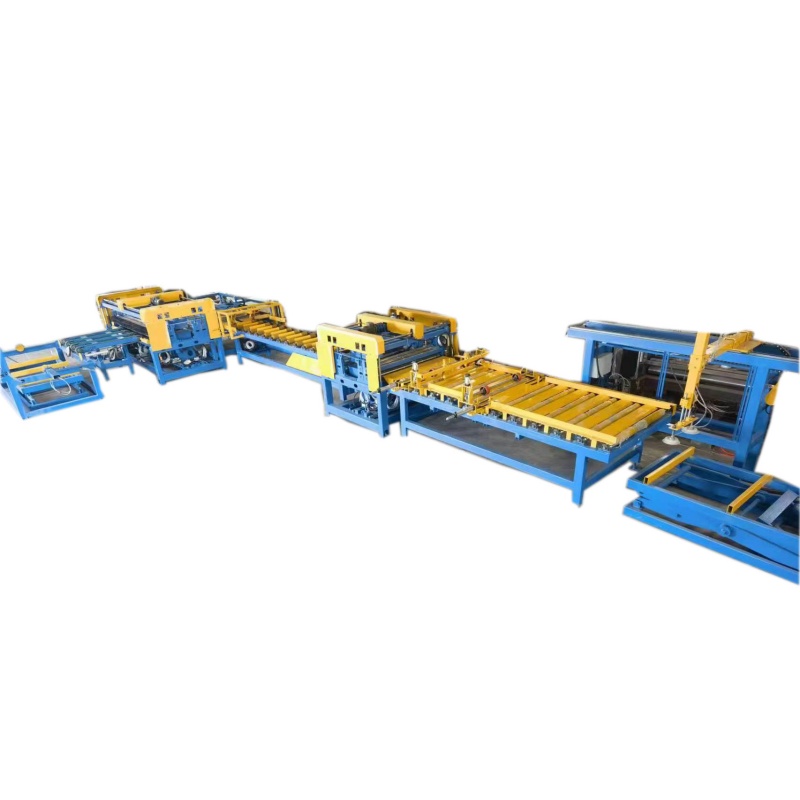

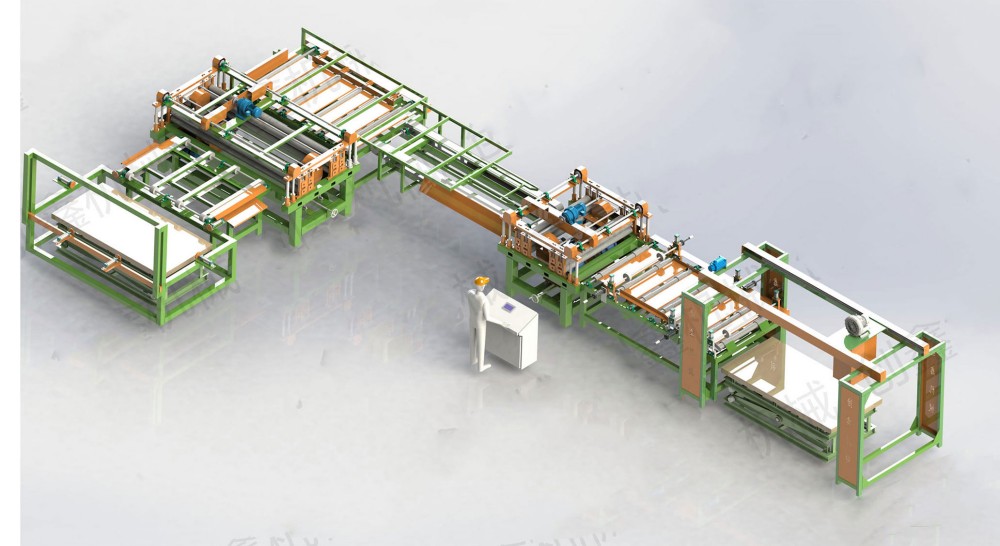

Roller type plywood trimming saw
1. Capacity : 10pc/min
2. High precision : Allowance in linear direction ≤0.3mm , Allowance in diagonal ≤1mm
Roller type wood panel four side dd trimming saw | |
Before saw panel length | 1800~3200 |
Before saw panel width | 1200-1300mm |
Finished saw size | 4x6ft , 4x8ft , 4x9ft , 4x10ft |
Wood panel thickness | 5-40mm |
Capacity | 10 pc/ min |
Allowance in linear direction | ≤0.3mm |
Allowance in diagonal | ≤1mm |
Total power | 54kw |
Auto loading system | |
Auto loading | 1.5kw + inverter Delta Sucker type |
Lifter | Work size 1200x 2400mm Lift weight ; 3 tons |
Power : 3kw | |
PLC control Auto | |
Roller conveyor | Length 4m , power :1.5kw inverter Plywood correction |
Length saw | |
Saw in length direction | 9.5kw x 2 |
Conveyor motor 2.2kw | |
Work range 1800-3200mm (PLC control Auto adjust) Big saw diameter 255mm | |
Scoring saw | 1.1kw |
Diameter 180mm | |
Work range 1800-3200mm (PLC control Auto adjust) | |
Conveyor in length direction | 2.2kw |
Length 3.5m Roller | |
Scrap collect | Air operated |
Below Conveyor | |
Width saw | |
Saw in width direction | 9.5kw x2 |
Conveyor motor 2.2kw | |
Work range 1200-1300mm PLC control Auto adjust | |
Scoring saw | 1.1kw |
Diameter 180mm | |
Work range 1200-1300mm (PLC control Auto adjust) | |
Conveyor in width direction | 2.2kw |
Length 1.5m Roller | |
Scrap collect | Air operated |
Below Conveyor | |
Auto unloading systerm | |
Lifting table | Lift weight : 3 tons 3kw x 2 |
PLC control Auto adjust | |
Auto panel correction | Four side |
Work performance

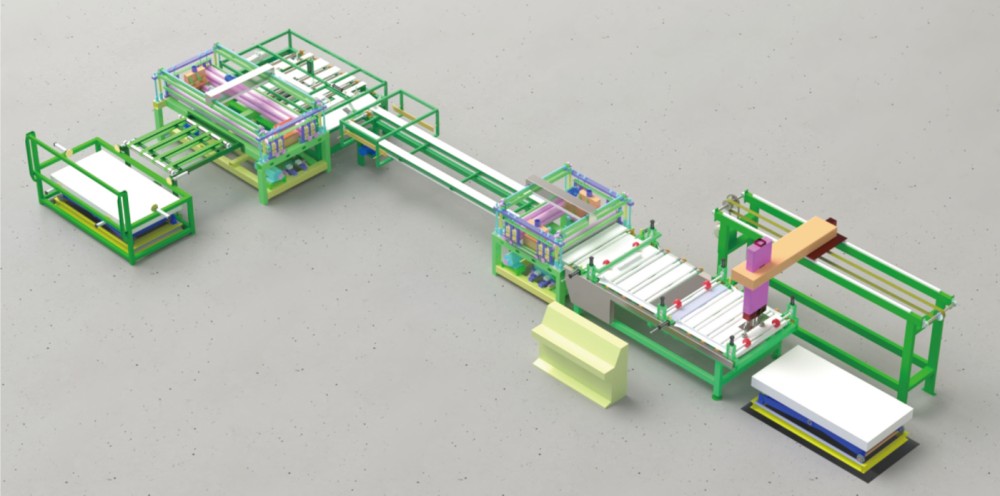

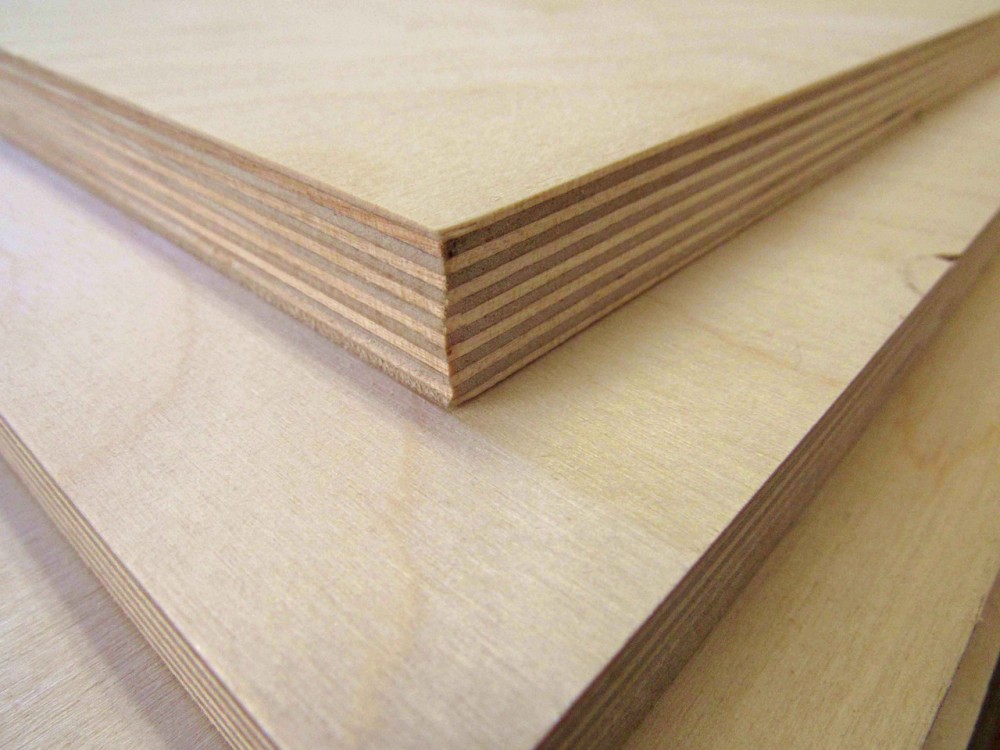

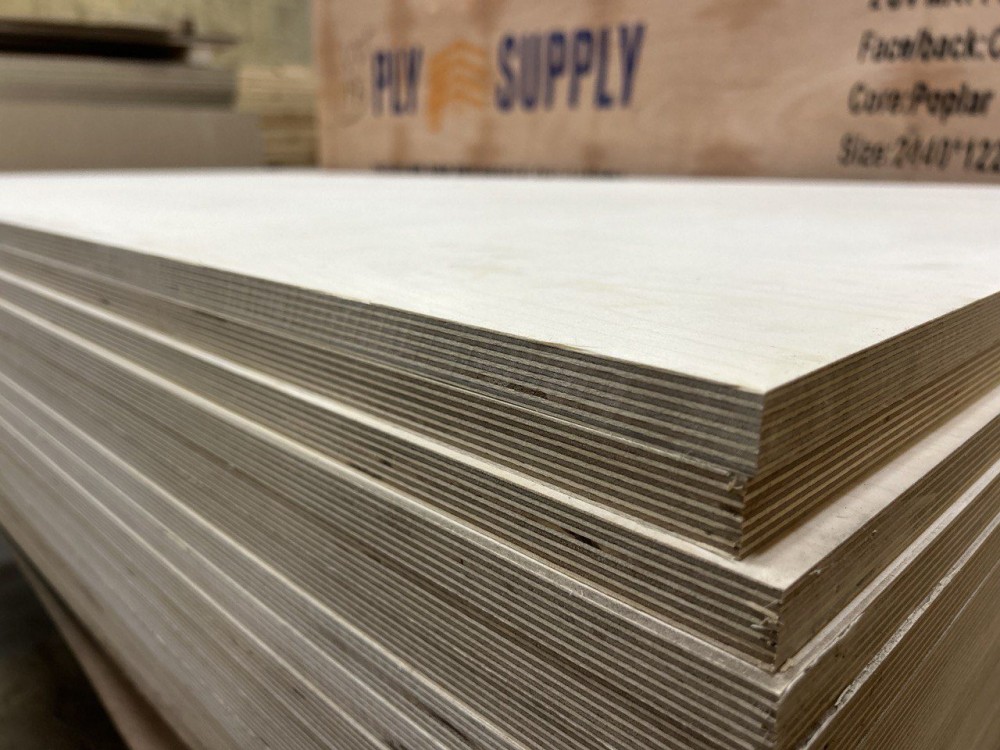

Saw shafts run at up to 7,000 RPM ，promise plywood edge are cut very clean and sharp | Automatic plywood production line with high output. Auto loading + Auto unloading , capacity 300pc per hour |
  |  |
