Product Advantage

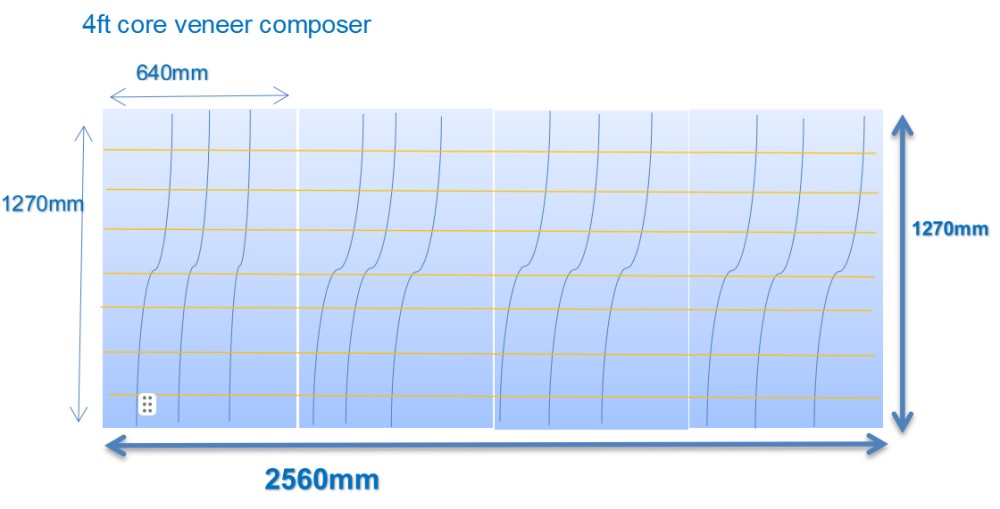

How is core veneer composing machine in China, Vietnam ? China technology : use 4ft core veneer compoer , composed 4 pc 1270mm x640mm into 1 pc full size veneer sheets 1270x2540mm. it works like short grain veneer |  |

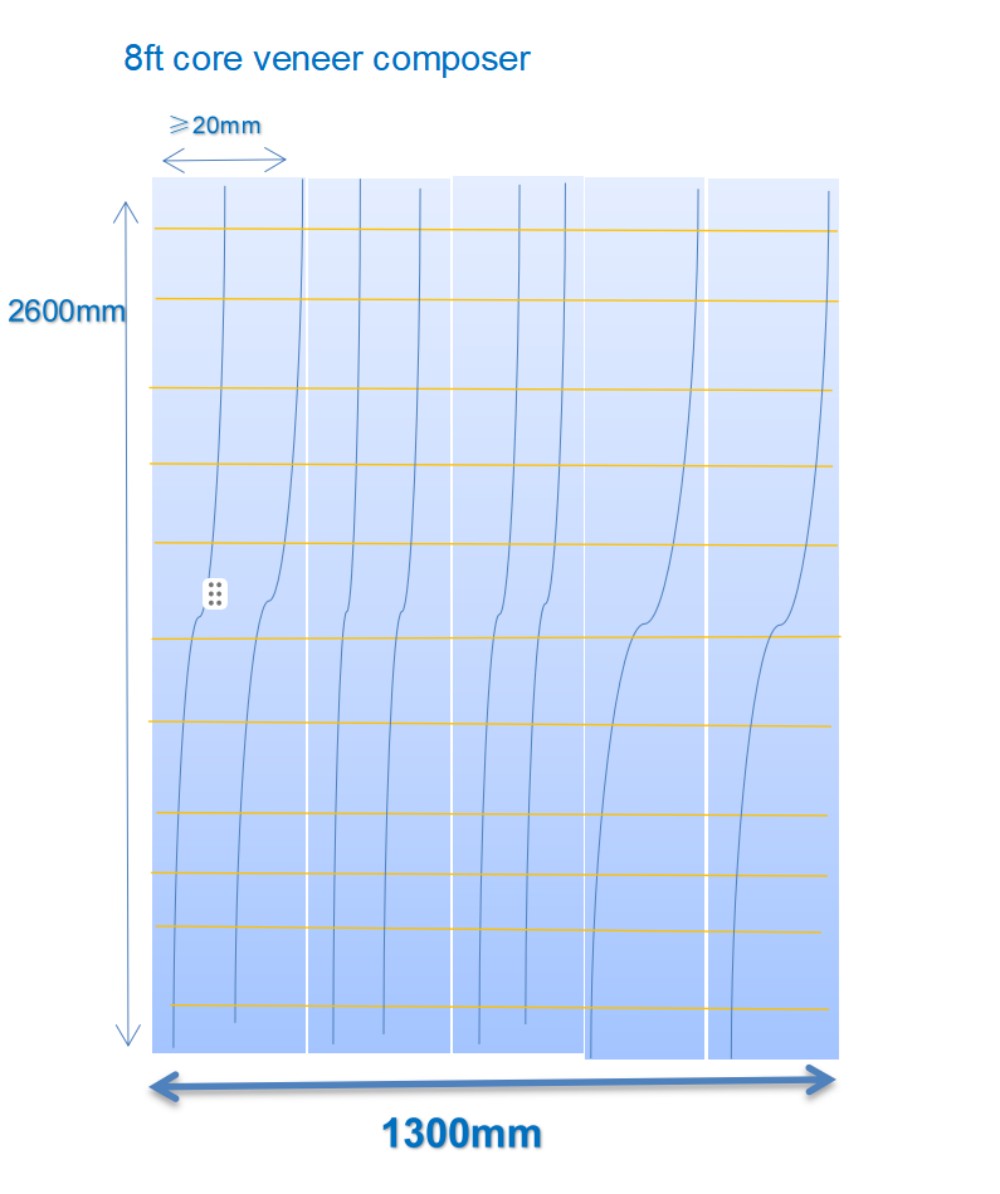

How is core veneer composing machine in Europe ,Brazil, Russia ? use a 8ft veneer comoser, joint small size veneer strips veneer pieces together into full size veneer sheets, it works like long grain veneer. |  |

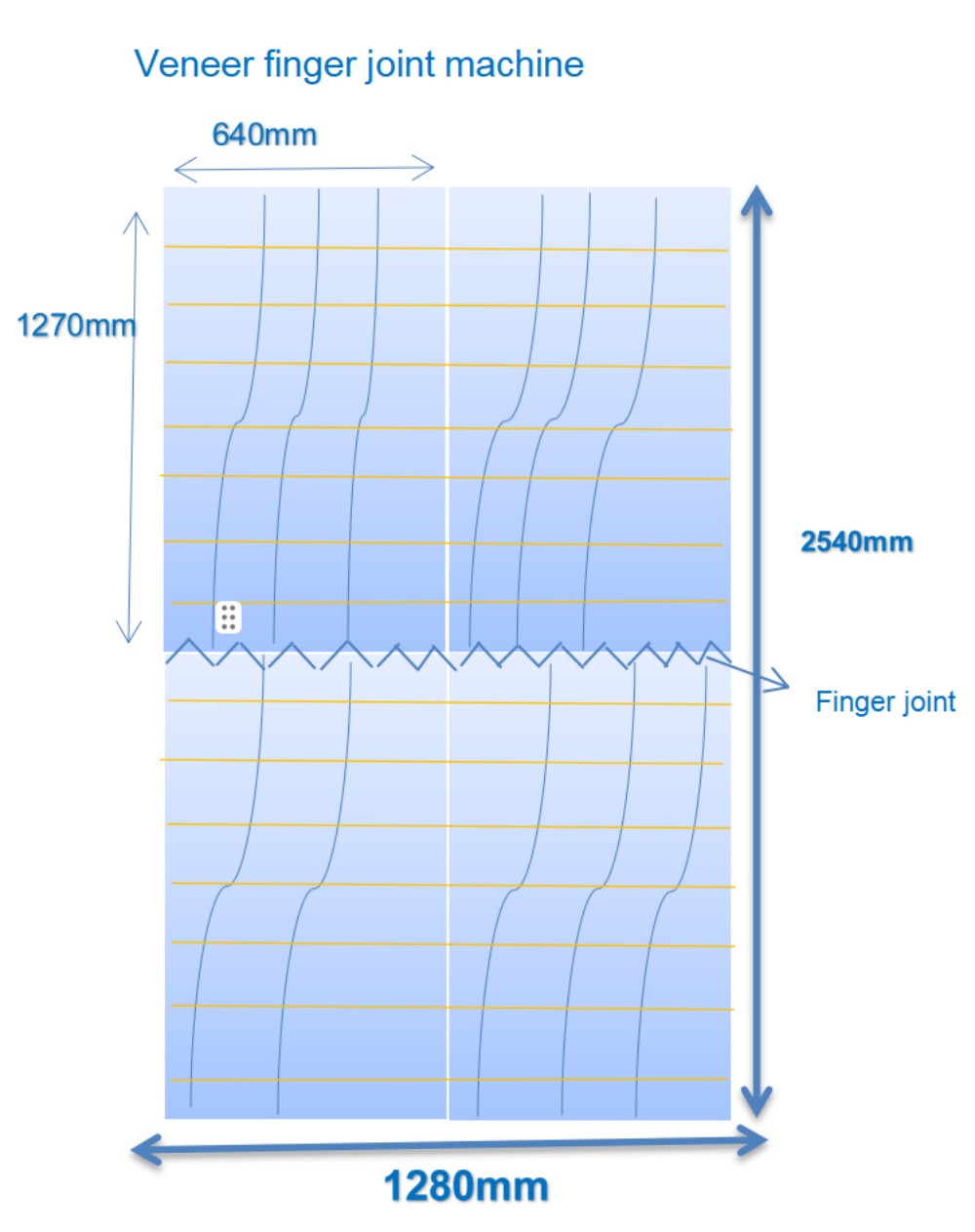

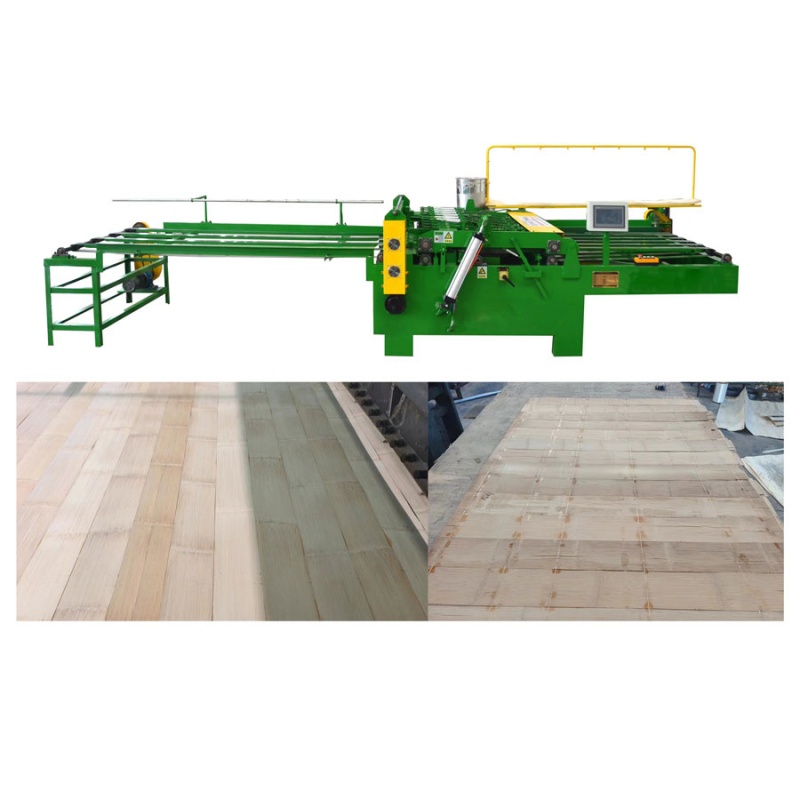

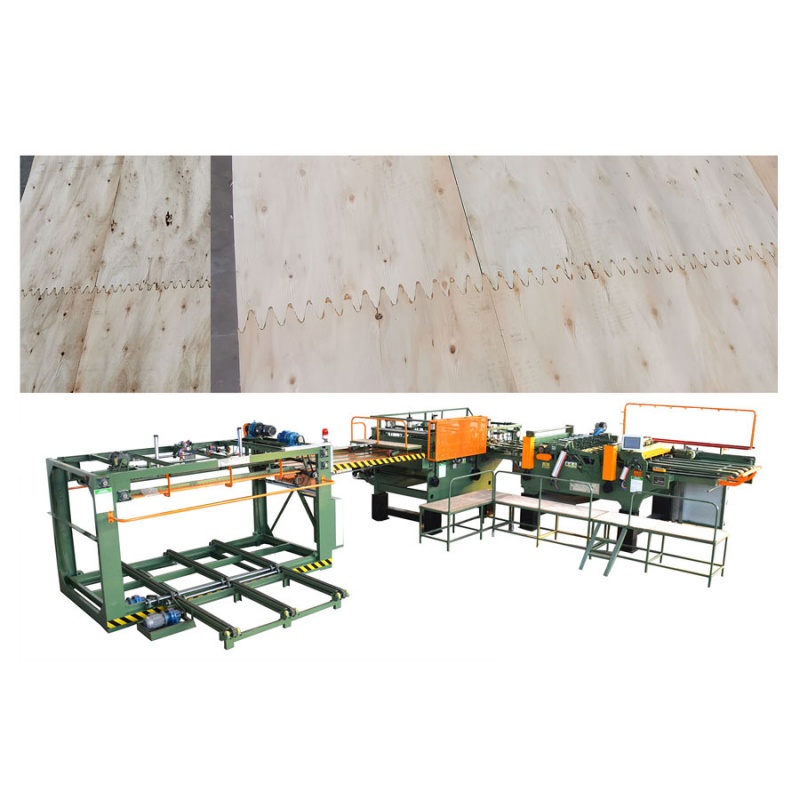

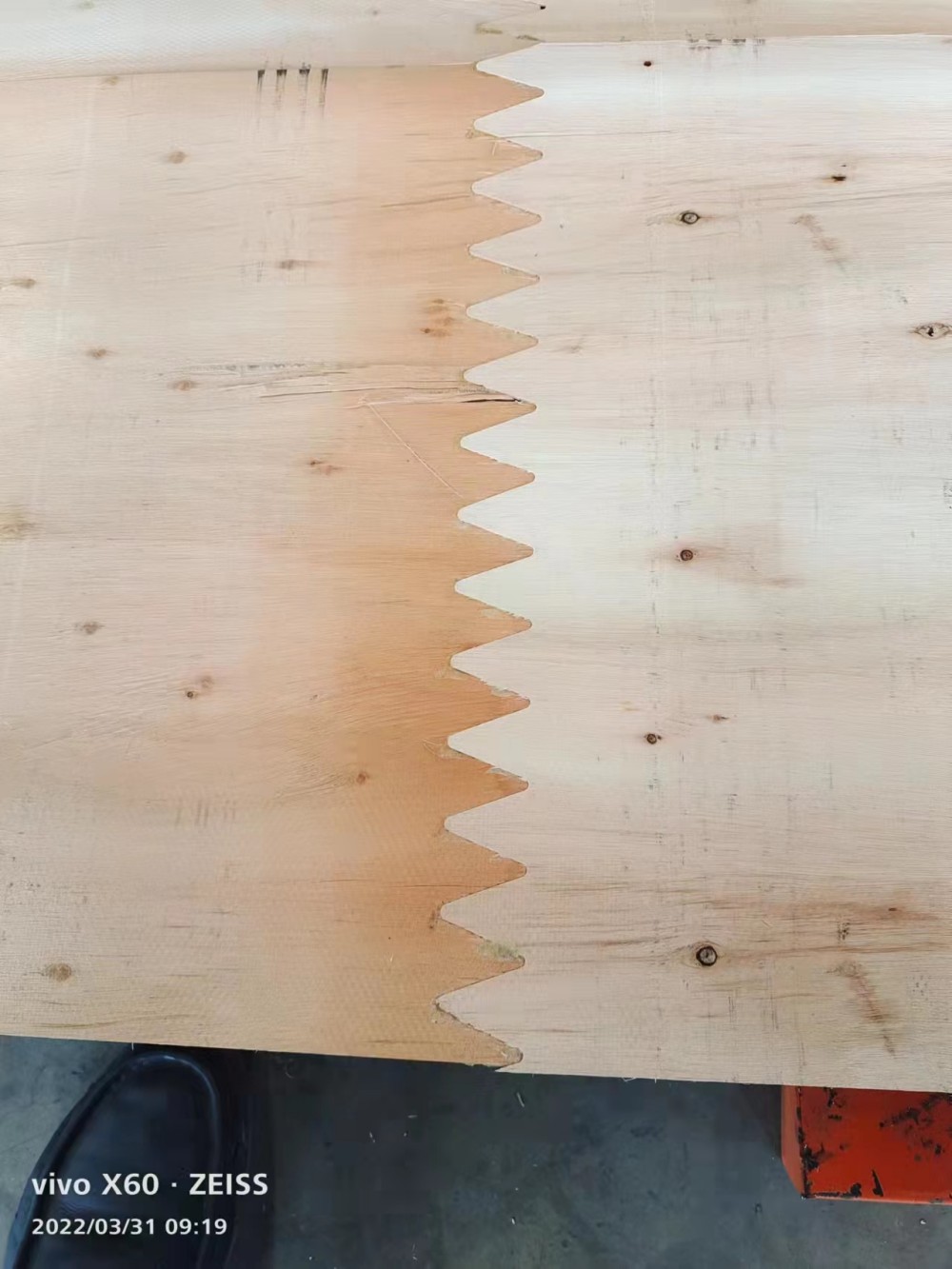

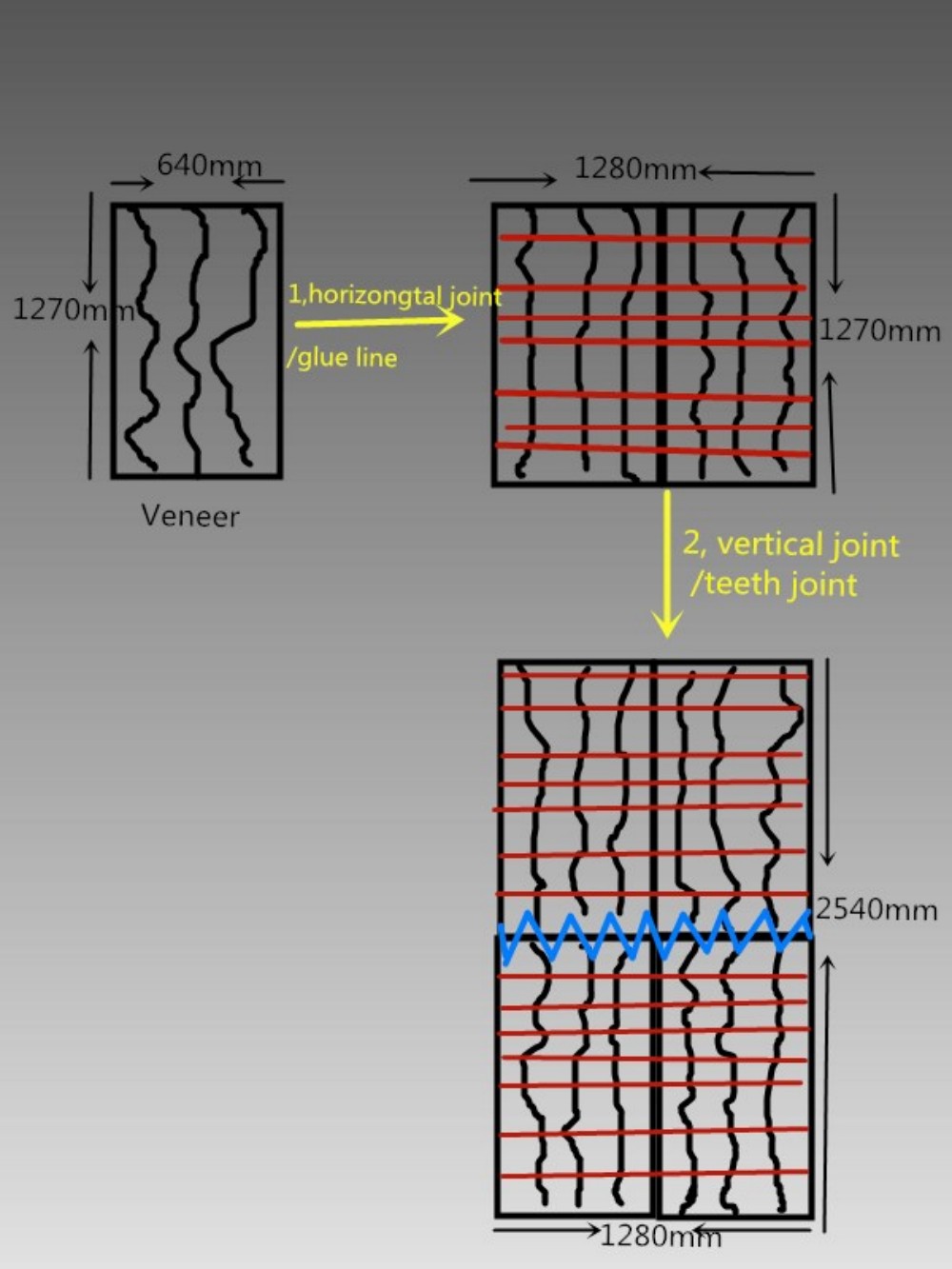

How is veneer finjer joint machine Working ? horizontal compose small size veneer. then finger joint it into a full size 2540x1280mm veneer sheets ,this sheets works like long grain veneer for plywood core sheets. |  |
Technical Parameters
Full Automatic :
From veneer 1270*640mm to 2540*1280mm
1 | Model | JLCJ001 | |
2 | Veneer input | 1270*640mm | |
3 | Veneer finished | 2540*1280mm | |
4 | Veneer thickness | 1.5-3.6mm | |
5 | Capacity | 200pcs/hour | |
6 | Operator | 1 | |
Machine specification | |||
No | Parts | Function | Motor |
1 | Horizontal joint | Veneer front cut | 3 kw , Servo |
Veneer After cut | 3 kw , Servo | ||
Front conveyor | 3 kw , Servo | ||
After conveyor | 3 kw , Servo | ||
Synchronize | 1.5 kw, servo | ||
Fan | 0.18 kw | ||
A/C | 1.1 kw | ||
Heating | 8 kw | ||
2 | Middle conveyor | 1.5 kw | |
3 | Vertical joint | Pull veneer | 1.5 kw servo |
/teeth joint | |||
Front conveyor | 2.3kw servo | ||
Teeth cut | 7.5 kw | ||
Middle conveyor | 3 kw servo | ||
After conveyor | 3 kw servo | ||
Cut | 3 kw servo | ||
4 | Veneer Stack | Pull veneer | 2.3 kw |
Lifting | 3 kw | ||
After conveyor | 1.5 kw | ||
Out conveyor | 0.75 kw | ||
5 | Control box | PLC | DELTA |
Electric | Schneider | ||
Sensors | Omron | ||
6 | Air cylinder system | Solenoid valve | Rexroth |
Air cylinder | ASK | ||
7 | Overall size : 10m×7.5m×2.5m , L shaped | ||
8 | Total power : 59.kw | ||
Product Uses
1. High accuracy work : veneer are composed in high performace and high accuracy. | 2. Suit for all species log veneer, Our core veneer composer and finger joint machine have widely selled worldwide and has rich experience, now its well suit for eucalyptus, pine, poplar, Birch veneer. veneer thickness from 1-3.6mm | 3. High capacity, 360pcs per hour |
 | |  |
