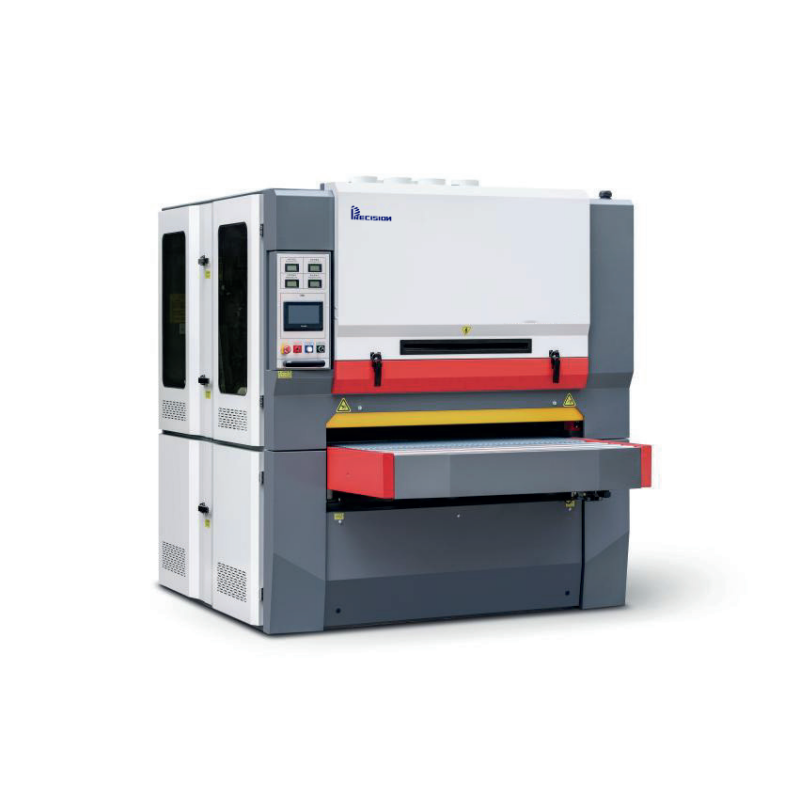

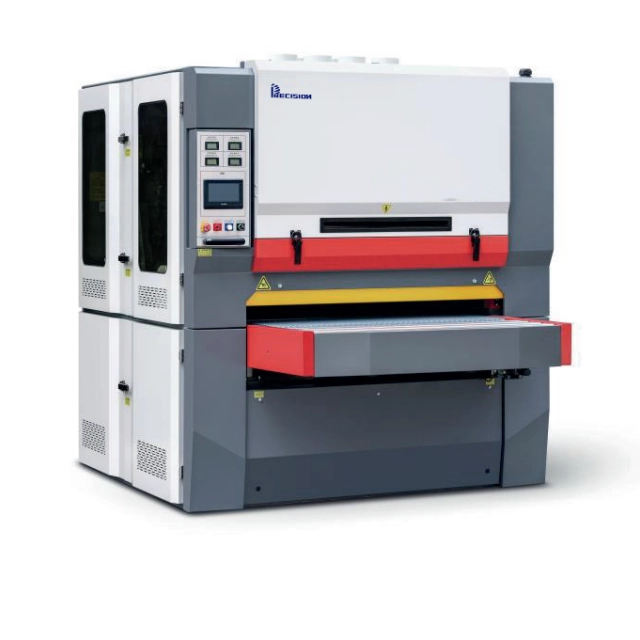

Features of the segmented pad wide belt sanding machine

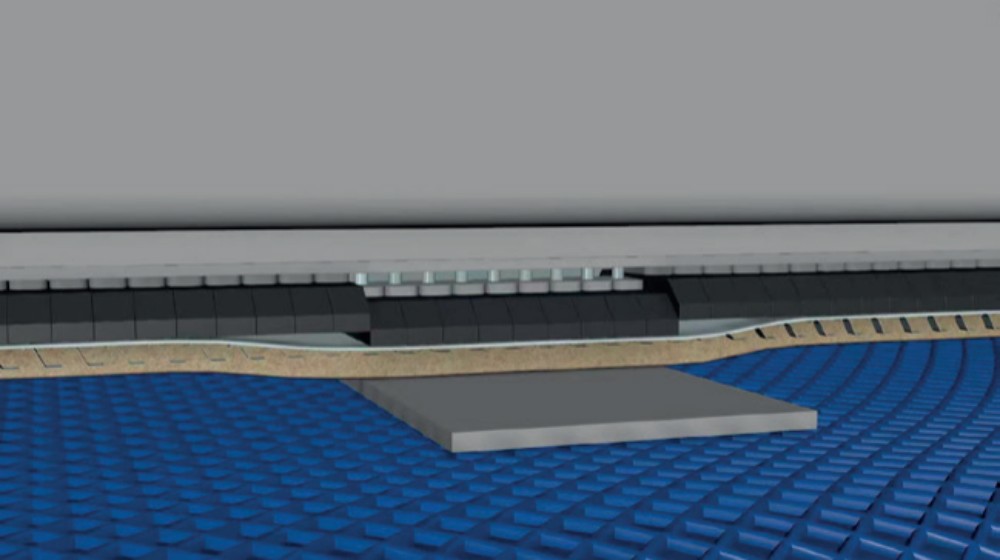

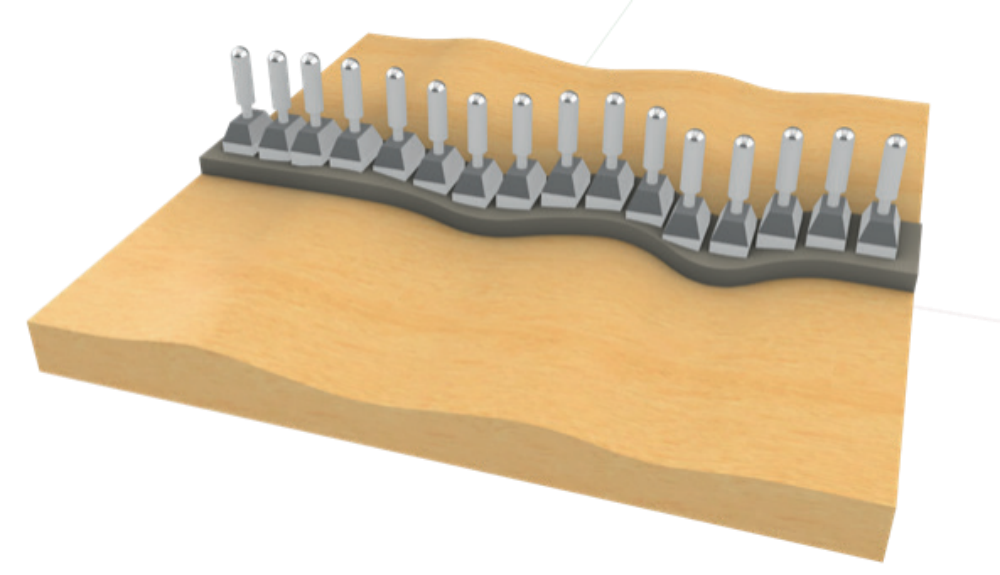

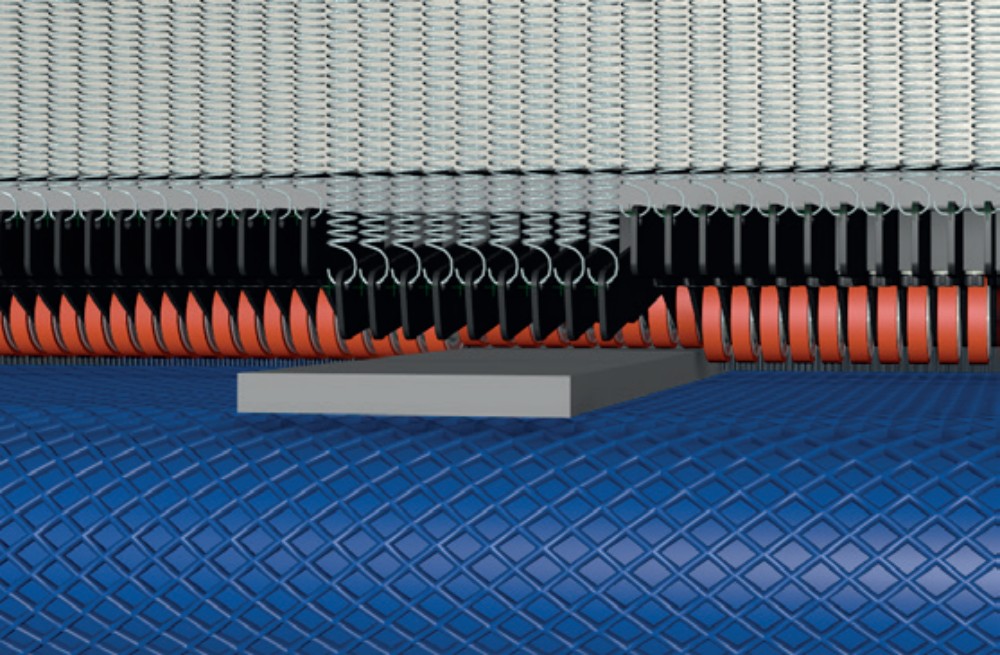

Contact sheet scanning | Electromagnetic pressure pad status |
 |   |
Advantage of the segmented pad wide belt sanding machine
Smart Edge Avoidance: Edge detection, supports customer pressure setting and controls the sanding of the edge of the plate.
Adaptive thickness leveling: According to the thickness of boards, the pressure will automatically decrease or increase, so that the pressure of the sanding belt on the board surface is uniform, and the same amount of sanding is realized. Micron-Level Thickness Control:Servo motor-driven floating platform with ±0.01mm positioning accuracy. Inverter controlled Sanding belt speed and feeding speed, adapts to diverse process requirements.
Touch screen operating system and formula:
(1) Man-machine text interface, with animation display, bitmap, text indication, sanding parameters directly written, no need to adjust the system. For different sanding workpieces and processes, the relevant technical engineers adjust the sanding process "formula", input the sander touch screen formula parameters, to meet the different sanding requirements.
(2) Memory Storage,One button starting; (3) Qty of Formulas: more than 200pcs Standardized data docking: support all automatic communication protocols such as MC, Profinet and Modbus-TCP protocols, and seamlessly connect with the whole line and MES system.
IoT remote O&M: supports remote monitoring, debugging, and maintenance.
High-precision scanning compensation: 88 pcs of sensors scanning (15mm resolution), real-time tracking error and automatic compensation.
High-pressure non-contact dust removal: 40:1 compression ratio tornado dust removal, 4.0 bar purge to eliminate residual dust.
Vacuum adsorption: independent high-pressure fan, strong adsorption of deformed plates, and prevent displacement and offset.
Technical Parameters

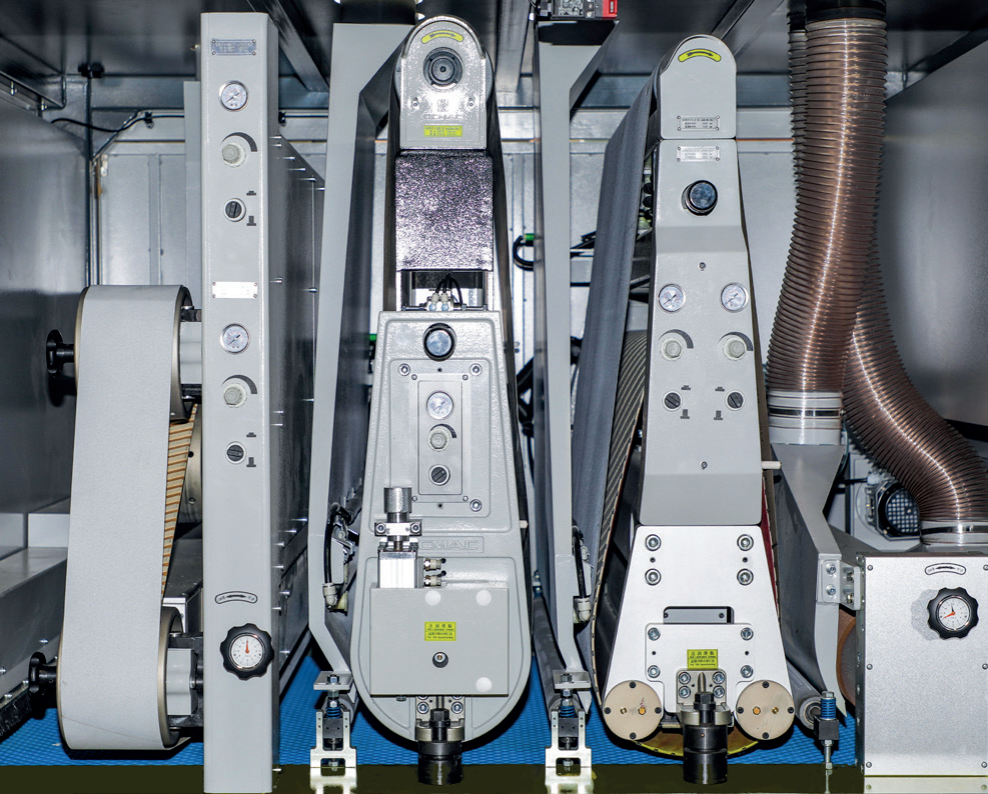

Configuration |  |  |

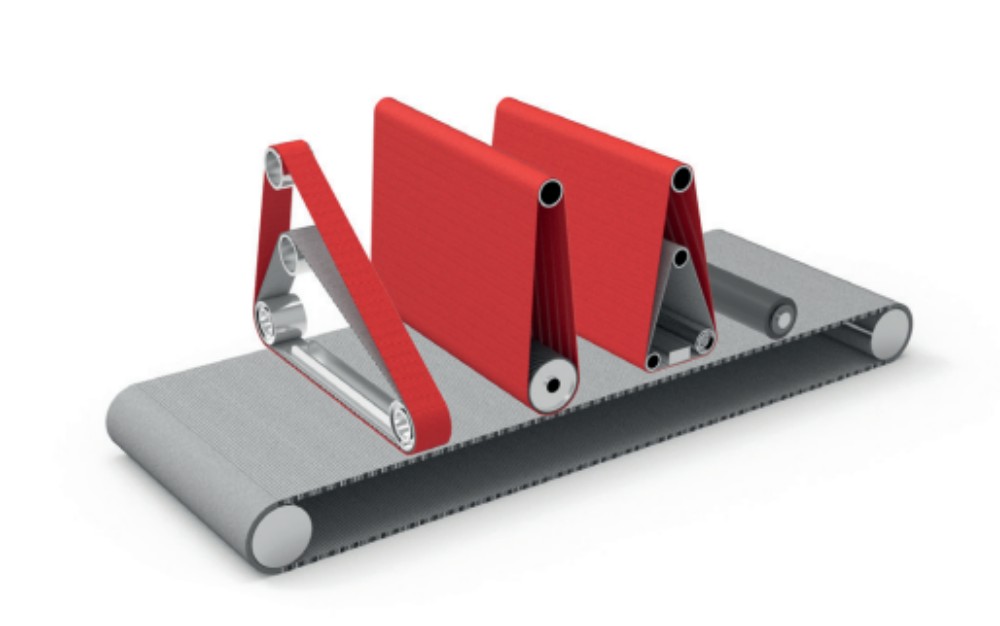

Diagram |  |  |
Model | PRS1300B-2 | PRS1300B-3 |
working width | 60-1300mm | 60-1300mm |
working thickness | 3-110mm | 3-110mm |
Working length | ≥300mm | ≥300mm |
No.1Abrasive belt speed | 20m/s | 20m/s |
No.2 Abrasive belt speed | 18m/s | 18m/s |
Feeding speed | 6-30m/min | 6-30m/min |
Size of abrasive belt | 150 x 4500mm | 150 x 4500mm |
1330 x 2620mm | 1330 x 2620mm | |
power | 11kw；15kw；15kw | 11kw；15kw；15kw |
Working air pressure | 0.55mpa | 0.55mpa |
Volume of sucked air | 130000m³/h | 130000m³/h |
Speed of sucked air | 25-30m/s | 25-30m/s |
Overall size | 3850 x 2250 x 2416mm | 3850 x 2250 x 2416mm |
Net weight | 7600kg | 7600kg |
Product Uses
2+2+2 | 4+2 |
  |   |
